Customization: Available
After-sales Service: Local Service
Warranty: 2 Years
Send Inquiry

Product Description

Basic Information
Model NO.
CQD16L
Type
Reach Forklift
Power
AC Motor
Load Capacity
1.6t
Fuel
Electric
Lift height
2700-8000mm
Battery
48V/360ah (Li-ion)
Turning Radius
1770mm
Product Description

New EPS 1600kg 1.6 Ton Heavy Duty Electric High Reach Forklift Truck

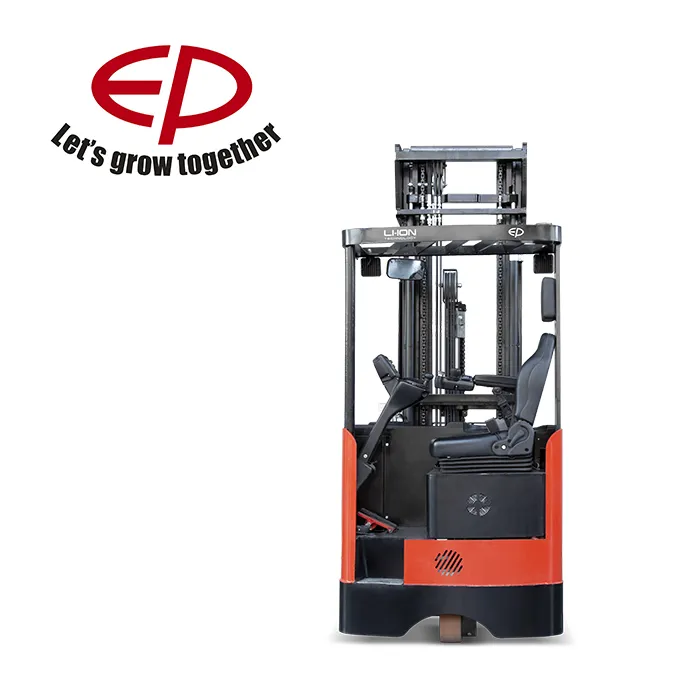

Electric Reach Forklift 1

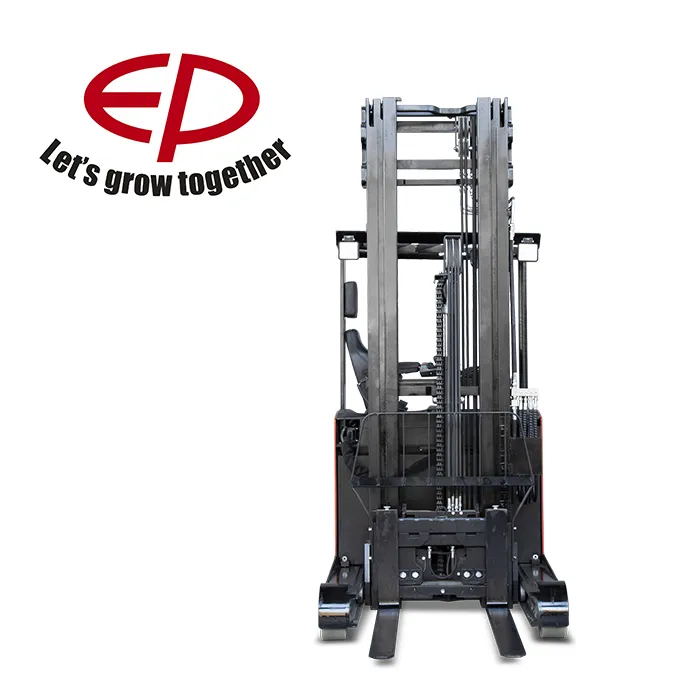

Electric Reach Forklift 2

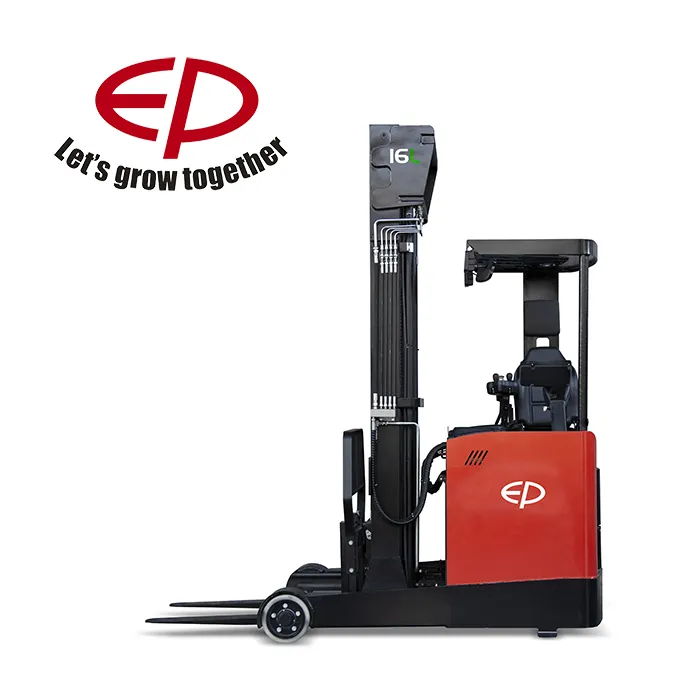

Electric Reach Forklift 3
1
Optimal Visibility: CQD16L stacking visibility and operation flexibility are greatly improved.
2
Lithium-ion Technology: Powered by a maintenance-free 48V/360Ah Li-ion battery for continuous performance.
3
Enjoyable Lifting Operations: Technology boosts stacking efficiency by 50%, reduces noise by 10 dB, and consumption by 30%.
4
High Stability: Low center of gravity and newly-beam mast design enhance the truck stability.
5
Electric Power Steering (EPS): Full AC motors and EPS system consume less power, providing longer working hours.
6
Full-color Display: Easily monitor battery level, driving speed, and check error codes.
7
6000K LED Light: Equipped with powerful LED lights for dark environments and optimal visibility.
Technical Specifications
Parameter Designation Sign Value (CQD16L)
Rated capacity (kg)Q1600
Load center distance (mm)c600
Wheelbase (mm)y1474
Self weight (include battery) (kg)-2840
Height, mast lowered (mm)h12780
Lift height (mm)h36500
Overall length (mm)l12434
Turning radius (mm)Wa1720
Travel speed, laden/unladen (km/h)-9/9.3
Battery voltage/nominal capacity (V/Ah)-48/360

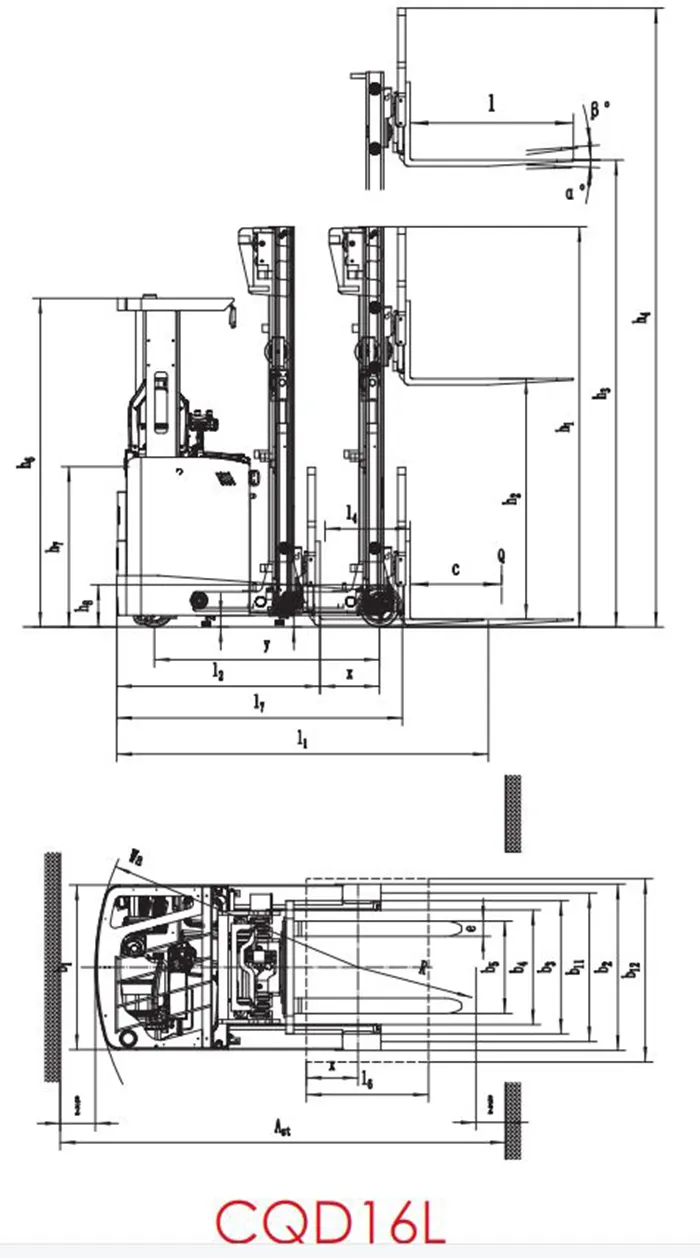

Technical Drawing

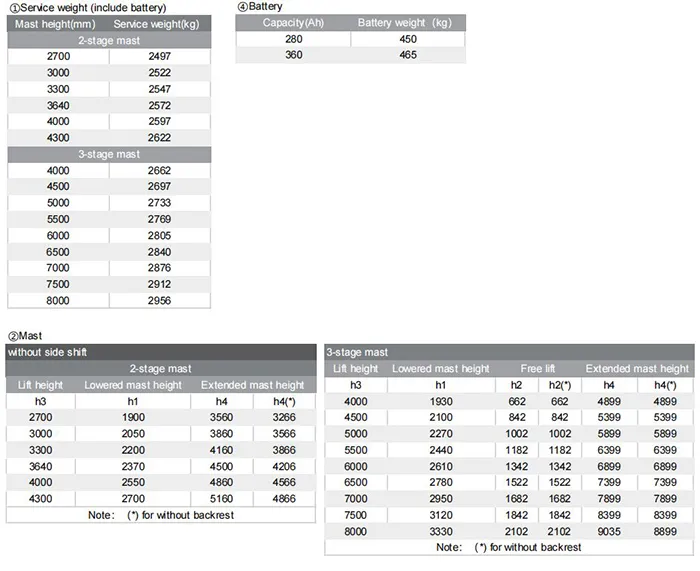

Mast & Options
Mast Option 1

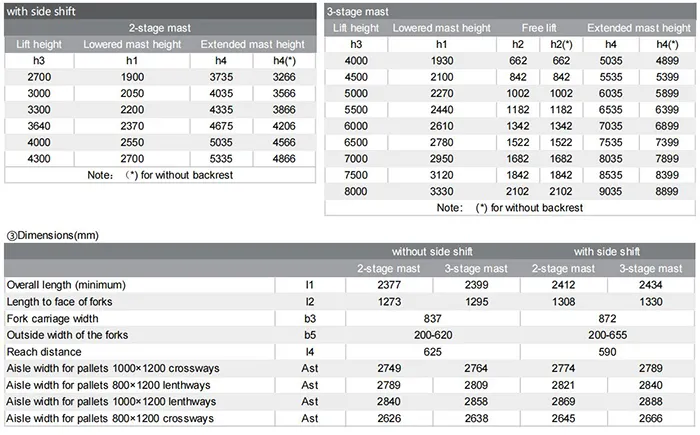

Mast Option 2

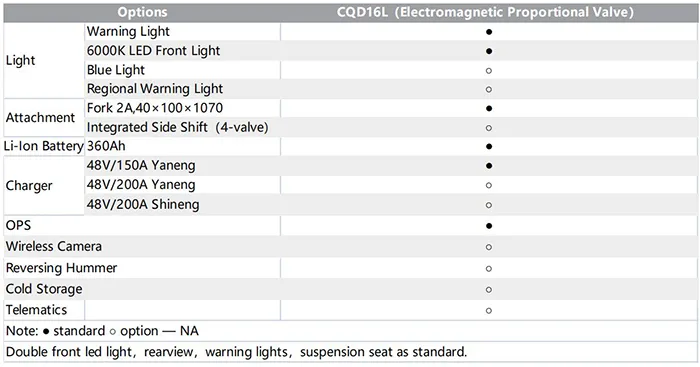

Available Options:

Product Options
Export Showcase

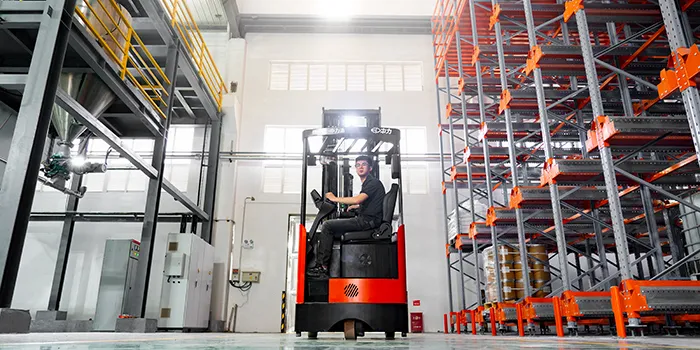

Export Shot 1

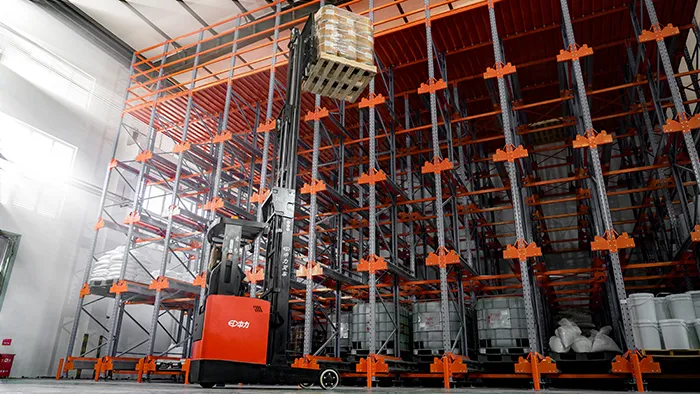

Export Shot 2
Frequently Asked Questions
Q1: What is the maximum load capacity of the CQD16L? A1: The CQD16L has a rated load capacity of 1.6 tons (1600kg), designed for heavy-duty warehouse material handling.
Q2: What type of battery technology does this reach truck use? A2: It is equipped with advanced Lithium-ion technology, featuring a maintenance-free 48V/360Ah battery for high efficiency.
Q3: How does the Electric Power Steering (EPS) benefit the operator? A3: The EPS system allows for smoother maneuverability and consumes significantly less power compared to traditional hydraulic steering systems.
Q4: Can the lift height be customized? A4: Yes, the CQD16L offers a wide range of lift heights, typically ranging from 2700mm up to 8000mm depending on the mast configuration.
Q5: Is this forklift suitable for dark warehouse environments? A5: Absolutely. It comes standard with 6000K LED lights to ensure optimal visibility and safety in dimly lit areas.
Q6: What is the benefit of the AC motor system? A6: The full AC motor system provides high performance with lower energy consumption and reduced maintenance requirements.
