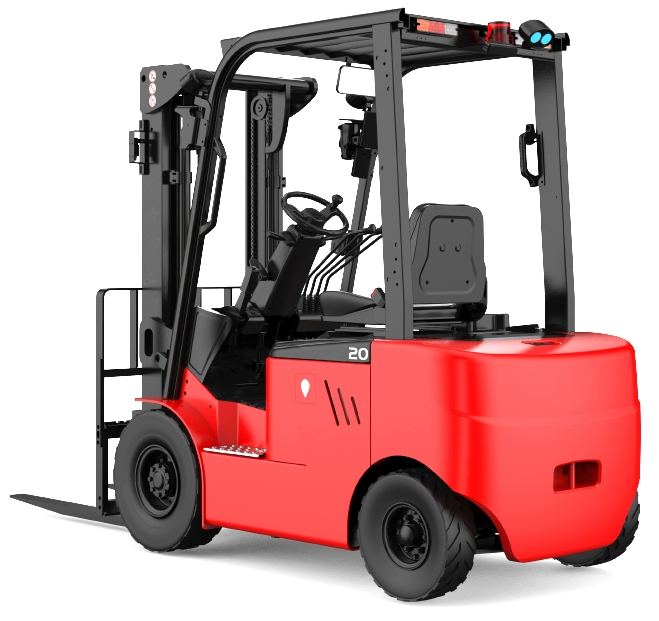

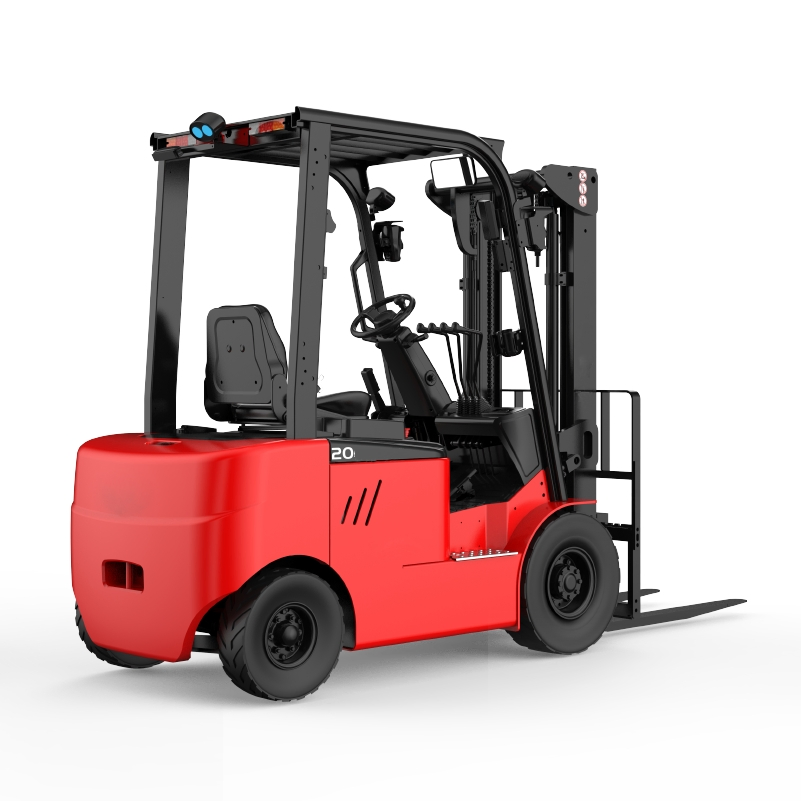

The EFL201 is a high-performance 4-wheel lithium counterbalance forklift truck with a load capacity of 2000kg. This model integrates an 80V lithium battery with a robust structure, providing high availability and efficiency for daily heavy-duty operations.

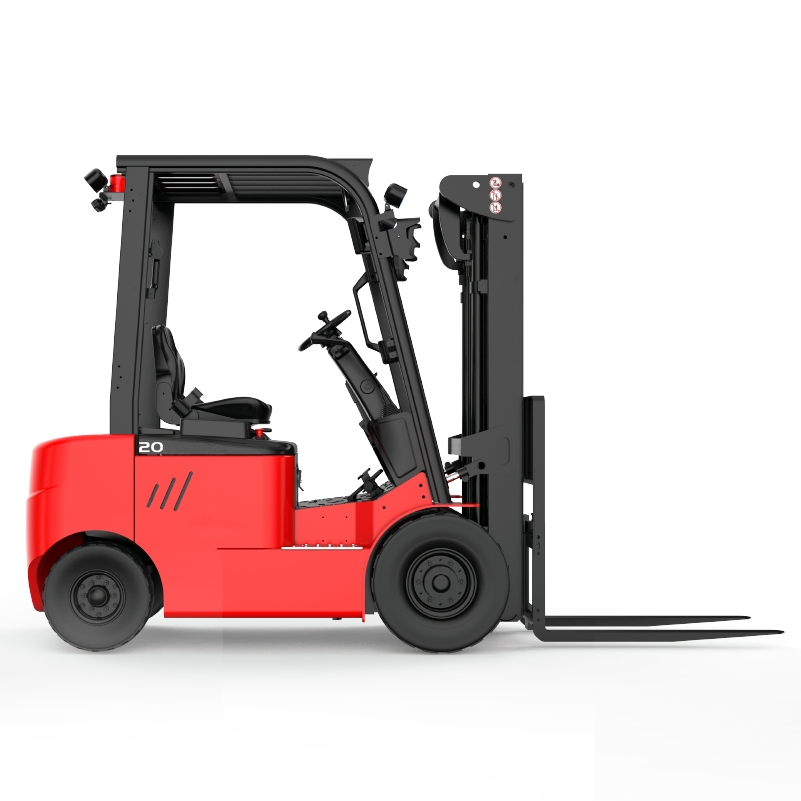

Right View
Left View

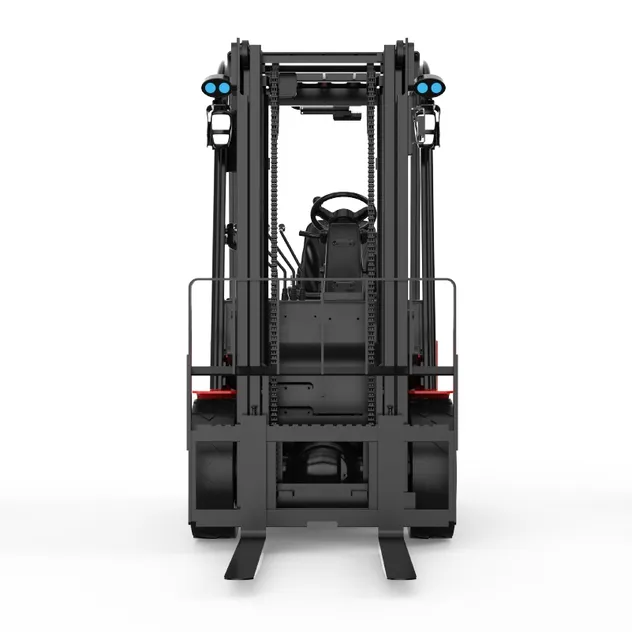

Front View

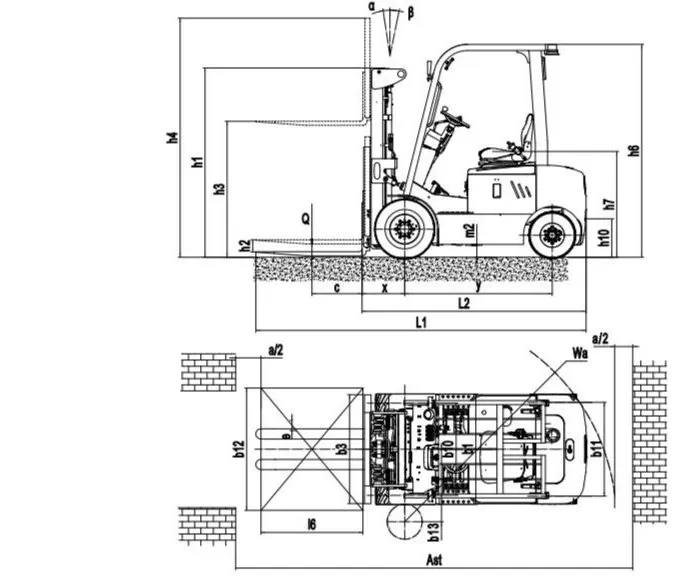

| No. | Description | Unit | Specification |
|---|---|---|---|
| 1.2 | Model | - | EFL201 |
| 1.3 | Drive | - | Electric |
| 1.5 | Load Capacity | Q (kg) | 2000 |
| 1.6 | Load Center Distance | c (mm) | 500 |
| 2.1 | Service Weight | kg | 2940 |
| 3.1 | Tyre Type | - | Solid/Rubber |
| 4.4 | Lift Height | h3 (mm) | 3000 |
| 4.7 | Height of Overhead Guard | h6 (mm) | 2080 |
| 4.35 | Turning Radius | Wa (mm) | 2078 |
| 5.1 | Travel Speed (Laden/Unladen) | km/h | 11/14 |

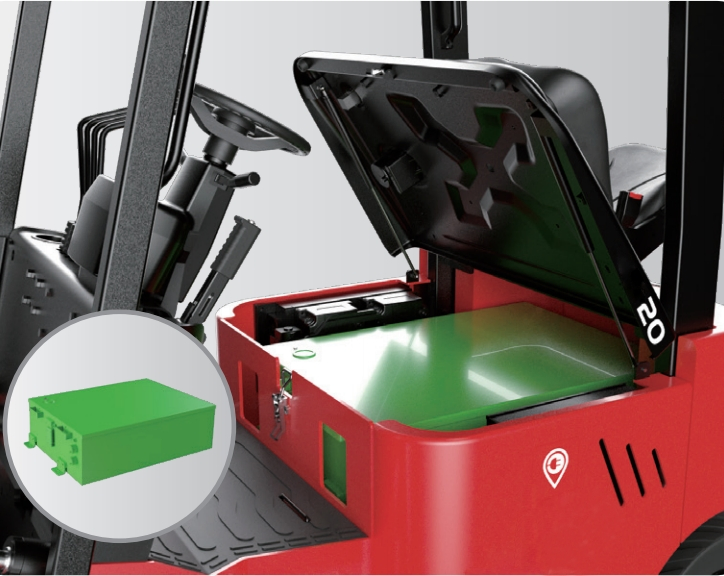

| 6.4 | Battery Voltage/Capacity | V/Ah | 80/150 |

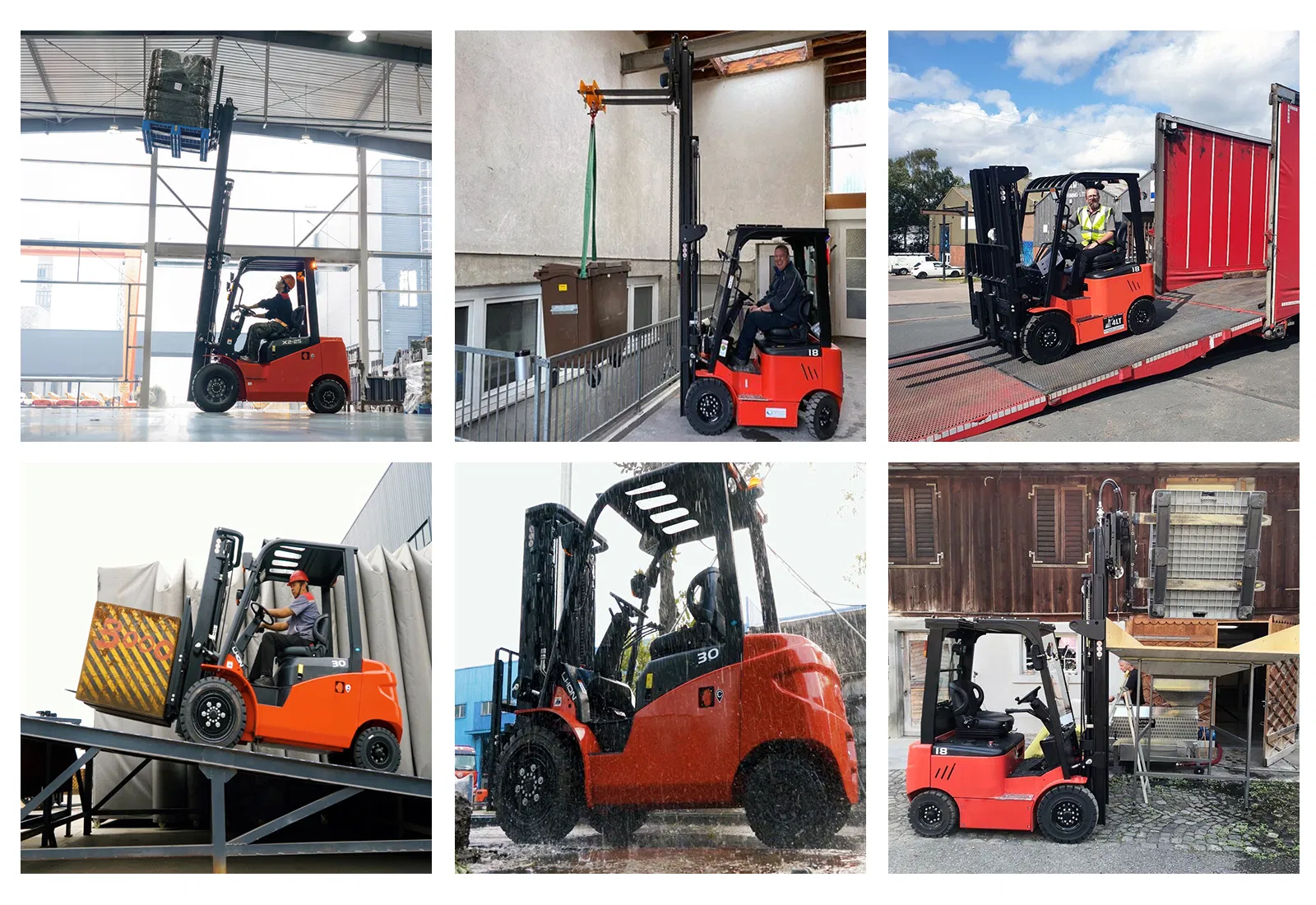

The EFL201 is a reliable all-rounder suitable for:
Our lithium forklifts combine the robust structure of IC trucks with the efficiency of electric power. They offer maintenance-free batteries, lower operating costs, and are environmentally friendly while maintaining high ground clearance for outdoor use.
We implement a five-step inspection process: material inspection, 100% in-process inspection, 100% assembly inspection, final pre-shipment inspection, and optional third-party buyer inspection.
The normal lead time is approximately 30 days, depending on the specific configuration and order volume.
We provide a 12-month standard warranty. If a factory-related issue occurs, we provide free spare parts. For user-related issues, we offer technical support and parts at a reasonable price.
We primarily accept T/T (Telegraphic Transfer) and L/C (Letter of Credit).
Yes, the EFL201 features a water-protected design and high ground clearance specifically engineered to withstand tough weather conditions and outdoor transport.
