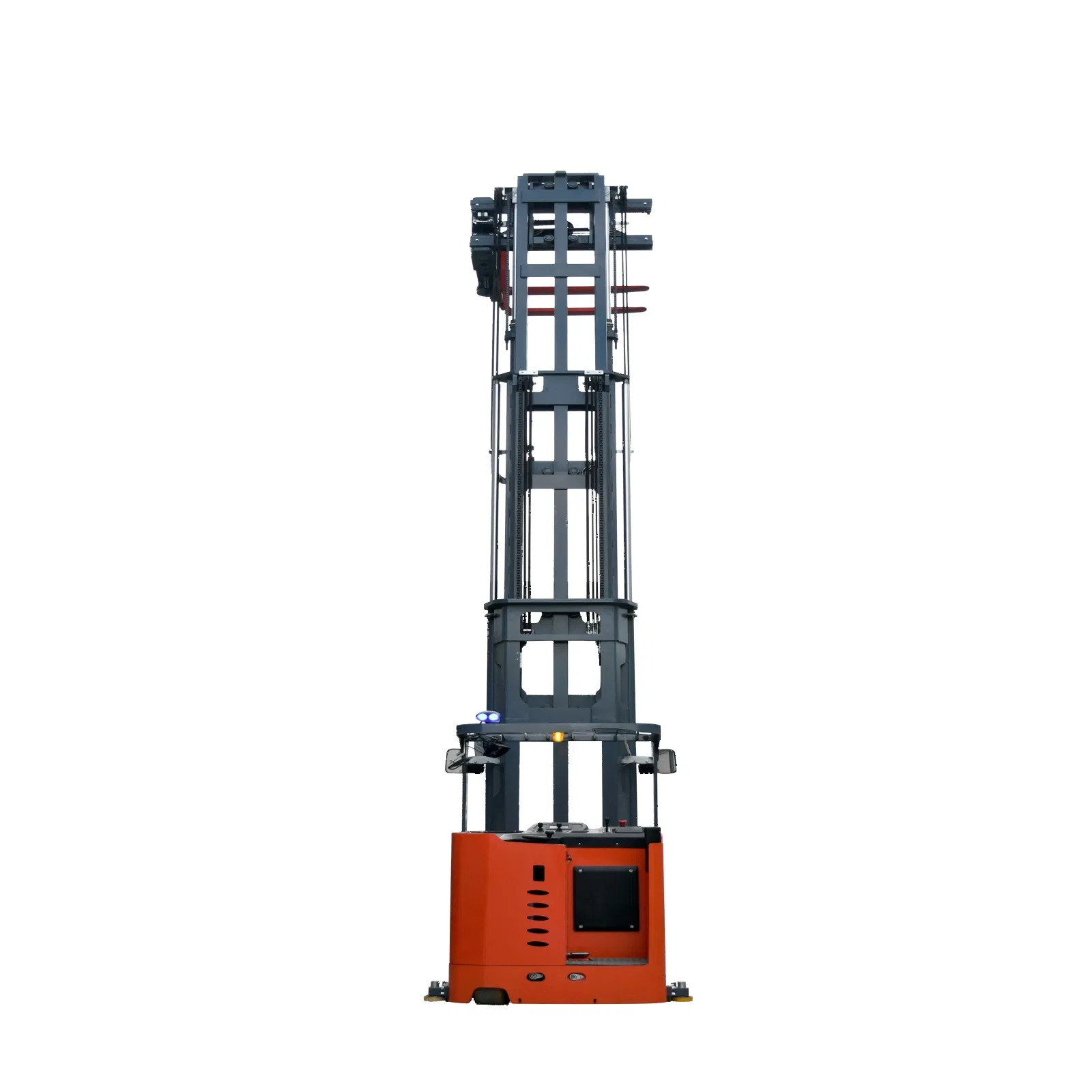

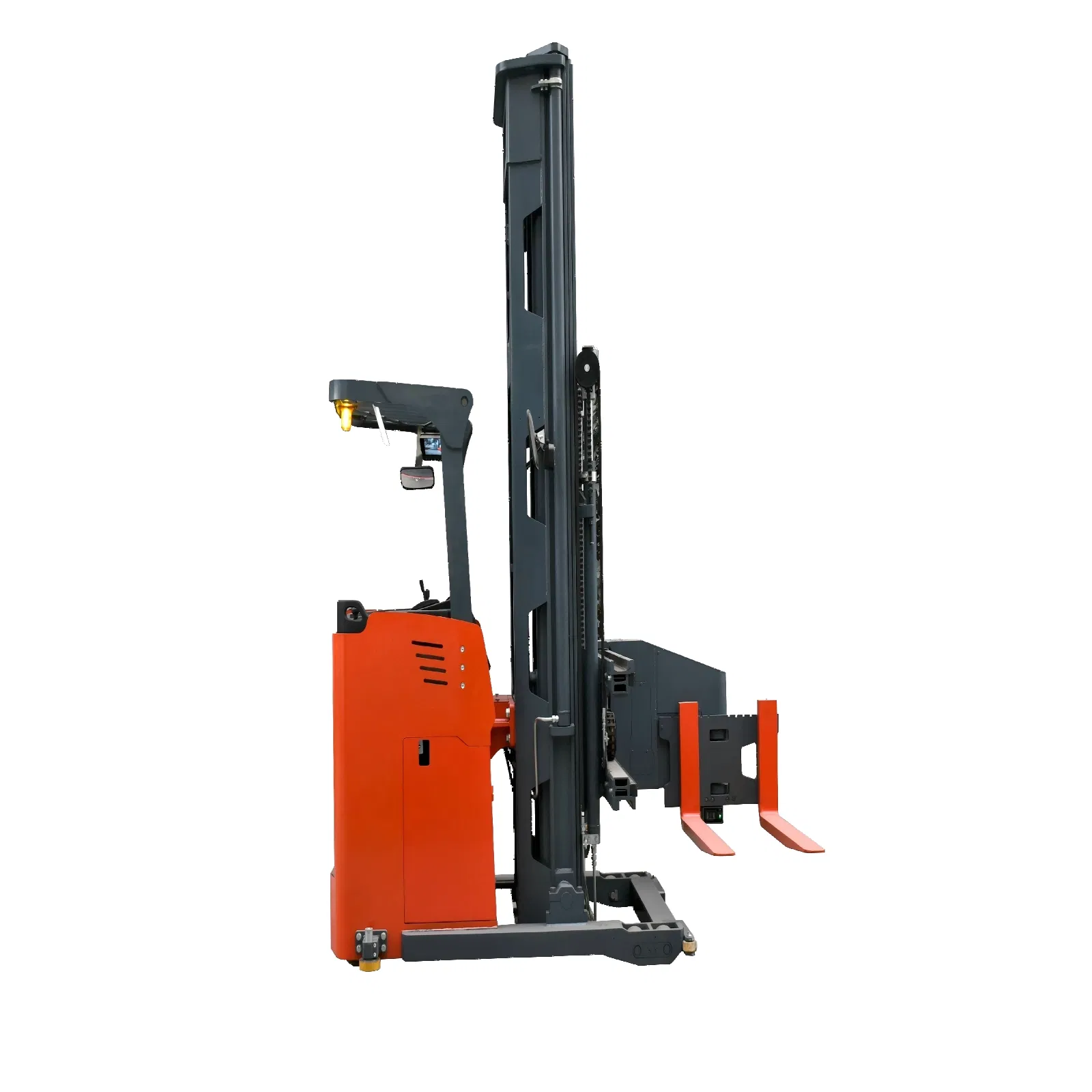

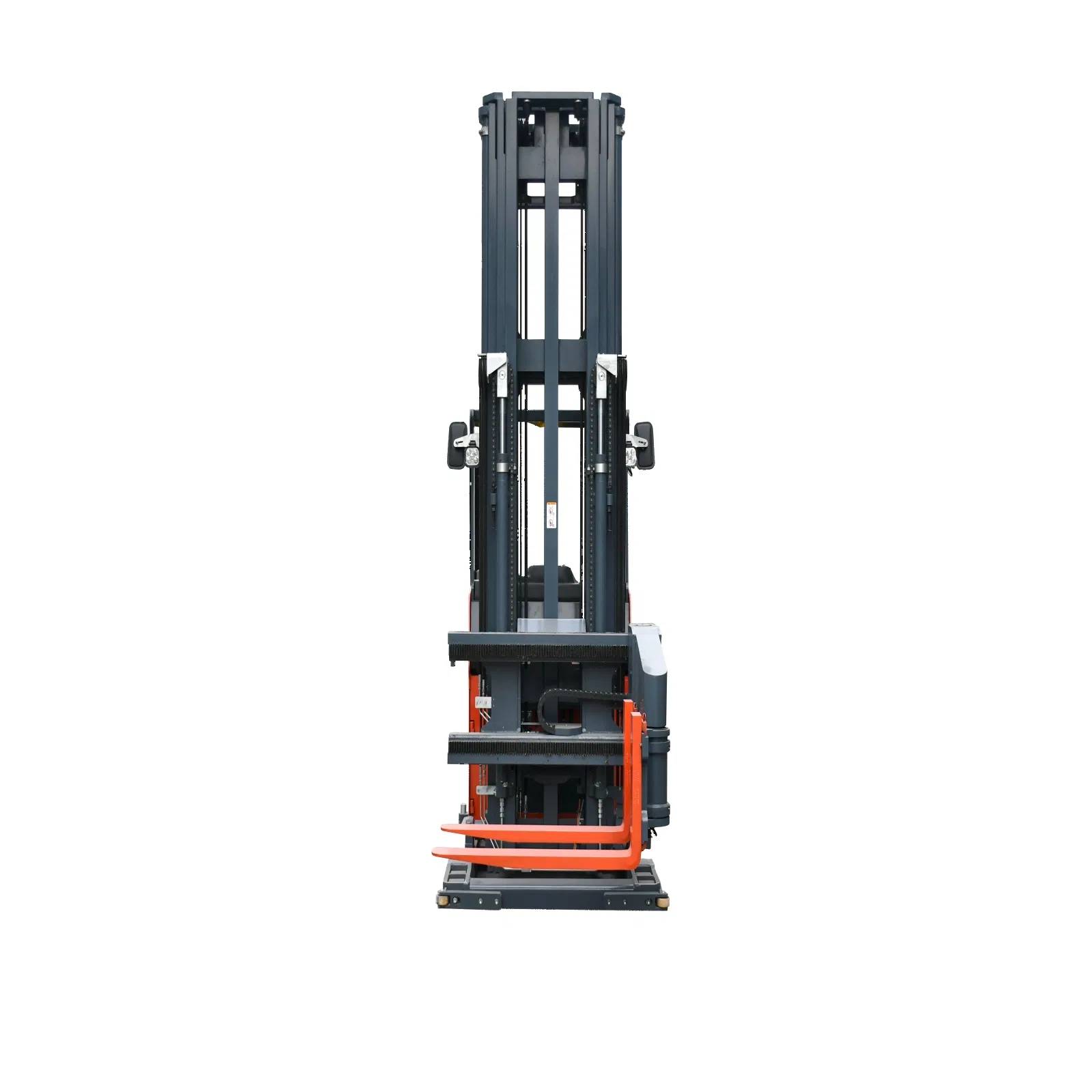

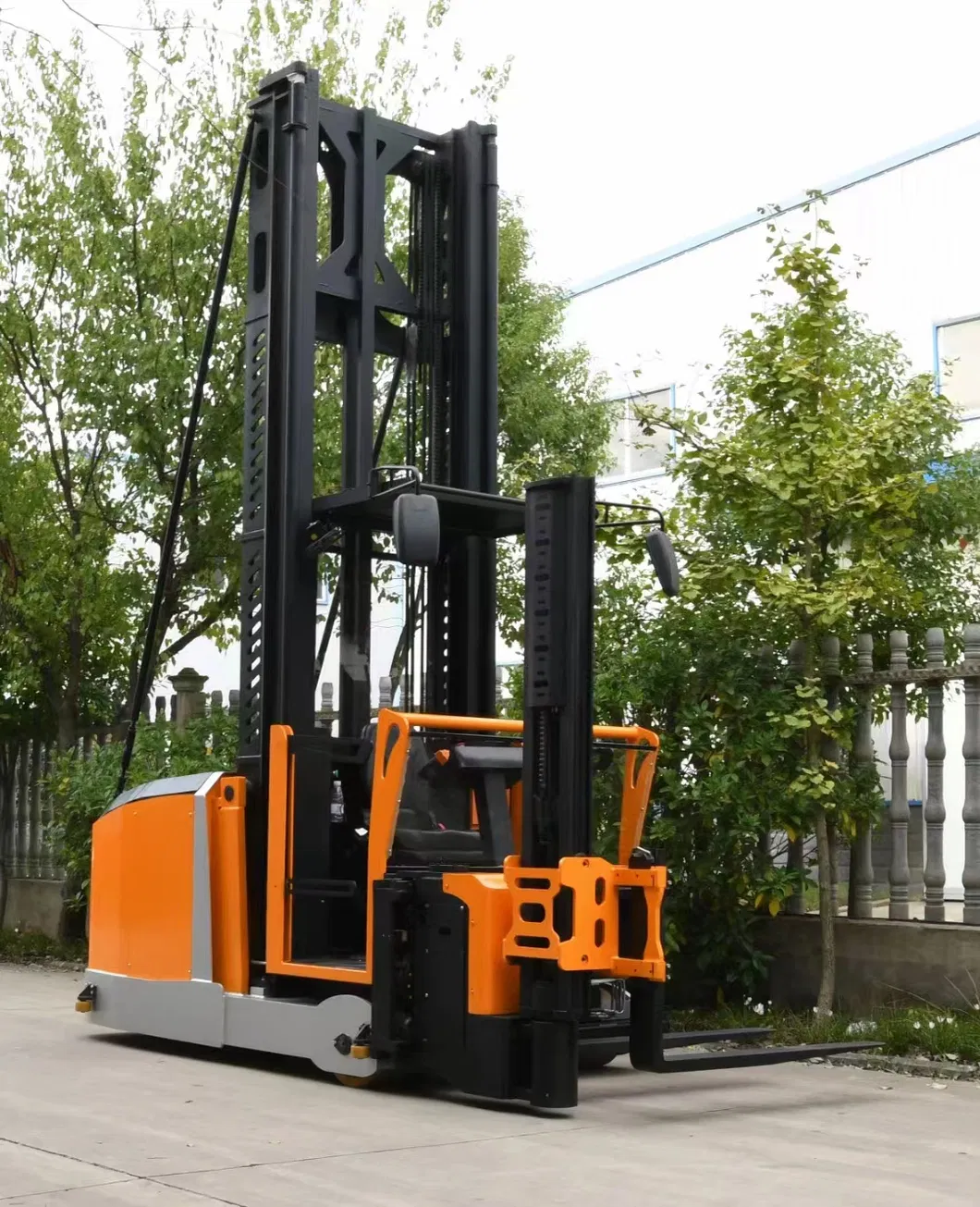

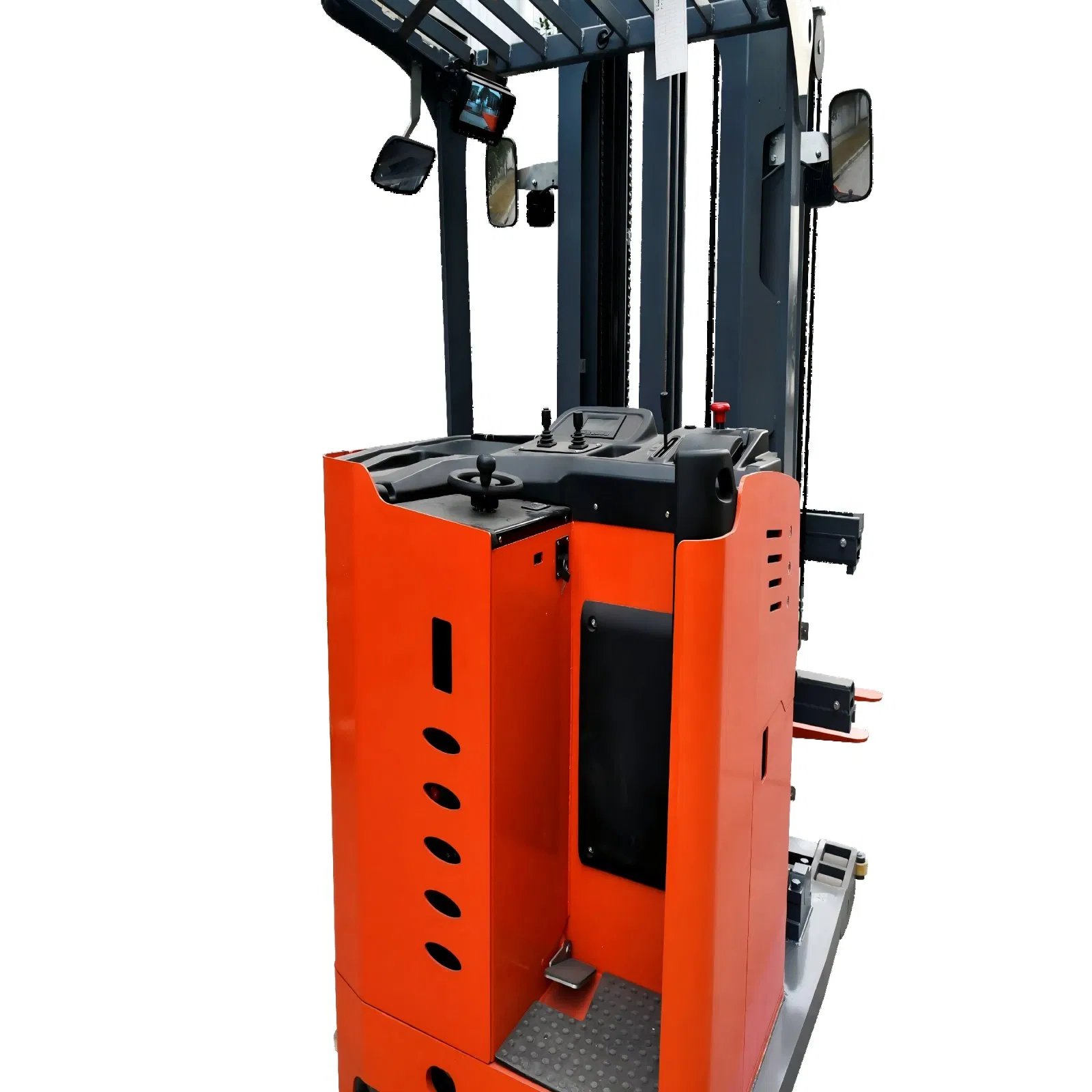

Three Way Electric 1.5ton Very Narrow Aisle Reach Truck Stacker (VNA Forklift)

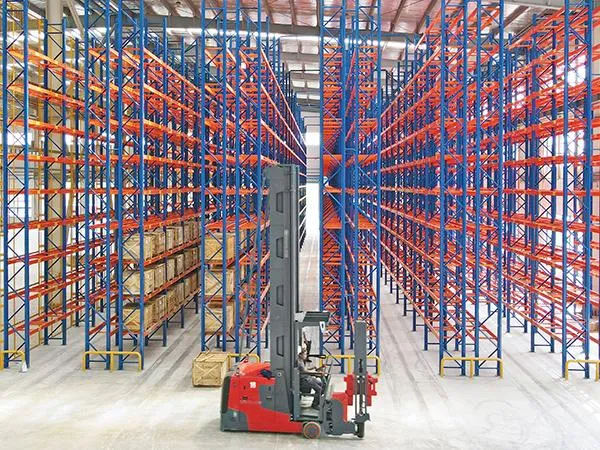

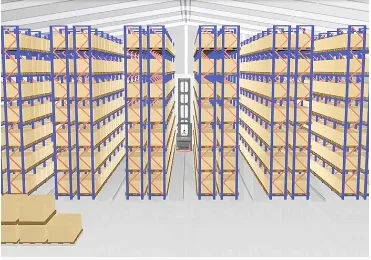

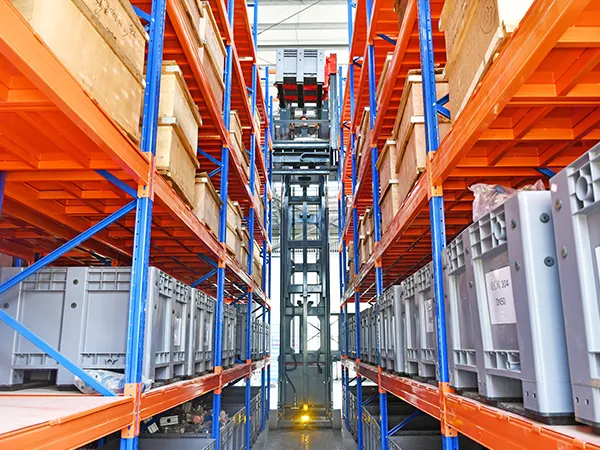

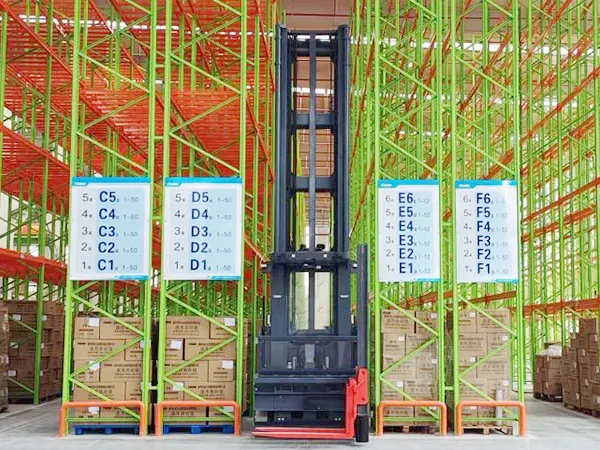

Space Efficiency
The minimum clear stacking passage requires only 1.65 meters, significantly increasing warehouse capacity.

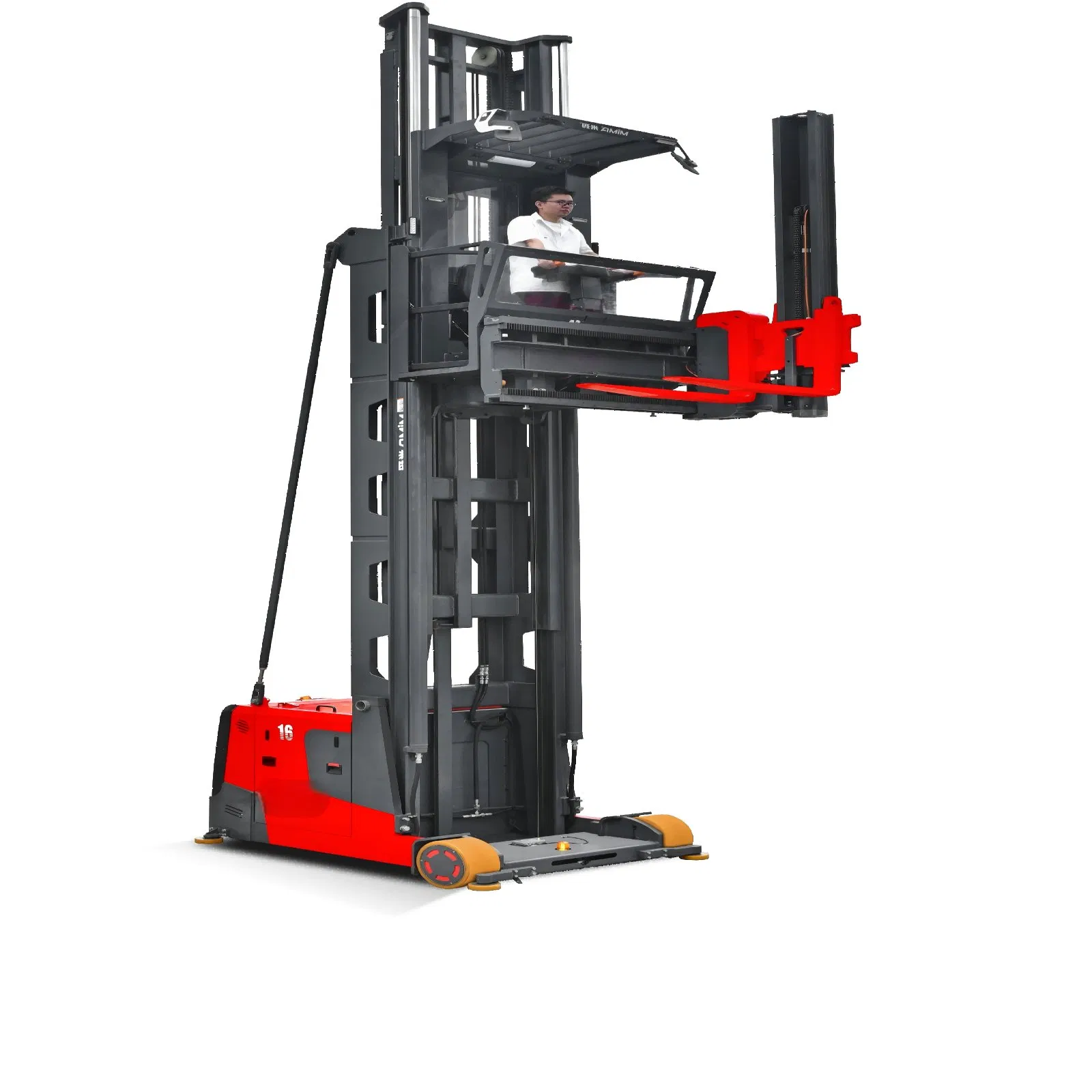

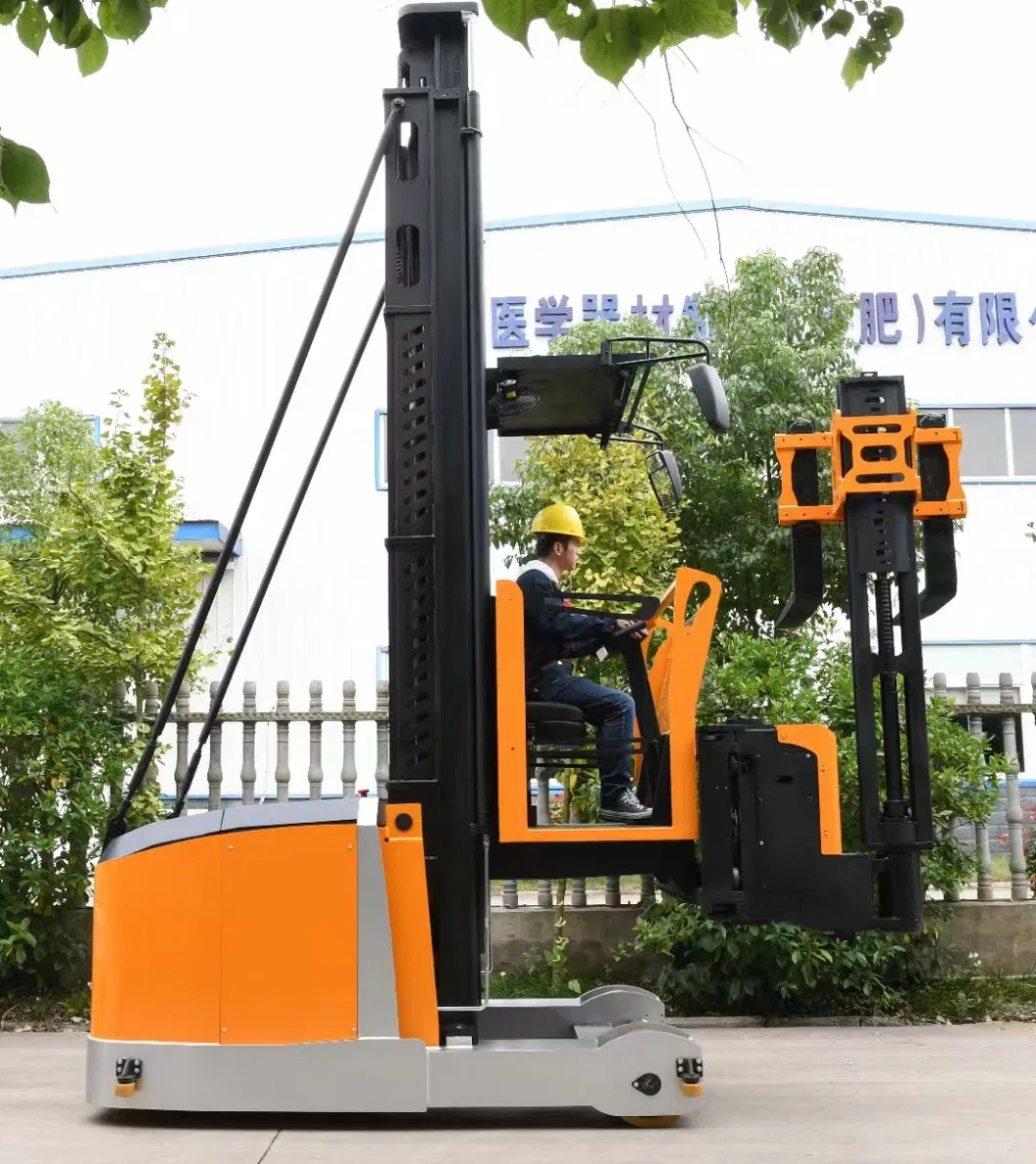

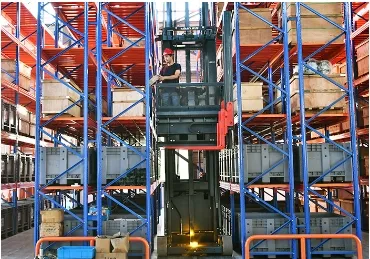

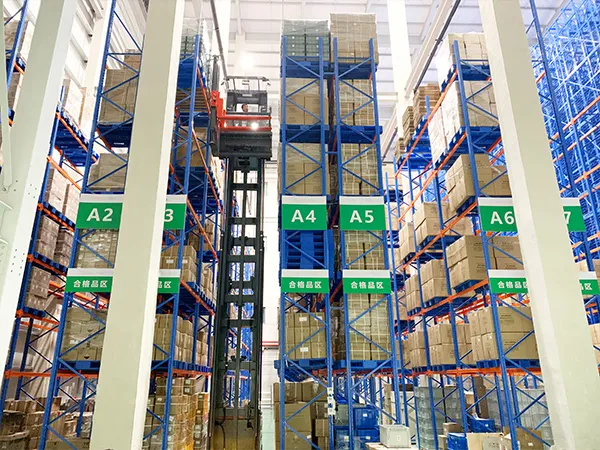

Enhanced Vision
The driver can move up with the cab to perform stacking and picking operations, providing a superior field of vision.
Advanced Braking
Large-diameter bearing wheels with full-wheel electromagnetic braking for shorter distance and higher safety.

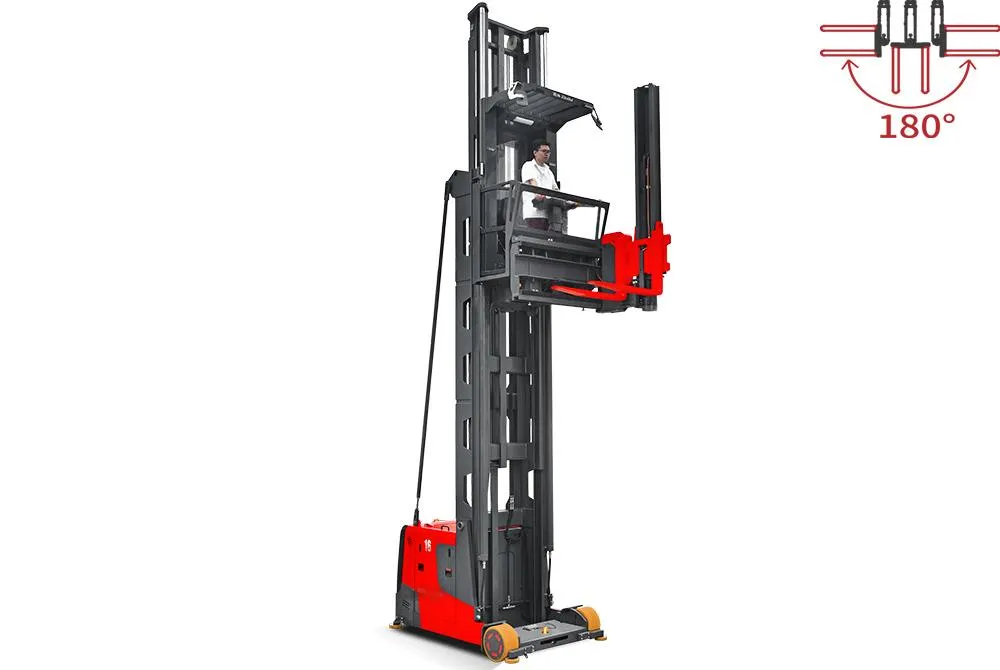

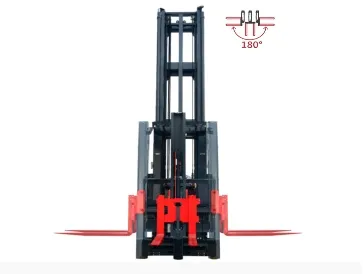

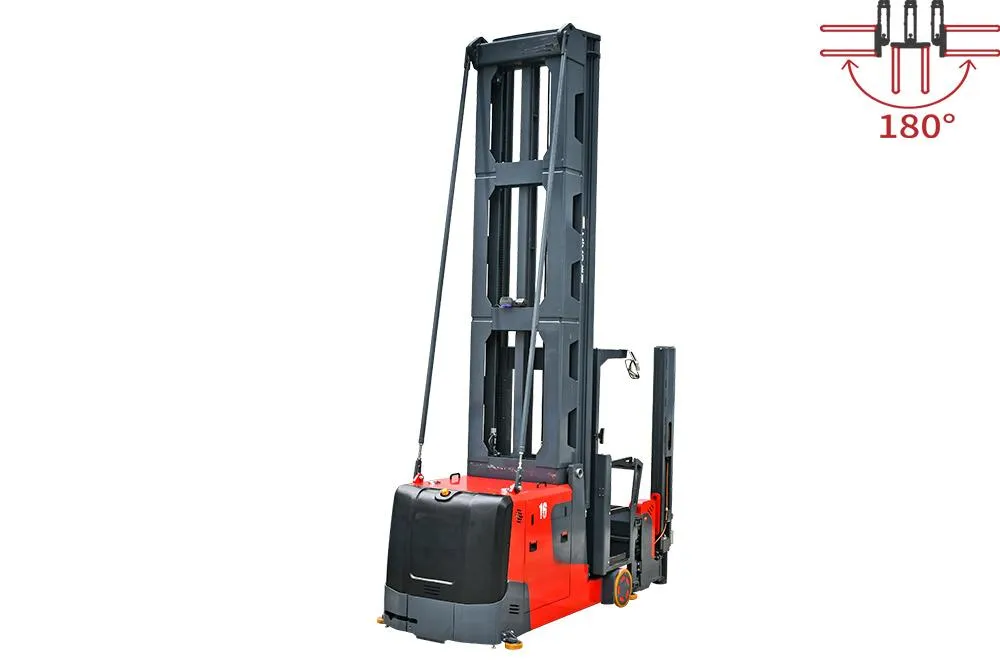

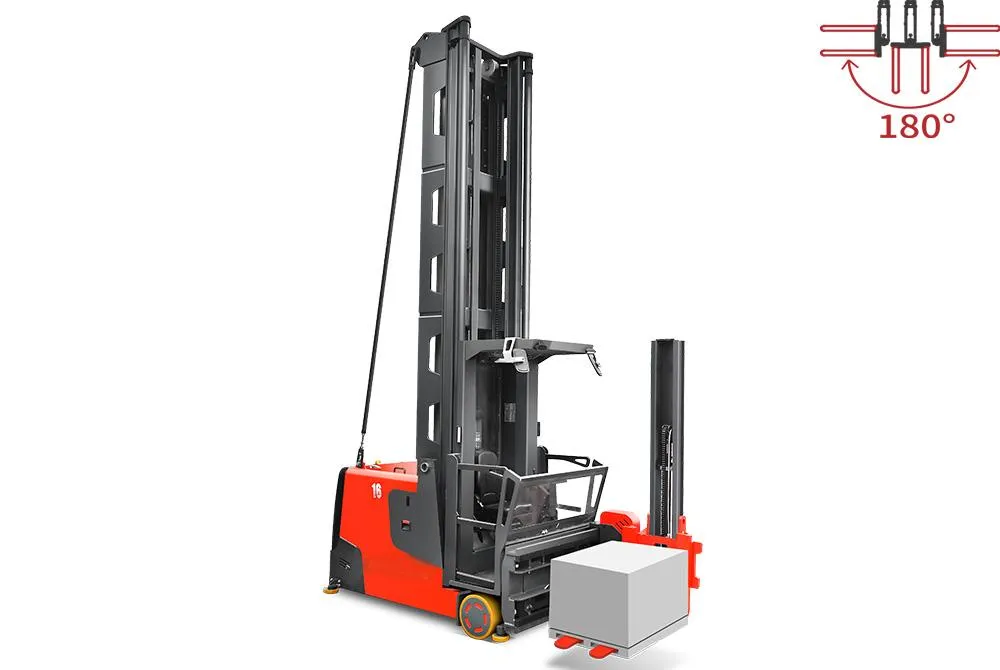

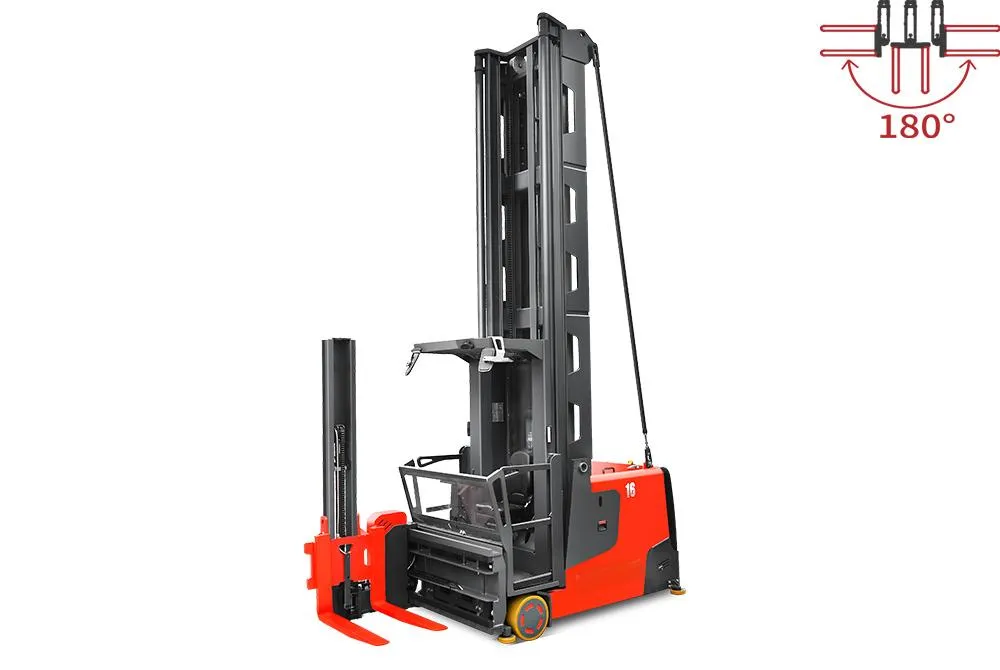

180° Rotation

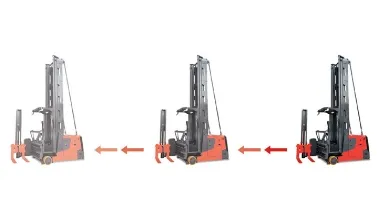

Loading and unloading on both sides are achieved via 180° rotation and lateral movement without turning the vehicle body.
| Parameter | Unit/Symbol | Value (MCC16) |
|---|---|---|
| Power type | - | Battery |
| Load capacity | Q(kg) | 1600 |
| Load center distance | C(mm) | 600 |
| Service weight | kg | ≈7700 |
| Turning Radius | mm | 2235 |
| Lift height | h1(mm) | 4500 |
| Overall length (Fork 90°) | l1(mm) | 3715 |
| Overall width | b1/b2(mm) | 1244 / 1502 |
| Fork dimensions | l/e/s(mm) | 1200 / 125 / 50 |
| Travelling speed | km/h | 10 / 10 |
| Battery voltage | V/Ah | 80 / 560 |

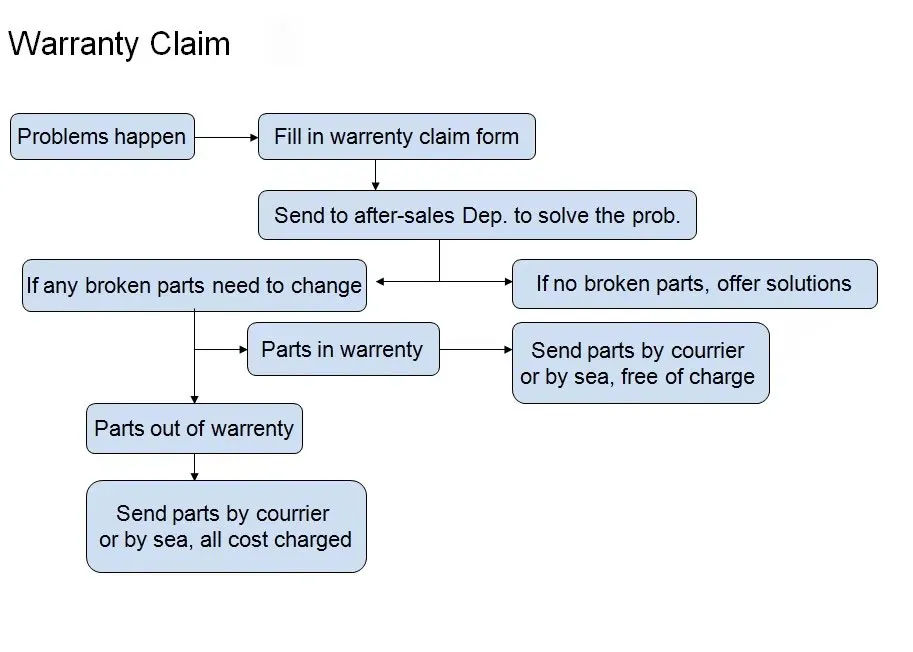

After Sales Service
We offer a twelve-month-period or 2000-hours warranty for any machine purchased. Trained service personnel provide detailed knowledge to prolong machine life and sustain high capacity.
