📋 Basic Information
Lift height
5000/7000/9000/10000mm
Battery Voltage
36/700 V/Ah
📦 Product Description

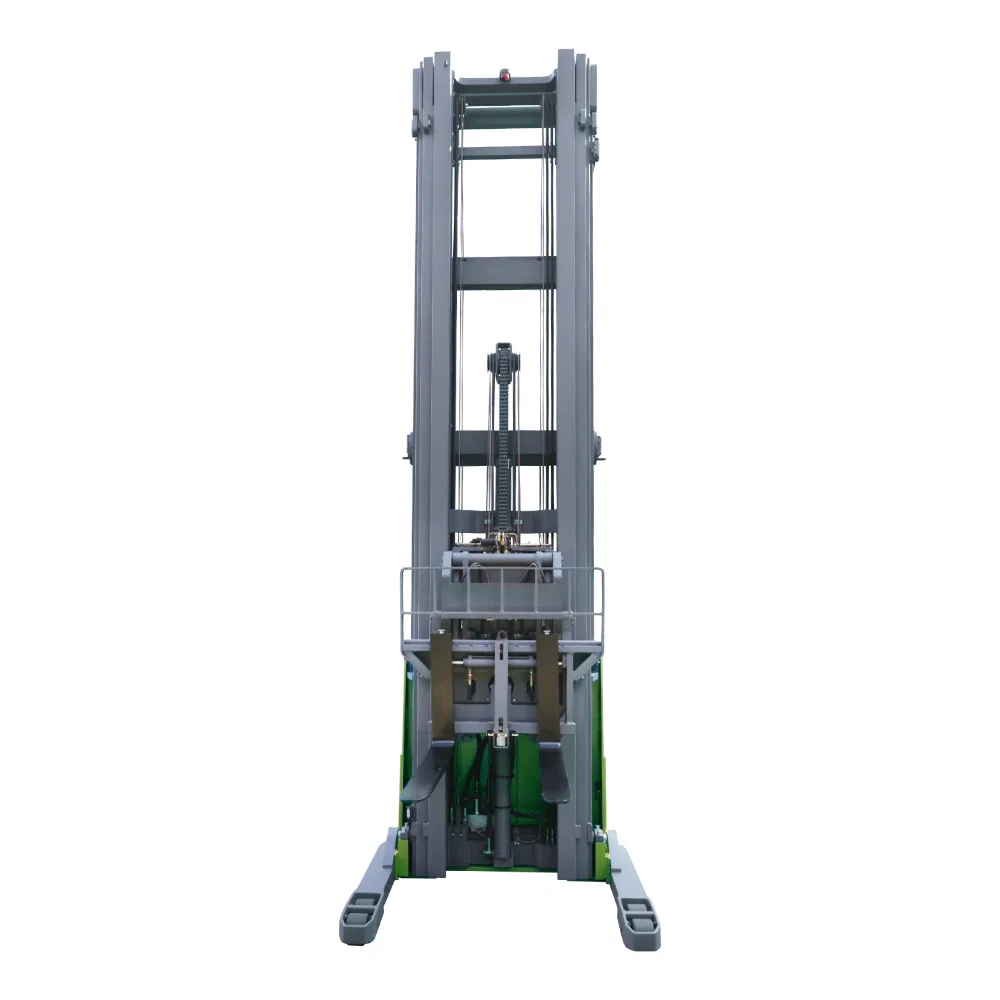

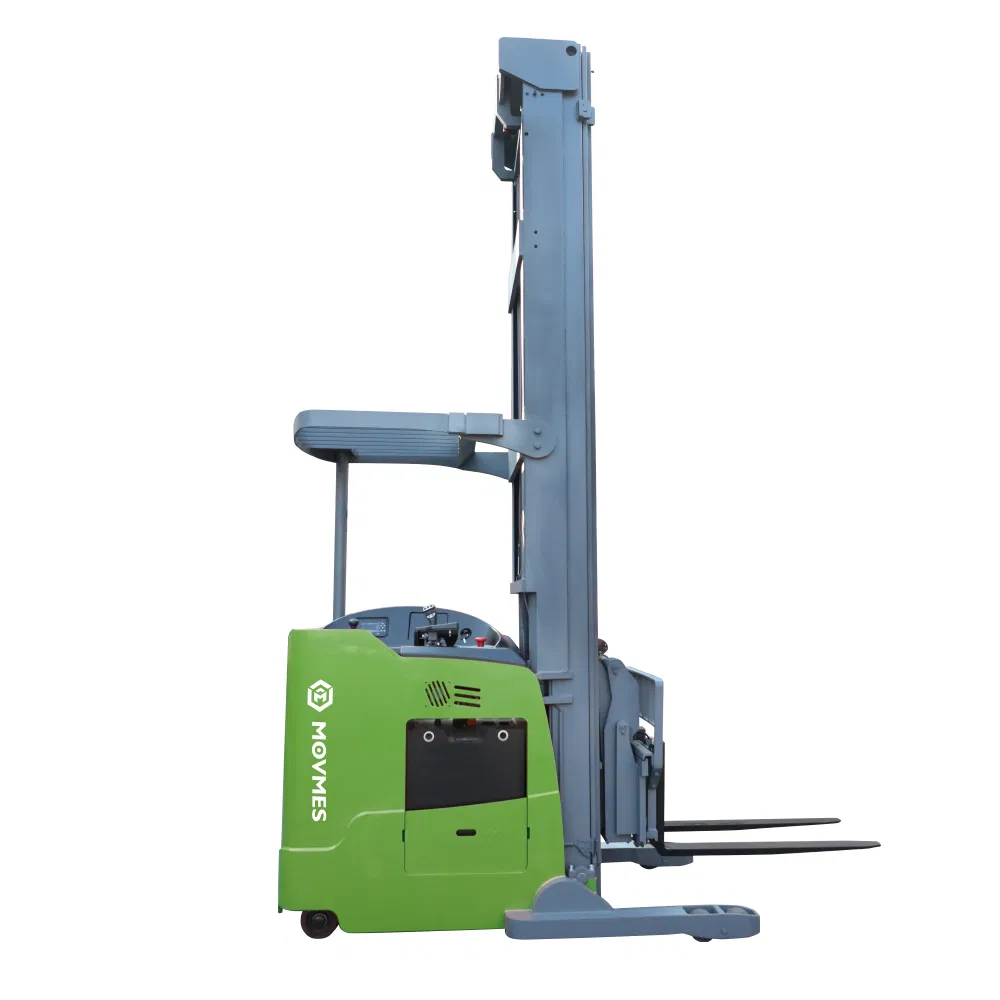

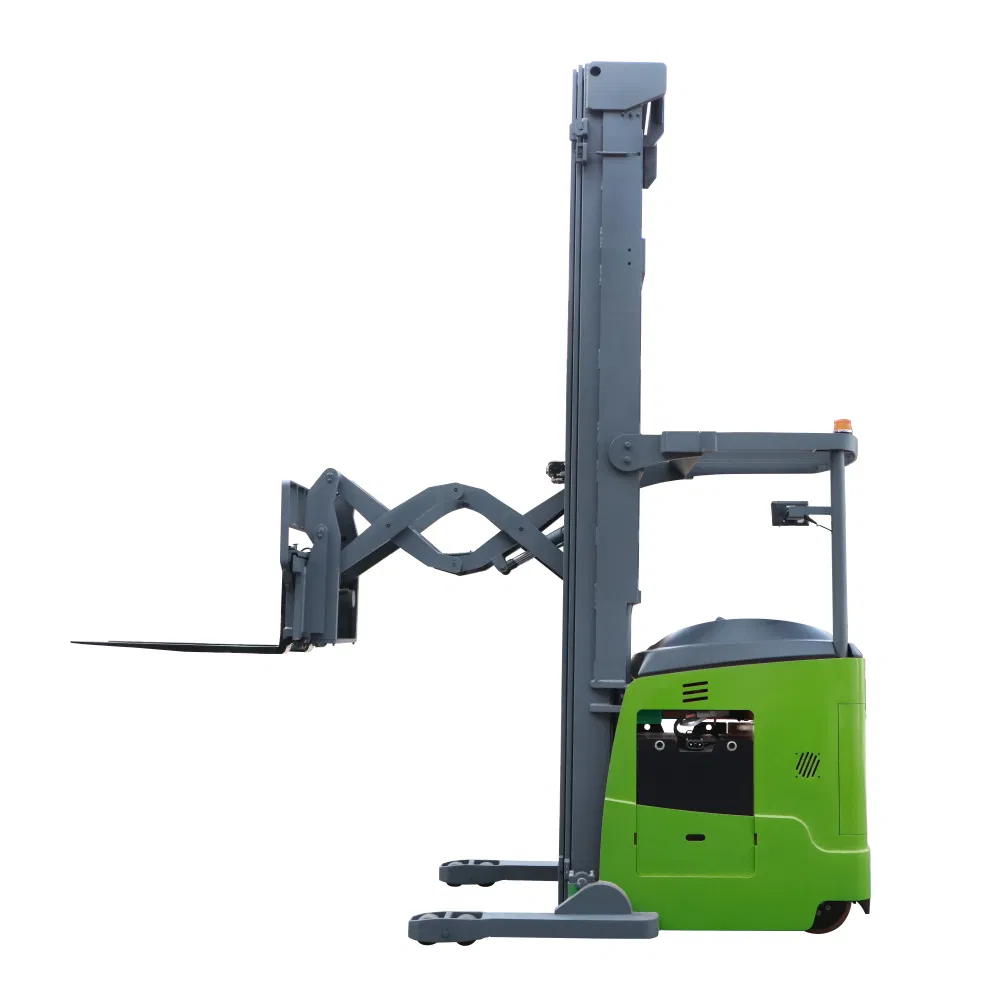

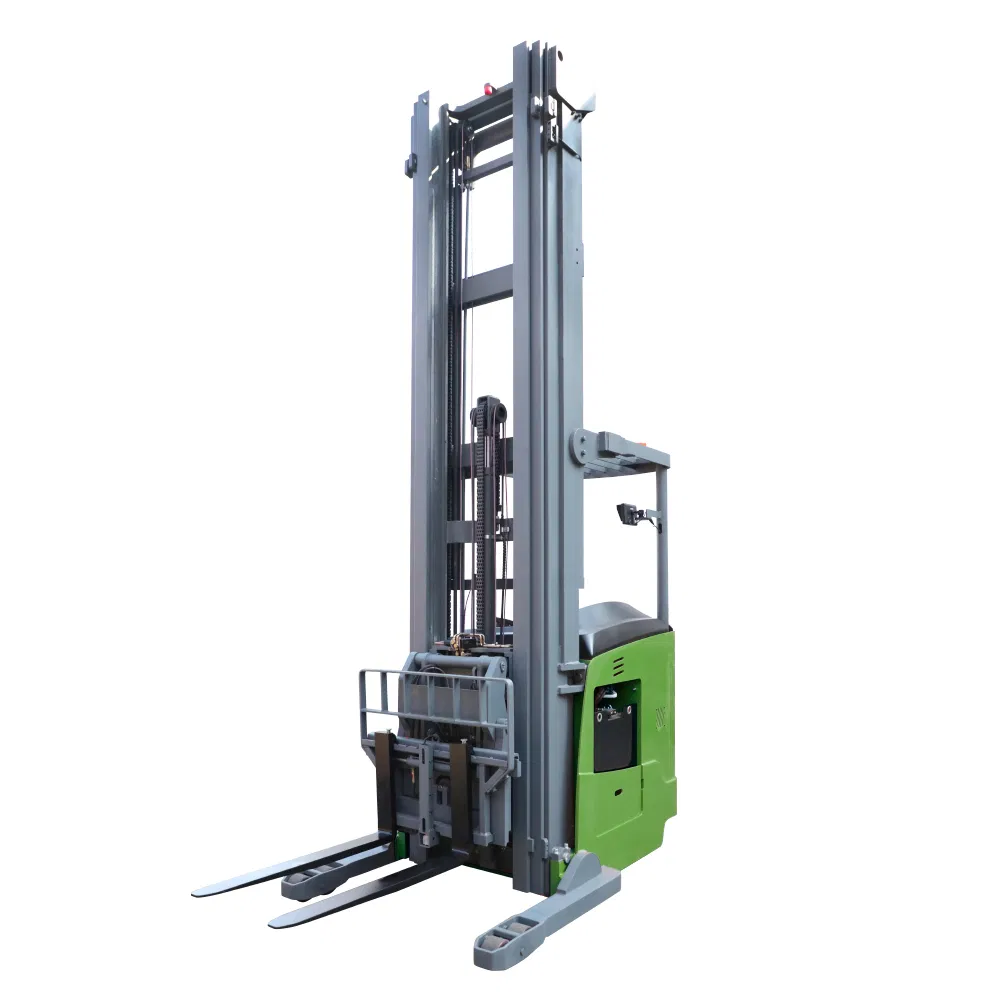

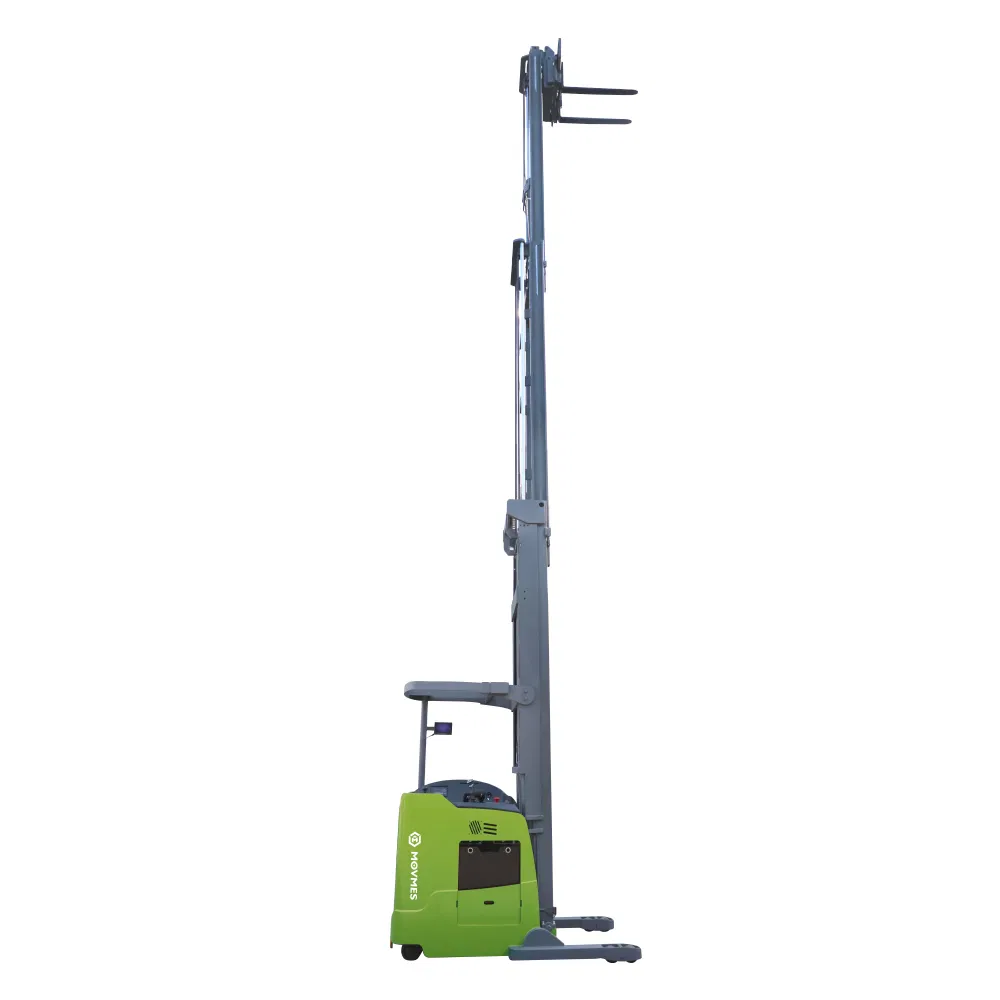

Warehouse Double Deep Reach Stacker - Standing Electric Reach Truck (10.5M Lift Height)
📐 Technical Parameters
| Model Specs |
Unit |
CQDH20C (Double scissor) |
| Drive type | - | Battery |
| Load capacity | Q(kg) | 1600 |
| Load centre distance | c(mm) | 600 |
| Tyre size, front | mm | 343*140 |
| Max lift height | h3(mm) | Up to 10500 |
| Overall length | I1(mm) | 2897 / 2757 |
| Reach distance | I4(mm) | 1085 |
| Travel speed (Laden) | Km/h | 10.5 |
| Lift speed (Laden) | m/s | 0.29 |

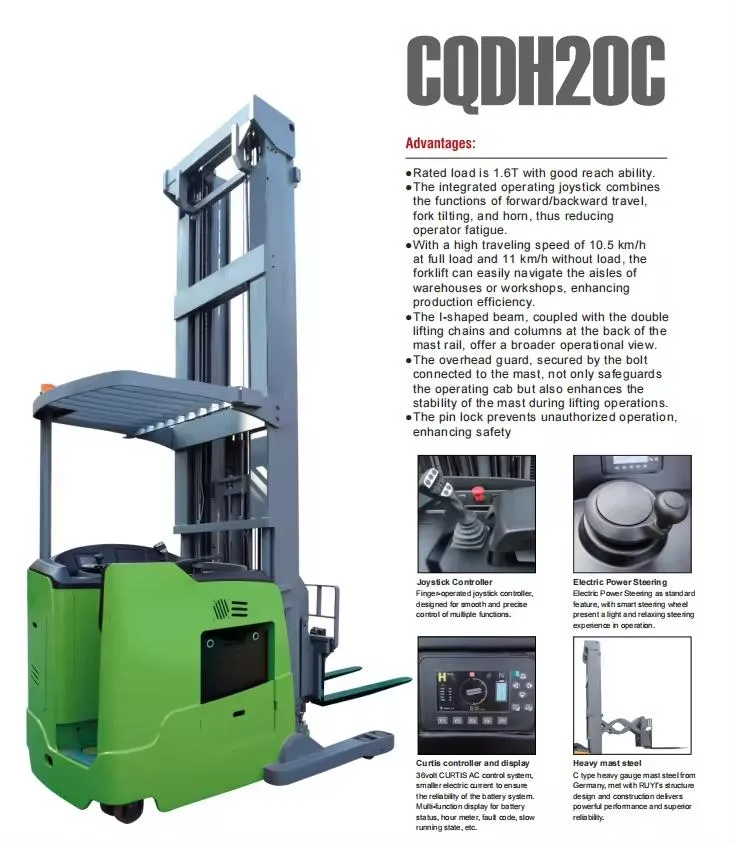

⭐ Key Advantages
High Capacity: Rated load is 1.6T with exceptional reach ability for deep racking systems.
Ergonomic Control: Integrated operating joystick combines travel, tilting, and horn to reduce operator fatigue.
High Efficiency: Traveling speeds up to 11 km/h allow for rapid movement within large warehouse environments.
Wide Visibility: I-shaped beam and double lifting chains design provide a broader operational view for safety.
Enhanced Stability: Overhead guard secured to the mast stabilizes the structure during high-altitude lifting.
Security: Pin lock system prevents unauthorized operation.
📷 Product Gallery
🏆 Quality & Experience
36 YearsIndustry Experience
150,000m²Factory Area
1,200+Employees
157Export Regions
Certified by ISO9001:2008, ISO14001:2004, and OHSAS18001:2007. Products comply with TUV/GS/CE standards (EN3691-5:2014 and EN3691-1:2012).
🛠️ Testing System
Every unit undergoes five rigorous detection tests before delivery:
- Strengthening test detection
- Stability detection
- Climbing performance and current check
- Braking performance debugging
- Technical parameter verification
❓ Frequently Asked Questions
Q1: What is the continuous working time and charging duration?
The battery provides approximately 3-6 hours of continuous operation depending on the volume. Full charging typically requires 3 to 6 hours.
Q2: What are the charger specifications?
We offer 24V and 48V chargers. Power plugs are available in USA, UK, Australia, and European standards to suit your local requirements.
Q3: Do you provide customized OEM or ODM products?
Yes, we have been professionally developing warehouse logistics equipment since 1985 and offer extensive customization services for various international brands.
Q4: What is the warranty policy for this forklift?
We provide a one-year warranty. During this period, wearing parts damaged by non-human factors are provided free of charge.
Q5: Is this reach truck suitable for narrow aisles?

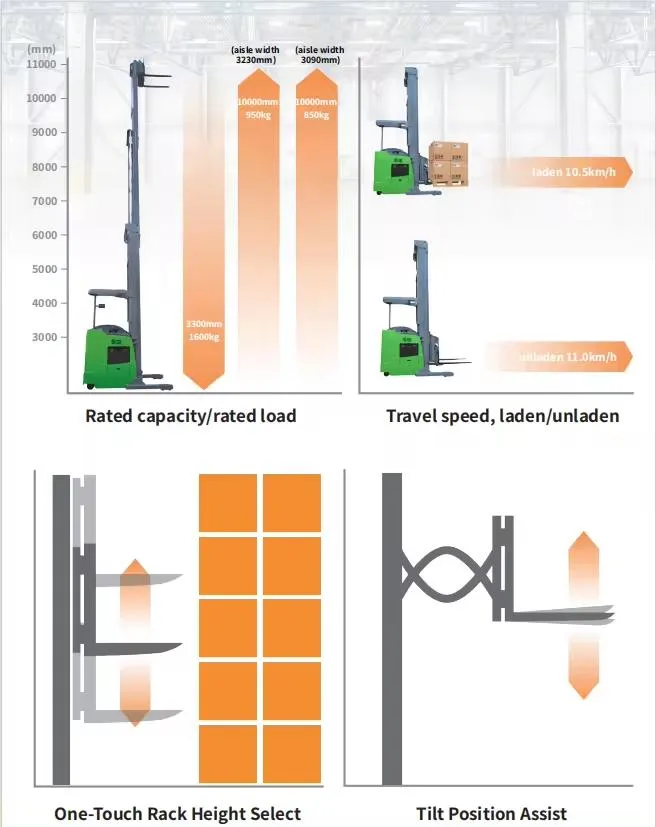

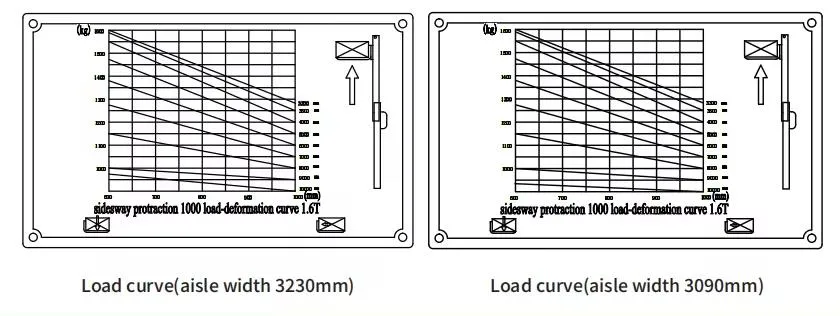

Yes, with a turning radius of 1865mm and aisle width requirements starting from 3090mm, it is designed for efficient maneuvering in narrow warehouse spaces.
Q6: What safety features are included?
Safety features include a protective overhead guard, electromagnetic service brakes, a pin lock for unauthorized access prevention, and an integrated horn.
