Carbon Steel Galvanized Units Ball

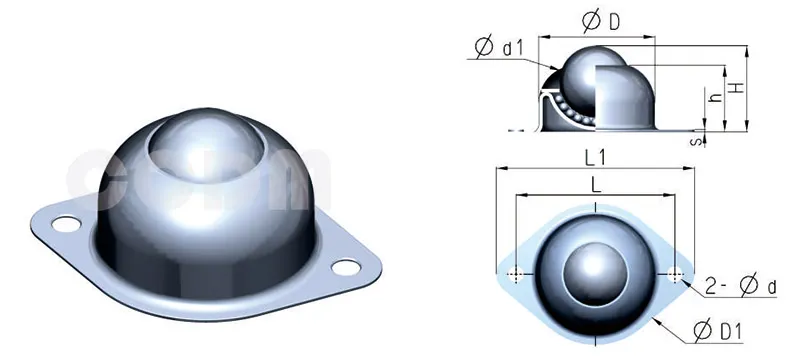

Model: WA-01-A
| Code | d(mm) | d1(mm) | D(mm) | D1(mm) | h(mm) | H(mm) | L(mm) | L1(mm) | S(mm) | Static(kg) | Dynamic(kg) | Weight(g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WA-01-A | 5.5 | 25.4 | 40 | 50 | 24 | 30.7 | 55.5 | 68.5 | 1.2 | 25 | 30 | 142 |
| Material: Carbon steel galvanized; Ball: Carbon steel, Plastic steel | ||||||||||||

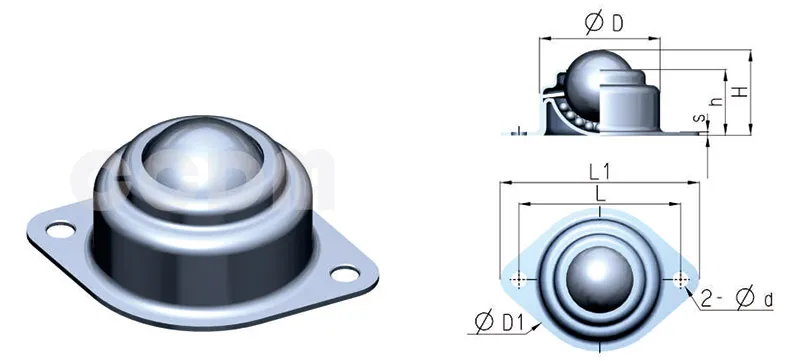

Model: WA-01-B/C
| Code | d(mm) | d1(mm) | D(mm) | D1(mm) | h(mm) | H(mm) | L(mm) | L1(mm) | S(mm) | Static(kg) | Dynamic(kg) | Weight(g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WA-01-B | 5.5 | 25.4 | 42 | 50 | 24 | 30.7 | 55.5 | 68.5 | 1.2 | 25 | 30 | 136 |
| WA-01-C | 4.2 | 15.875 | 27.8 | 32.8 | 15 | 20.5 | 40 | 50 | 1.6 | 15 | 20 | 38 |

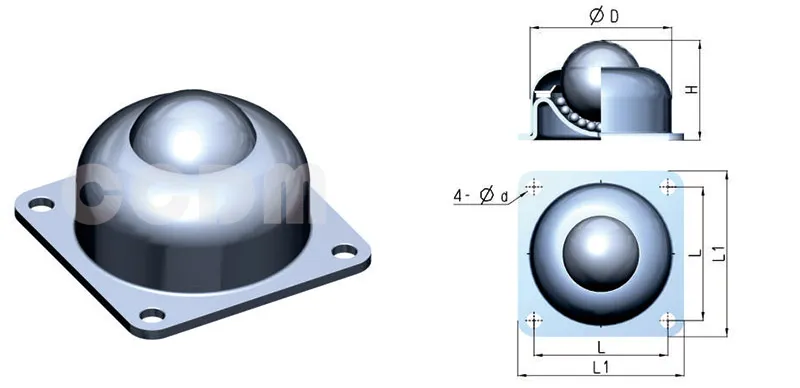

Model: WA-02
| Code | d(mm) | D(mm) | d1(mm) | H(mm) | L(mm) | L1(mm) | Static(kg) | Dynamic(kg) | Weight(g) |
|---|---|---|---|---|---|---|---|---|---|
| WA-02 | 7 | 65.5 | 25.4 | 46.4 | 62 | 77 | 90 | 110 | 480 |

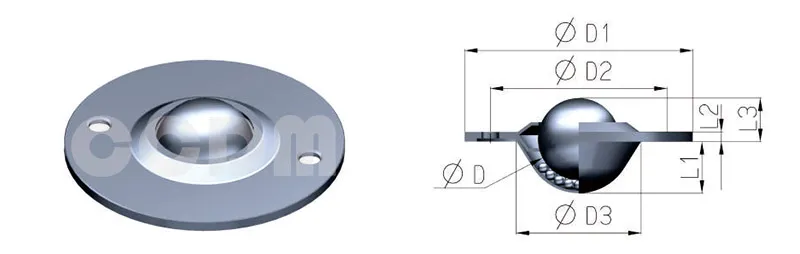

Model: WB-01
| Code | d(mm) | D(mm) | D1(mm) | D2(mm) | D3(mm) | L1(mm) | L2(mm) | L3(mm) | Static(kg) | Dynamic(kg) | Weight(g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WA-01-A | 5.5 | 25.4 | 70.5 | 55.5 | 40 | 17.3 | 3 | 12.5 | 45 | 55 | 147 |

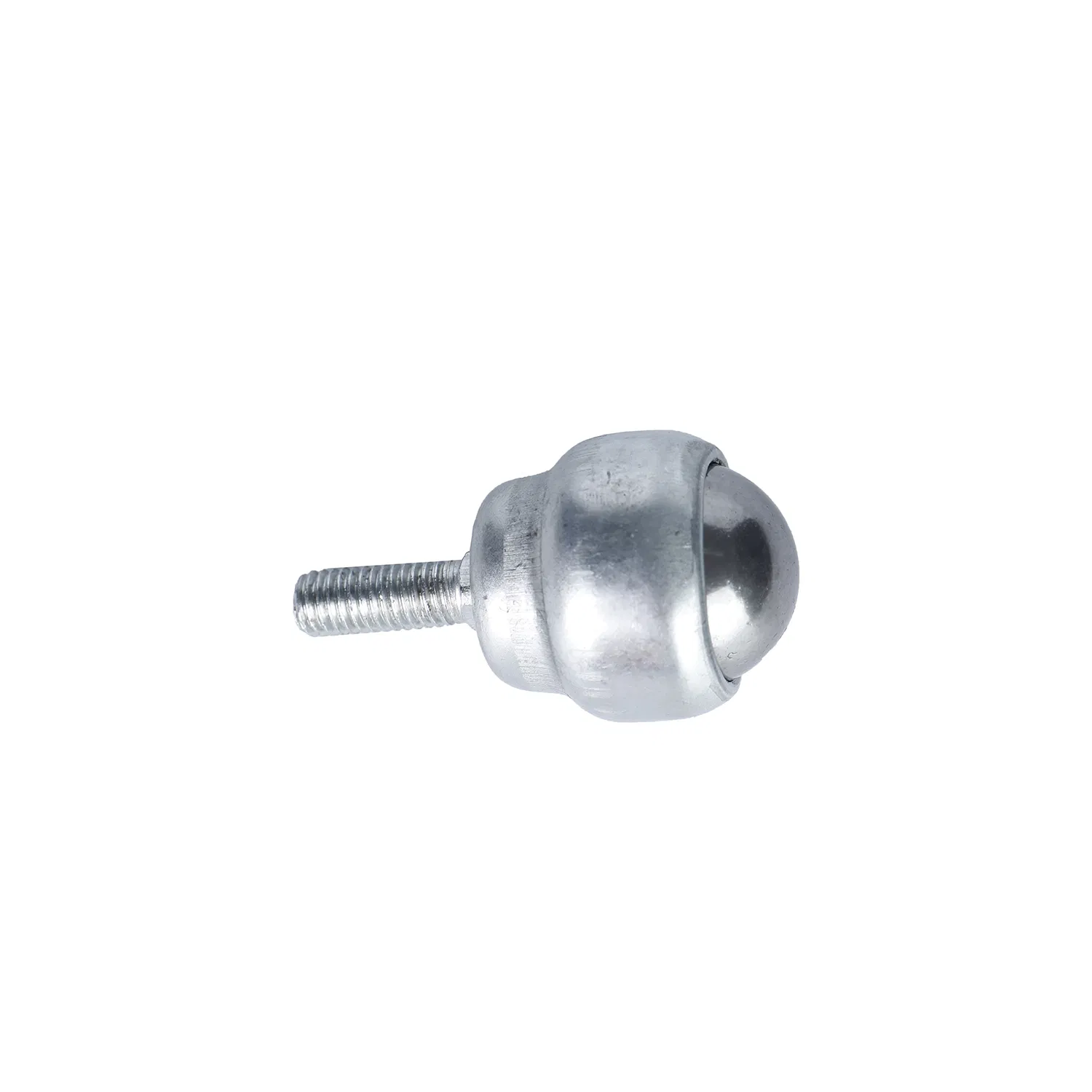

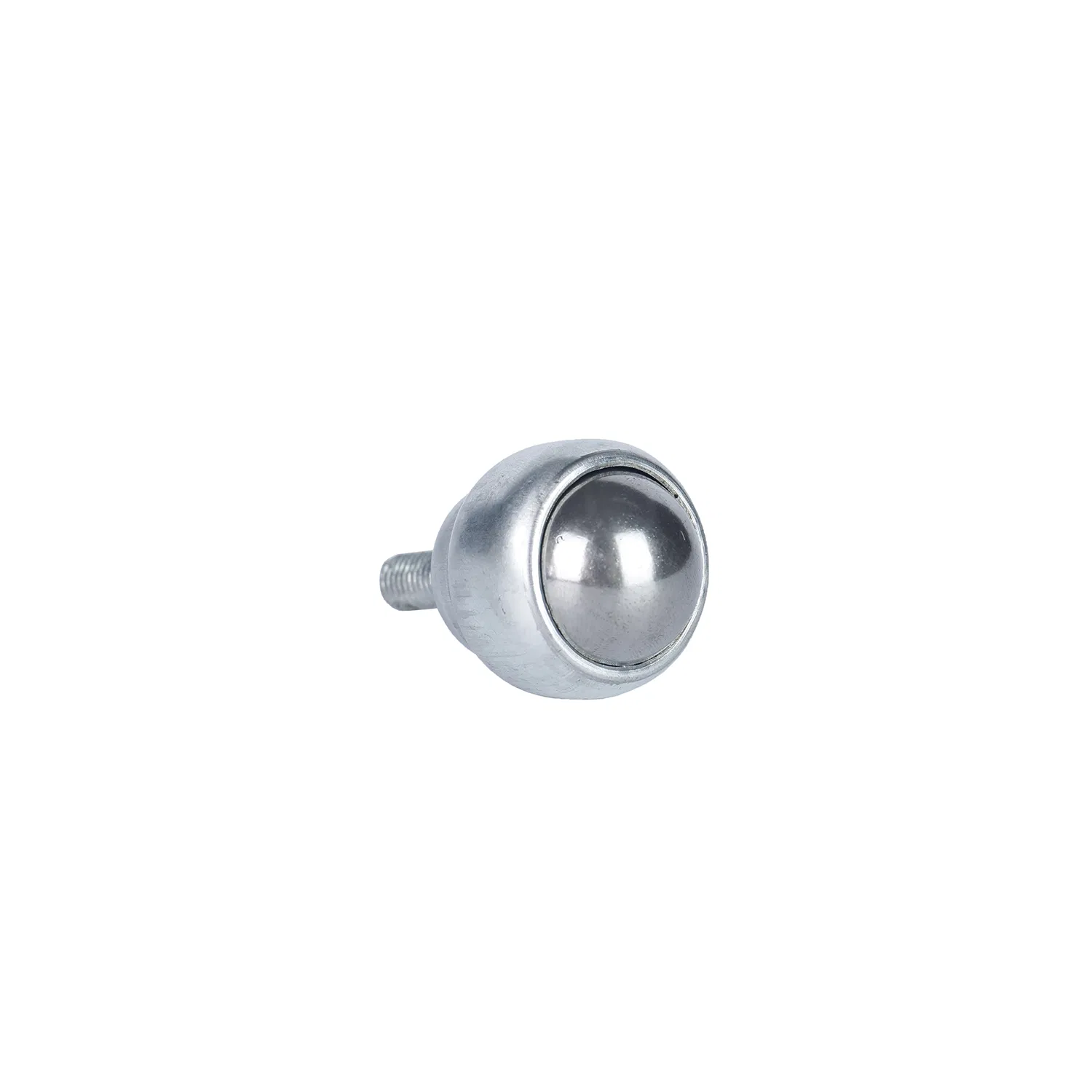

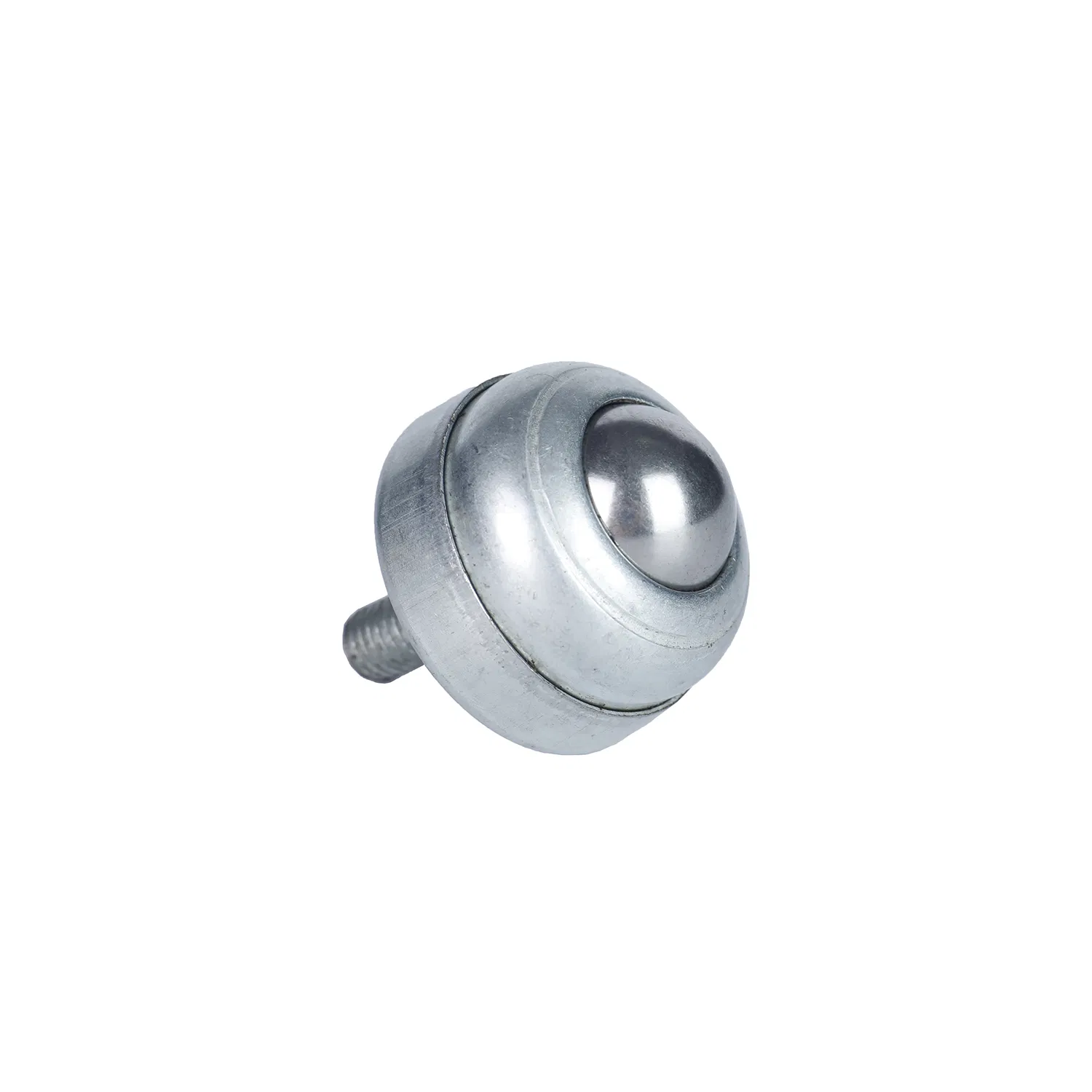

Model: WD-03
| Code | d(mm) | d1(mm) | D(mm) | D1(mm) | D2(mm) | h(mm) | h1(mm) | H | S | Static(kg) | Dynamic(kg) | Weight(g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WD-03 | M10 | 25.4 | 36 | 40 | 45.5 | 14 | 27.7 | 36 | 3 | 40 | 50 | 171 |

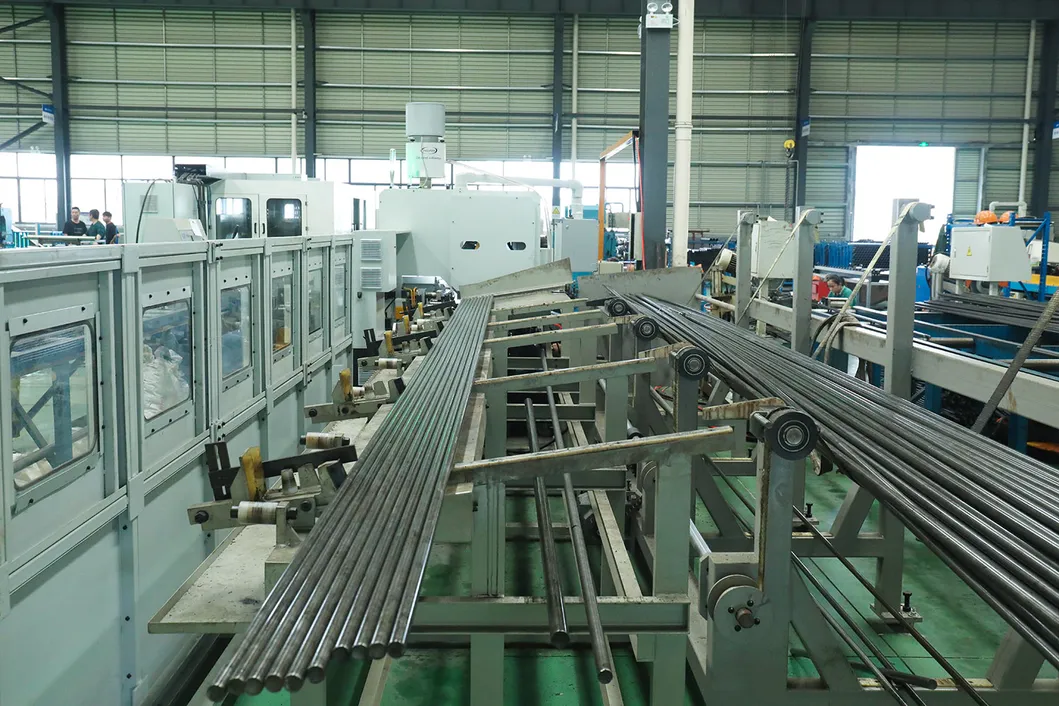

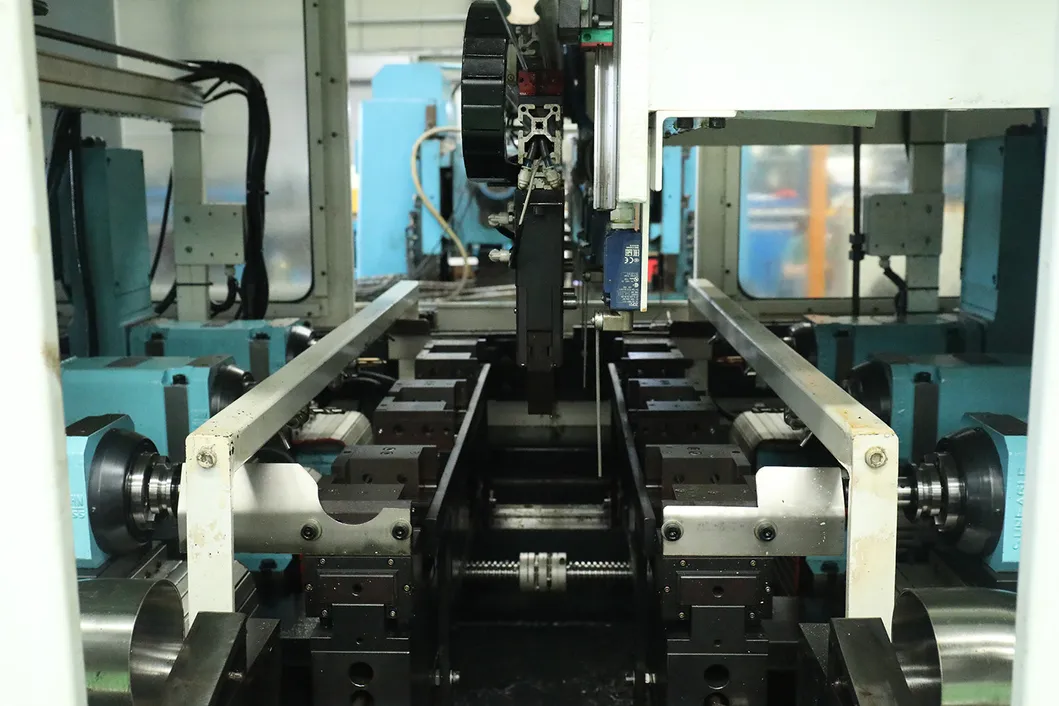

Our company was established in 2000 for the purpose of technically serving the conveyor industries and various kinds of steel mesh. With nearly 20 years of experience, we have become a leading manufacturer and exporter of conveyor systems and components in the region.
