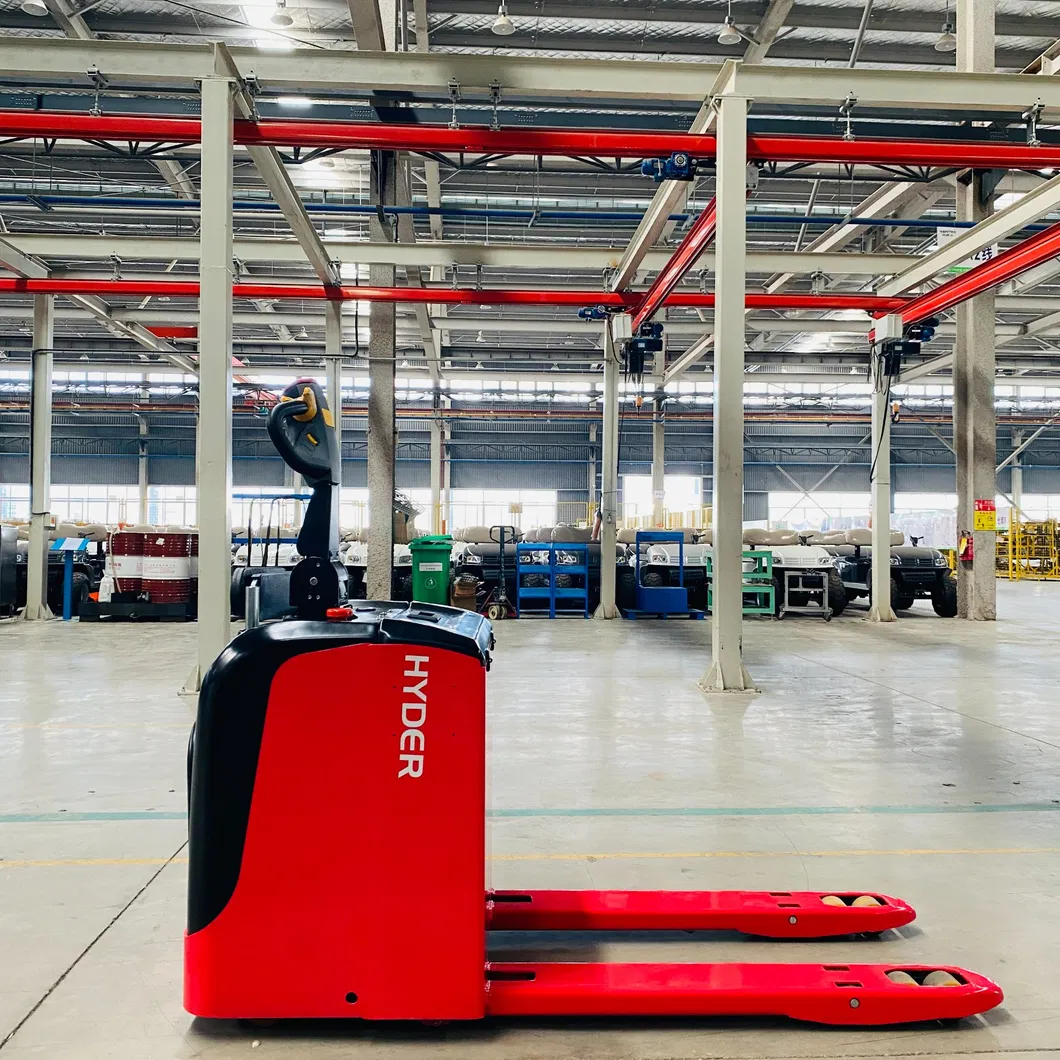

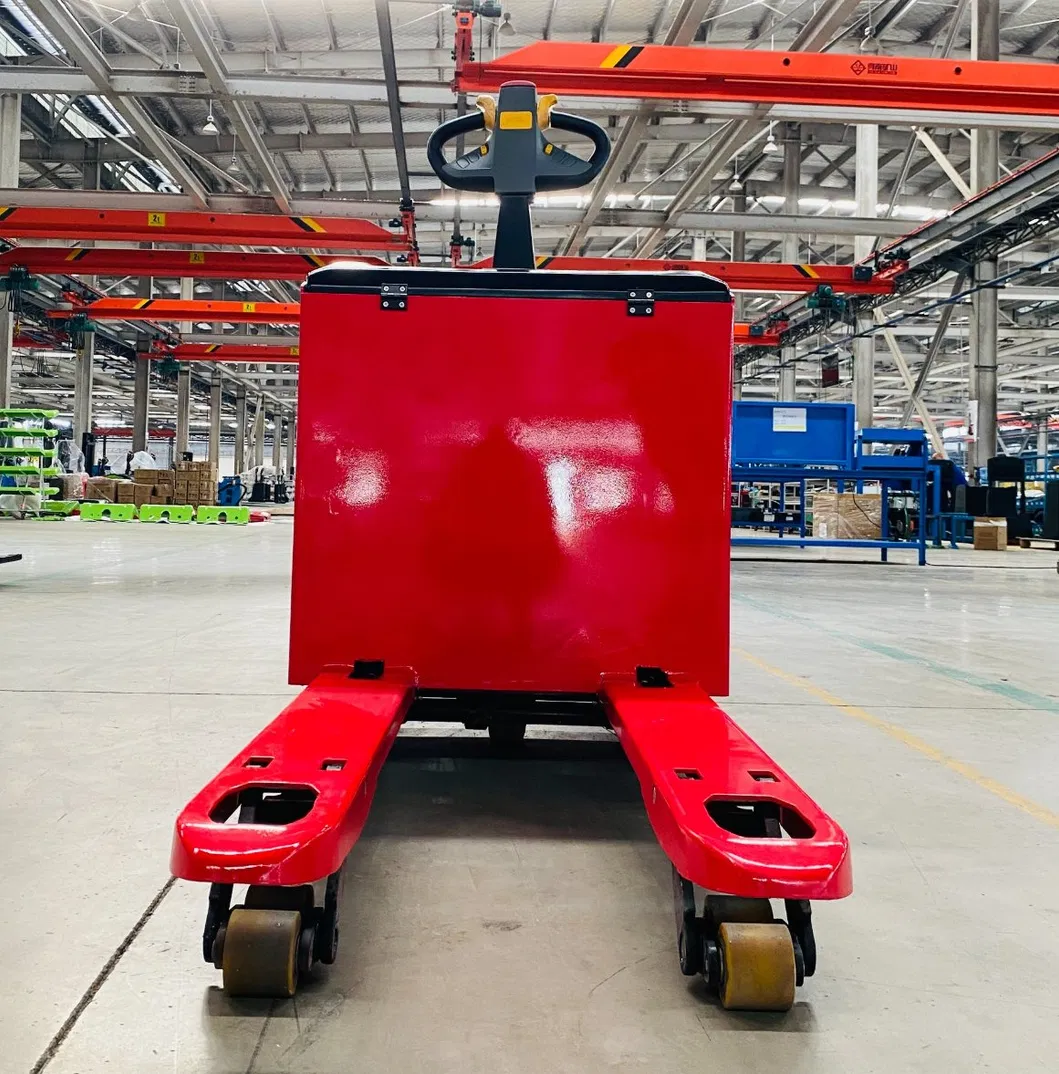

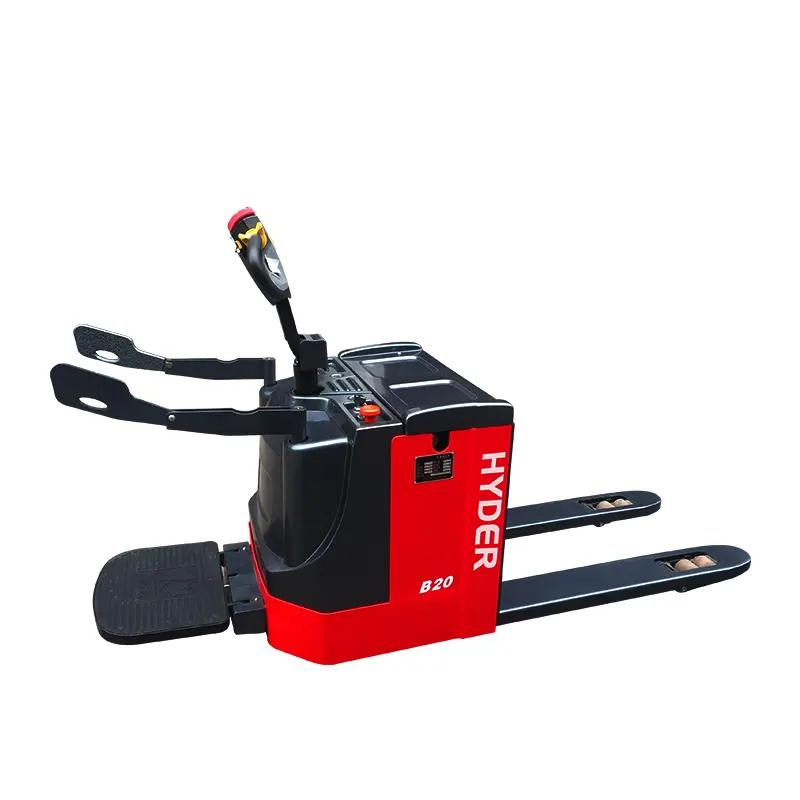

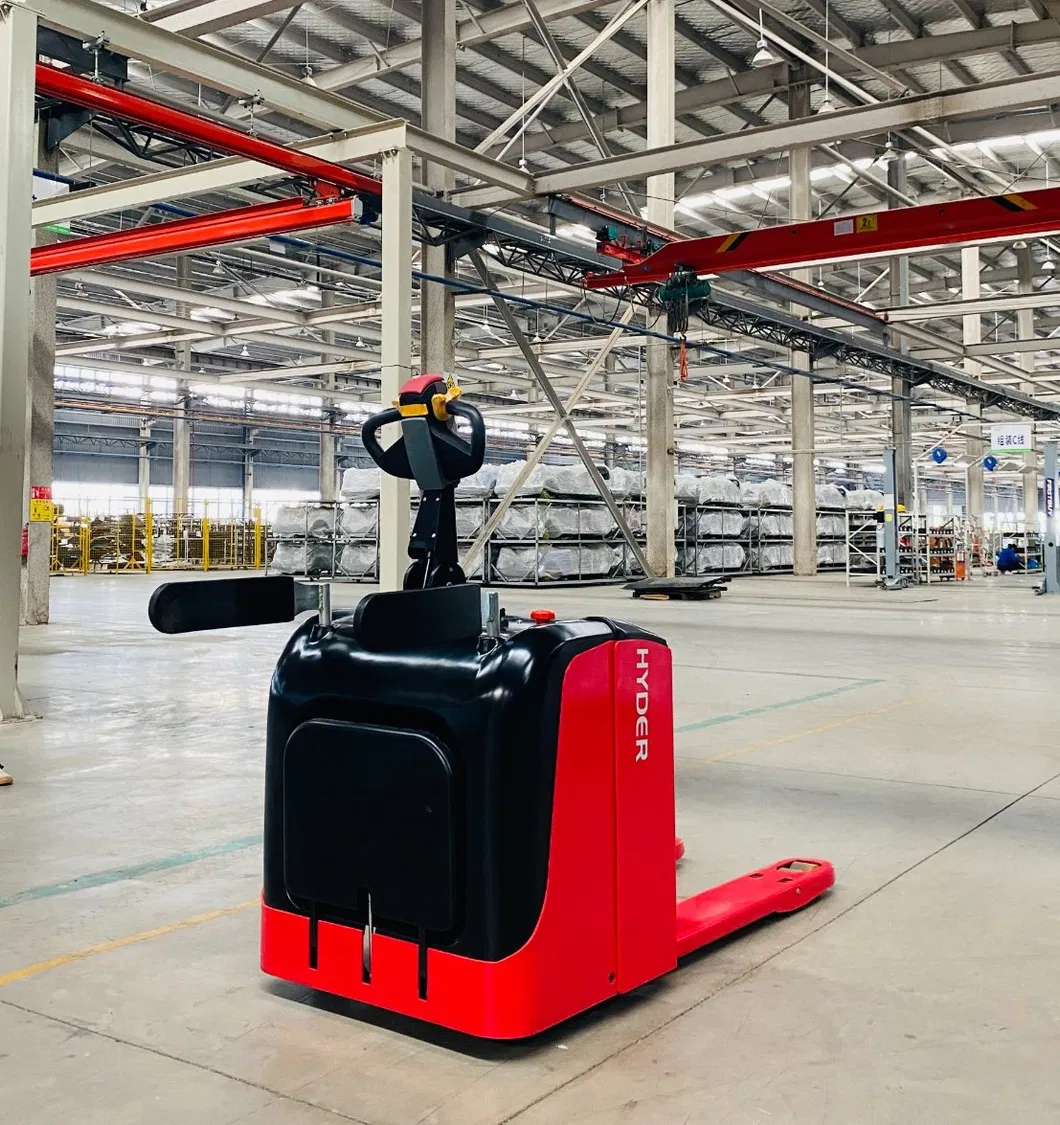

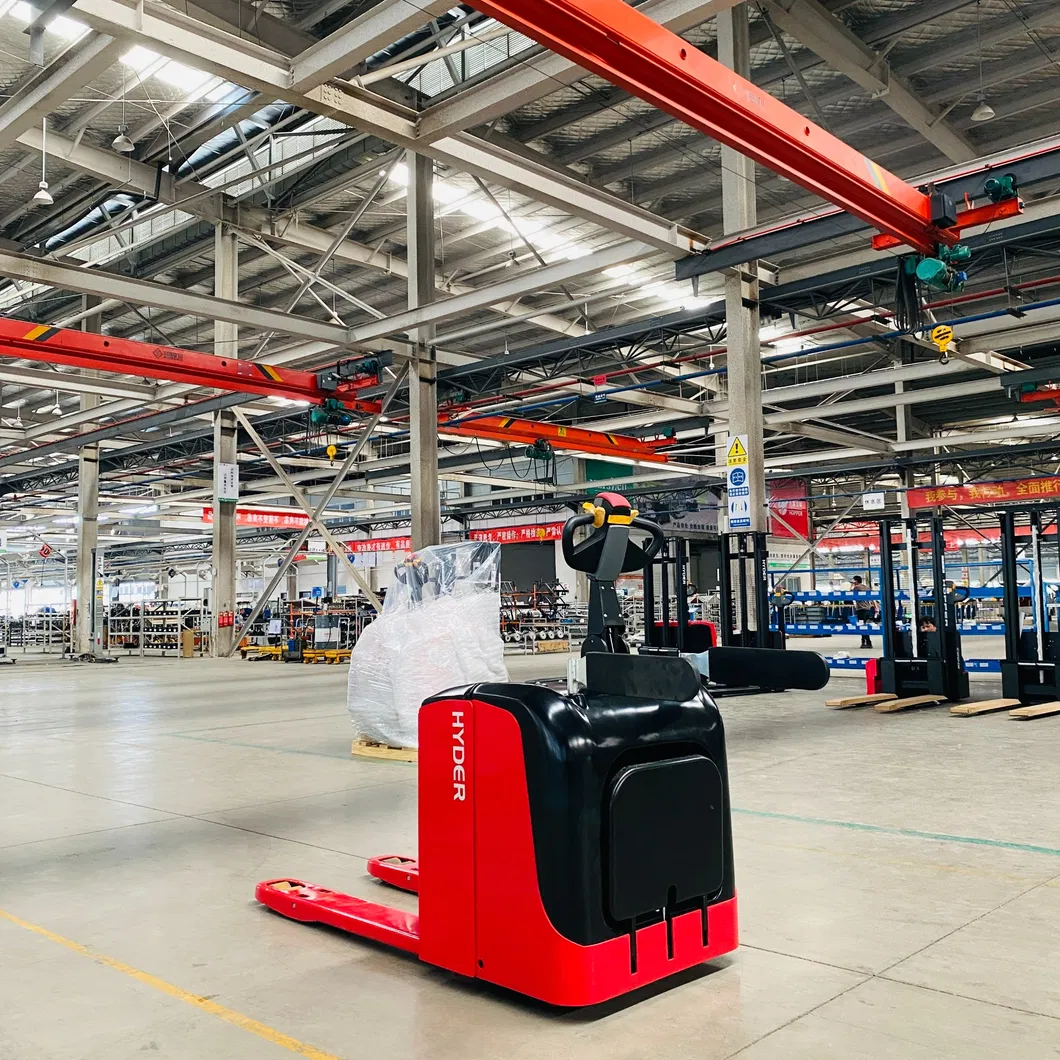

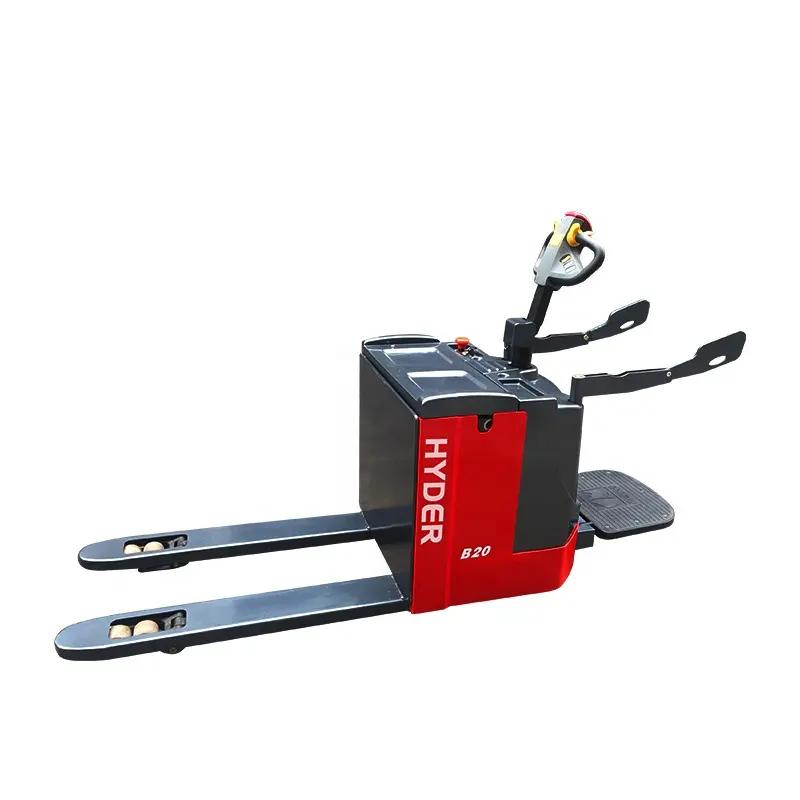

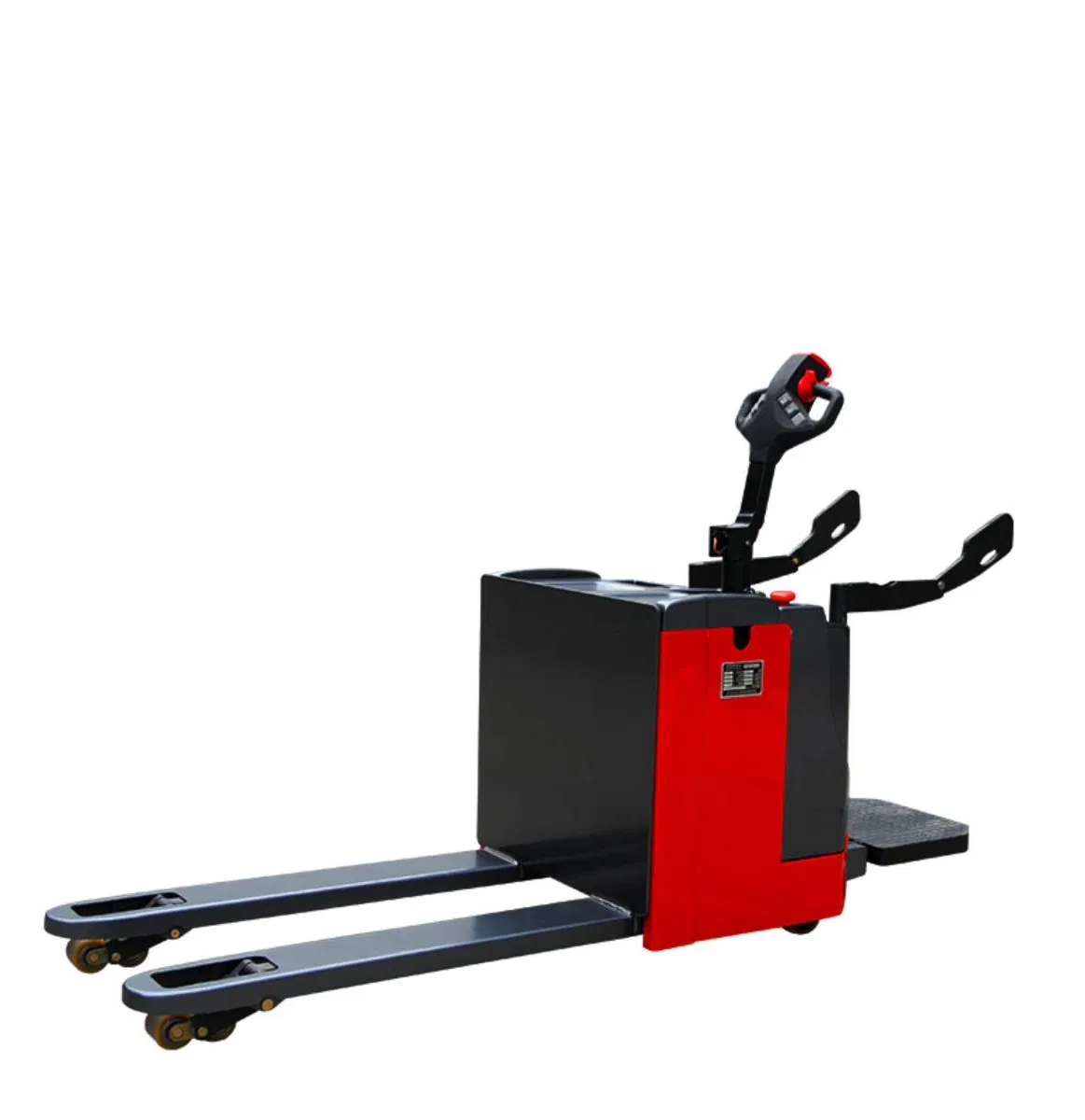

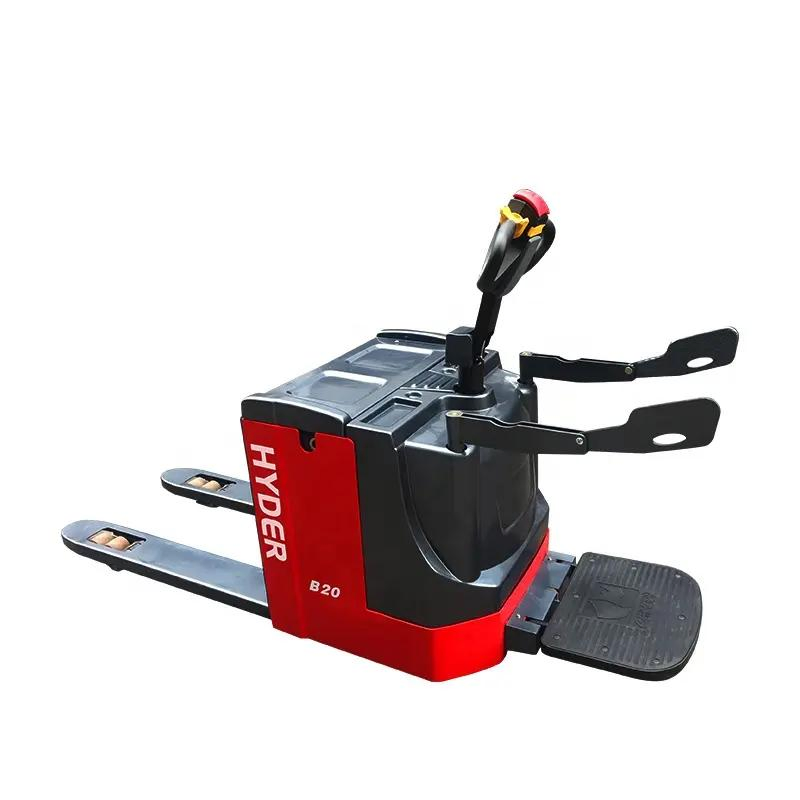

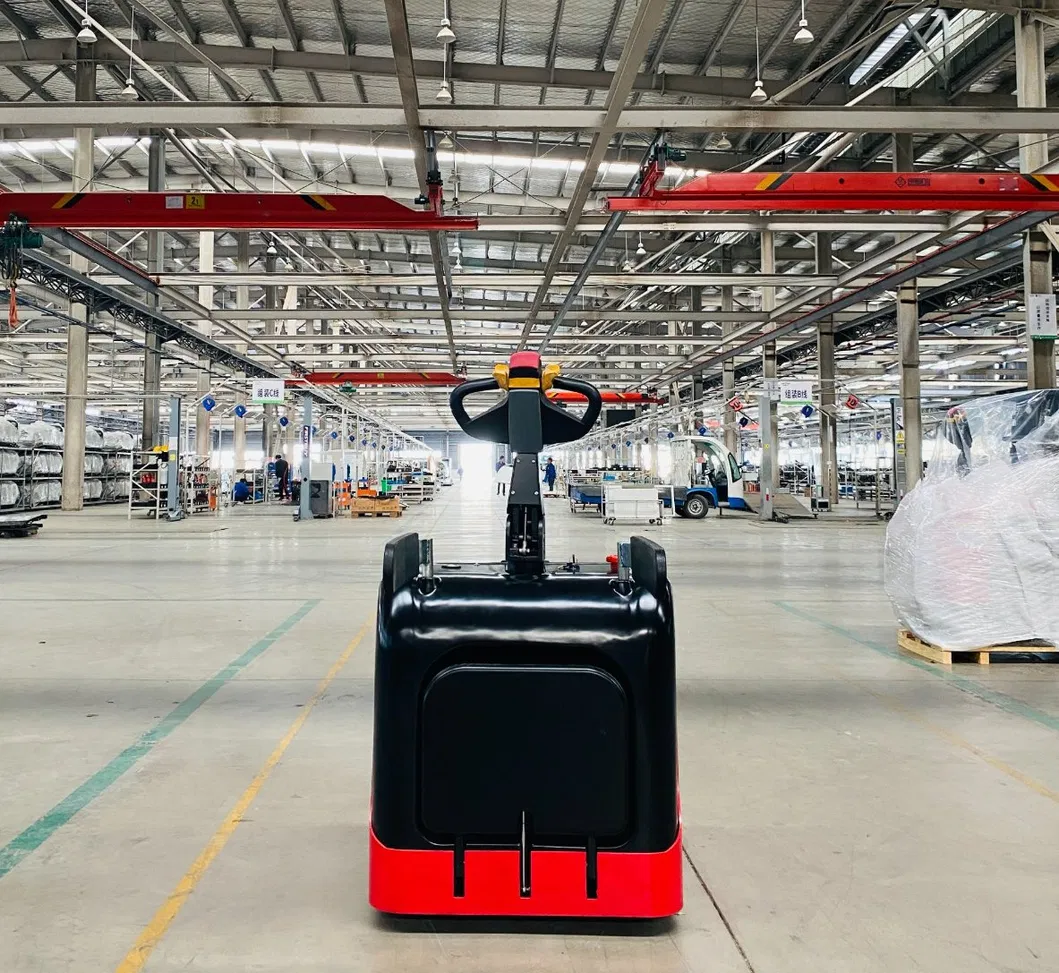

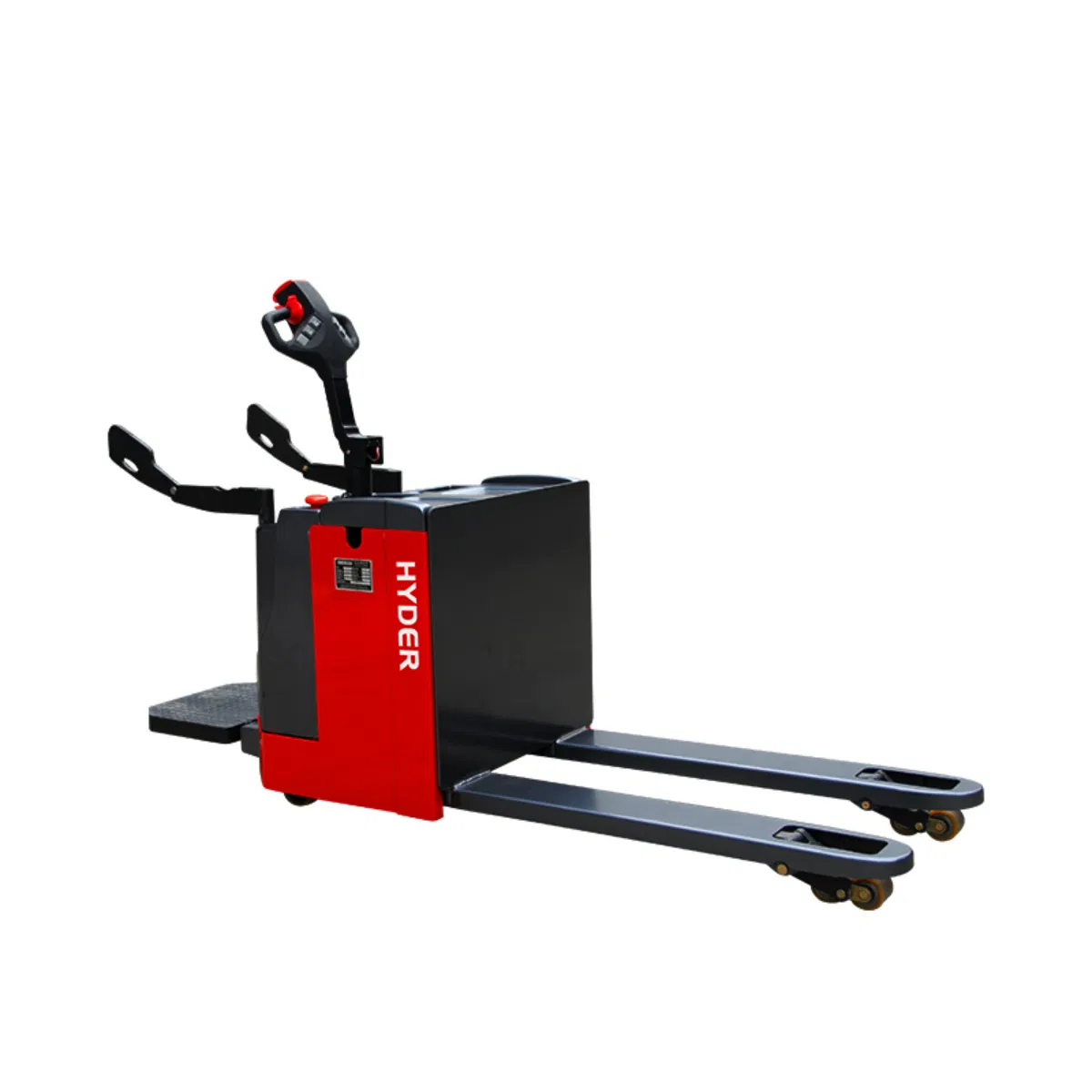

An electric pallet truck jack is a powered material handling vehicle used to lift and move pallets or other heavy loads over short distances. It consists of a platform to hold the load, a set of forks to slide under the load, and an electric motor to power the lifting and movement of the load. These units are essential in warehouses, distribution centers, and manufacturing facilities to improve efficiency and reduce manual labor.
| Model | HTE20 / HTE25 |
| Type | Powered Pallet Truck (Standing-on) |
| Power | AC Motor / Electric |
| Load Capacity | 2.0t - 2.5t |
| Lift Height | >5000mm |
| Controller | American Curtis |
| Battery | 24V / 210Ah |
| Basic Characteristics | |
| Power Type | Electric |
| Operation Type | Stand-on |
| Load Capacity | 2000kg / 2500kg |
| Load Center | 600 mm |
| Wheels & Chassis | |
| Wheel Type | PU Wheel |
| Driving Wheel Size | 230*75 mm |
| Balance Wheel Size | 125*50 mm |
| Dimensions | |
| Overall Length (without pedal) | 2010 mm |
| Overall Width | 800 mm |
| Fork Dimensions | 1150*175 mm |
| Turning Radius | 1785 mm |
| Aisle Width (800*1200 pallet) | 2500 mm |
| Performance & Motors | |
| Travel Speed (Laden/Unladen) | 5/5 km/h |
| Drive Motor Power | 1.5 kw (AC) |
| Lifting Motor Power | 1.2 kw (DC) |
| Steering System | With EPS (Electric Power Steering) |
| Brake Type | Electromagnetic |

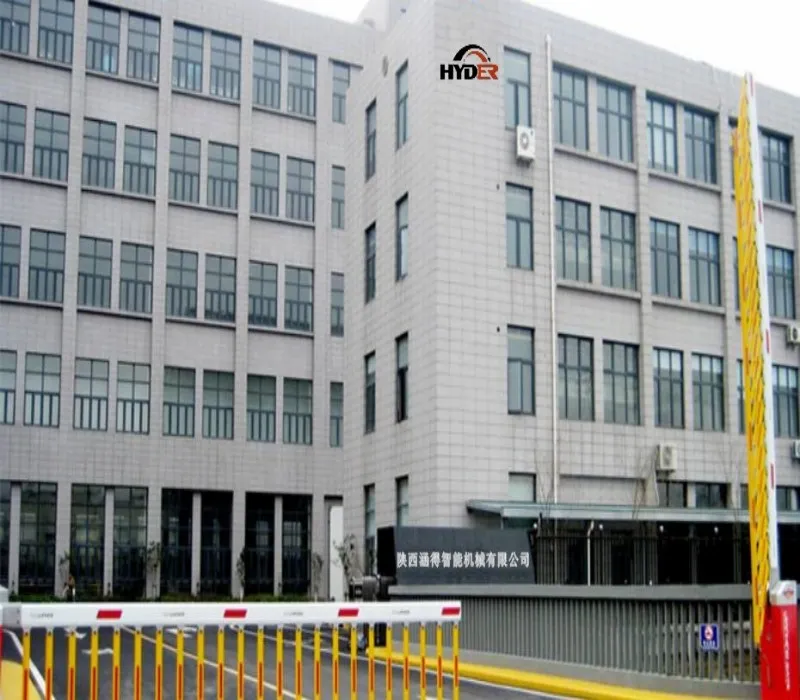

Our manufacturing series includes internal combustion counterbalanced forklift trucks, battery-powered forklifts, and material handling equipment. With a complete QC system and highly efficient production teams, we deliver qualified products that meet international standards.
A: This series is available in two main capacities: 2000kg (2.0t) and 2500kg (2.5t), suitable for various heavy-duty material handling tasks.
A: Yes, it is equipped with an EPS (Electric Power Steering) system, which significantly reduces operator fatigue and improves maneuvering precision.
A: The truck features a high-performance 1.5kw AC drive motor and an industry-leading American Curtis controller for reliable and smooth operation.
A: Yes, with a turning radius of 1785mm and an aisle width requirement of approximately 2500mm for standard pallets, it is designed for efficient use in confined warehouse spaces.

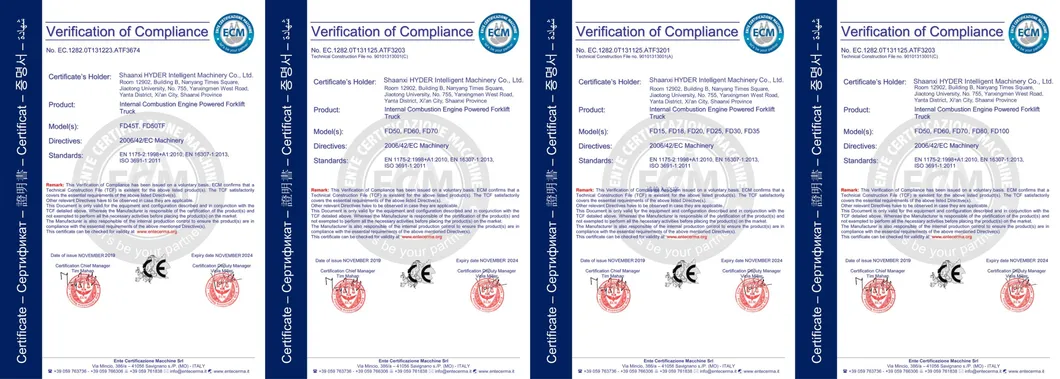

A: Our products have passed rigorous testing and hold CE, TUV, and GS certifications, ensuring compliance with international safety and quality standards.
A: The unit is powered by a 24V/210Ah battery, designed to provide sufficient energy for standard shifts in distribution and manufacturing environments.
