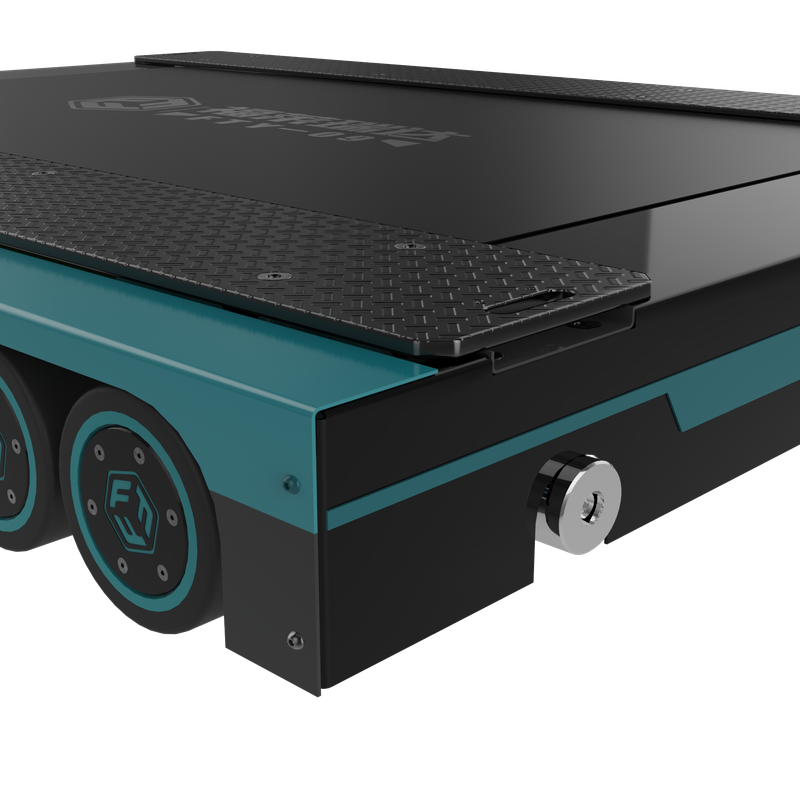

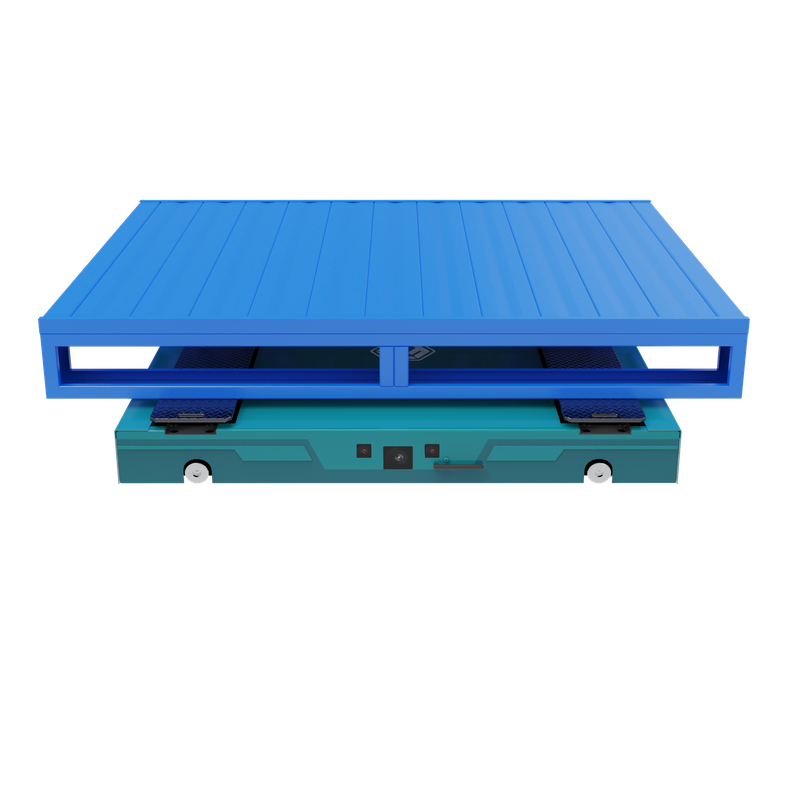

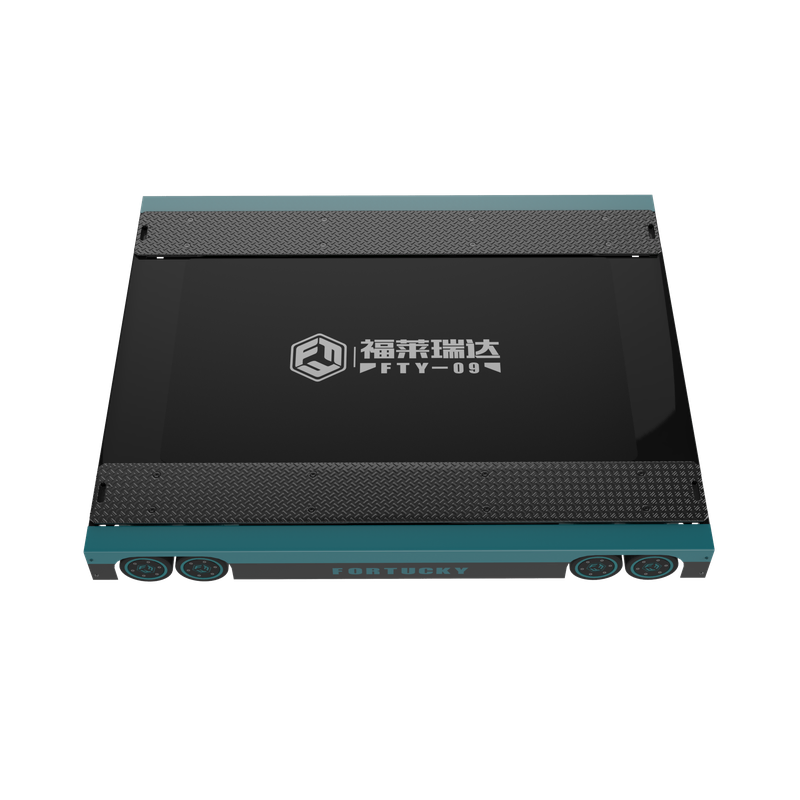

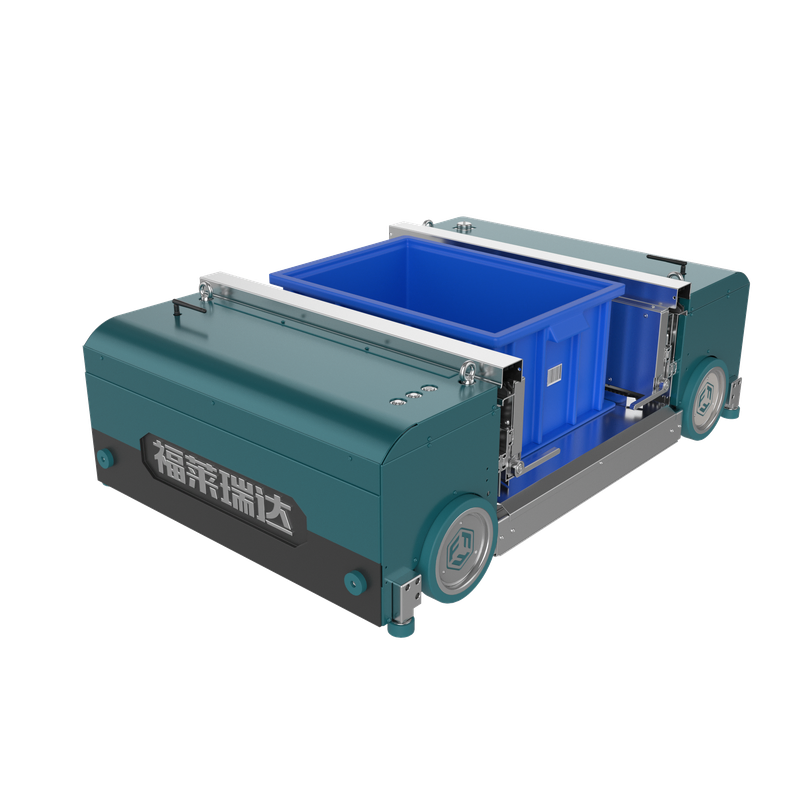

Step into the future of logistics with the unparalleled Four-way Shuttle. This remarkable piece of engineering is a dazzling blend of technological brilliance and forward-thinking innovation, meticulously crafted to revolutionize the logistics landscape. This groundbreaking intelligent handling equipment effortlessly maneuvers both horizontally and vertically within shelving frameworks, flawlessly integrating automatic handling, unmanned guidance, and cutting-edge intelligent control into a single, unmatched system. This marvel of logistics technology delivers exceptional solutions for goods transportation, adeptly addressing the diverse warehousing demands across numerous industries.
Redefine your storage capabilities. This extraordinary innovation dramatically enhances your ability to store goods within existing warehouse space by intelligently utilizing every square inch.
Offers unparalleled maneuverability and adaptability. Its seamless navigation and exceptional efficiency elevate your entire operational workflow.
Seamless compatibility with Warehouse Control Systems (WCS), Warehouse Management Systems (WMS), RFID, and barcode identification technologies.
Engineered for outstanding stability with an exceptionally low failure rate. Durable construction guarantees lasting performance with minimal maintenance.
Significantly reduces manpower expenses while enhancing operational efficiency, boosting your financial strategy and productivity metrics.
Equipped with state-of-the-art safety sensors and a pioneering anti-collision system to ensure peak operational safety.
| Parameters | Unit | Four-way Shuttle | |
|---|---|---|---|
| Basic Data | Overall Size | mm | 1135*980*146 |
| Service Weight | kg | 300 | |
| Rated Load Capacity | t | 1.2 | |
| Performance Metrics | Drive Speed | m/s | 1.2 |
| Acceleration | m/s² | 0.3 | |
| Lifting Time | s | 3 | |
| Turning Time | s | 3 | |
| Location Precision | mm | ±2 | |
| Battery Metrics | Battery Type | / | LiFePO4 |
| Performance | kw·h | ≥2.8 | |
| Duration | h | 8 | |
| Charging Time | h | ≤2 | |
| Recycling Process | times | 2000 | |
| Way of Charging | / | Automatic | |
| Applicable Temp | ºC | -10 ~ 45 | |
| Power Display | / | Yes | |
| Safety | Laser Obstacle Avoidance | / | Yes |
| Fog Detector | / | Enabled | |
| Temperature Detector | / | Enabled | |
| Emergency Stop Button | / | Yes | |
| Pallet Detector | / | Yes | |
