Model:JX0
Power:AC Motor
Load Capacity:≤1T
Fuel:Electric
Lift height:3620mm
Turning Radius:1260mm
Travel Speed:Up to 6.5 Km/H
Battery:24V/120Ah
Steering Type:Electric
Condition:New

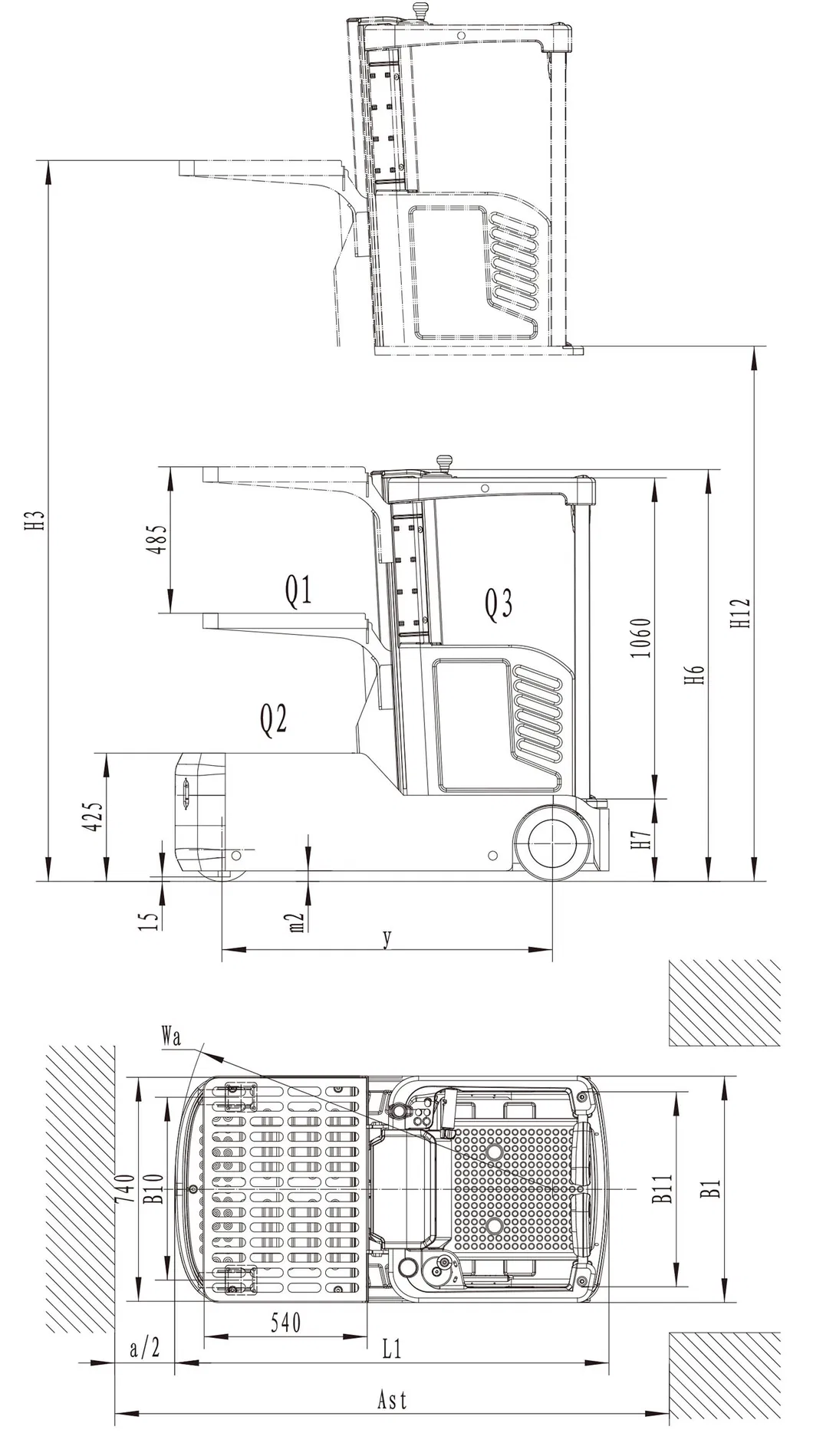

Technical Detailed Parameters
| 1.2 | Model designation | | JX0 |
| 1.3 | Drive unit | | Electric |
| 1.4 | Operator type | | Order Picker |
| 1.5 | Rated capacity | Q | kg | 90 / 110 / 136 |
| 1.9 | Wheelbase | y | mm | 1095 |
|
| 2.1 | Service weight (incl. battery) | | kg | 800 |
| 2.3 | Axle loading, unladen driving/loading | | kg | 370/430 |
|
| 4.4 | Lift height | h3 | mm | 3620 |
| 4.14 | Stand height, elevated | h12 | mm | 3000 |
| 4.19 | Overall length | l1 | mm | 1440 |
| 4.21 | Overall width | b1/b2 | mm | 750 |
| 4.35 | Turning radius | Wa | mm | 1260 |
|
| 5.1 | Travel speed (laden/unladen) | | km/h | 6 / 6.5 |
| 6.1 | Drive motor rating | | kW | 0.65 |
| 6.2 | Lift motor rating | | kW | 2.2 |
| 6.4 | Battery voltage | | V/Ah | 24V/120Ah |
Standard Warranty
Comprehensive 2-year or 2000 working hours spare parts warranty for equipment, whichever occurs first.
24-Hour Rapid Response
All quality claims or technical questions will be addressed within 24 hours to ensure quick feedback for every issue.
48-Hour Parts Support
Once a claim is accepted, spare parts are arranged and dispatched within 48 hours to guarantee minimal downtime.
Online Management System
Full access to online tracking for claims, technical support, and spare parts ordering via an integrated digital platform.
Complimentary Training
Free training systems are provided to help operators understand equipment performance and maintenance requirements.
?
Frequently Asked Questions
Q1: What is the primary function of the JX0 model?
The JX0 is an entry-level work assist vehicle designed for low to medium volume order picking and warehouse maintenance tasks.
Q2: What is the maximum lift and standing height?
The unit features a maximum lift height of 3620mm and a maximum standing platform height of 3000mm.
Q3: How long does the battery last and what are its specs?
It uses a high-capacity 24V/120Ah battery, designed for standard daily shifts with efficient power consumption.
Q4: Is the JX0 easy to operate in narrow aisles?
Yes, with a turning radius of only 1260mm and an overall width of 750mm, it is specifically optimized for tight warehouse spaces.
Q5: What safety features are included for the brakes?
The vehicle is equipped with an electromagnetic service brake for reliable and safe stopping power.
Q6: What is the travel speed of this order picker?
When the platform is at its lowest height (0-500mm), it can reach a travel speed of up to 6.5 km/h.
