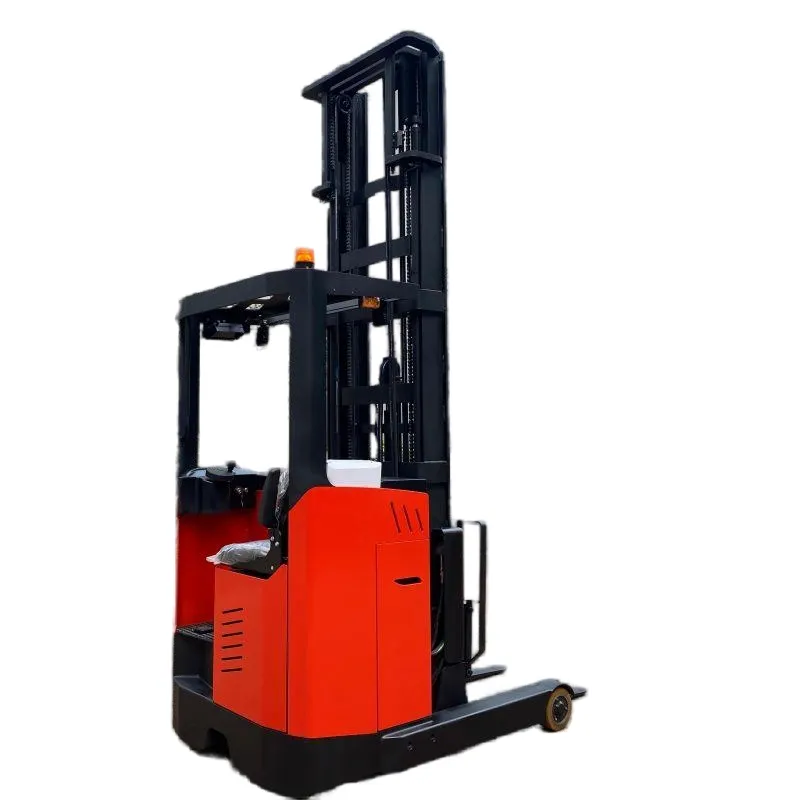

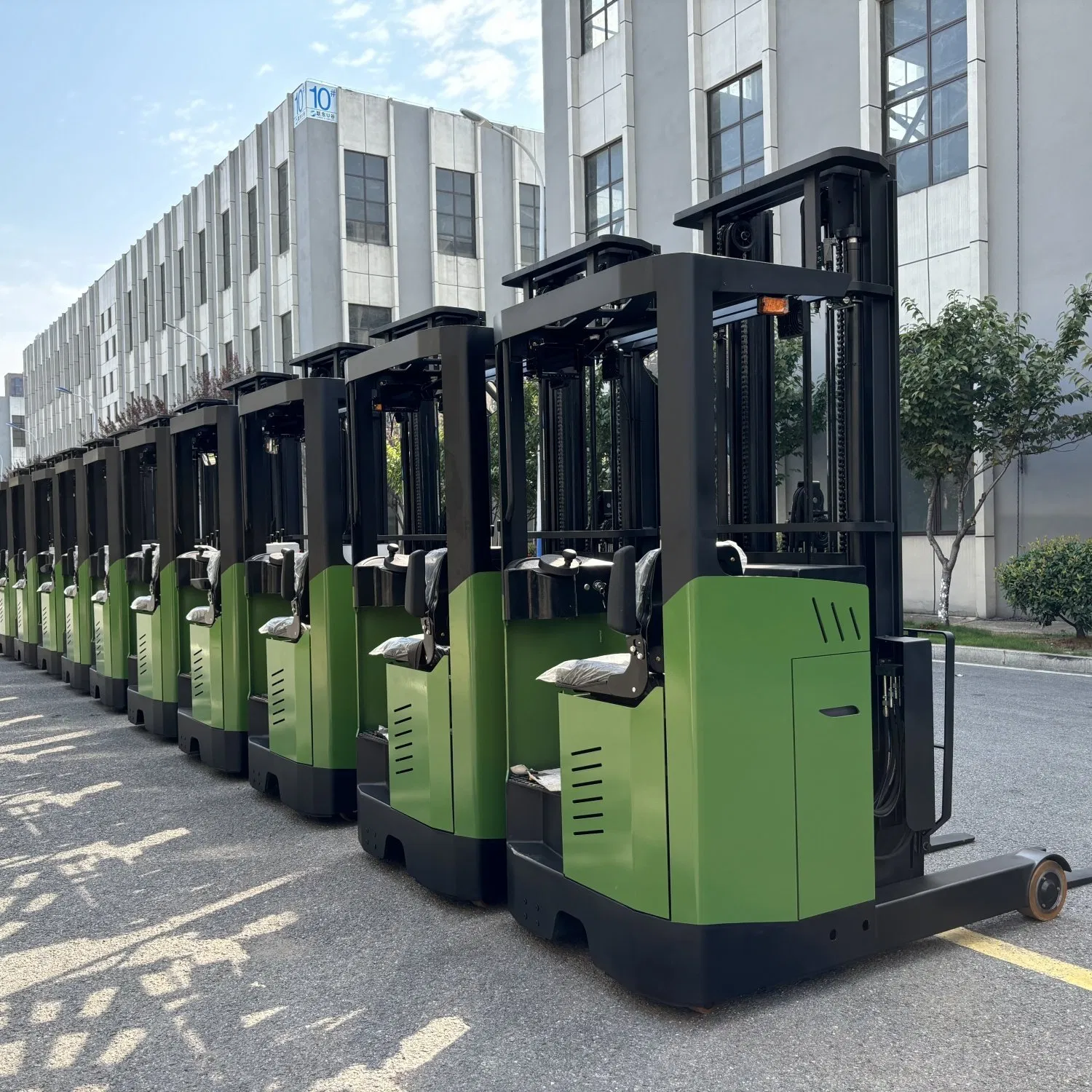

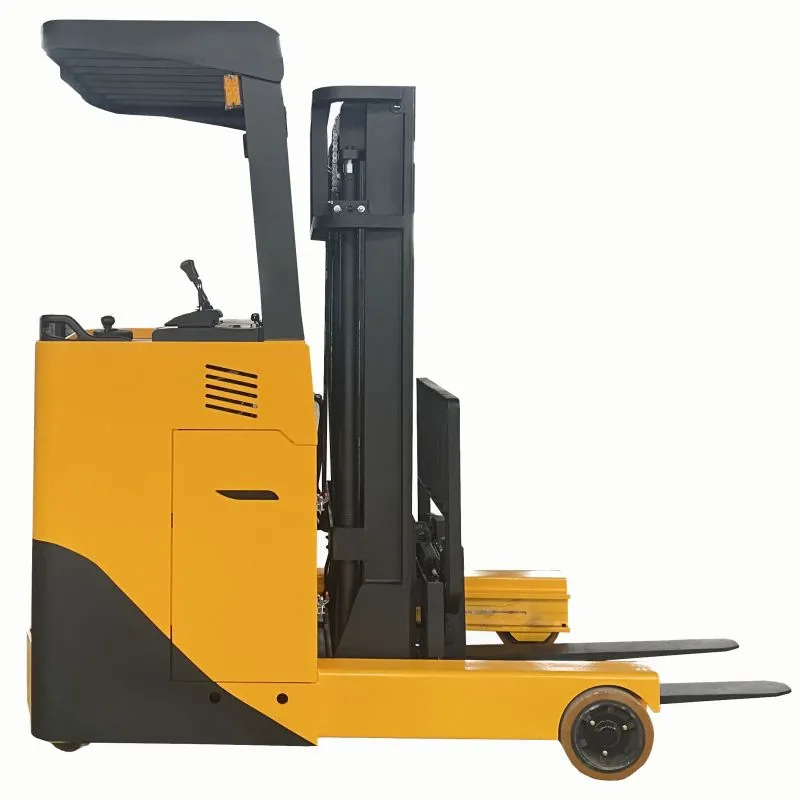

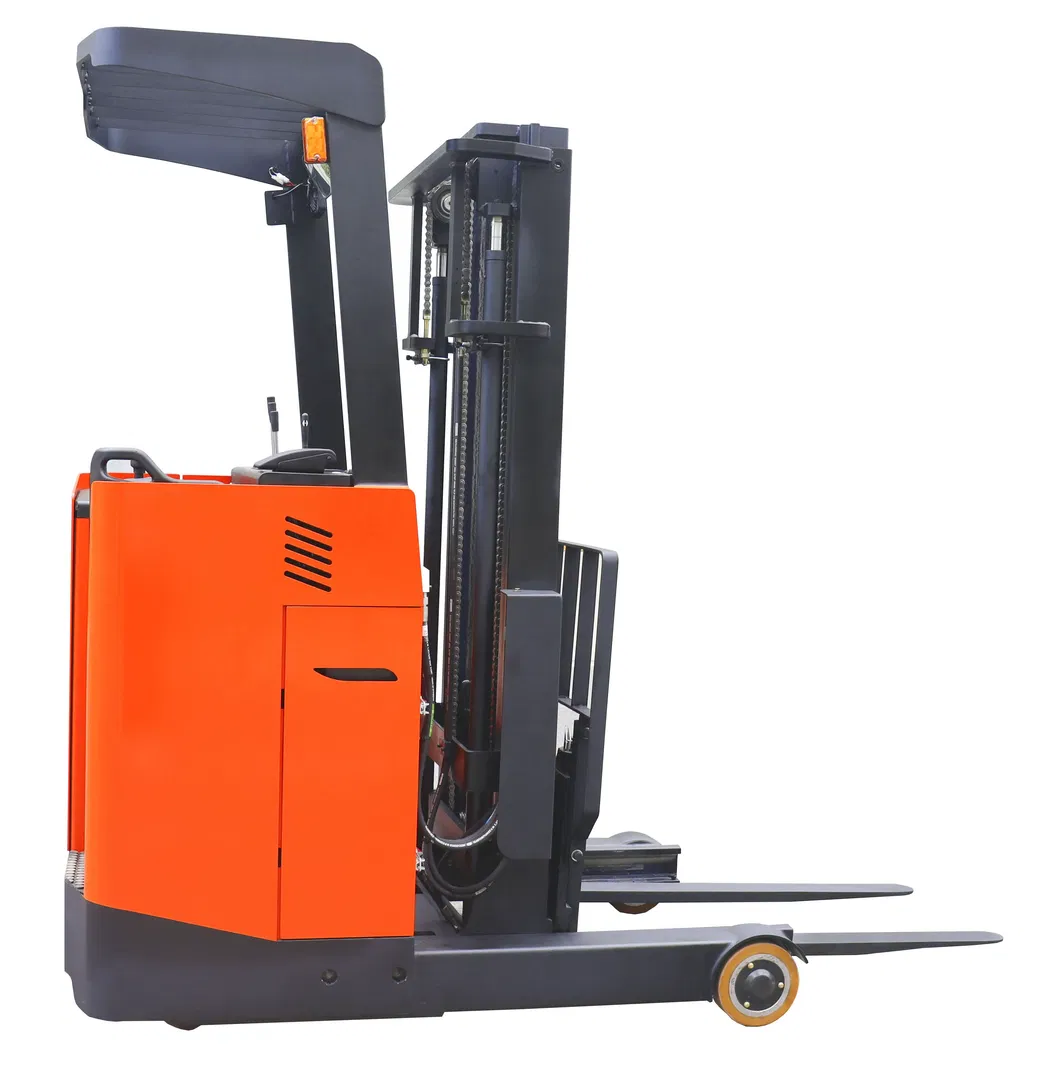

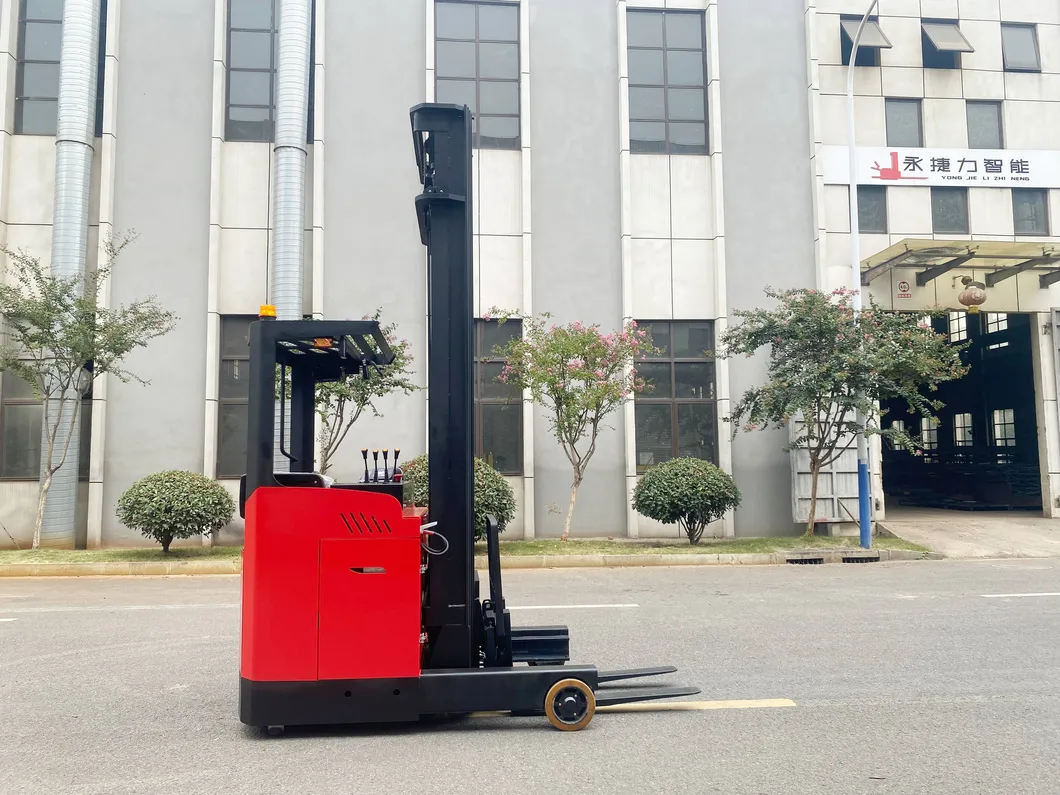

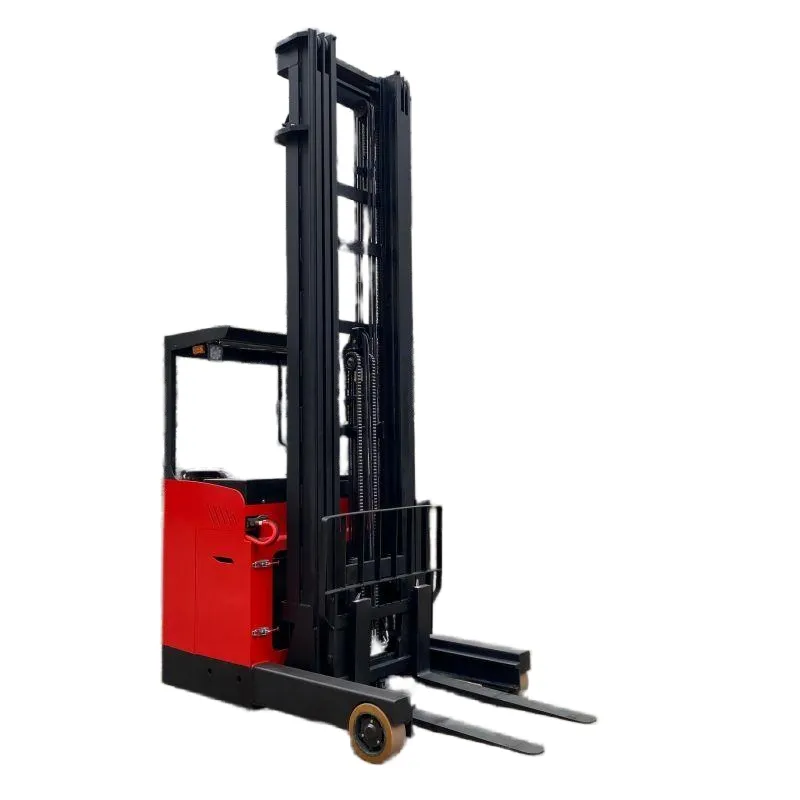

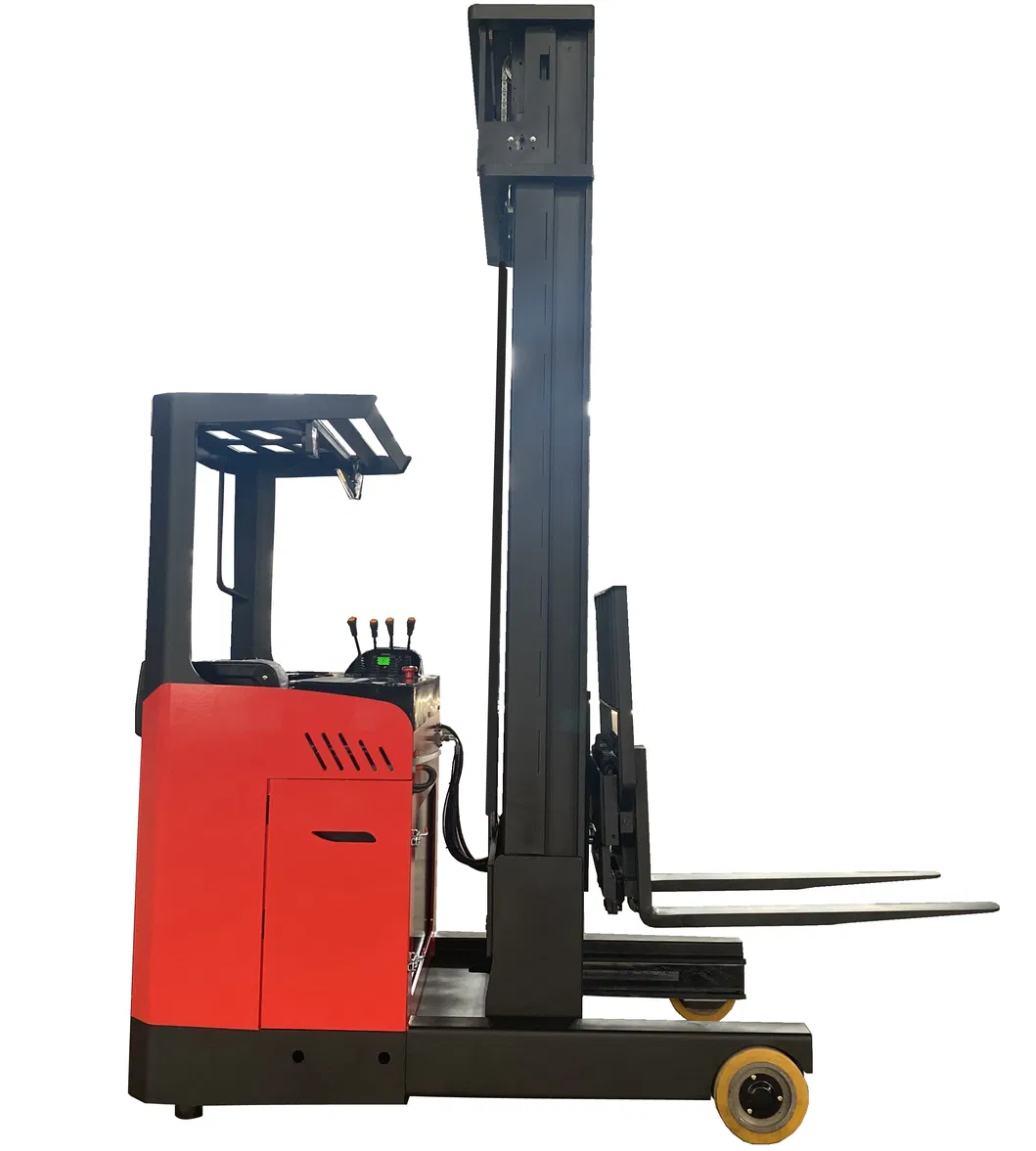

The extendable fork mechanism allows the reach truck to perform high-level stacking within a compact chassis, making it ideal for narrow aisle operations compared to traditional counterbalance forklifts.

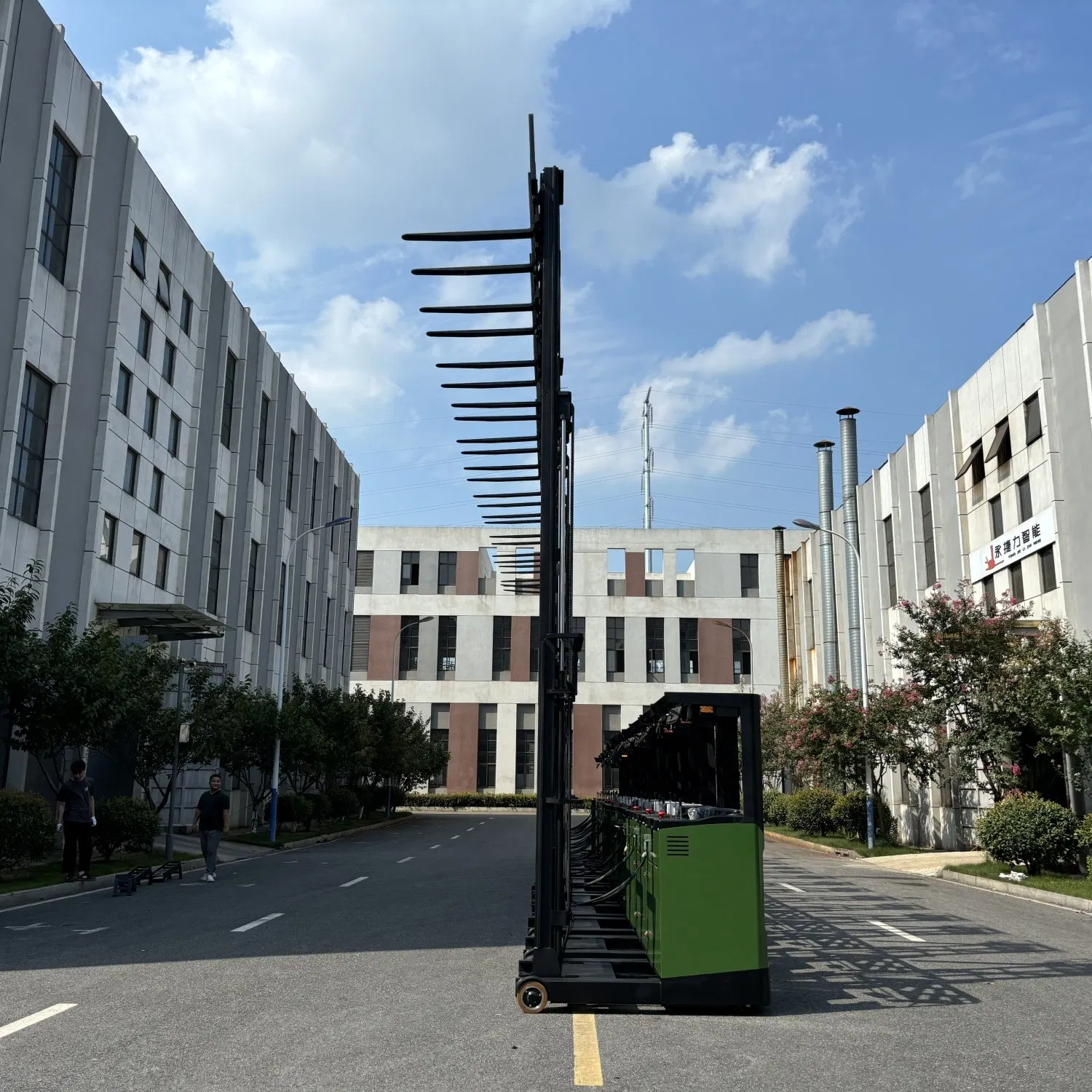

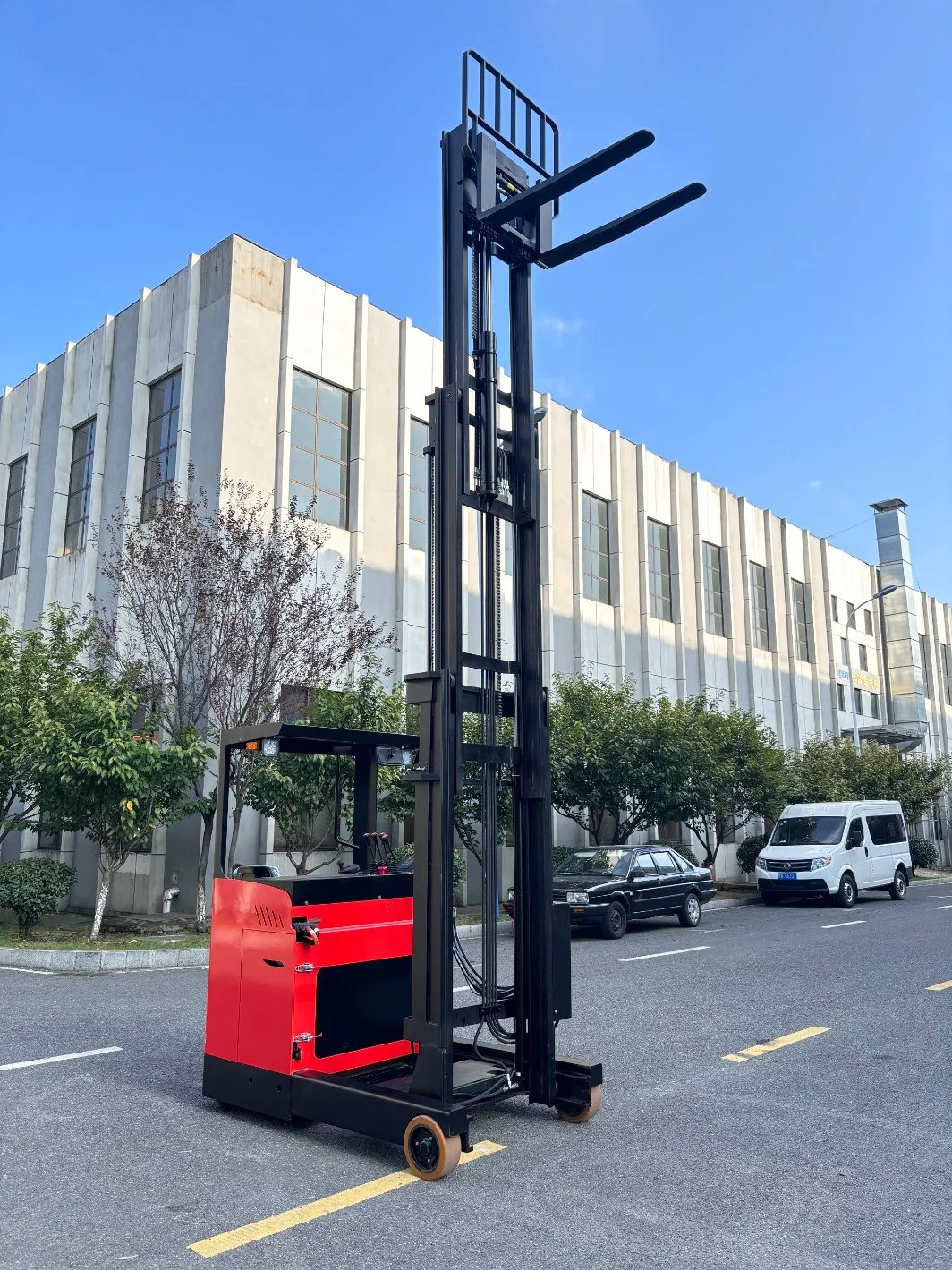

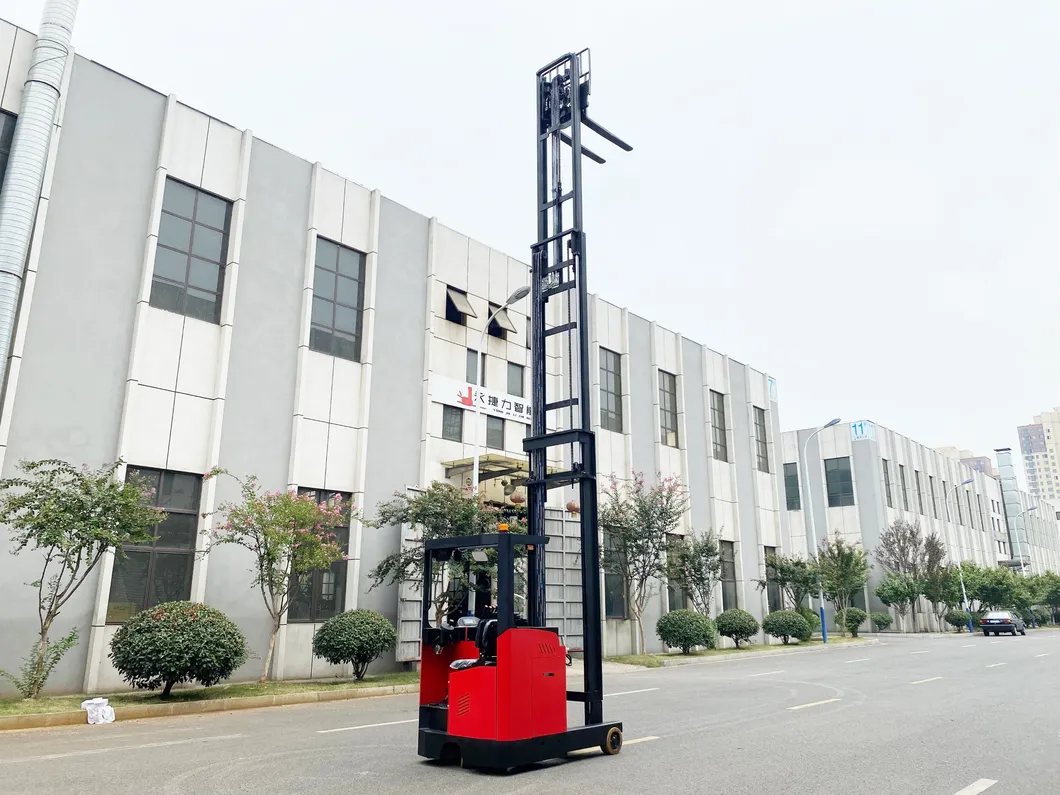

The reach truck typically offers lifting heights ranging from 8 to 12 meters, with side-shift capabilities for precise positioning. A stable center of gravity and powerful hydraulic system ensure safety and efficiency during elevated operations.

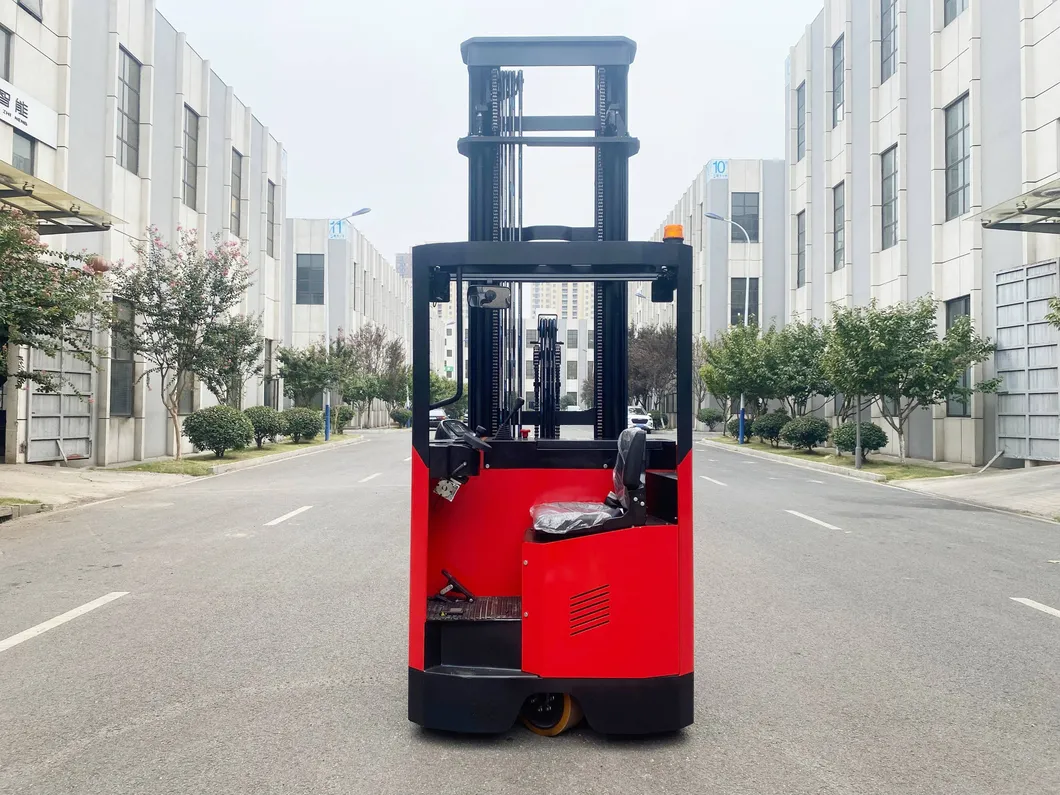

Equipped with a high-performance battery, the reach truck offers zero emissions and low noise, making it environmentally friendly and ideal for indoor use and industries with strict environmental standards.

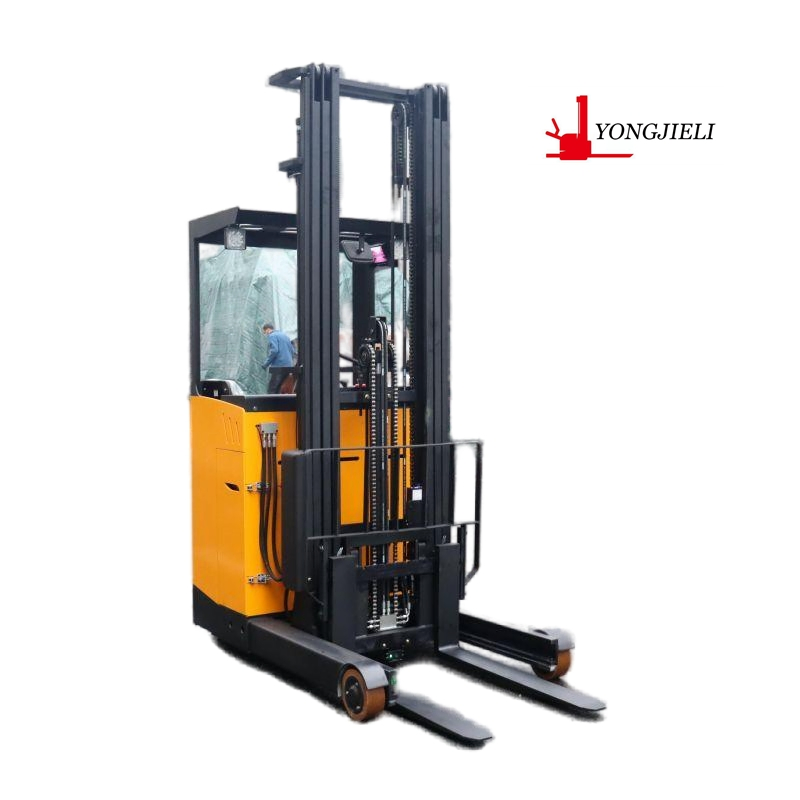

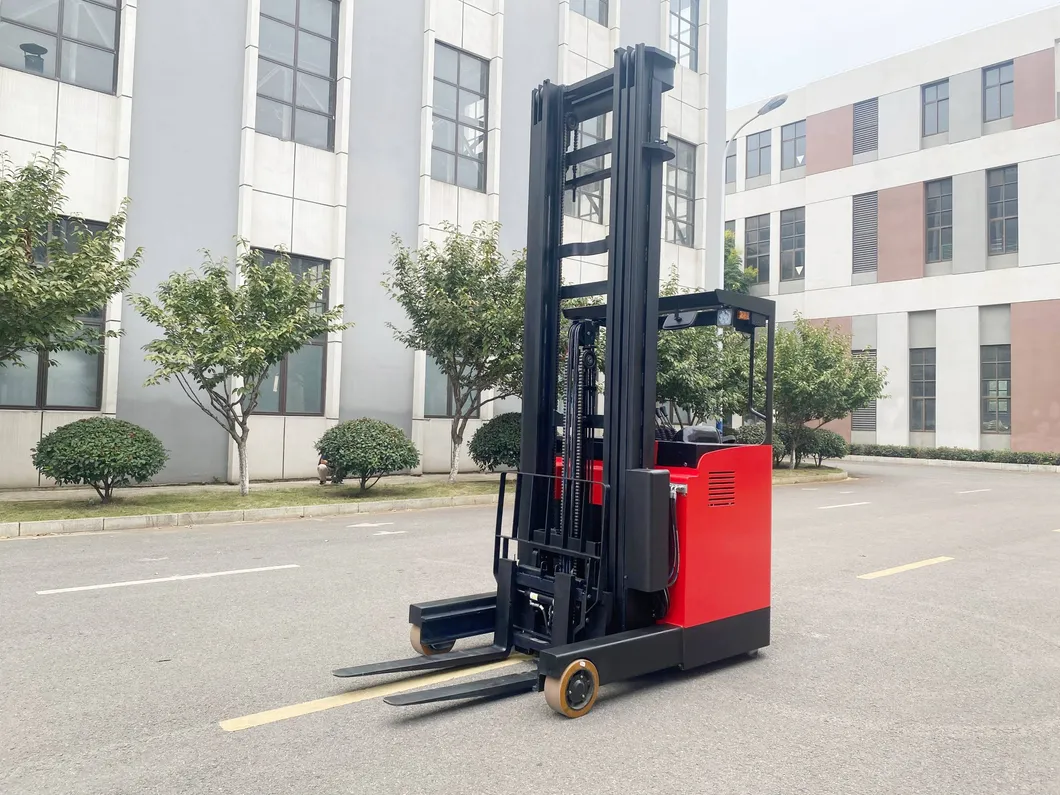

Modern reach trucks feature ergonomic cabins and multifunctional control panels, providing a comfortable and secure working environment for long shifts. Advanced control systems and automatic buffering enhance maneuverability and operational safety.

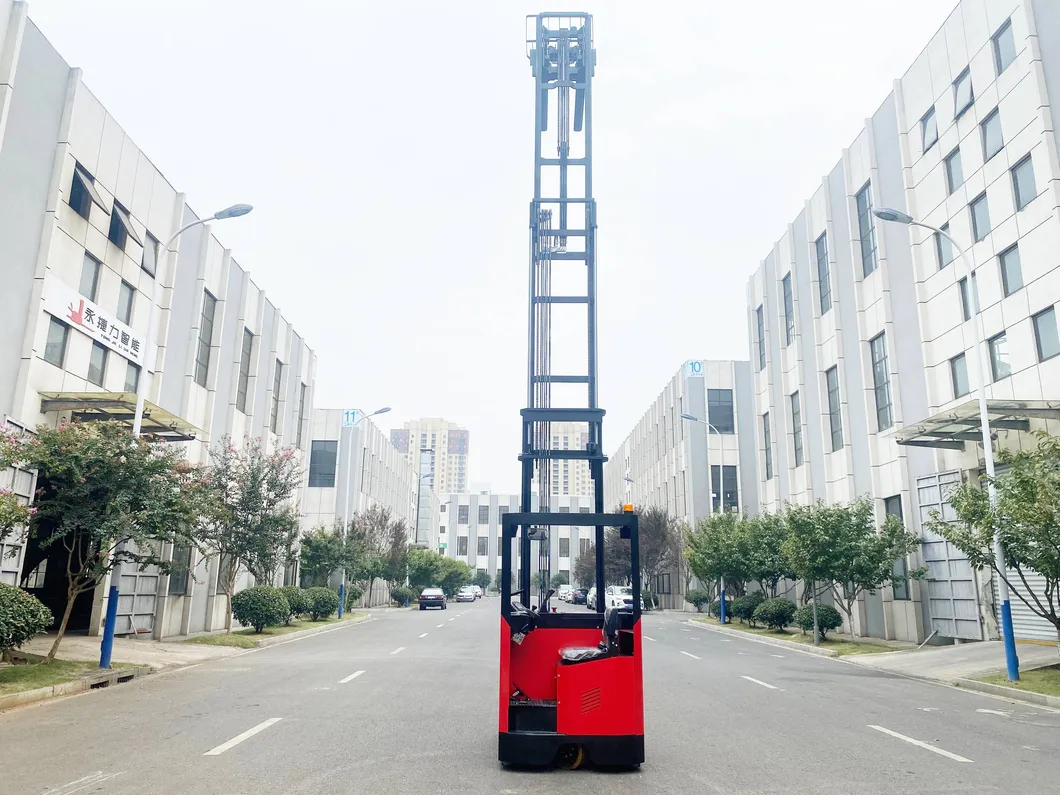

Safety features include emergency braking, speed control, curve automatic deceleration, and automatic leveling, reducing operational risks and improving workplace safety.
| Parameter | Unit | CQD16 | CQD20 | CQD25 |
|---|---|---|---|---|
| Rated load | kg | 1600 | 2000 | 2500 |
| Lifting height | mm | 6000 | 6000 | 6000 |
| Overall length | mm | 2435 | 2435 | 2515 |
| Overall width | mm | 1270 | 1270 | 1270 |
| Fork dimensions | mm | 35/100/1070 | 40/122/1070 | 40/122/1070 |
| Battery voltage/capacity | V/Ah | 48/300 | 48/400 | 48/400 |
| Driving motor Power | kw | 4.5(AC) | 6.5(AC) | 6.5(AC) |
| Lifting motor power | kw | 6.3 | 6.3 | 8.6 |
| Driving speed (full load) | km/h | 7.8 | 7.8 | 7.8 |
Our product line encompasses nine major series with more than 100 varieties, including fully electric pallet stackers, electric pallet trucks, reach trucks (stand-up and sit-down), tow tractors, order pickers, narrow aisle forklifts, AGVs, and unmanned aisle stackers. We offer material handling solutions ranging from 500KG to 100,000KG.
Established in 2005, we are a High-tech enterprise specializing in research, design, and manufacturing of material handling solutions. Recognized as an innovative leader, we are committed to providing safety, durability, and comfort through non-standard customization.
ISO E1/S1/Q1 Certification and Production Standardization Certificates.
Specialized Equipment Production License and High-Tech Enterprise status.
