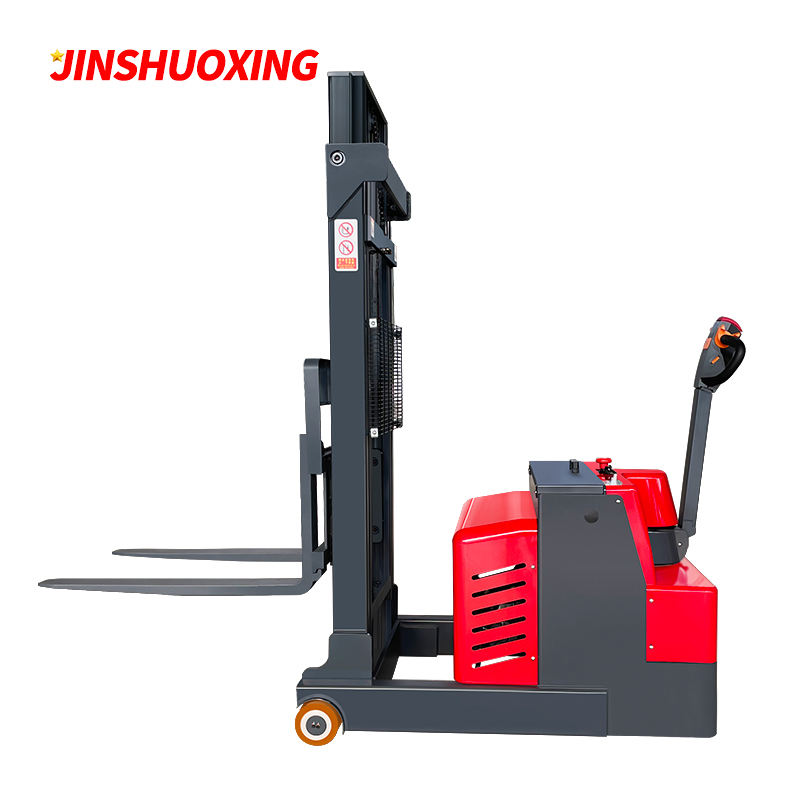

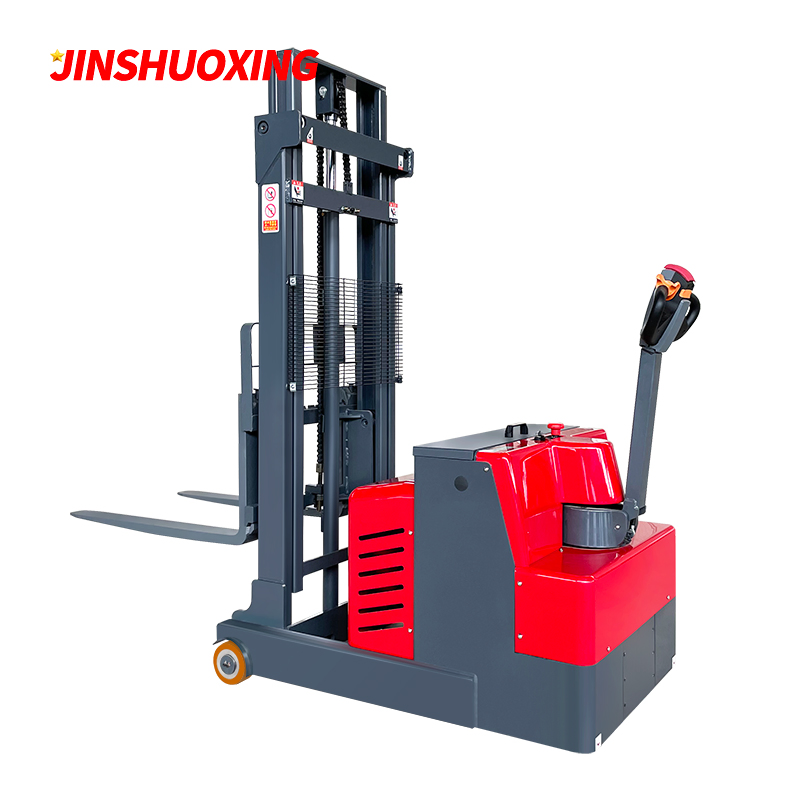

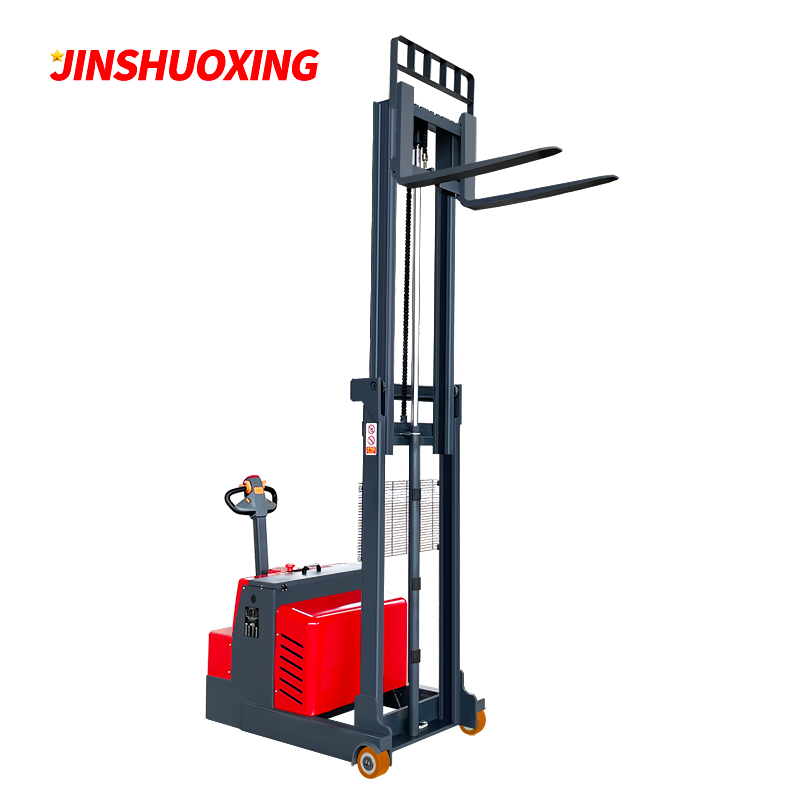

0.8 Ton 1 Ton 1.2 Ton Short Wheelbase Narrow Aisle Electric Counterbalanced Forklift
0.8 Ton 1 Ton 1.2 Ton Short Wheelbase Narrow Aisle Electric Counterbalanced Forklift
0.8 Ton 1 Ton 1.2 Ton Short Wheelbase Narrow Aisle Electric Counterbalanced Forklift
0.8 Ton 1 Ton 1.2 Ton Short Wheelbase Narrow Aisle Electric Counterbalanced Forklift
0.8 Ton 1 Ton 1.2 Ton Short Wheelbase Narrow Aisle Electric Counterbalanced Forklift
1 / 5
0.8 Ton 1 Ton 1.2 Ton Short Wheelbase Narrow Aisle Electric Counterbalanced Forklift
0.8 Ton 1 Ton 1.2 Ton Short Wheelbase Narrow Aisle Electric Counterbalanced Forklift
0.8 Ton 1 Ton 1.2 Ton Short Wheelbase Narrow Aisle Electric Counterbalanced Forklift
0.8 Ton 1 Ton 1.2 Ton Short Wheelbase Narrow Aisle Electric Counterbalanced Forklift
0.8 Ton 1 Ton 1.2 Ton Short Wheelbase Narrow Aisle Electric Counterbalanced Forklift

0.8 Ton 1 Ton 1.2 Ton Short Wheelbase Narrow Aisle Electric Counterbalanced Forklift

After-sales Service: 1 Year
Warranty: 1 Year
Cab Location: Standing on The Ground
Send Inquiry

Product Description

📋Basic Specifications
Model
KLA-A
Type
Electric Forklift
Power
DC Motor
Load Capacity
1T - 5T
Fuel
Electric
Lift Height
1600-3500mm
Load Center
450mm
Condition
New
Fork Type
Solid Forging
Battery Type
EV Colloid
Voltage
24V
HS Code
8427109000

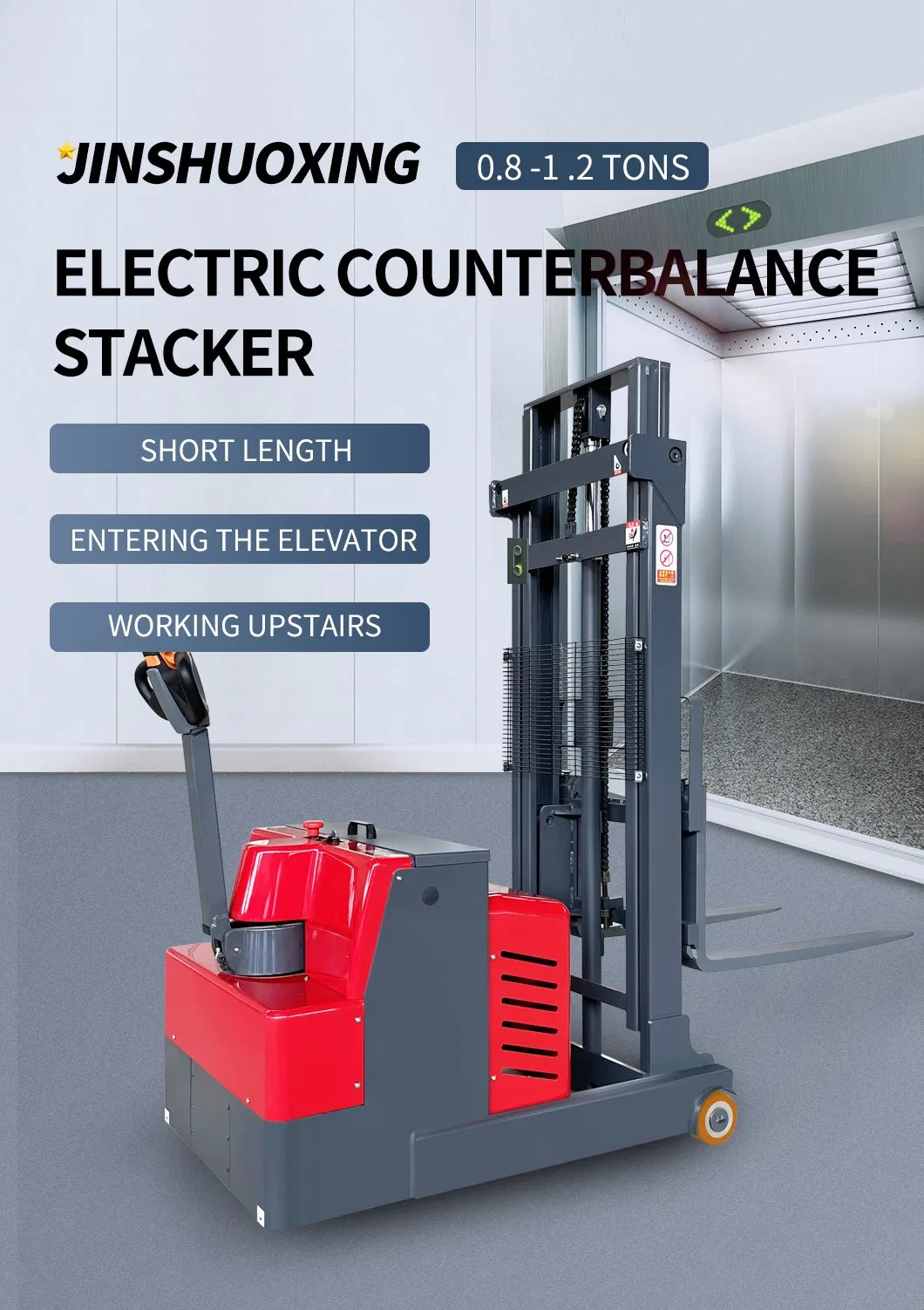

Electric Counterbalanced Forklift Overview
Narrow Aisle Performance
⭐Product Features
✔1. Electric lifting and electric walking for effortless operation.
✔2. Counterweight type design with no outriggers, suitable for various working conditions.
✔3. Short wheelbase and lightweight design, ideal for narrow spaces and floor operations.
✔4. Equipped with solid forged forks with adjustable outer width.
✔5. Uses national standard 1244 plate composite chain for enhanced durability.

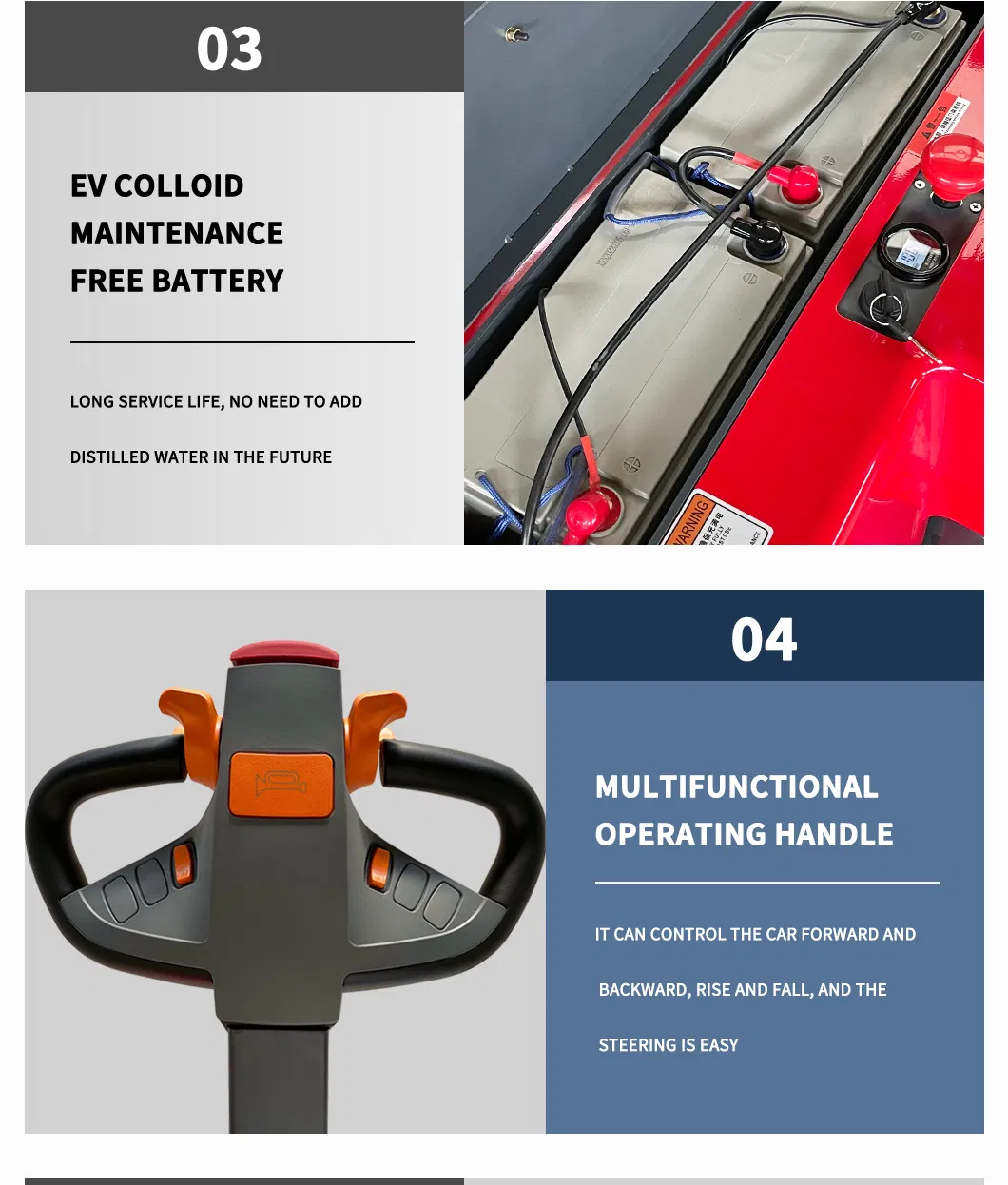

✔6. Open battery box design with optional larger capacity battery upgrades.
✔7. High-quality ALBRIGHT contactor and AMP waterproof power connectors.
✔8. Vertical turtle speed function for precise maneuvering in tight areas.
✔9. Multiple braking functions: regenerative, power-off, reverse connection, and anti-slip.
✔10. Intelligent charger with automatic power-off when fully charged.
Detailed Features
📊Performance Parameters
Model KLA08A KLA10A KLA12A
Performance Max Load Capacity - kg 800 1000 1200
Load Center Q mm 450 450 450
Max Driving Speed (Unload/Load) - km/h 5.2 / 4.8 5.2 / 4.8 5.2 / 4.8
Lifting Speed (Unload/Load) - mm/s 121 / 81 121 / 81 121 / 81
Weight (with battery) - kg ≈1000 ≈1150 ≈1300
Dimensions Overall Length (with fork) L mm 2375 2375 2375
Overall Width B mm 940 940 940

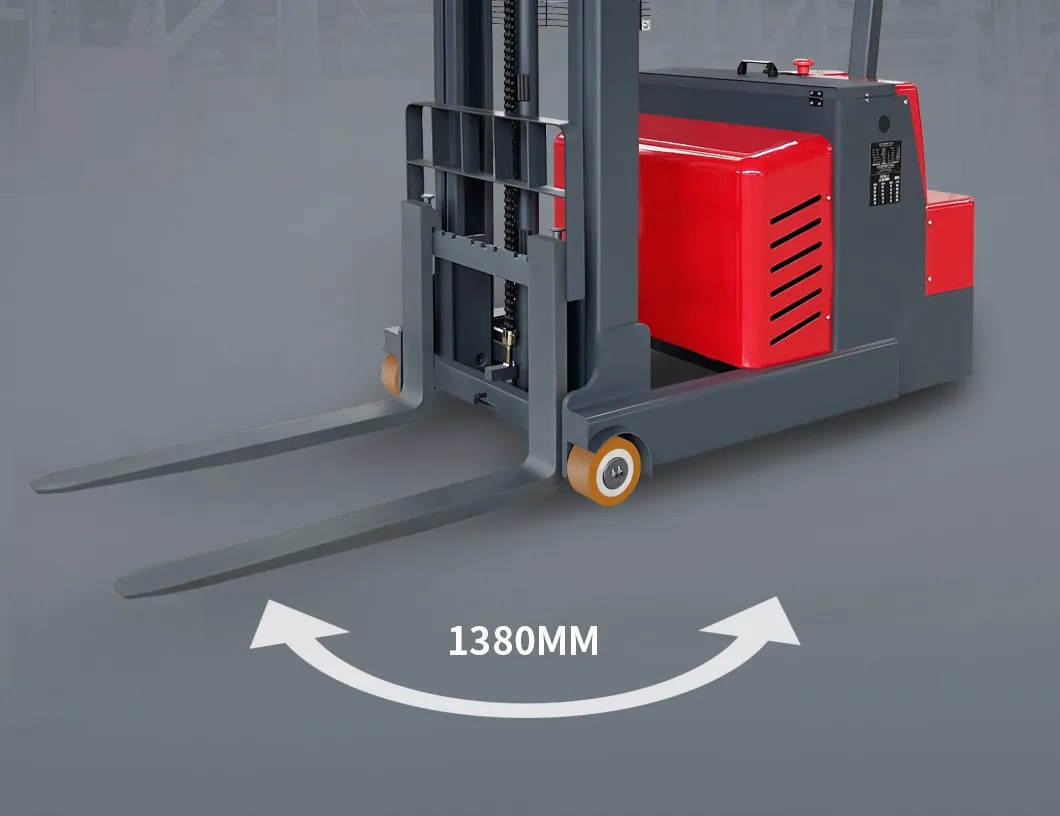

Turning Radius Wa mm 1380 1380 1380
Aisle width (pallet 1000*1200) Asts mm 2755 2755 2755
Electrical Driving Motor (DC) - kw 0.75 0.75 0.75
Lifting Motor (DC) - kw 2.2 2.2 2.2
📷Product Gallery
Forklift Front View
Forklift Side View
Internal Components
Chassis Detail

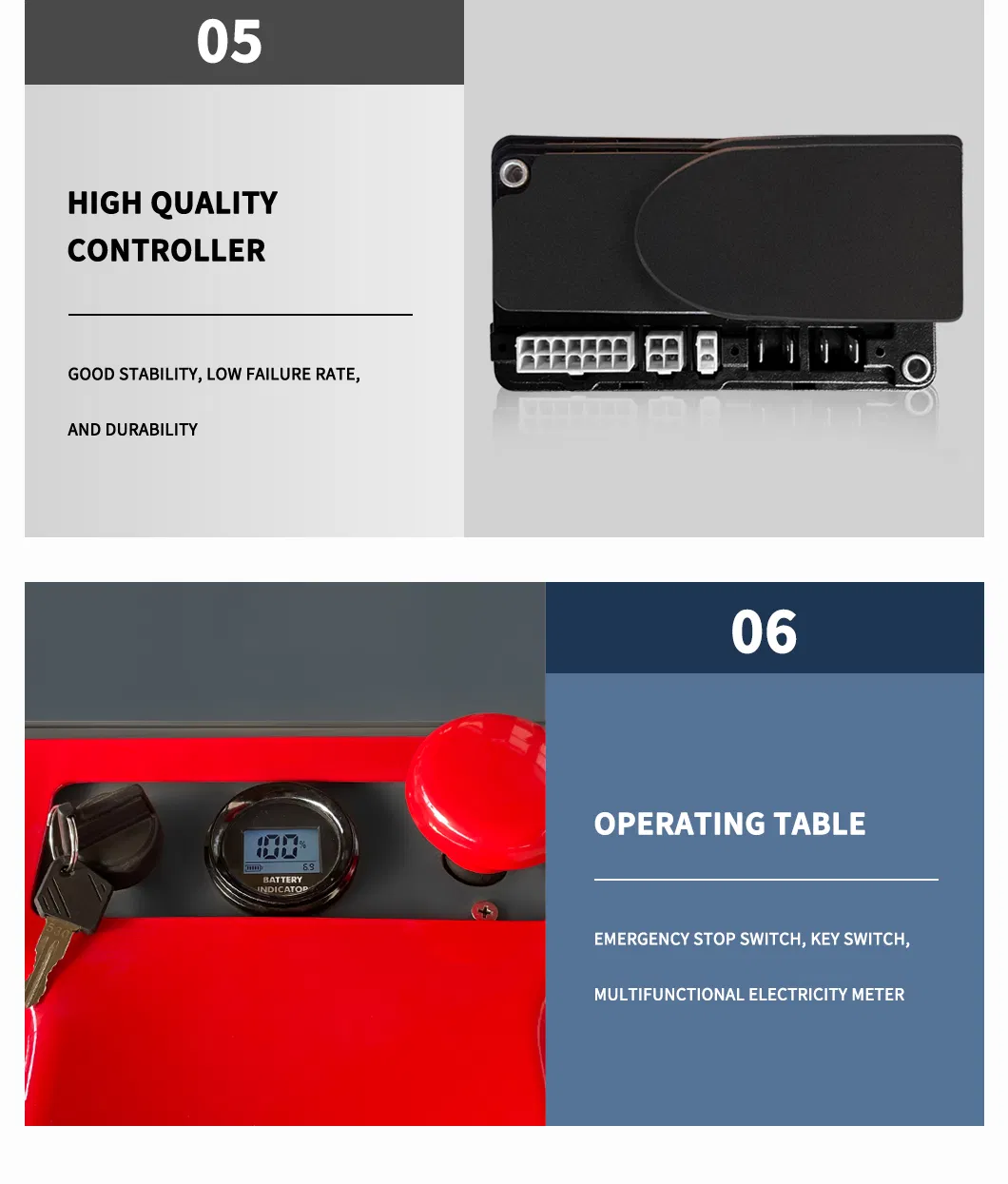

Operating Handle

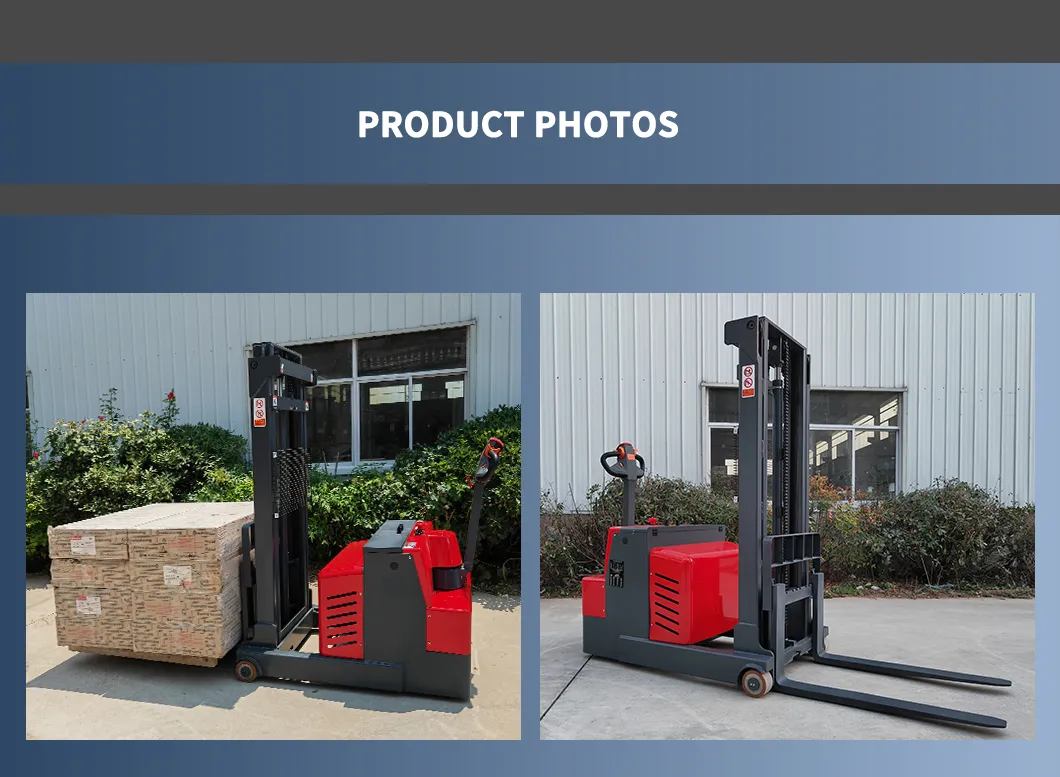

Battery Compartment

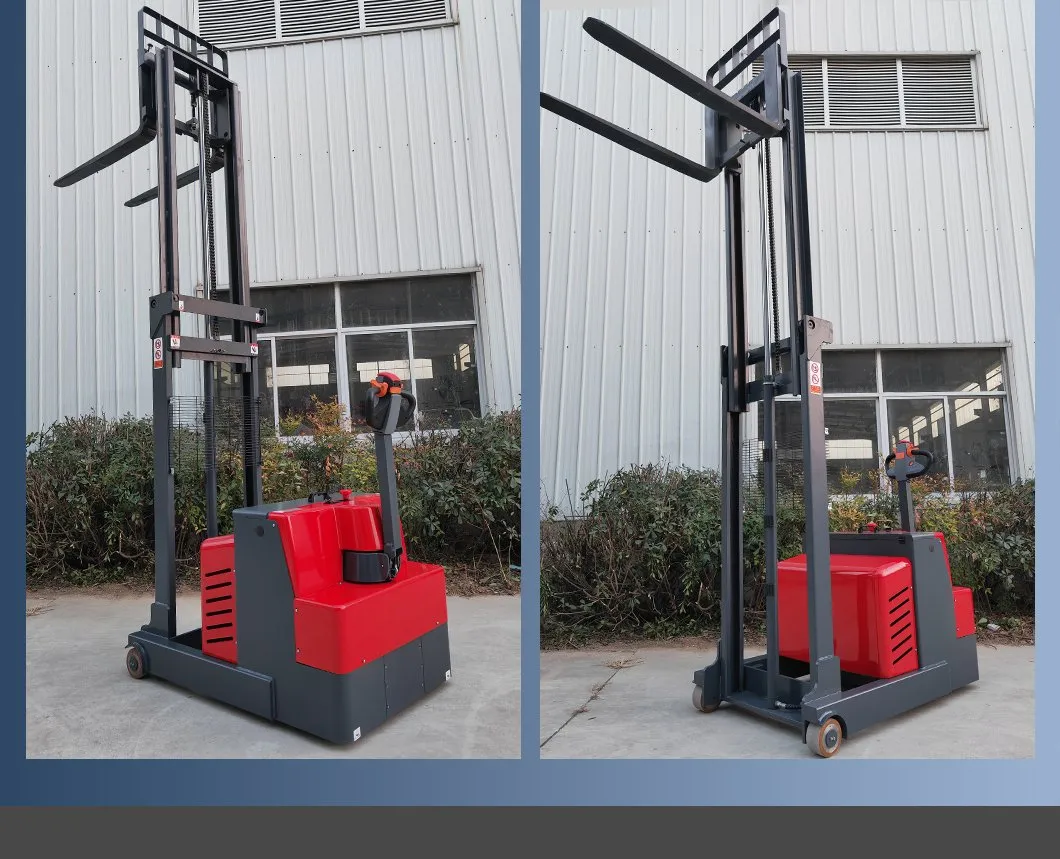

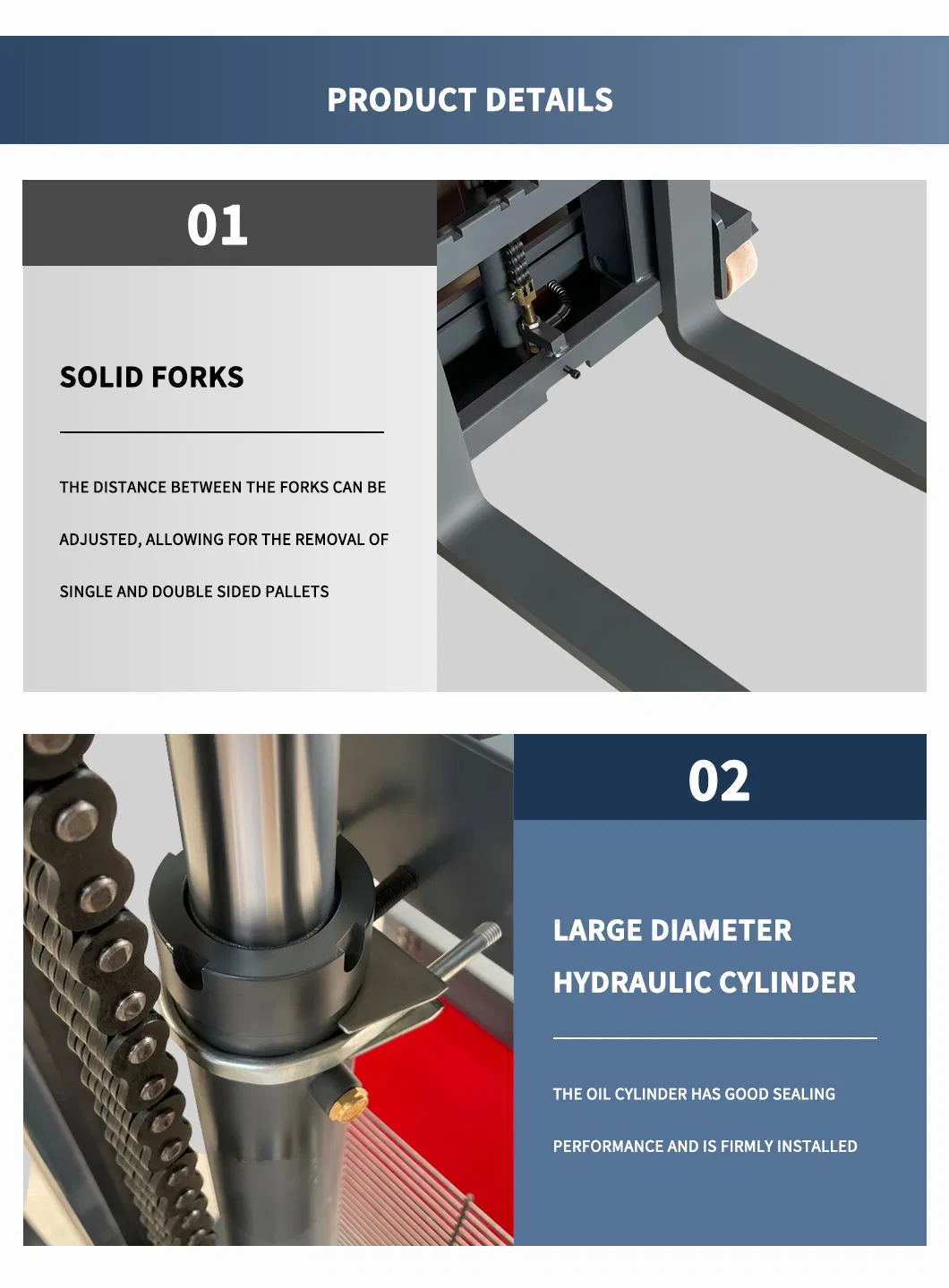

Solid Forged Forks
Mast Detail
Hydraulic System
Rear view
Controller view
Wheel structure
Work operation 1
Work operation 2
Charger unit

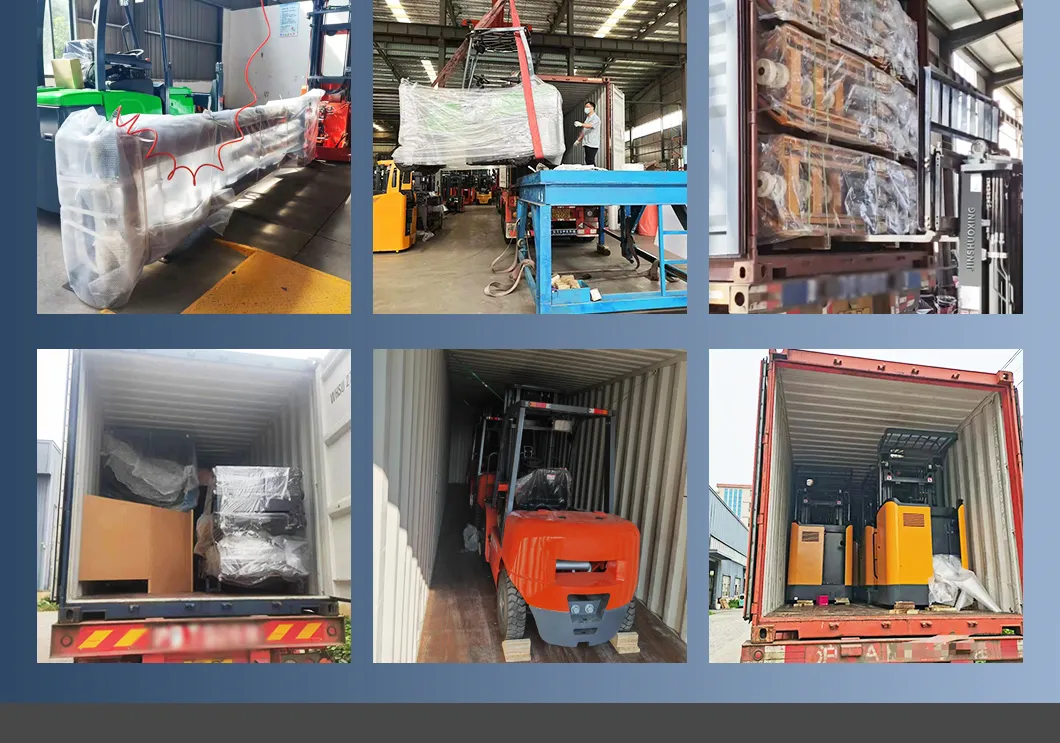

Packing detail
❓Frequently Asked Questions
Q1: How is the quality of your product?
We focus on producing high-quality products with thick materials and durable core components. Each product has undergone long-term market validation with a low failure rate.
Q2: Do you have an advantage in price?
Yes, we work with long-term cooperative raw material suppliers and maintain efficient skilled labor, allowing us to offer high-quality products with a significant price advantage.
Q3: How do you ensure the product meets my usage conditions?
Our professional sales personnel, with over 5 years of industry experience, will communicate with you in detail about your specific needs and recommend the most suitable product.
Q4: Can you provide customized services?
We offer various customization options including color, logo, body size, and specific functional modifications to meet your unique requirements.
Q5: How long is the production lead time?
Production typically takes between 10 to 30 days. Standard products may be available for immediate shipment, while customized orders may take longer.
Q6: What after-sales support do you provide?
We provide comprehensive user manuals, assembly videos, and maintenance guides with every shipment to ensure ease of operation and long-term reliability.
