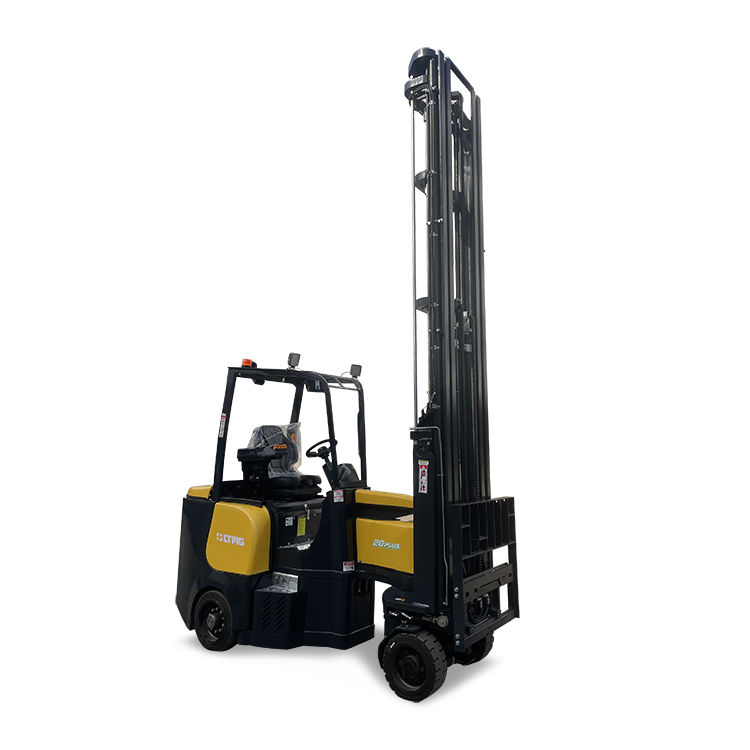

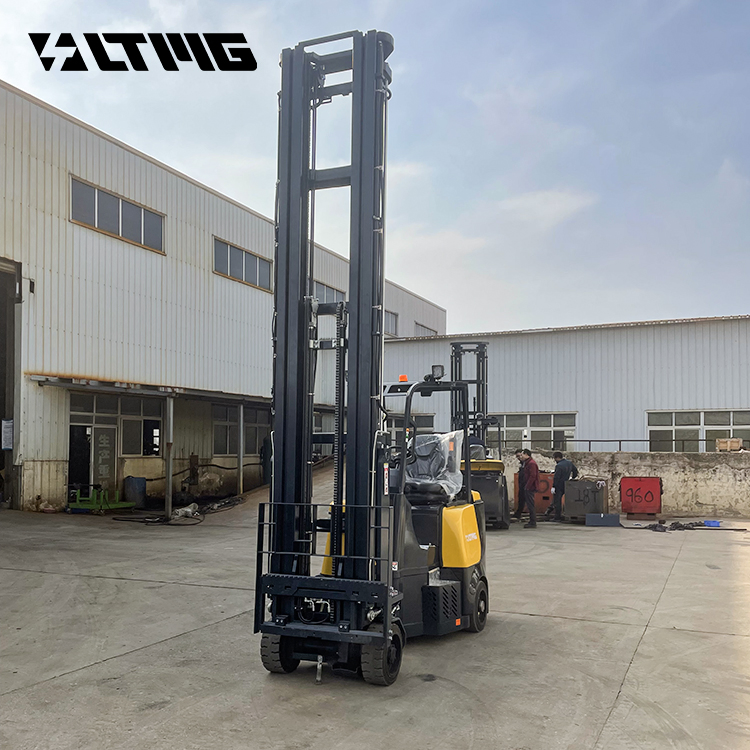

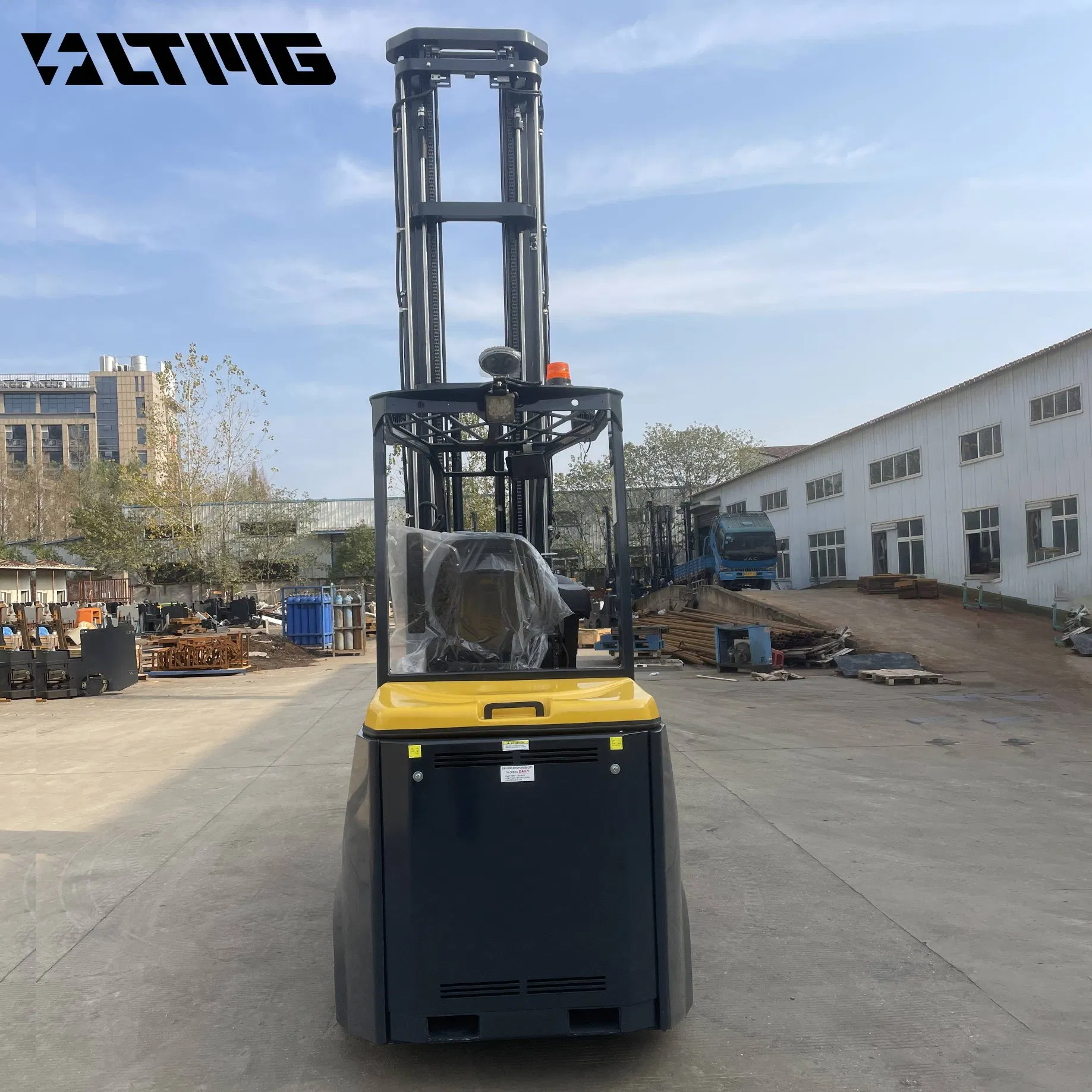

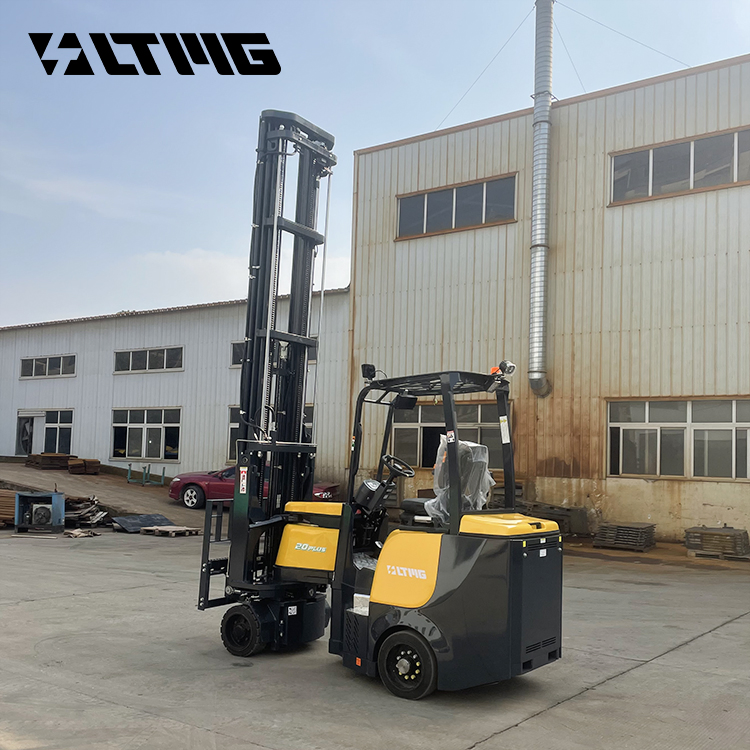

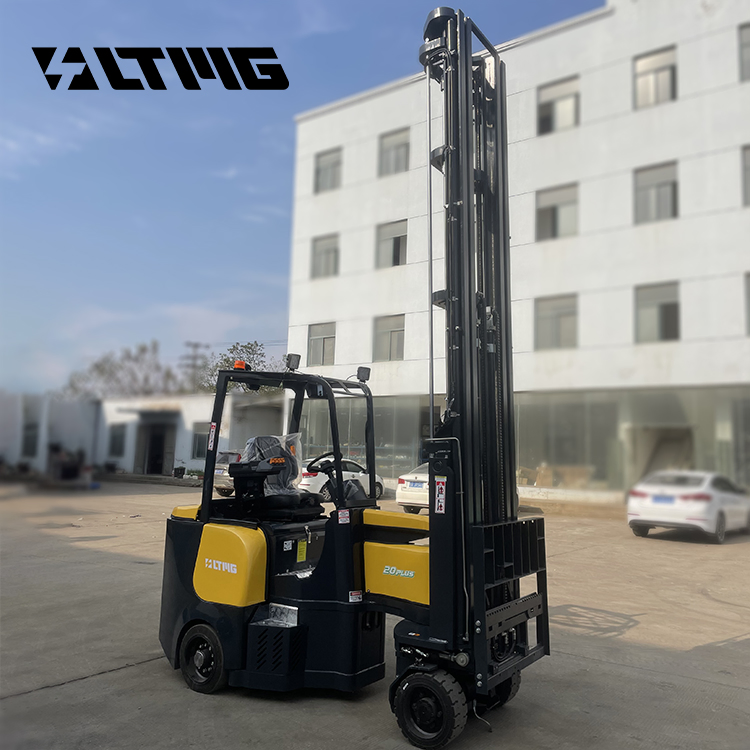

Ltmg Vna Forklift Very Narrow Aisle Forklift 2ton Articulated Forklift Very Narrow Aisle Master Very Narrow Aisle Warehouse for Sale
Ltmg Vna Forklift Very Narrow Aisle Forklift 2ton Articulated Forklift Very Narrow Aisle Master Very Narrow Aisle Warehouse for Sale
Ltmg Vna Forklift Very Narrow Aisle Forklift 2ton Articulated Forklift Very Narrow Aisle Master Very Narrow Aisle Warehouse for Sale
Ltmg Vna Forklift Very Narrow Aisle Forklift 2ton Articulated Forklift Very Narrow Aisle Master Very Narrow Aisle Warehouse for Sale
Ltmg Vna Forklift Very Narrow Aisle Forklift 2ton Articulated Forklift Very Narrow Aisle Master Very Narrow Aisle Warehouse for Sale
1 / 5
Ltmg Vna Forklift Very Narrow Aisle Forklift 2ton Articulated Forklift Very Narrow Aisle Master Very Narrow Aisle Warehouse for Sale
Ltmg Vna Forklift Very Narrow Aisle Forklift 2ton Articulated Forklift Very Narrow Aisle Master Very Narrow Aisle Warehouse for Sale
Ltmg Vna Forklift Very Narrow Aisle Forklift 2ton Articulated Forklift Very Narrow Aisle Master Very Narrow Aisle Warehouse for Sale
Ltmg Vna Forklift Very Narrow Aisle Forklift 2ton Articulated Forklift Very Narrow Aisle Master Very Narrow Aisle Warehouse for Sale
Ltmg Vna Forklift Very Narrow Aisle Forklift 2ton Articulated Forklift Very Narrow Aisle Master Very Narrow Aisle Warehouse for Sale

Ltmg Vna Forklift Very Narrow Aisle Forklift 2ton Articulated Forklift Very Narrow Aisle Master Very Narrow Aisle Warehouse for Sale

Customization: Available
After-sales Service: Provide
Warranty: 1 Year/2000 Working Hours
Send Inquiry

Product Description

Basic Information
Model NO.
FBZ20
Type
Stacker
Power
AC Motor
Load Capacity
1T - 5T
Fuel
Electric
Lift height
3000~5000mm
Condition
New
Controller
Curtis
Battery Capacity
24ah
Origin
China
Product Display

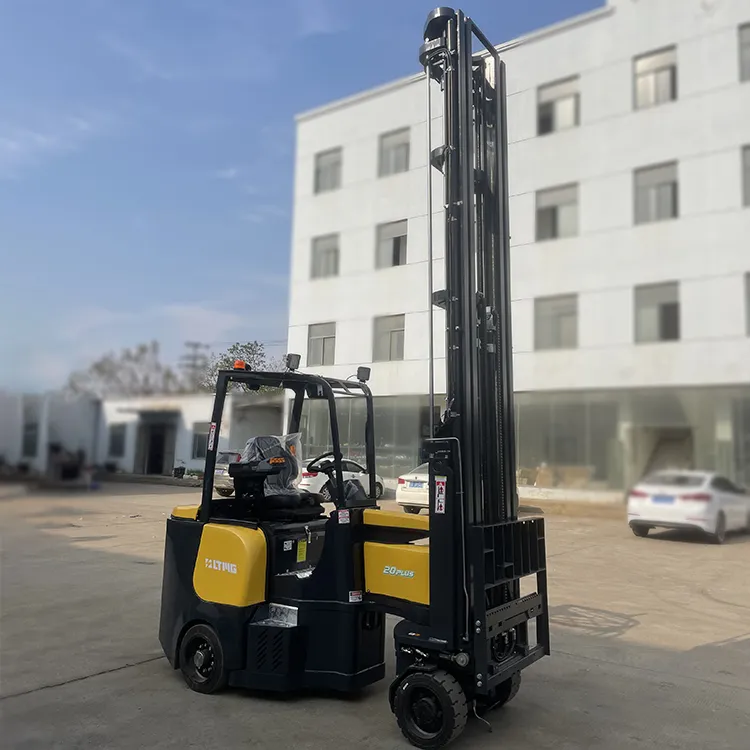

Electric Pallet Stacker View 1

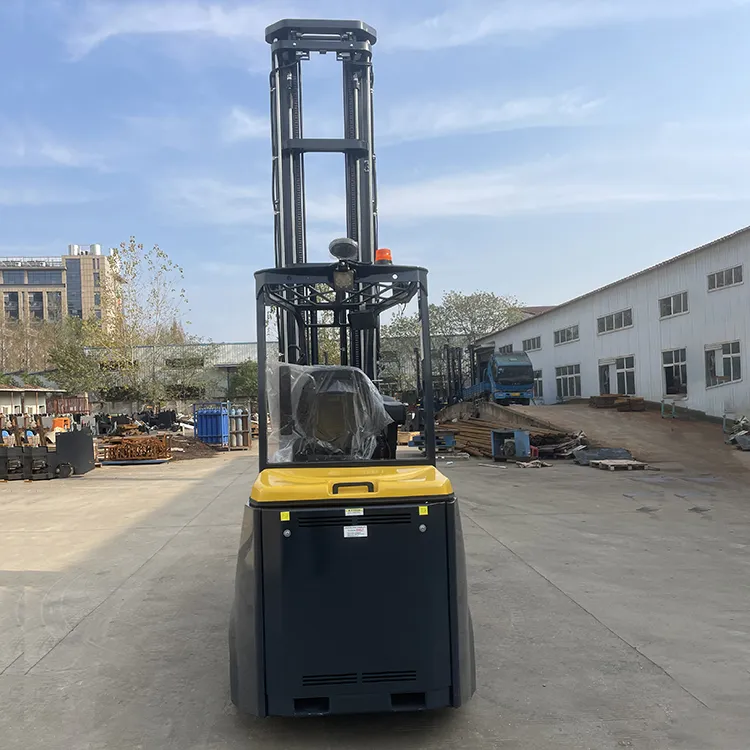

Electric Pallet Stacker View 2
Packaging & Delivery
Package Size
300.00cm * 300.00cm * 300.00cm
Gross Weight
500.000kg
Technical Specifications (Model FBZ20)
Parameter Unit Specification
Energy type-Battery
Operation Type-Seated
Rated CapacityQ(kg)2000
Load CenterC(mm)600
Wheelbasey(mm)1720
Service weight (incl. battery)kg7460
Tyre size, load sidemmΦ457×178
Turning radiusWa(mm)2200
Drive speed, load/unloadkm/h13
Lift speed, load/unloadmm/s400/420
Driving motor power (S2-60min)kwAC18.5
Lifting motor power (S3-15%)kwAC15
Battery voltage/capacityV/Ah48/900
Min Stacking aisle widthAst(mm)1900

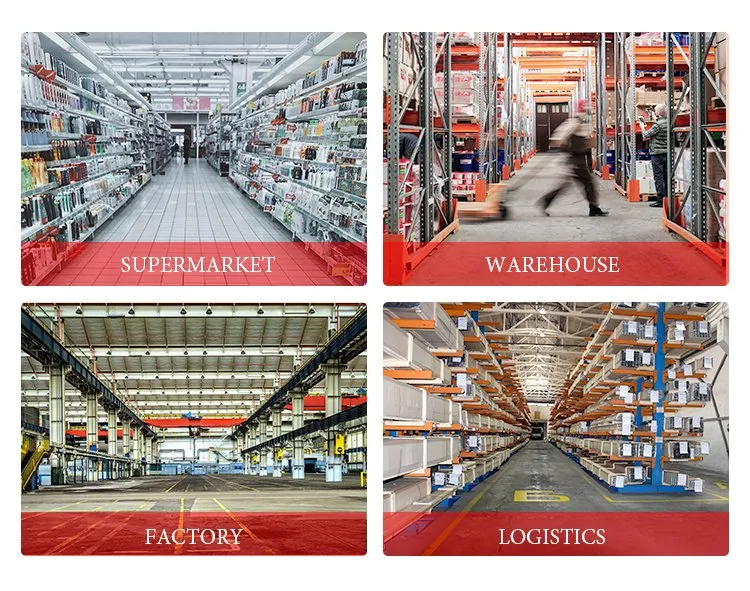

Operational Detail 1
Operational Detail 2

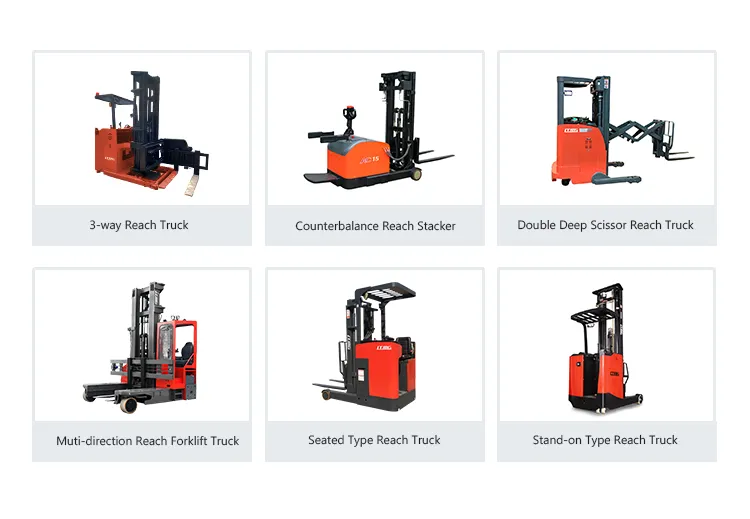

Operational Detail 3
Frequently Asked Questions
What is the load capacity of the FBZ20 electric stacker?
The FBZ20 model features a rated capacity of 2000kg (2 Tons), suitable for heavy-duty warehouse pallet management.
What is the maximum lifting height available?
The standard lifting height ranges from 3000mm to 5000mm, with specific mast configurations supporting heights up to 10,000mm.
Does it use an AC or DC motor?
This stacker is equipped with high-efficiency AC motors for both driving (18.5kw) and lifting (15kw) operations.
What type of controller is installed in this unit?
The system utilizes a world-class Curtis controller to ensure precise and reliable operation.
What are the battery specifications?
It comes with a high-capacity 48V/900Ah battery, designed for long operational shifts in demanding environments.
Is the FBZ20 suitable for narrow aisle applications?
Yes, with a turning radius of 2200mm and a minimum stacking aisle width as low as 1900mm, it is highly optimized for space-constrained warehouses.
