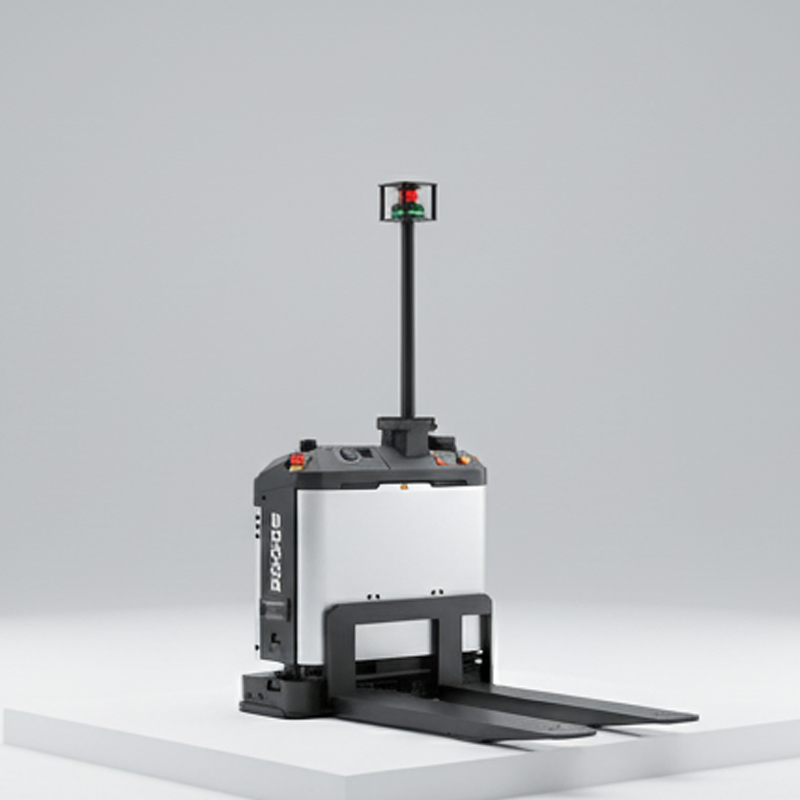

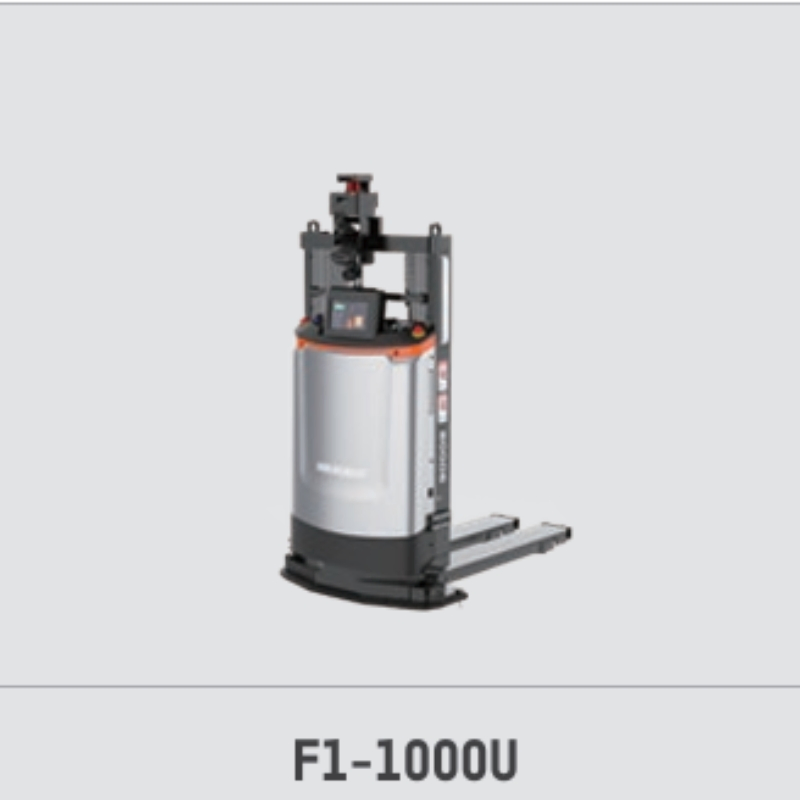

1000kg Loading Weight Agv Warehousing Mobile Robot Automated Forklift

📊

Technical Specifications

Model NO.

F1-1000U

Load Capacity

1000 kg

Type

AMR (Autonomous Mobile Robot)

Dimensions

1650*990*1984 mm

Weight

825 Kg

Lifting Height

2049 mm

Safety Features

Collision Avoidance, Emergency Stop, Laser Scanner, Obstacle Sensors

Control Mode

Point to Point Control

🚀

Product Description

✨ Key Features

Superior performance: Max speed 1.5m/s; Load range 300kg to 1,400kg.
Safe and reliable: 360° stereo sensing for diverse environments.
Precise positioning: Millimeter-level accuracy via laser and vision.
Full-featured: Supports straight line, skew, arc, and in-place rotation.
Carrier recognition: Autonomous fork picking based on offset.
Flexible Docking: Connects with elevators, conveyors, and third-party AMRs.

📋

Model Comparison

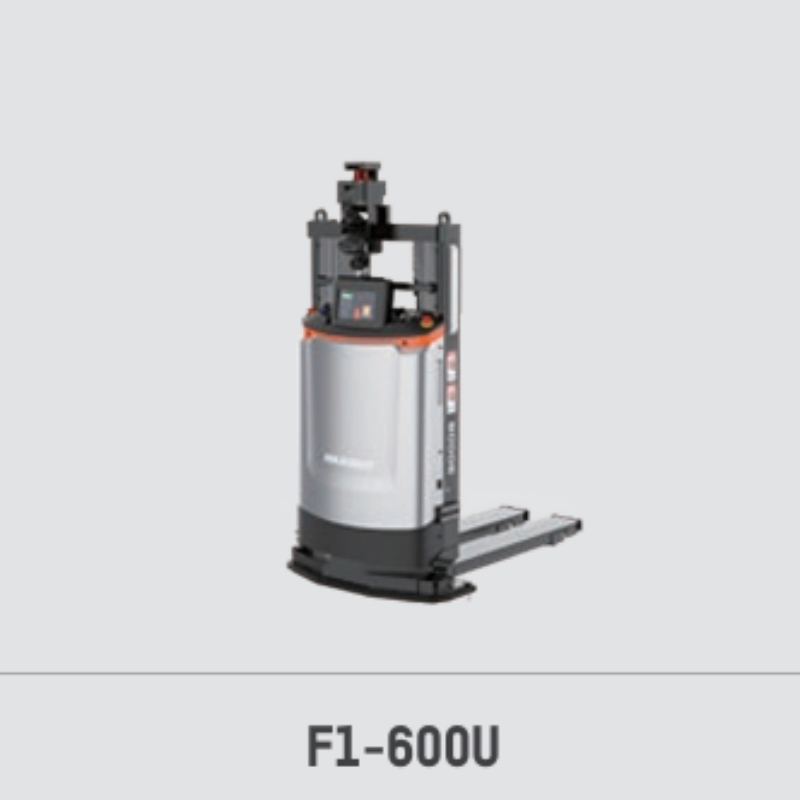

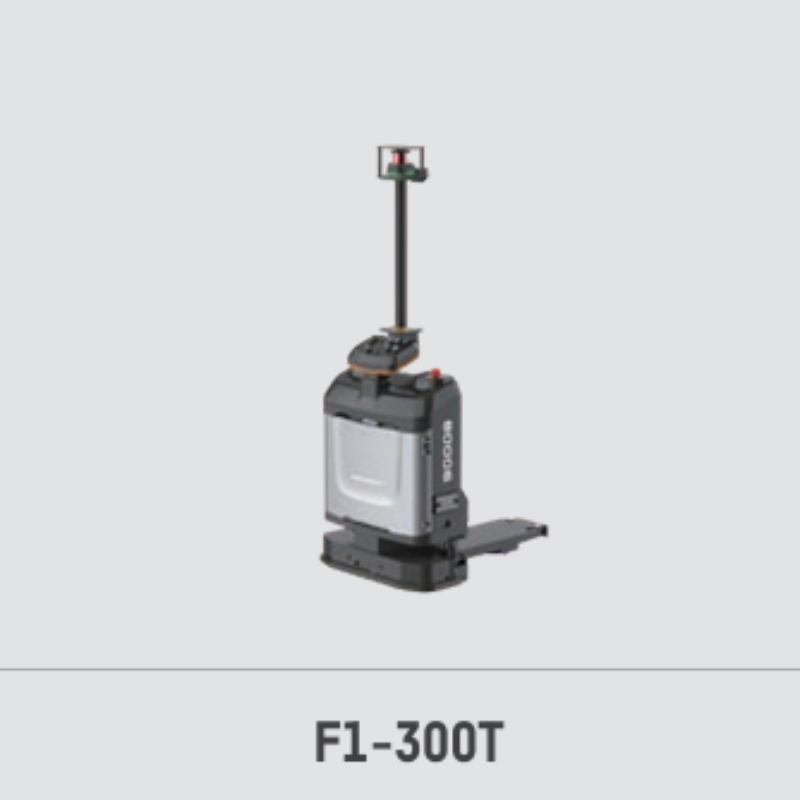

Model	F1-300T	F1-500T	F1-600U	F1-1000U
Rated speed (m/s)	1	1	1.2	1.2
Positioning accuracy	±10mm / 1°	±10mm / 1°	±10mm / 1°	±10mm / 1°
Min. rotation radius (mm)	585	727	933	933
Motion method	Omnidirectional driving
Run time (h)	6-8	6-8	6-8	6-8
Navigation Mode	L-SLAM / 3D L-SLAM (Customizable)

🏢

Application Cases

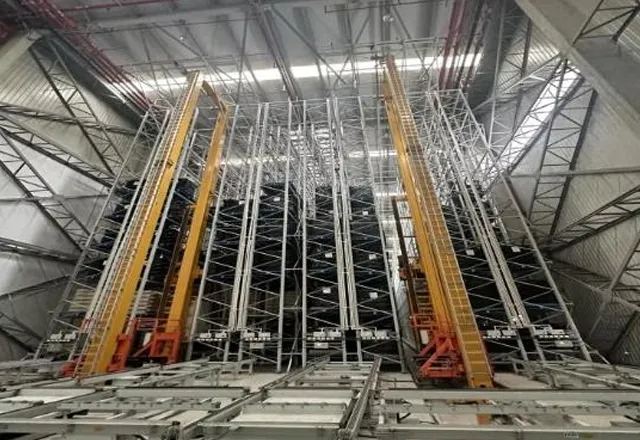

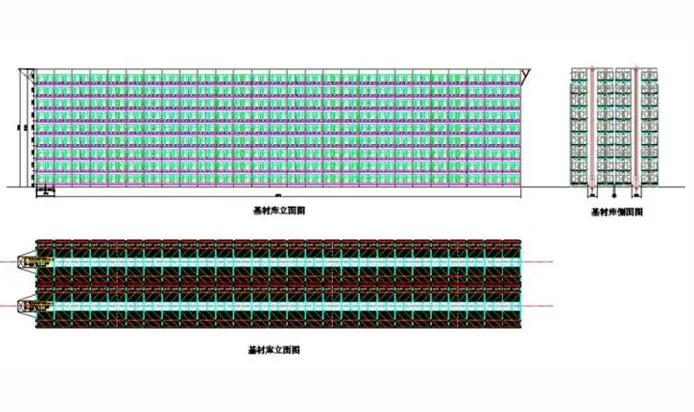

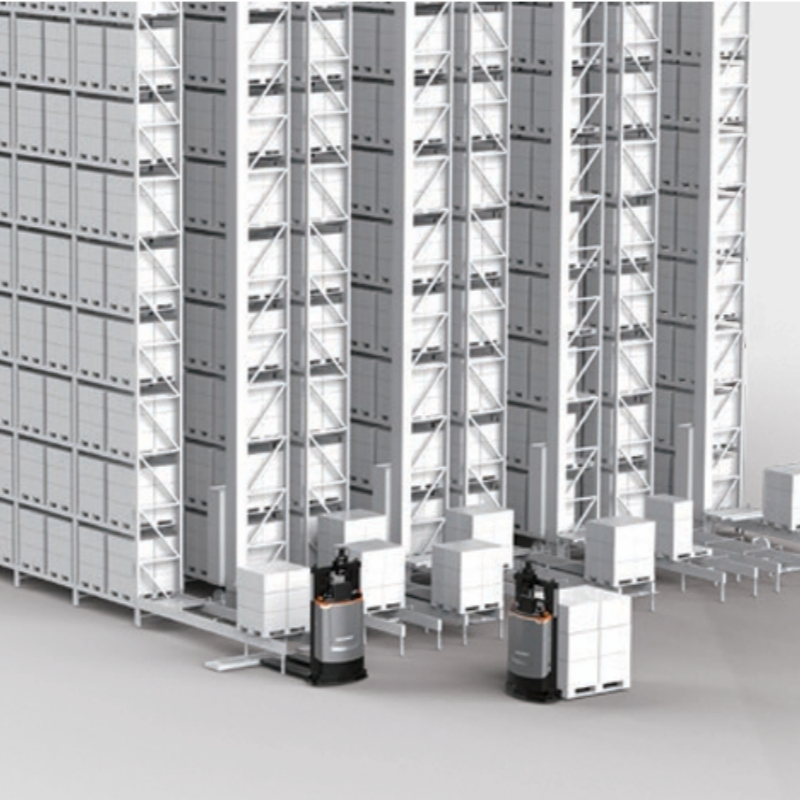

Case 1: Automated Storage System for Raw Material Warehouse

Highlights: 2 stacker cranes, 4 sets of racks, 3,888 storage locations. Inbound/outbound flow of 92 pallets per hour. Construction completed in 200 days.

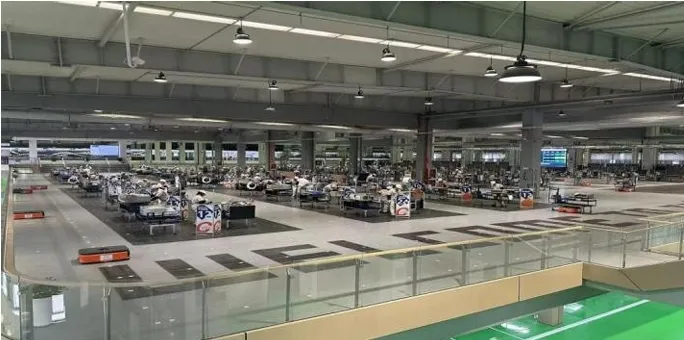

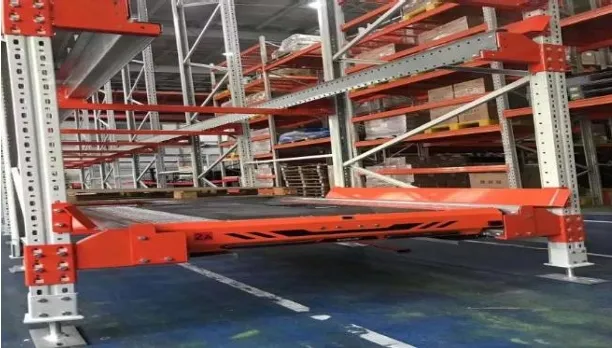

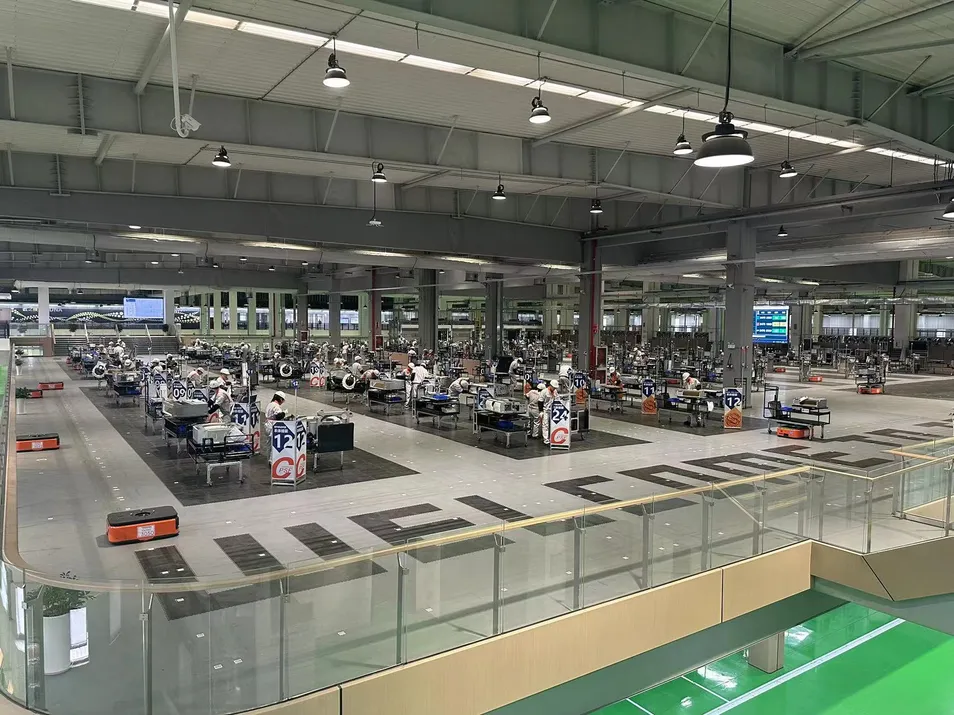

Case 2: Home Appliance Manufacturing Industry LMR Project

Results: Integrated 120 LMRs and shuttle racking. Achieved 100 pallets/hour and a 40% reduction in labor costs.

🏭

Capabilities & Solutions

We provide one-stop smart factory solutions including planning, software development, automated storage and retrieval systems (ASRS), and global delivery of AGVs and AMRs. Our expertise covers automotive parts, 3C manufacturing, and the pharmaceutical sectors.

❓

Frequently Asked Questions

How do I select the right AGV for my operations?

We recommend selecting hardware based on your actual operational requirements. Our technical team will propose the most suitable configuration after evaluating your factory layout and material details.

Is specific software required to operate the AGV?

Yes. Dedicated robot dispatching and control software is essential to work in conjunction with the AGV hardware for efficient operation and safety.

Can we implement the AGV commissioning ourselves?

AGV commissioning requires high professional expertise and experience. Our specialized team typically handles this process to ensure system integrity and safety.

Can different types of AGVs operate at the same site?

Yes, we support the simultaneous operation of multiple models and types of AGVs at a single site to meet various complex material handling needs.

What information is needed to start a project?

To provide an accurate proposal, we require your factory layout, pallet dimensions, material details, and process flow requirements.

What is the typical implementation timeline?

Timeline varies by project scope. Simple deployments can be completed in as little as two weeks, while complex automated warehouses may take longer for design and construction.
