Hybrid 3000kg Heavy-Duty Agv-AMR Transport Robot for Smart Warehousing

1 / 5

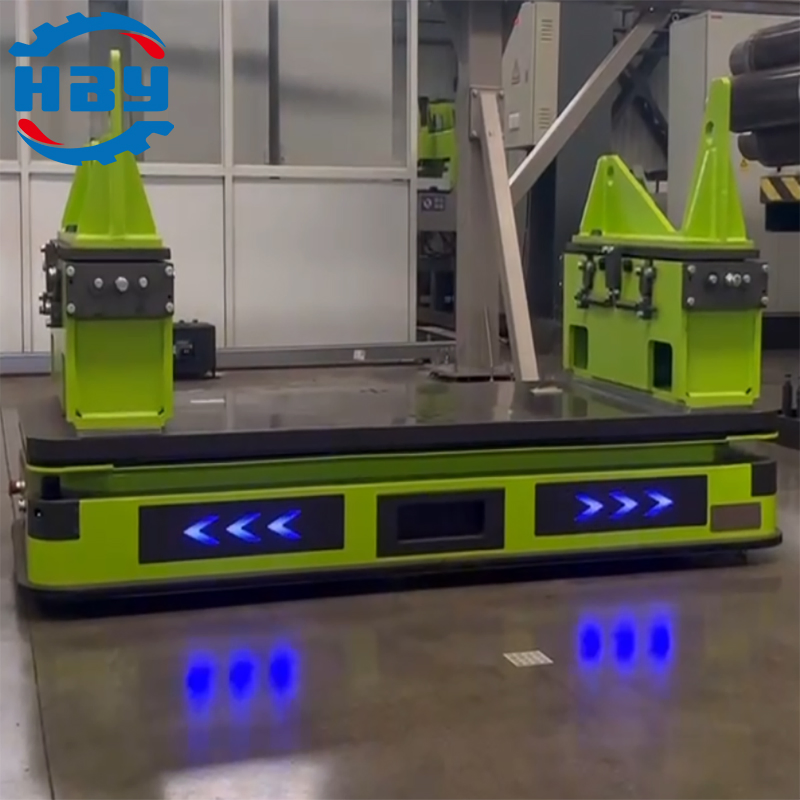

Hybrid 3000kg Heavy-Duty Agv-AMR Transport Robot for Smart Warehousing

Control Mode:	Point to Point Control
Drive Mode:	Electric
Load Capacity:	3000kg

Send Inquiry

Product Description

Basic Specifications

Model NO.

crab 3000

Type

AMR (Autonomous Mobile Robot)

Safety Features

Collision Avoidance, Emergency Stop, Obstacle Sensors, Laser Scanner

Color

Customized

HS Code

8427109000

Production Capacity

1000 Pieces/Year

✔

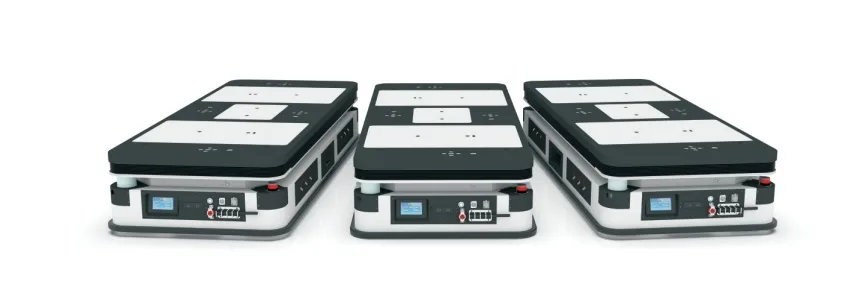

Automated Guided Vehicle Introduction

Crab 3000 is the smallest steering wheel AGV, designed to be the chassis for universal applications like the base of robot arm AMRs and SMT magazine transfer AMRs. Equipped with an internally developed SLAM system, it offers trackless guidance along with a mature fleet control and task control UI.

The robot surveys the AGV path to form a navigation map, then compares the real-time environment to the map to calculate its location, speed, and moving angles accurately.

★

Key Advantages

Navigation: Magnetic tape, magnetic nail, QR code, laser, or SLAM (optional).

Flexibility: Forward, backward, left/right turns, 90°/180° rotation, and pivot movement.

Accuracy: Stop accuracy of ±10mm, with customization reaching ±5mm.

Smart Integration: Automatic elevator entry/exit for cross-floor transportation.

Autonomous: Runs automatically based on scheduling without manual intervention.

Compatibility: Fully connectable with WMS and MES systems.

Self-Charging: Supports wireless and automatic charging systems.

Safety: Laser obstacle avoidance, bumper protection, and emergency stops.

⚙

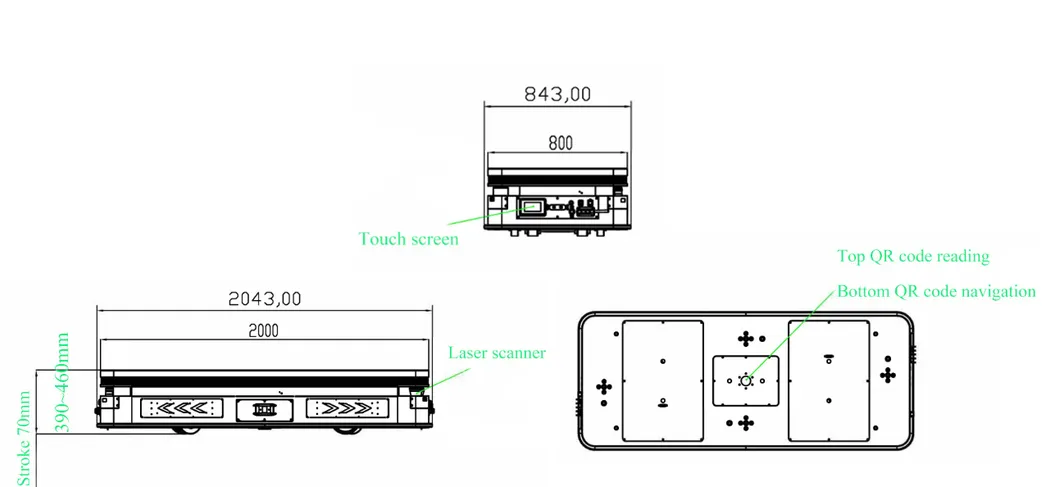

Technical Parameters

AGV Type	Crab 3000

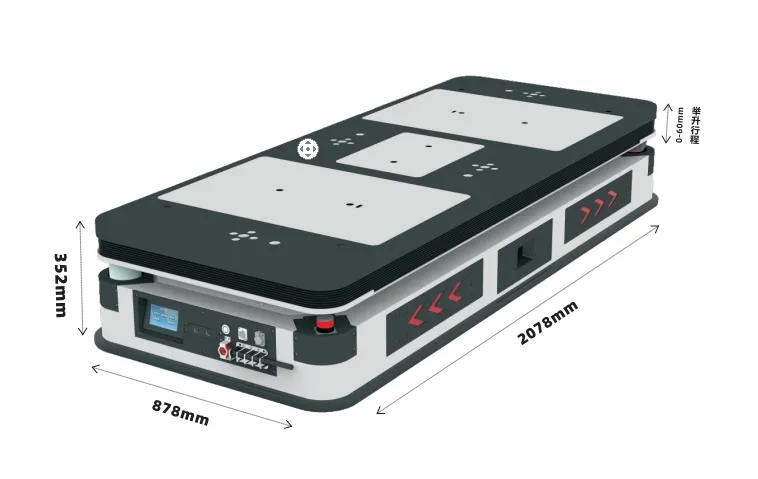

Size	L2078W878H352(mm)
Control System	Intelligent motion control system
Navigation	SLAM, QR code, laser, magnetic tape/nail
Drive Mode	Dual Steering Wheel Drive
Loading Capacity	3000 KG
Moving Speed	0-40m/min
Battery Type	Lithium battery (≥2000 discharge cycles)
Working Time	24 Hours
Lifespan	Designed for 10 years

✦

Global Reliability & Quality

With advanced AGV/AMR technology and in-house production, we deliver industrial-grade solutions. Our systems are trusted globally across logistics, healthcare, and industrial sectors.

R&D-Driven Technology: Cutting-edge SLAM/Laser navigation with 3000kg heavy-load capacity.
Strict Quality Control: ISO-certified manufacturing ensures reliable 24/7 performance.
End-to-End Solutions: Tailored integration for global warehouse automation standards.

Frequently Asked Questions

What is the maximum load capacity of the Crab 3000?

The Crab 3000 is a heavy-duty robot designed to transport loads up to 3000KG.

Can this robot operate across different floors?

Yes, it features an intelligent elevator connection system that allows it to automatically enter, exit, and travel between floors using standard elevators.

How does the AGV ensure safety in a busy warehouse?

It employs triple protection: adjustable laser obstacle avoidance sensors (up to 3 meters), front and rear mechanical bumper protection, and easily accessible emergency stop buttons.

What kind of navigation does it use?

It supports multiple navigation methods including SLAM (Simultaneous Localization and Mapping), QR codes, laser guidance, and magnetic tape or nails.

How is the battery handled for continuous 24-hour operation?

The robot uses high-performance lithium batteries and supports fully automatic self-charging (including wireless options) to maintain 24-hour uptime.

Is it compatible with my existing management software?

Yes, the Crab 3000 can be customized to interface directly with WMS (Warehouse Management Systems) and MES (Manufacturing Execution Systems) for seamless data integration.
