Airport Aircraft Electric Baggage Tow Towing Port Terminal Tractor
Airport Aircraft Electric Baggage Tow Towing Port Terminal Tractor
Airport Aircraft Electric Baggage Tow Towing Port Terminal Tractor
Airport Aircraft Electric Baggage Tow Towing Port Terminal Tractor
Airport Aircraft Electric Baggage Tow Towing Port Terminal Tractor
1 / 5
Airport Aircraft Electric Baggage Tow Towing Port Terminal Tractor
Airport Aircraft Electric Baggage Tow Towing Port Terminal Tractor
Airport Aircraft Electric Baggage Tow Towing Port Terminal Tractor
Airport Aircraft Electric Baggage Tow Towing Port Terminal Tractor
Airport Aircraft Electric Baggage Tow Towing Port Terminal Tractor

Airport Aircraft Electric Baggage Tow Towing Port Terminal Tractor

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Info.
Model NO.
TE-25-L-C
Transmission
Manual or Automatic
Power
Diesel or Electric
Load Capacity
31-40t
Emission Standard
Euro 1
Seats
≤5
Horsepower
150-250hp
Engine Capacity
4-6L
Tire Certification
ISO
Condition
New
Dimensions
3170 x 1440 x 1960 mm
Wheelbase
1540mm
Packaging & Delivery
Package Size
320cm * 150cm * 200cm
Gross Weight
2500.00kg
Product Description

Our towing tractor includes airport towing tractors for luggage carts/dollies and aircraft towing tractors. The specially designed space makes the driver's work easier and more comfortable.

Technical Specification
Model TE-25-L
Performance Rated traction kN 21
Largest traction kN 25
Rated Towing Weight (dry concrete) kg 25000
Travel Speed (No load) Gradeability Km/h 27 / 11 (fully loaded)
Minimum turning diameter mm 5900
No-load gradeability % 30
Recharge mileage Km 190
Battery & Motor Battery Type Lithium iron phosphate (80V / 700Ah)
System Power Kwh 56
Drive Motor Power (60 min) Kw 28.7
Dimensions Total Size (L*W*H) mm 3170 * 1440 * 1960
Wheelbase mm 1540
Hitch height mm 304.8 - 600
Ground clearance mm 150
Product Gallery
Towing Tractor View 1
Towing Tractor View 2

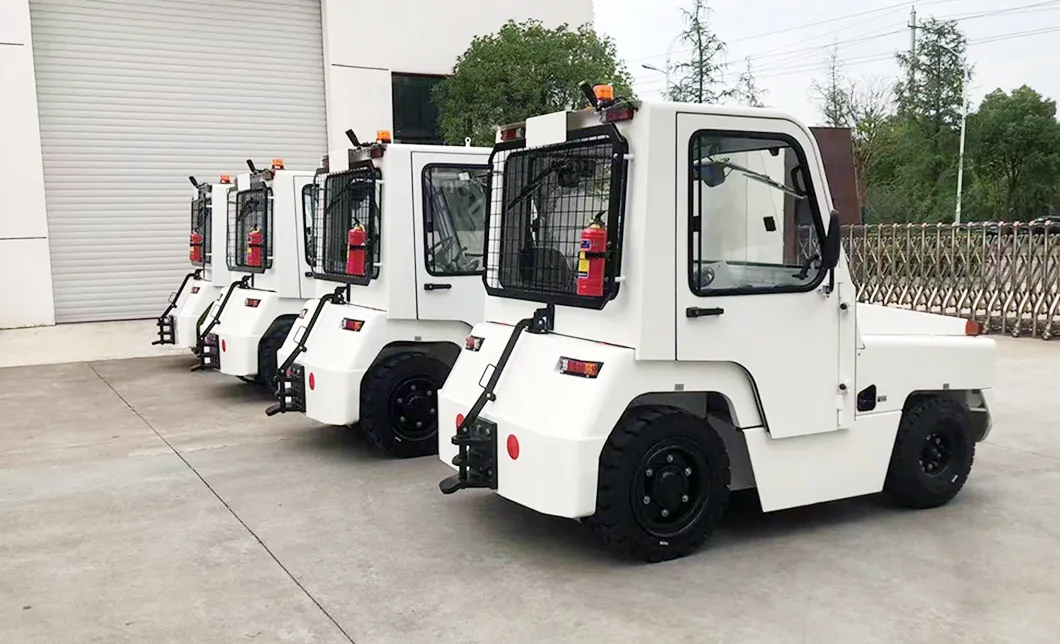

Technical Layout 1

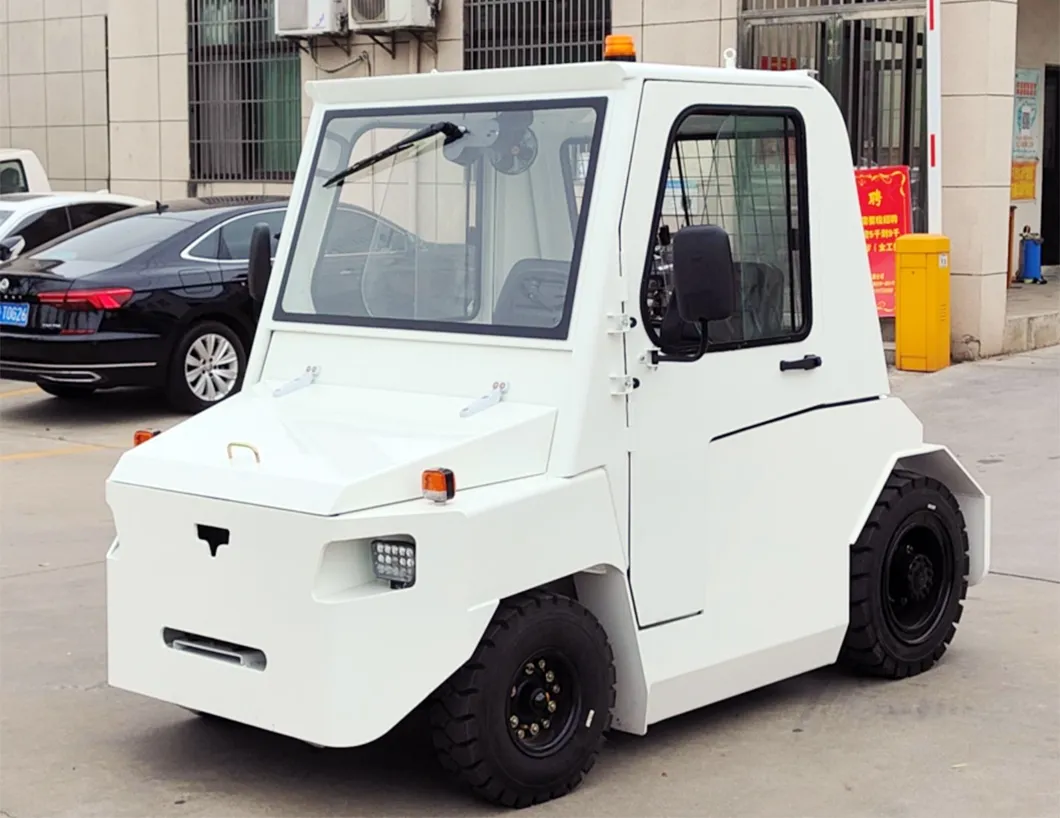

Technical Layout 2

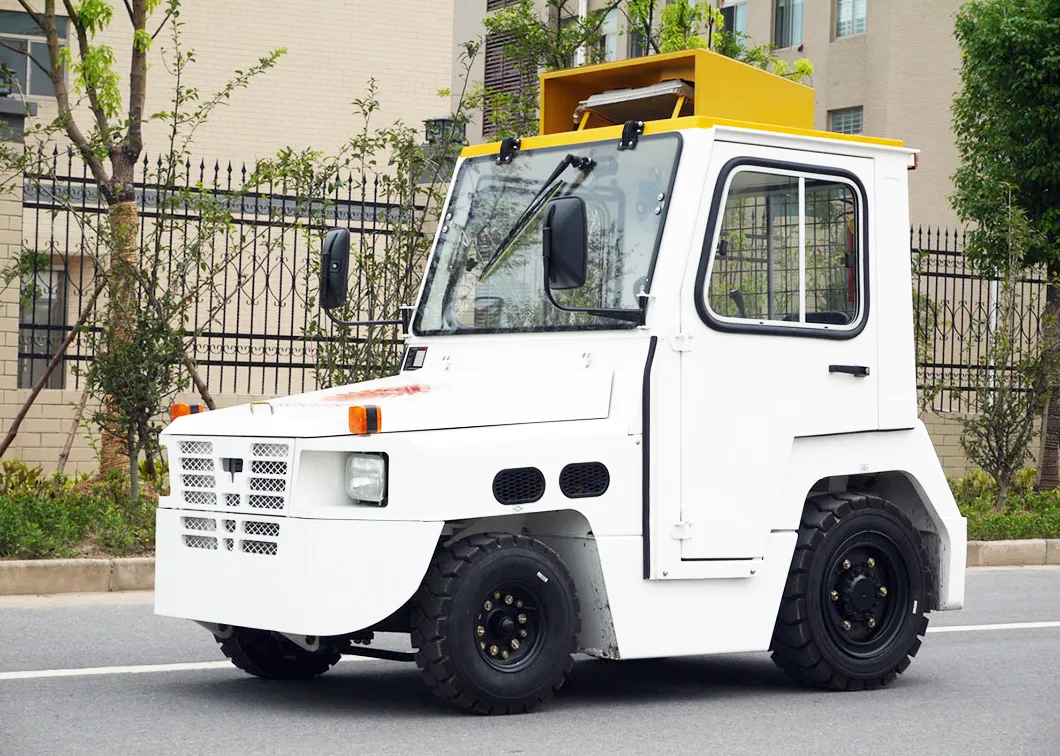

Technical Layout 3

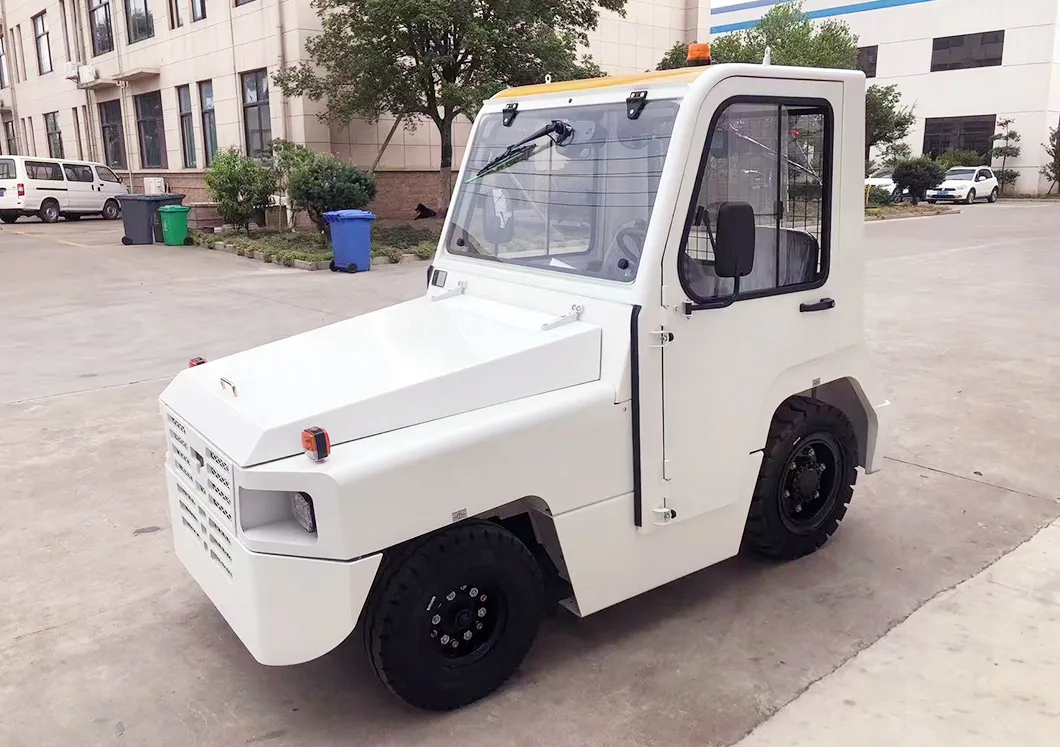

Technical Layout 4
Technical Layout 5
Safety Protection Features
  • Safety interlock mounted on each hydraulic component.
  • Limit switch ensures the precise interface between platform and aircraft.
  • Warning buzzer alarms when van body and stabilizers are in operation.
  • Emergency DC pump for operation during engine or main pump failure.
  • Manual hand pump for total power failure scenarios.
  • External stop push buttons available on cab and van body control panels.
  • In-cab warning lights to indicate stabilizer status.
  • Hydraulic pressure switch prevents van raising unless stabilizers are deployed.
Why Choose Our Solutions
  • High-quality products offered at competitive market prices.
  • Adherence to high-standard production processes.
  • Utilization of advanced production machinery.
  • Strict quality control systems implemented at every stage.
  • Advanced Research & Development team for continuous innovation.
  • Professional sales and export team with worldwide experience.
  • Comprehensive one-step solution services.
Frequently Asked Questions
1. What is the maximum towing capacity of the TE-25-L tractor? The tractor is designed for a rated towing weight of 25,000kg on dry concrete floors, with a maximum traction of 25kN.
2. What type of battery technology does this electric tractor use? It utilizes a high-capacity Lithium Iron Phosphate battery system with 80V rated voltage and 700Ah capacity.
3. What is the expected range or mileage on a single charge? The TE-25-L model offers a recharge mileage of approximately 190km, making it ideal for full-shift airport operations.
4. Can this tractor be used for aircraft as well as baggage? Yes, our towing tractors are versatile and designed for both luggage carts/dollies and aircraft towing within terminal areas.
5. What happens in the event of a main power or pump failure? The vehicle is equipped with an emergency DC pump and a manual hand pump to ensure operations can continue or safety be maintained during power failures.
6. Is the tractor suitable for narrow terminal spaces? With a minimum turning diameter of 5900mm and a compact width of 1440mm, it is highly maneuverable in tight airport environments.
