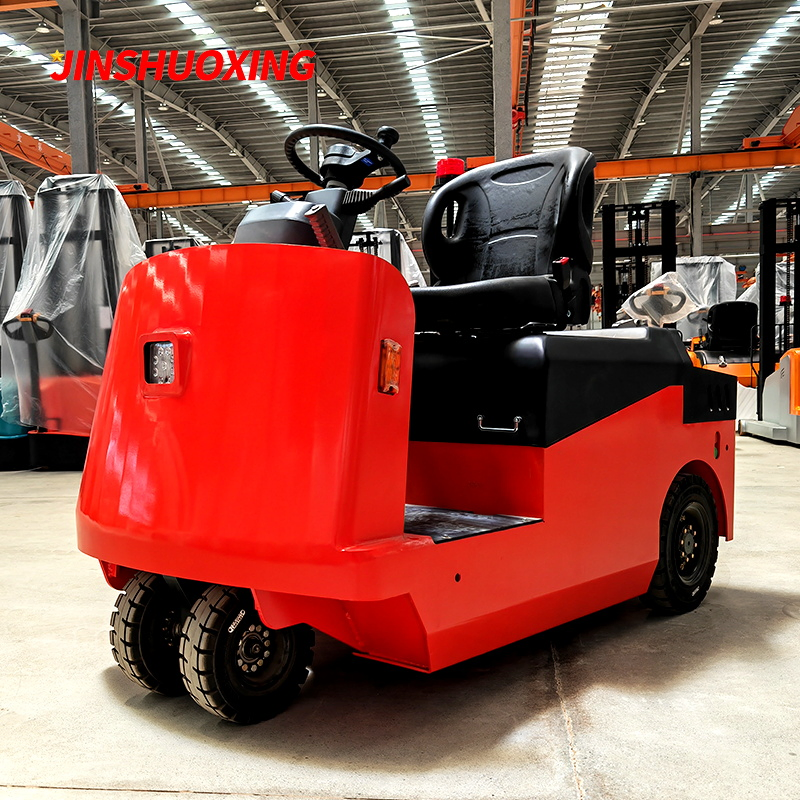

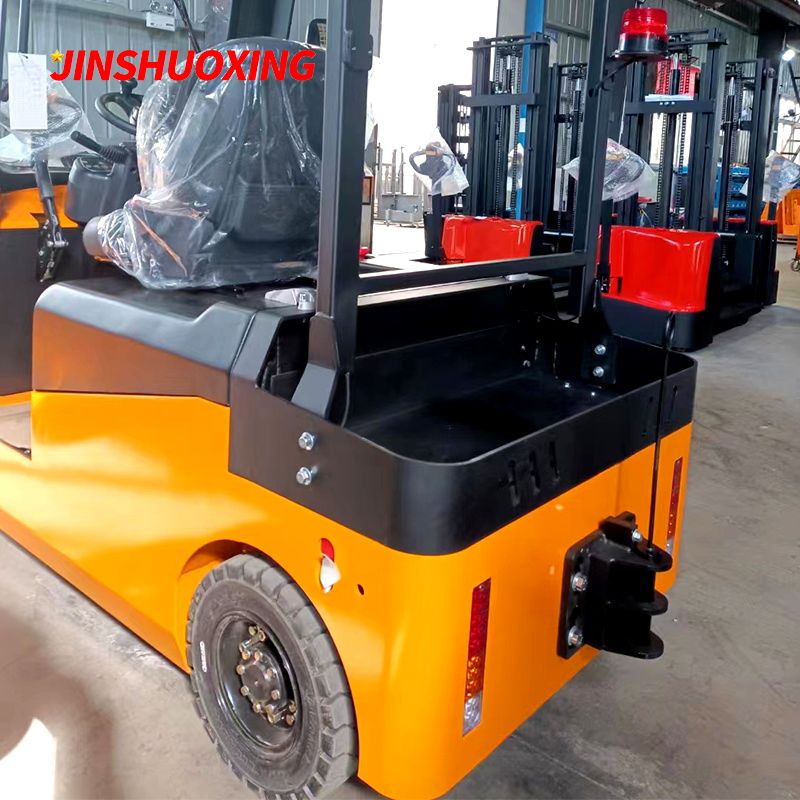

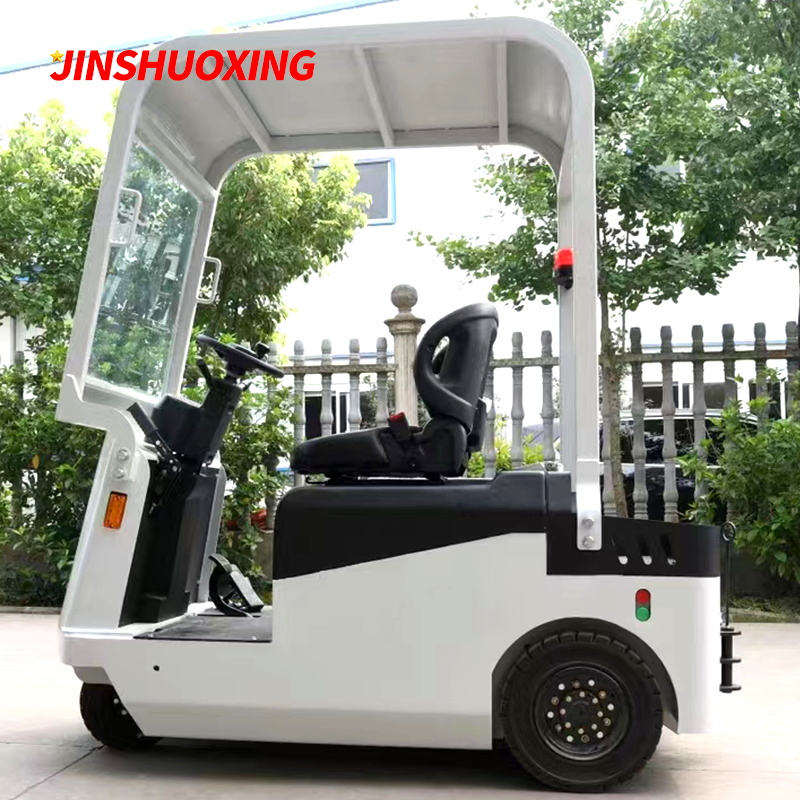

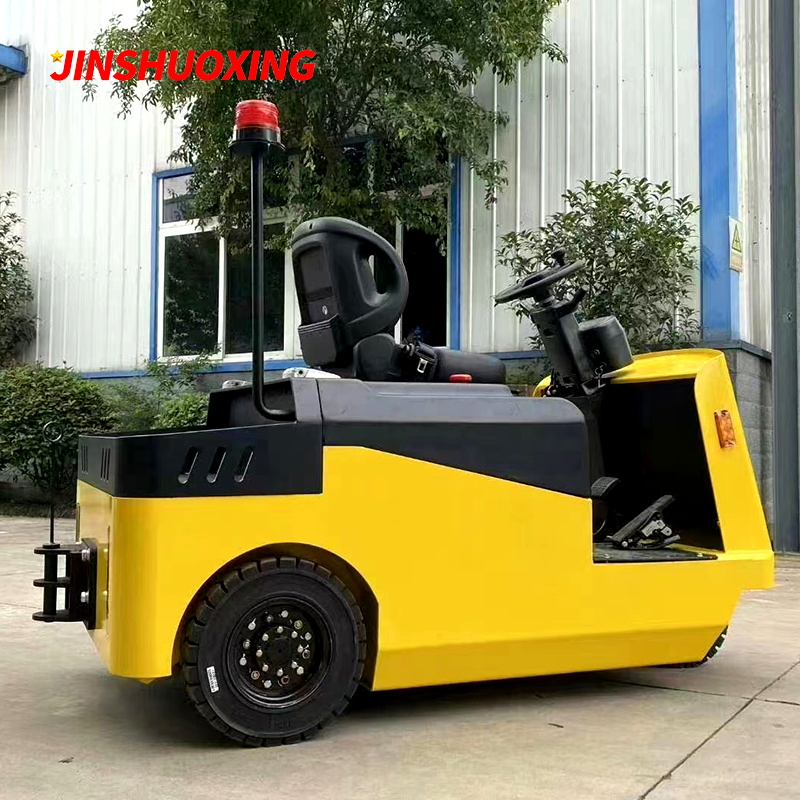

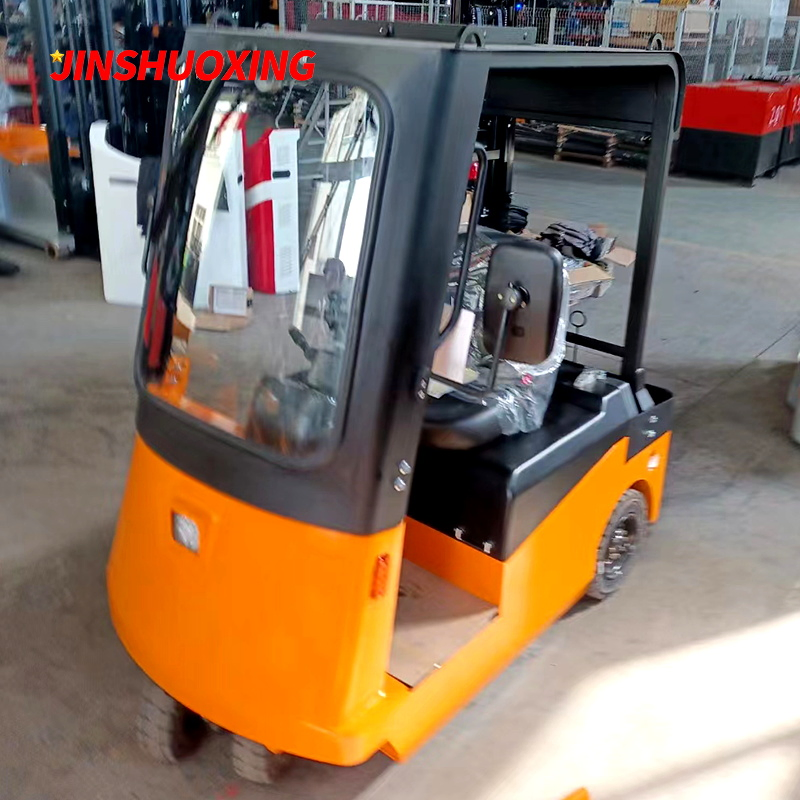

2 Ton 4 Ton 6 Ton 10 Ton Seated Electric Mini Towing Tow Tractor

After-sales Service: Long Term
Warranty: 1year
Cab Location: Adjustable

Product Description

Basic Specifications
Model NO.
EPQ-A/EPQ-B/EPQ
Type
Electric Forklift
Power
AC Motor
Load Capacity
18T - 42T
Fuel
Electric
Battery Type
Lithium
Voltage/Capacity
80V / 600Ah
Turning Radius
2800mm
Lift Height
>5000mm
Max Climbing Slopes
30%
Product Overview
Electric Tow Tractor

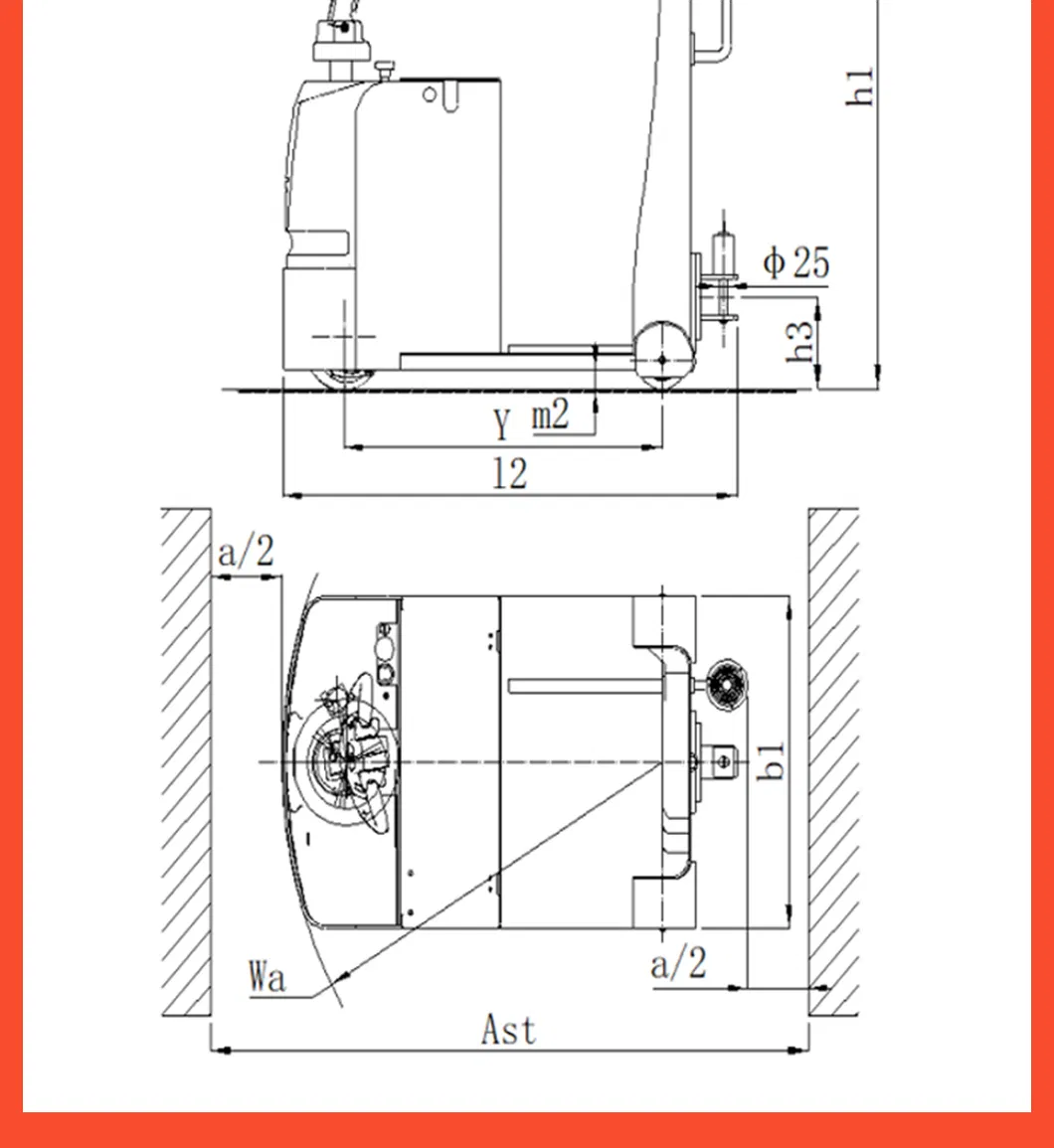

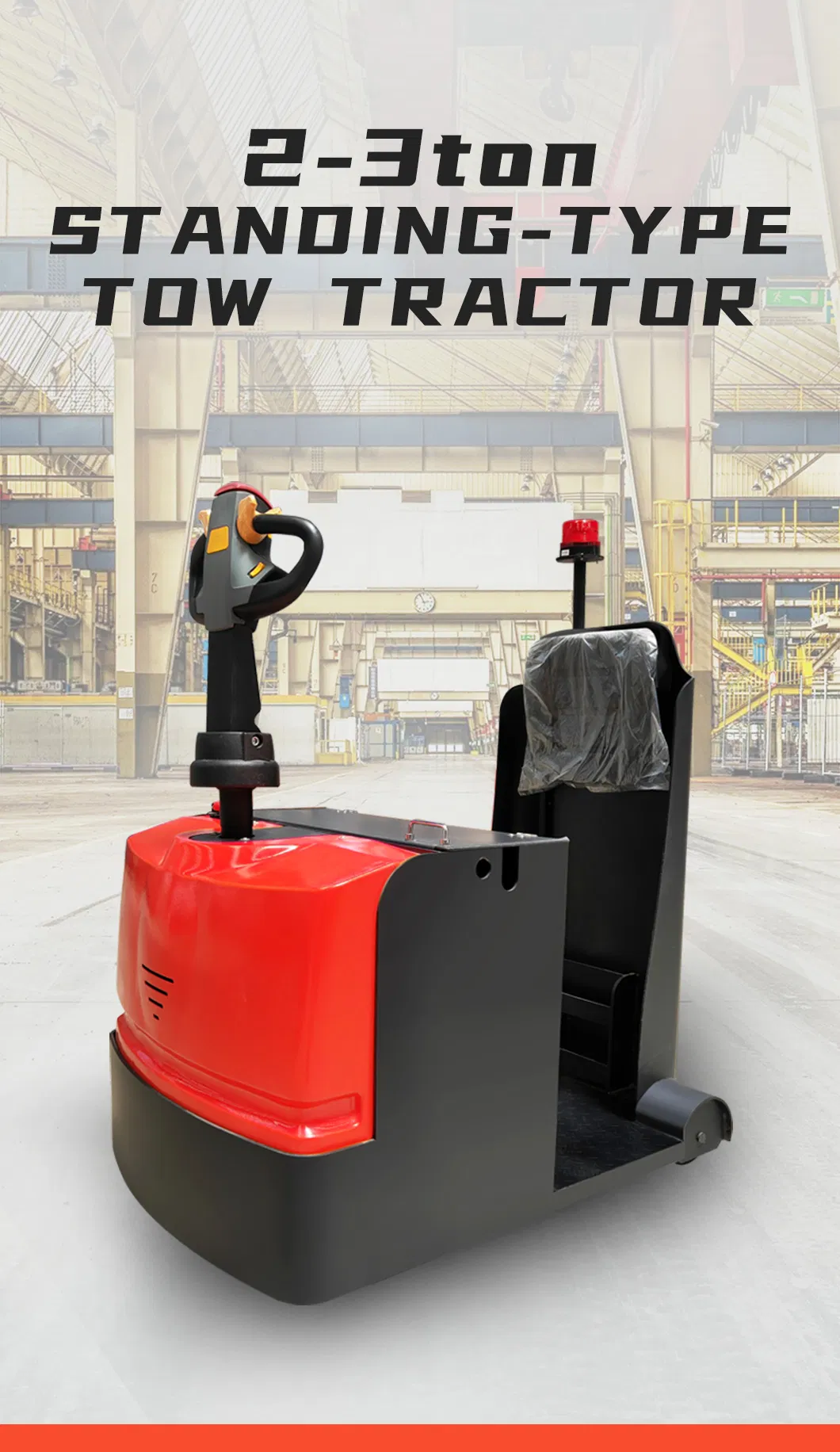

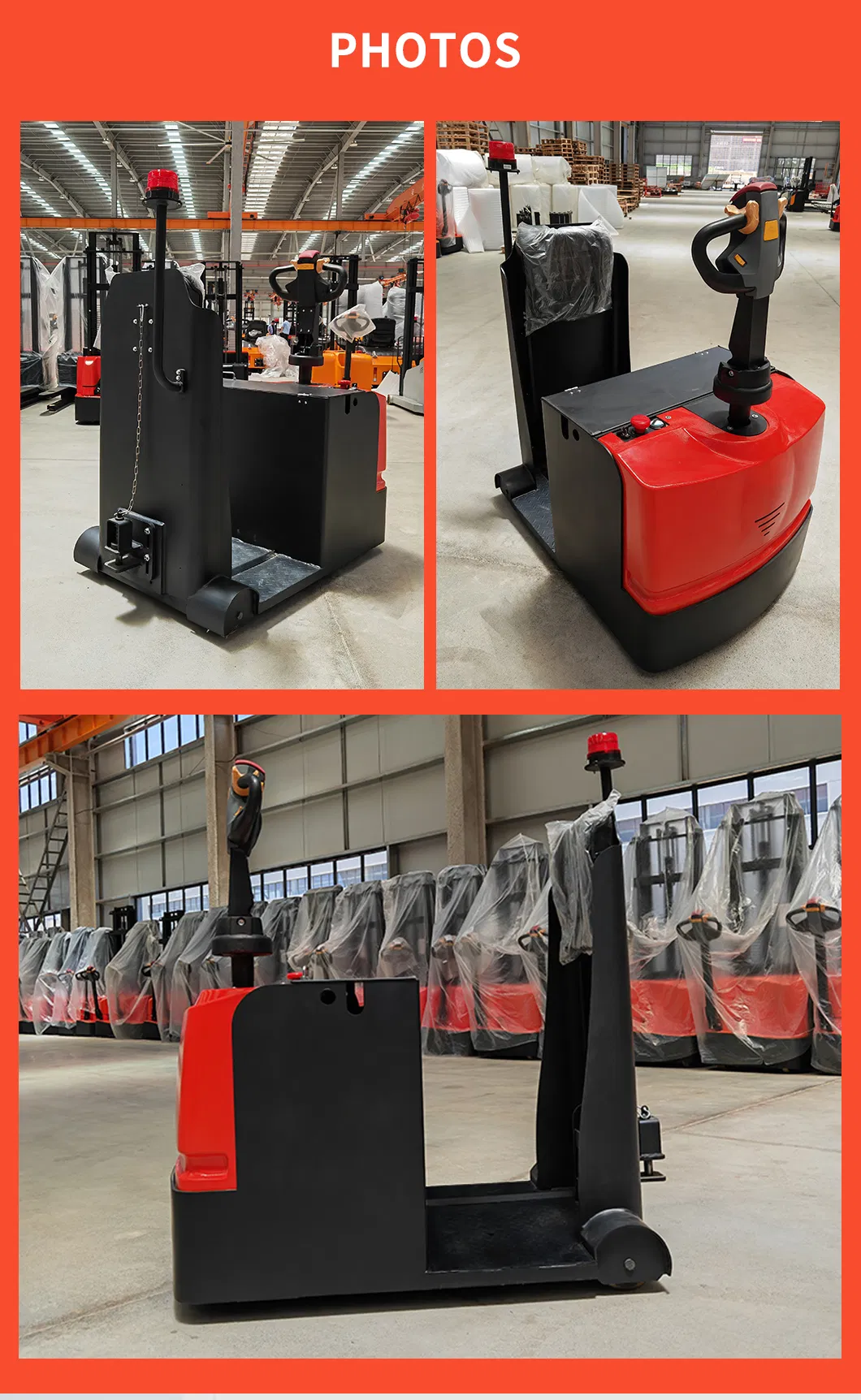

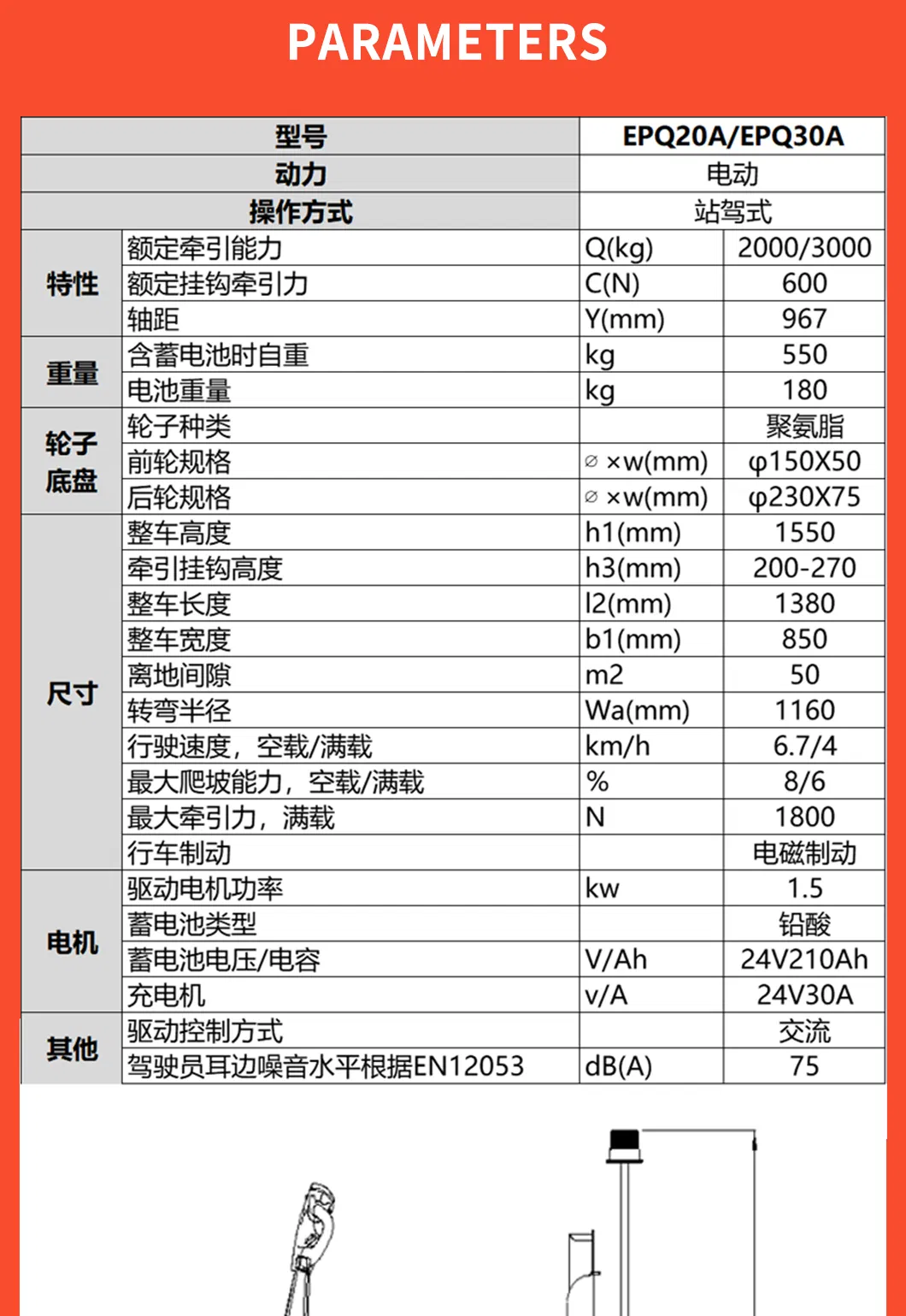

Standing Type Electric Tow Tractor Specifications
ModelEPQ20A/EPQ30ARated Tow Weight2000/3000 kg
PowerElectricOperating ModeStanding Type
Rated Drawbar Traction600 NWheelbase967 mm
Weight (incl. battery)550 kgBattery Weight180 kg
Wheels TypePUTurning Radius1160 mm
Max Speed (Unload/Load)6.7/4 km/hDrive Motor Power1.5 kw

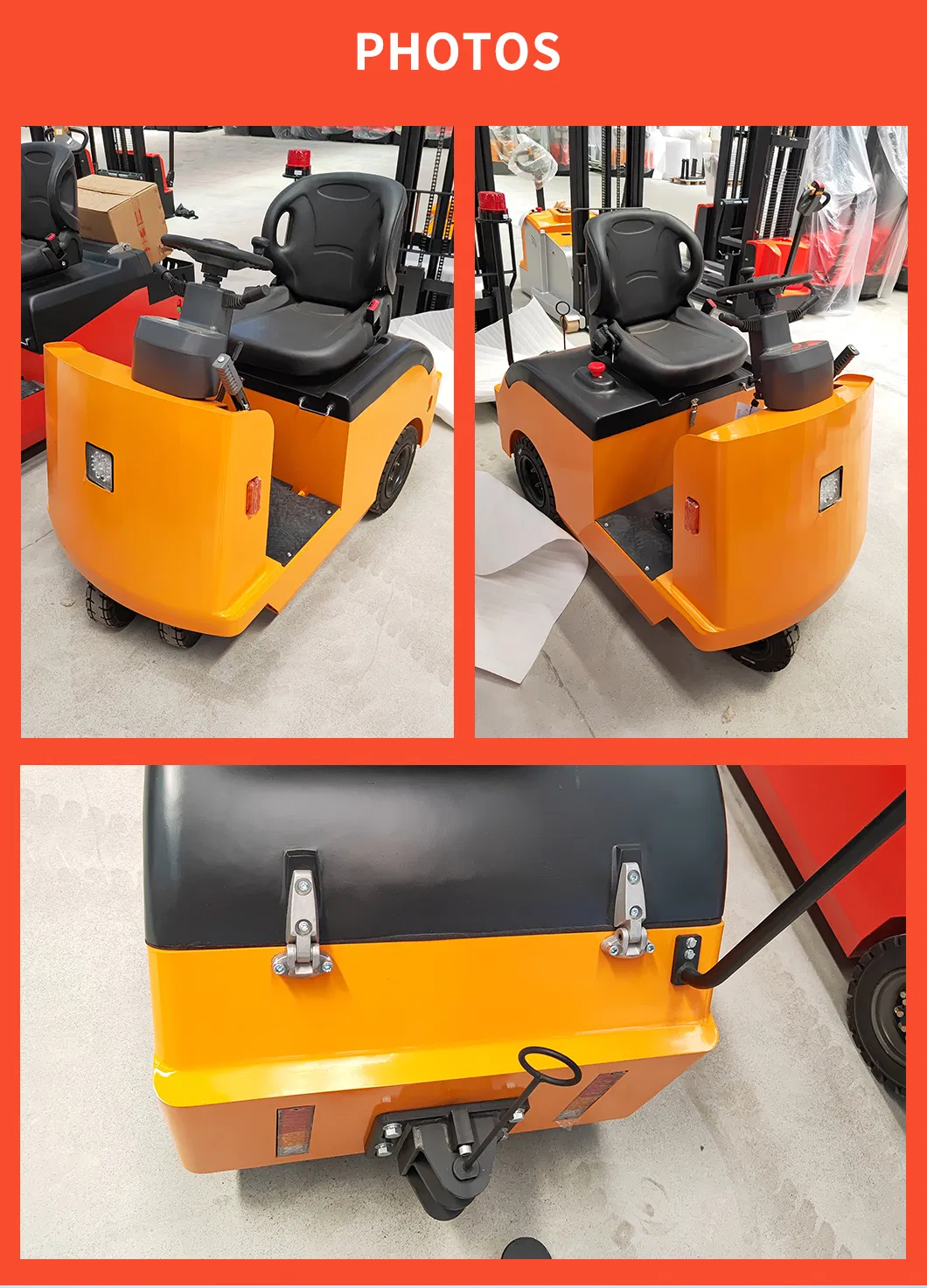

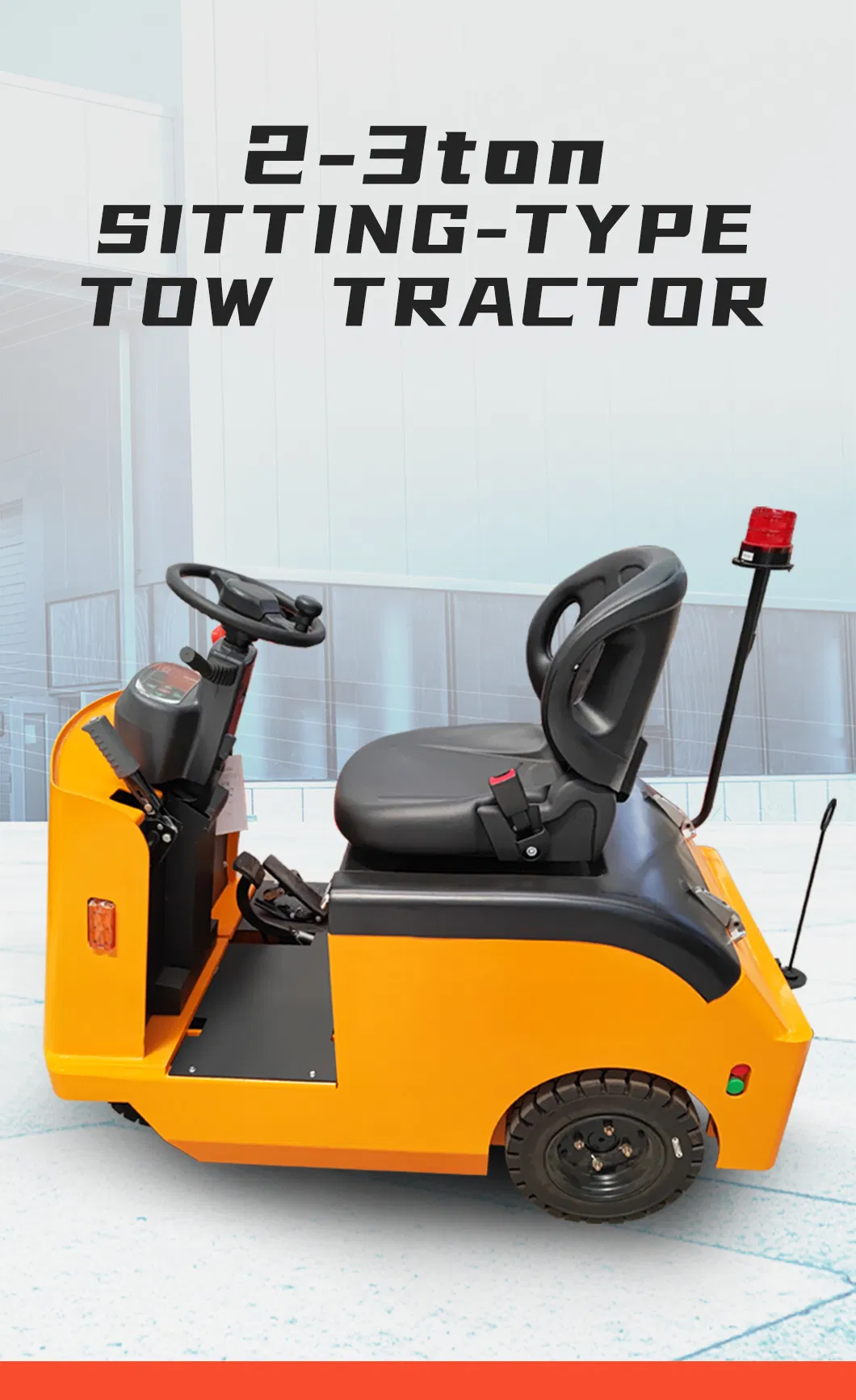

2-3 Ton Sitting Type Series
ModelEPQ20B / EPQ30BRated Tow Weight2000 / 3000 kg
Operating ModeSitting TypeRated Traction500 / 750 N
Weight (incl. battery)880 / 905 kgWheelbase1040 mm
WheelsSolid RubberMax Climbing10/8% / 8/6%
Battery24V 210Ah / 24V 240AhControl TypeAC

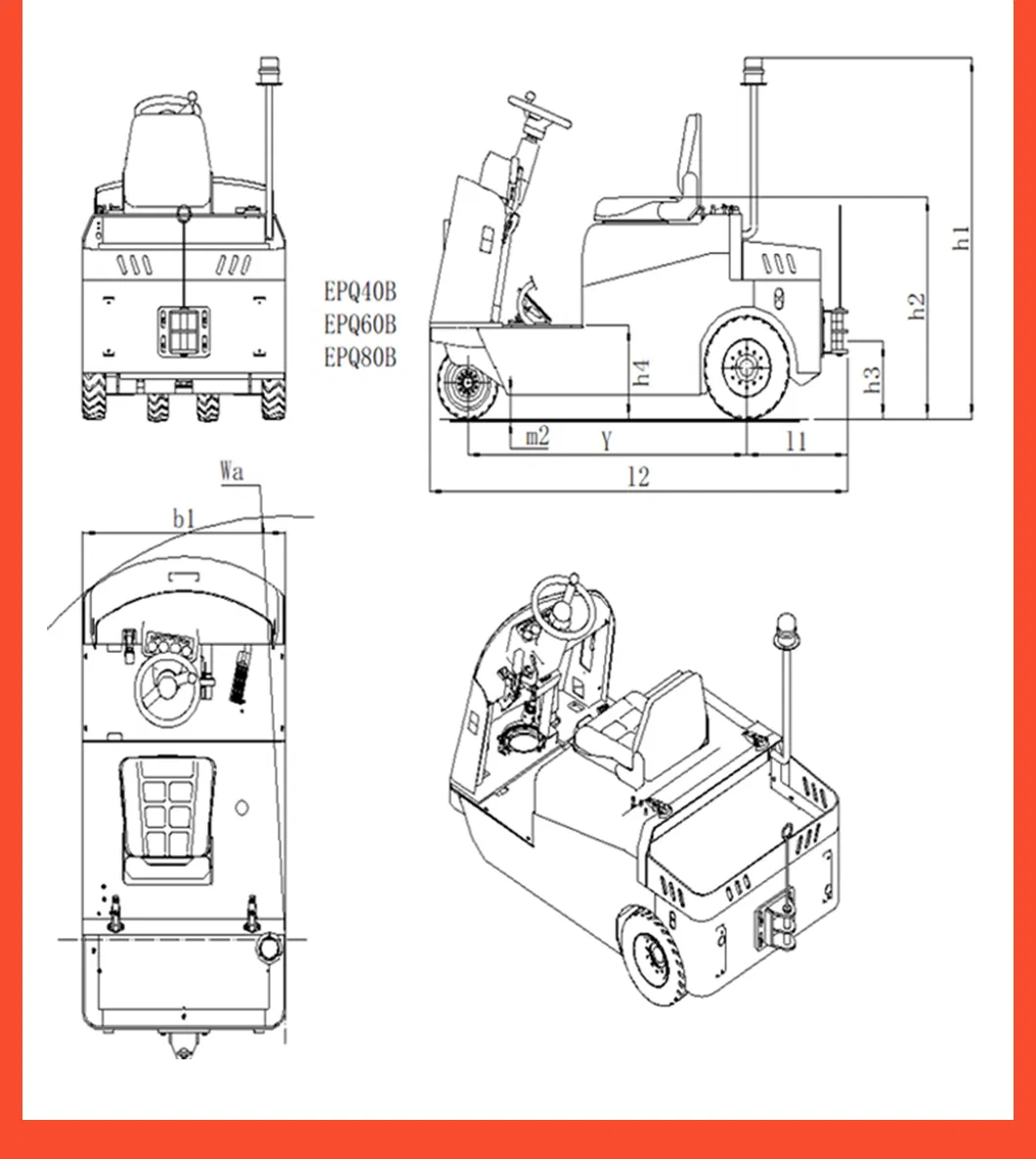

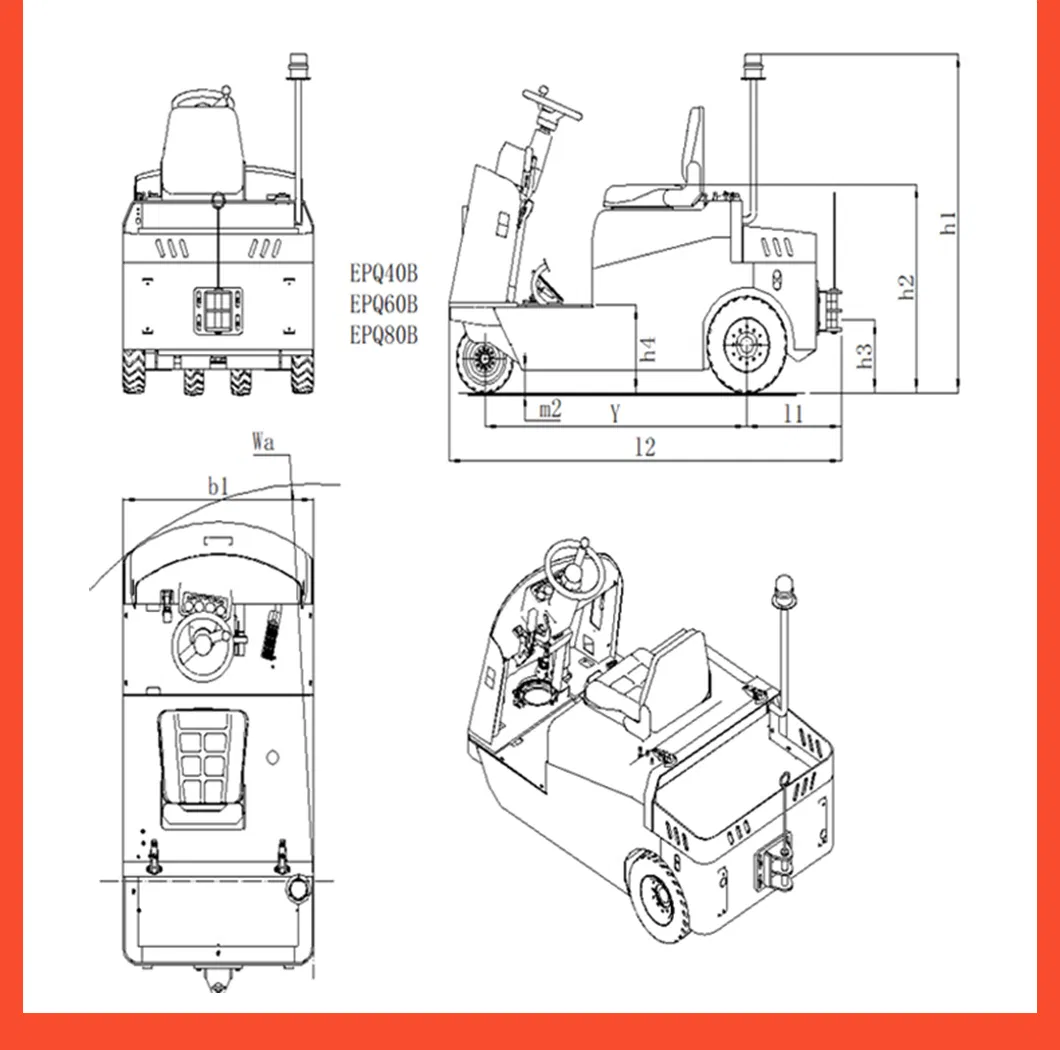

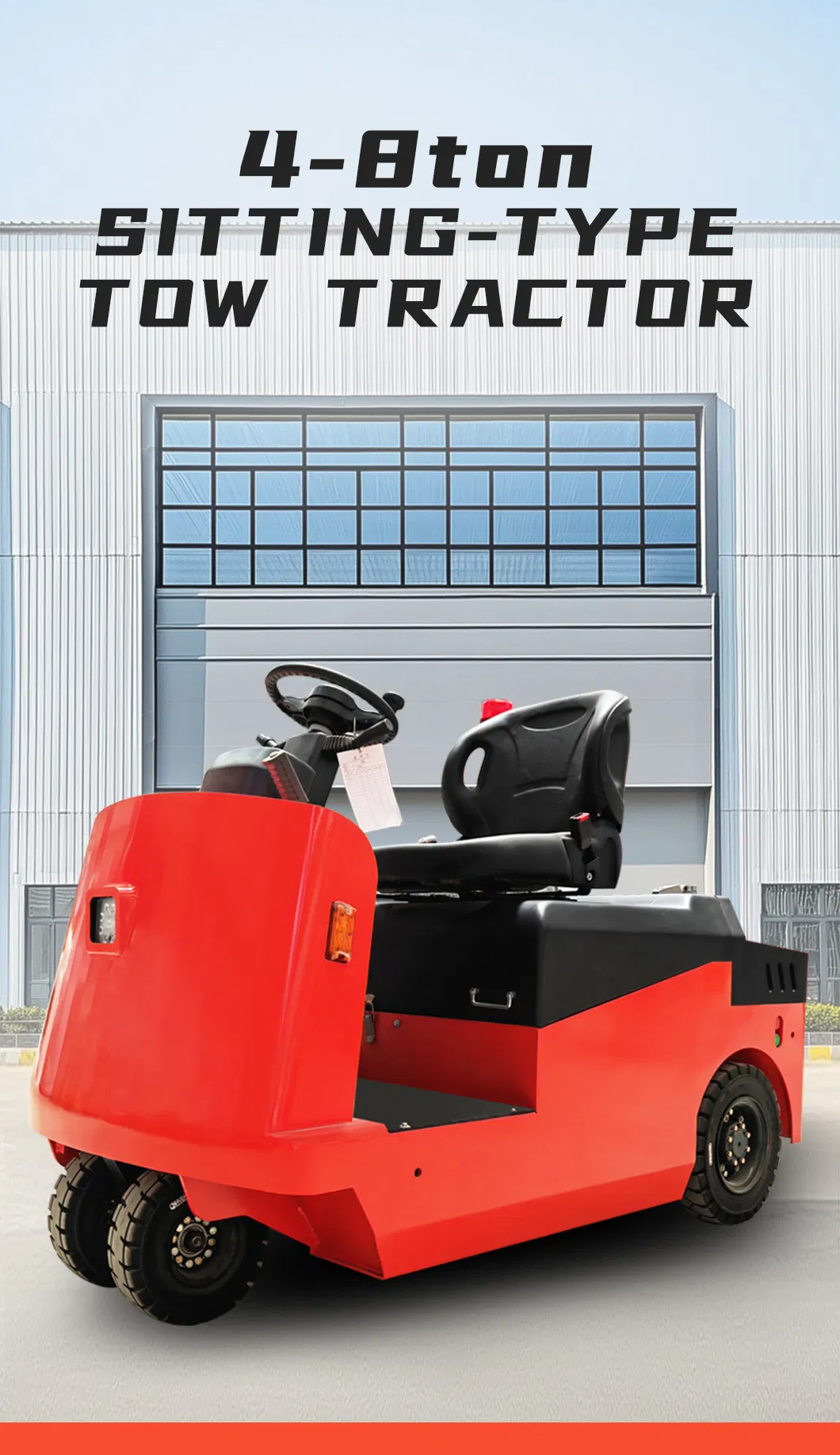

4-8 Ton Sitting Type Series
ModelEPQ40B / EPQ60B / EPQ80BRated Tow Weight4000 / 6000 / 8000 kg
Max Traction3000 / 3200 / 8000 NOperating ModeSitting Type
Drive Motor3 / 4.5 / 7 kwBattery Capacity24V350Ah / 48V280Ah / 48V360Ah

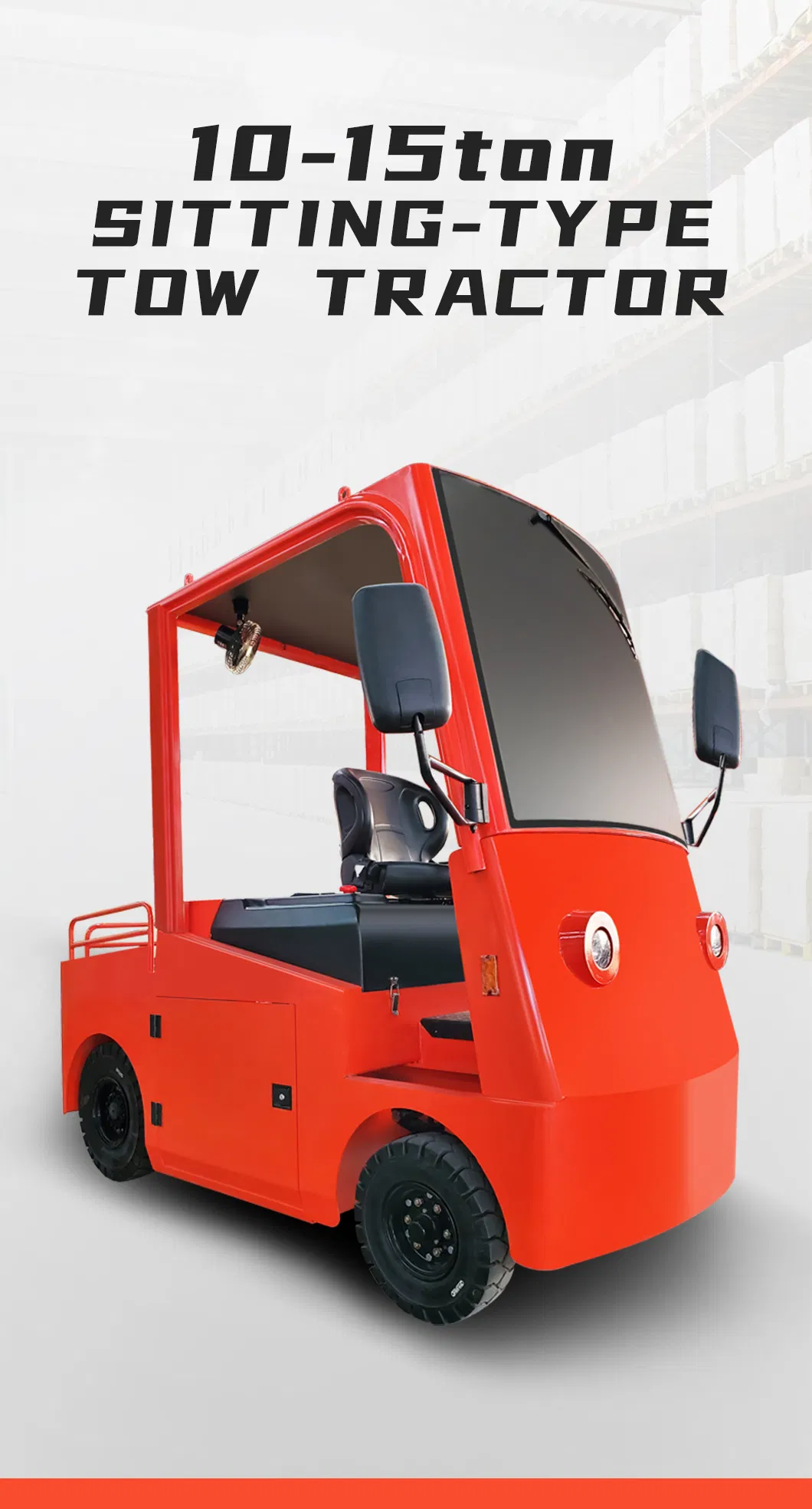

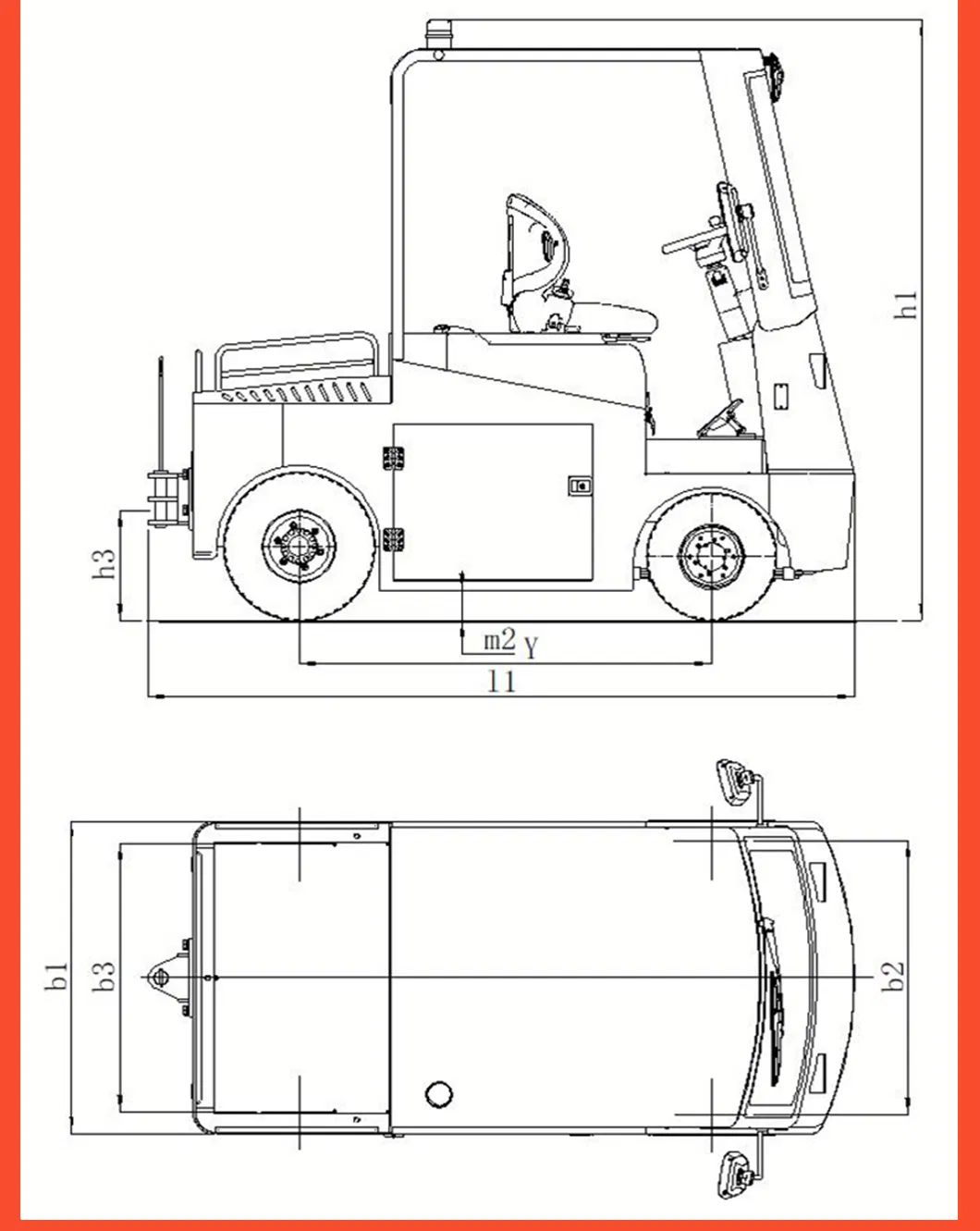

10-15 Ton High Capacity Series
ModelEPQ100 / EPQ120 / EPQ150Max Tow Weight10000 / 12000 / 15000 kg
Max Drawbar Traction8.5 / 11.3 / 12.3 KNMax Driving Speed12.0 - 16.0 km/h
Turning Radius2890 mmBattery TypeLead Acid
Overall Length2460 - 2540 mmOverall Width1150 mm

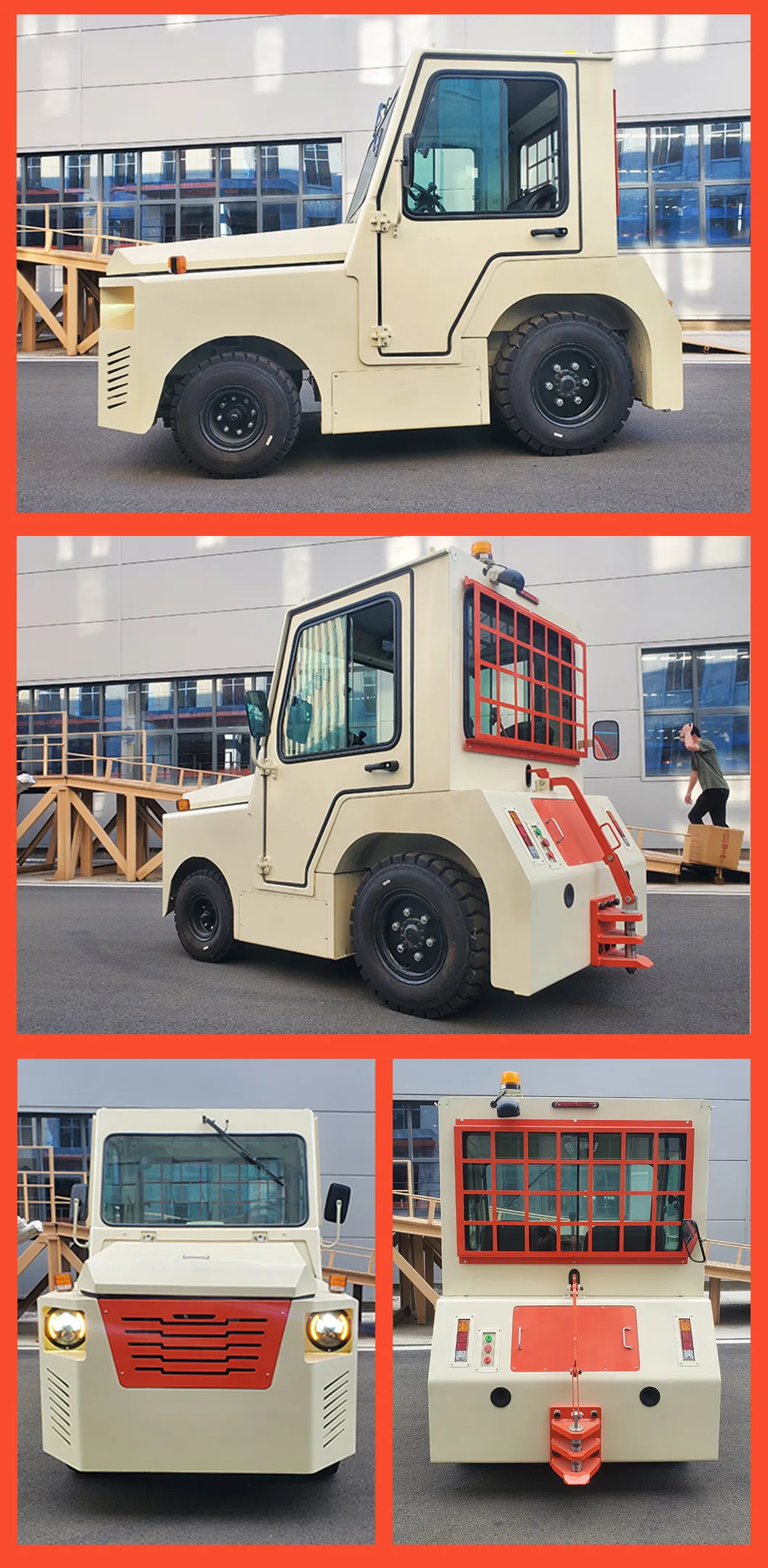

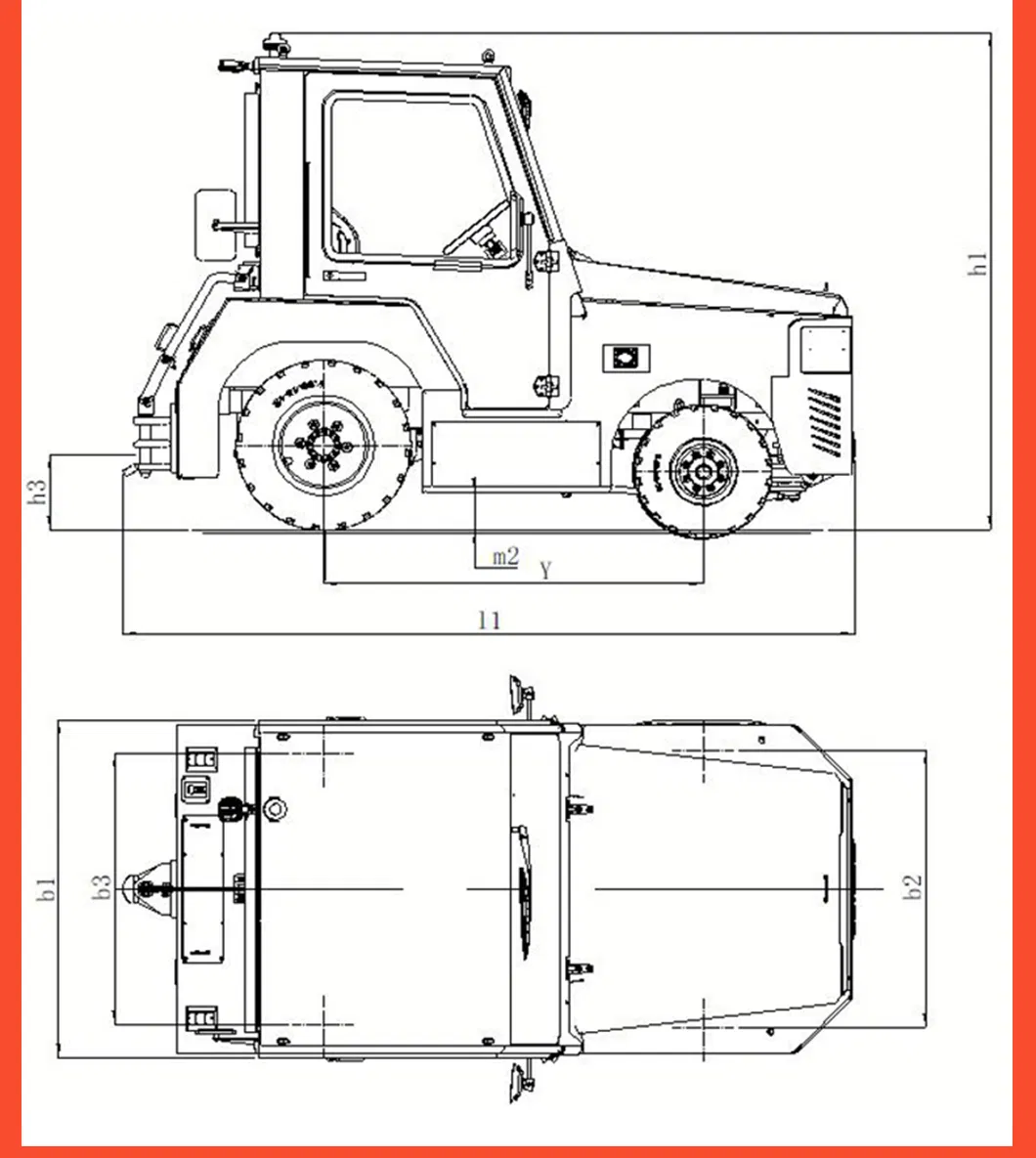

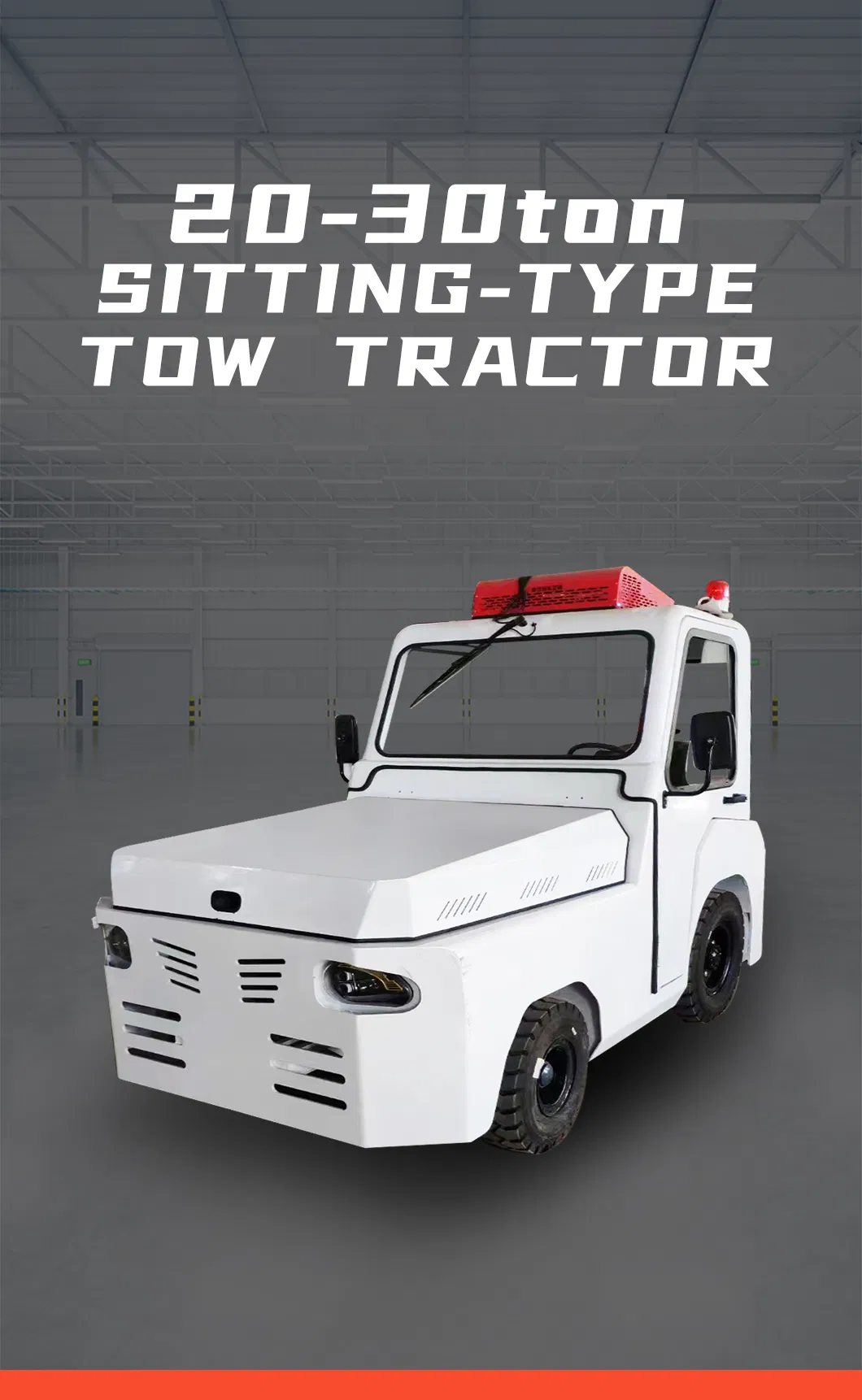

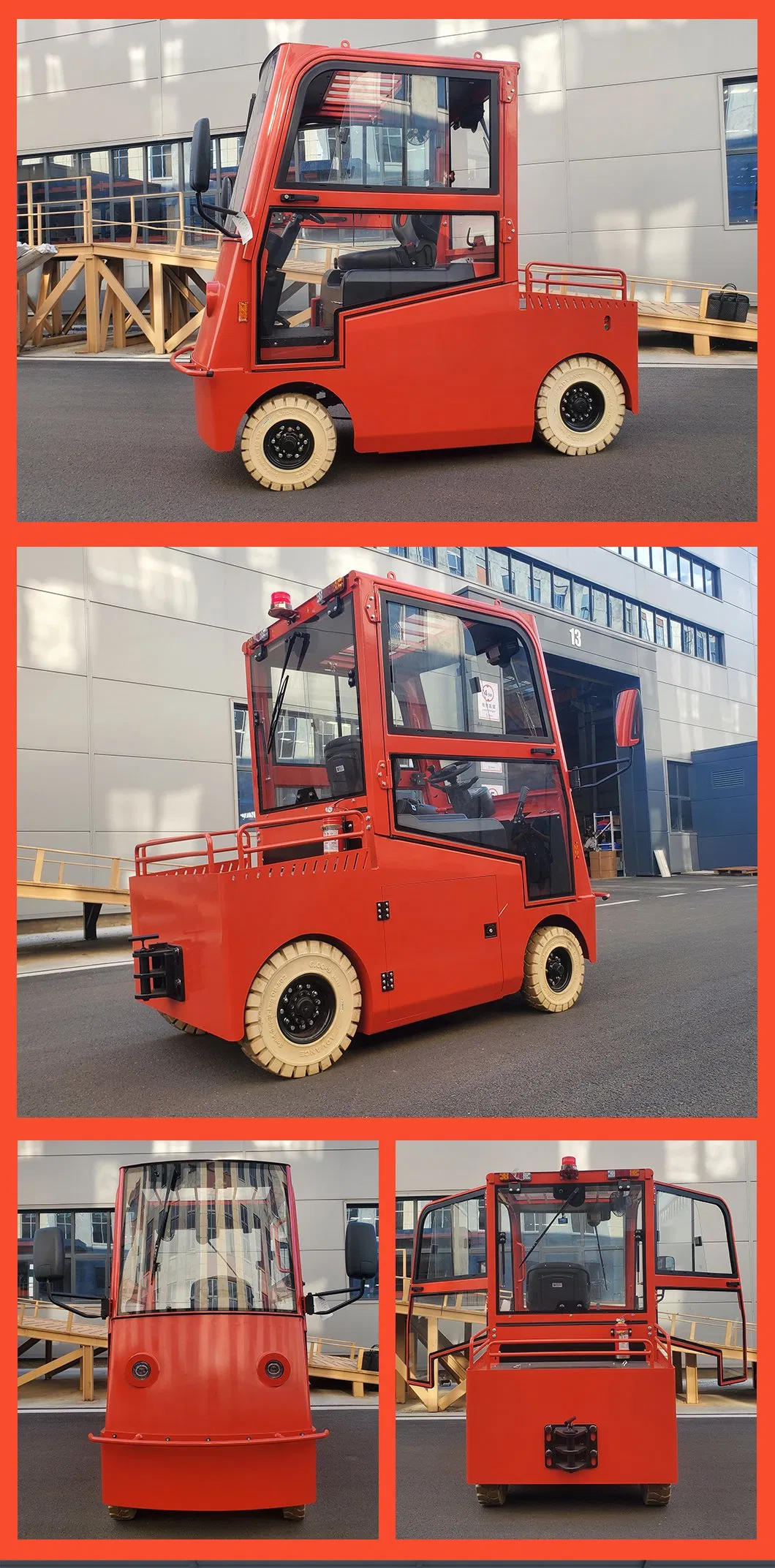

20-30 Ton Ultra-Heavy Series
ModelEPQ200 / EPQ250 / EPQ300Max Tow Weight20000 / 25000 / 30000 kg
Max Drawbar Traction18.5 / 22.5 / 28.8 KNMax Climbing30%
Battery TypeLithiumBattery Spec80V / 600Ah
Power18 / 23 / 23 kwBrake SystemVacuum Assisted
Frequently Asked Questions
How is the quality of your product?
We focus on producing high-quality products with thick materials and durable core components. Each product has undergone long-term market validation with a low failure rate.
Do you have an advantage in price?
We have a group of long-term cooperative raw material suppliers, giving us a price advantage. Combined with skilled production personnel, our products offer higher value at competitive rates.
How do you ensure the product meets my usage conditions?
Our professional sales personnel have over 5 years of industry experience. We communicate in detail about your needs to recommend the most suitable product early in the process.
Can you provide customized services?
Yes, we provide various customization services including color, logo, body size, and body function customization to meet specific operational requirements.
How long does production take?
Production typically takes 10 to 30 days. Standard products may be available for immediate shipment, while customized or complex orders require longer lead times.

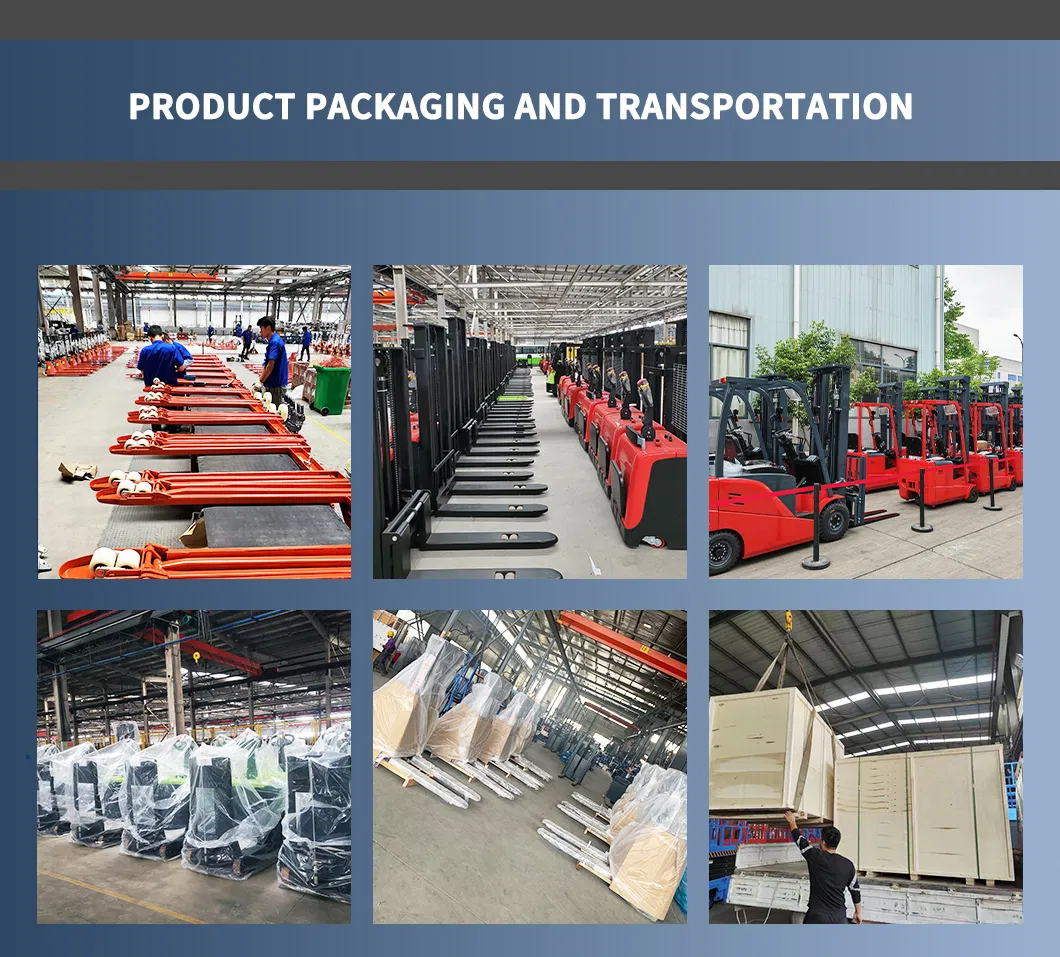

What shipping methods are available?
Most products are transported by sea. Some regions support rail transport. Smaller parts can be sent via international express delivery.
