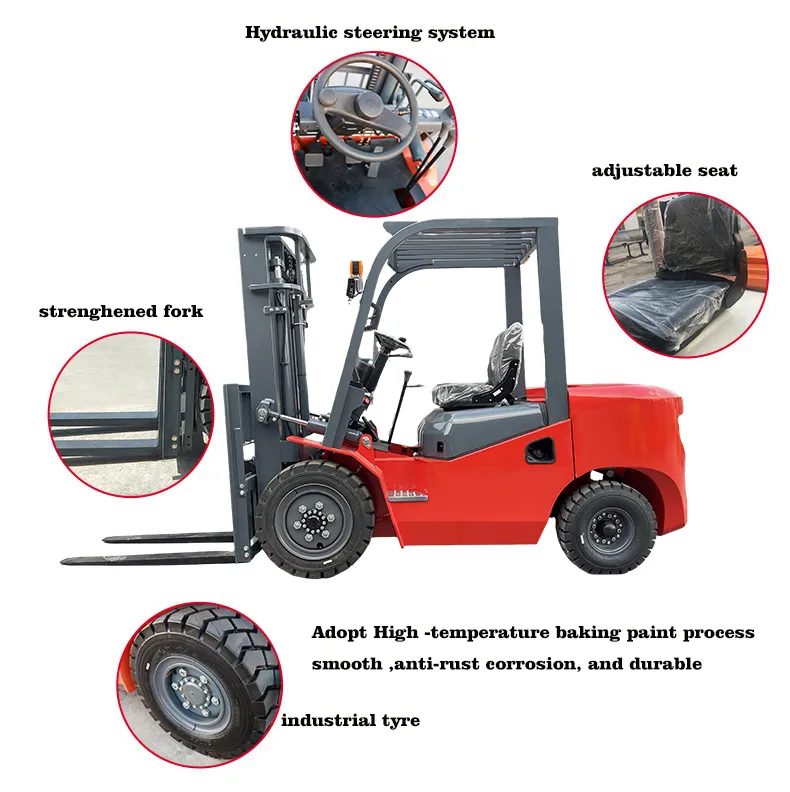

The hydraulic system uses a low-noise gear pump and full hydraulic power steering. Low noise and comfortable operation. Steering axle vibration absorb design: adopts flexible connection to protect the vehicle system and prolong the service life of the forklift.

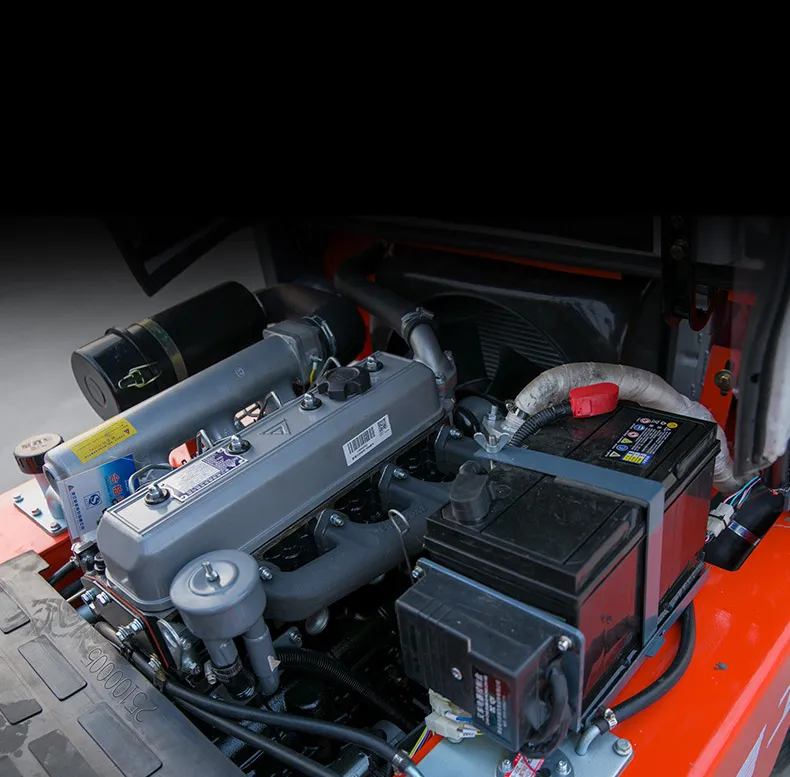

The heat dissipation system uses a large-capacity tube-and-belt radiator and an optimized heat dissipation channel to further improve the heat dissipation capability of the vehicle and ensure reliable operation of the engine.
The hydraulic system adopts Shimadzu multi-way valve and gear pump. The combination of soft and hard pipes can greatly reduce the oil pressure and improve lifting and tilting performance. The hydraulic cylinder uses Japanese "NOK" seals for superior sealing performance and stability.
Equipped with mature brands utilizing Japanese technology. The electrical system adopts the latest harness and waterproof connectors with a multi-pass fuse arrangement to ensure circuit safety and stability.

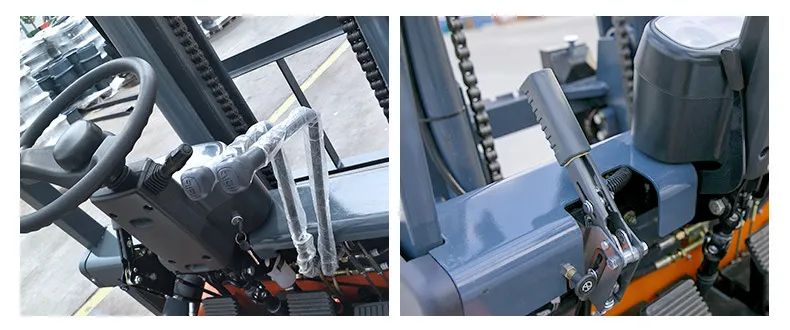

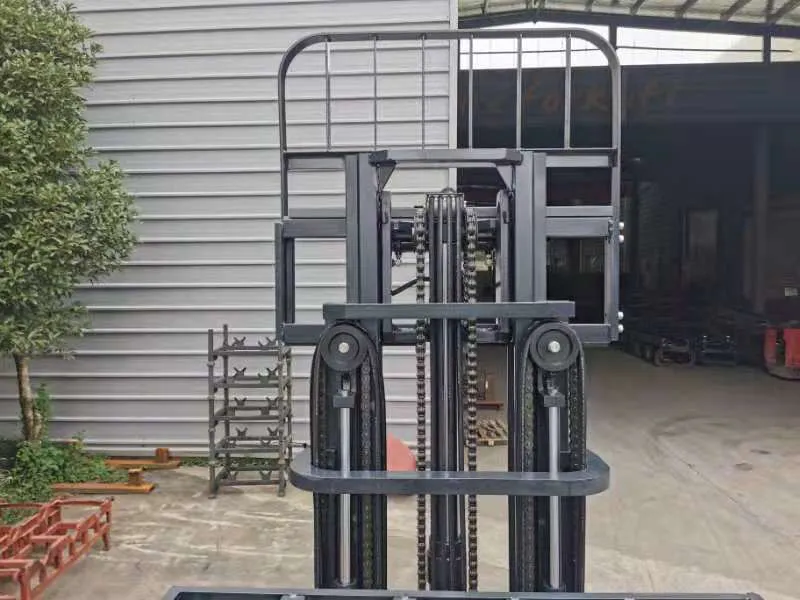

High operating sensitivity and smooth start with a small turning radius. The lifting cylinder includes a buffer device and piping safety settings to prevent uncontrolled descents even in the event of pipeline breakage.
| Model | Unit | FD15 | FD20 | FD25 |
|---|---|---|---|---|
| Rated lifting load | kg | 1500 | 2000 | 2500 |
| Load center distance | mm | 500 | 500 | 500 |
| Free lifting height | mm | 100 | 1500 | 1500 |
| Overall length (with fork) | mm | 3180 | 3422 | 3646 |
| Width | mm | 1090 | 1170 | 1170 |
| Overhead guard height | mm | 2050 | 2070 | 2070 |
| Wheelbase | mm | 1400 | 1600 | 1600 |
| Min. turning radius | mm | 1950 | 2170 | 2240 |
| Max. working speed | km/h | 14/15 | 17/19 | 17/19 |
| Forklift weight | kg | 2900 | 3320 | 3680 |

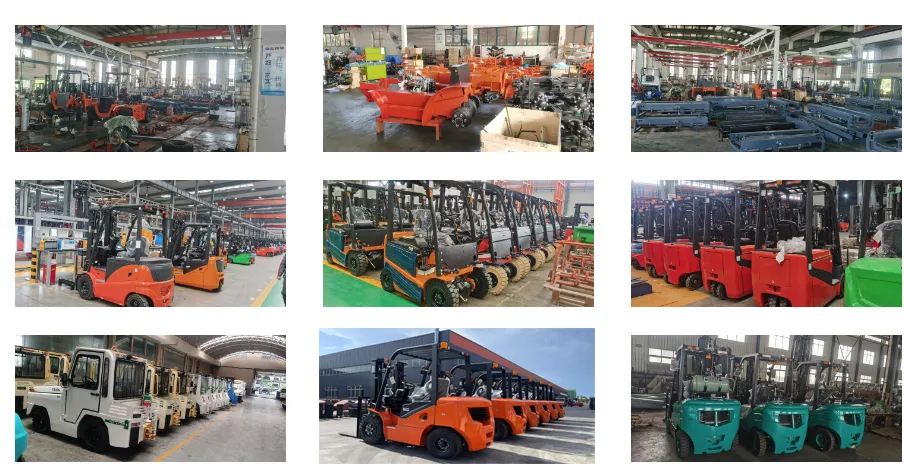

We are a manufacturer specializing in handling equipment. Our products follow international trends in convenience, intelligence, and energy saving. With advanced processing centers and robot welding, our machines are exported to more than 100 countries and regions globally.
