Product Description

Overview & Basic Info

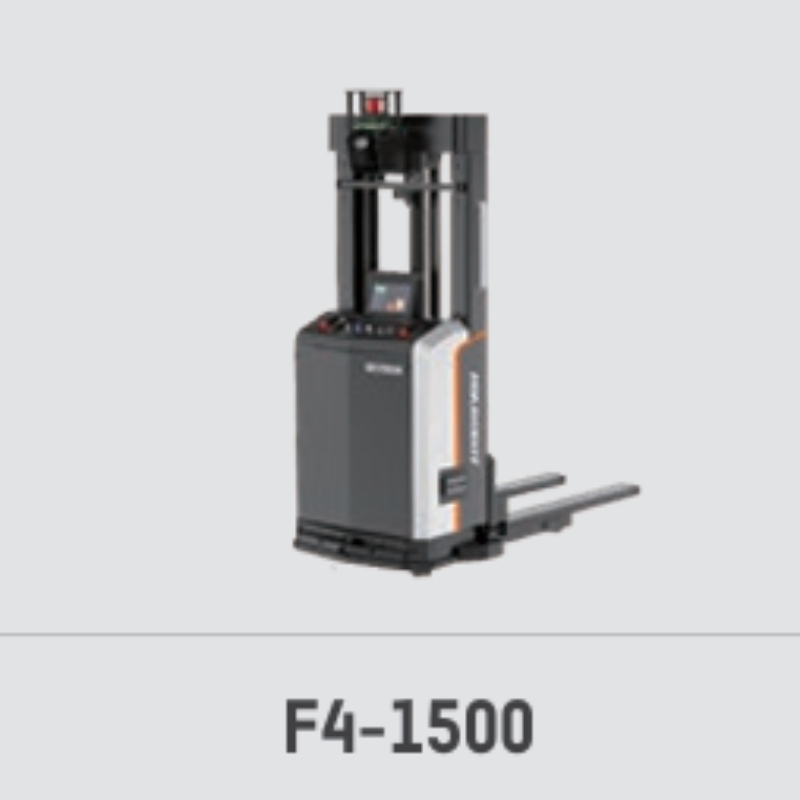

Model

F4-1500

Type

AMR (Autonomous Mobile Robot)

Load Capacity

1500 kg

Rated Load

1500 kg

Lifting Height

3000 mm

Dimensions

1883*940*2165 mm

Weight

920 kg

Origin

China

Product Description

Forklift Mobile Robot Stacking Series

The stacking series FMRs cover load capacities ranging from 1,000kg to 3,000kg, with customized lifting heights reaching up to 4.5m. Engineered with a specialized slim body design, these robots significantly reduce required aisle widths and maximize storage density. Featuring a modular robot head and components, 80% of parts are interchangeable across different scenarios. The entire series carries the CE marking, ensuring safety and compliance for global logistics solutions.

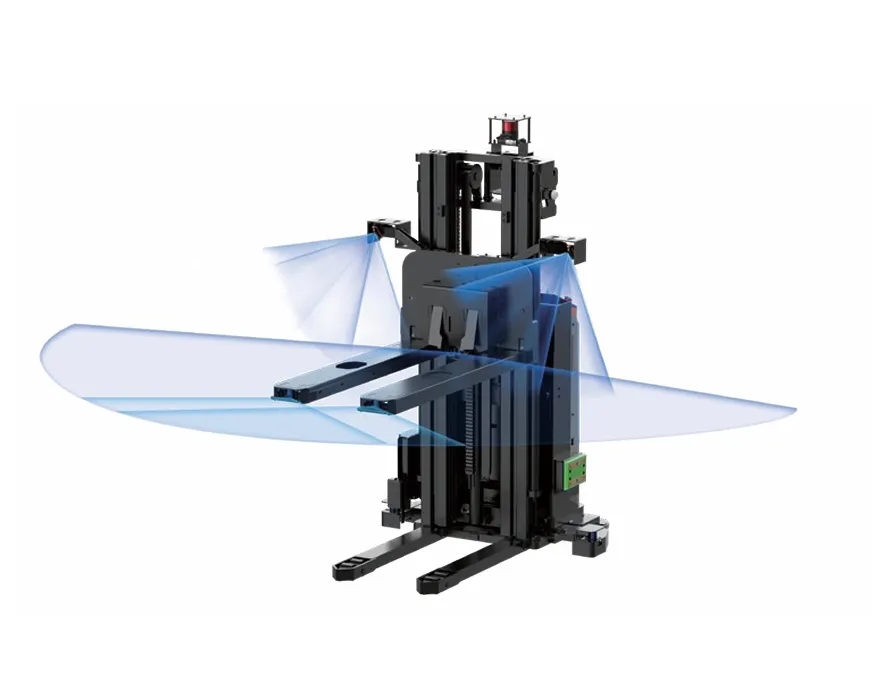

Key Features

Superior Performance: Steady running speeds up to 1.5m/s.

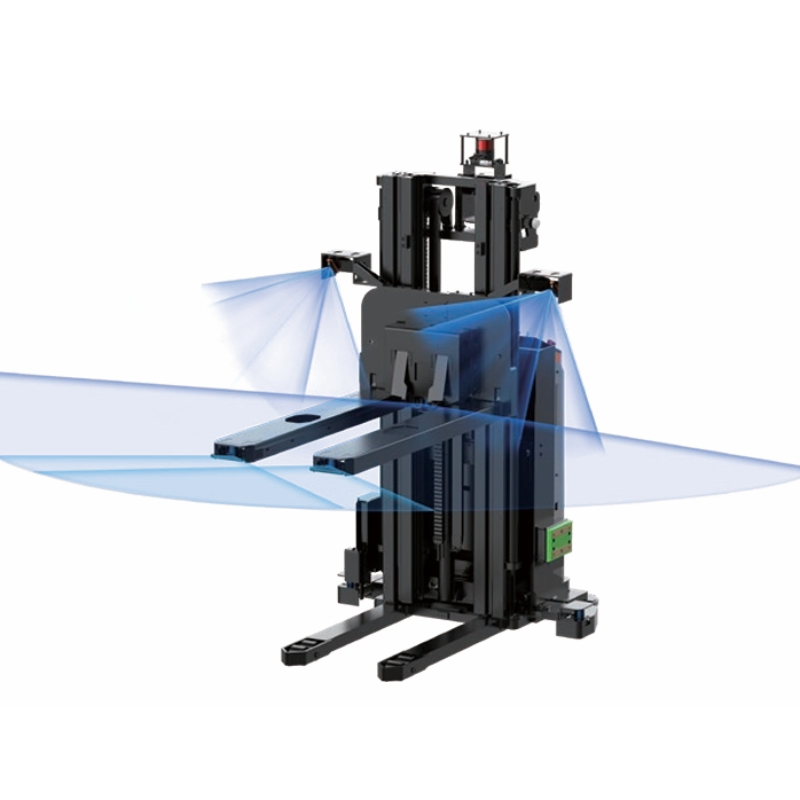

Safe & Reliable: 360° stereo sensing with obstacle detection.
Precise Positioning: Millimeter-level accuracy via laser and vision positioning.
Carrier Recognition: Autonomous picking based on carrier offset.

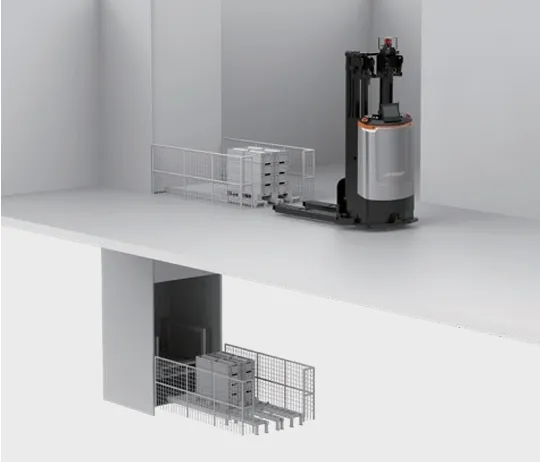

Versatile Docking: Seamless integration with elevators, automatic doors, and conveyors.

Technical Specifications

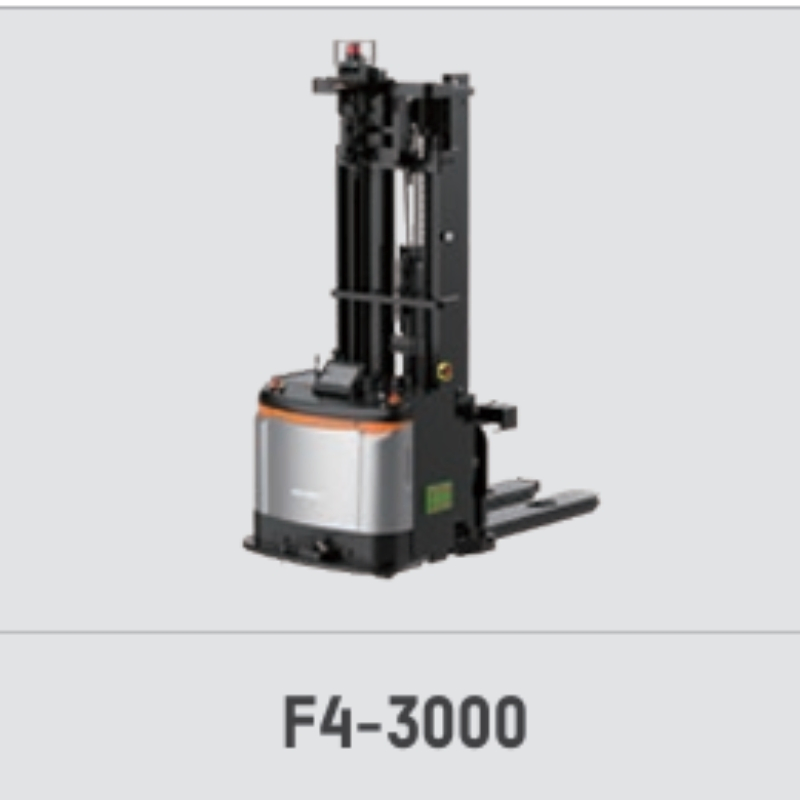

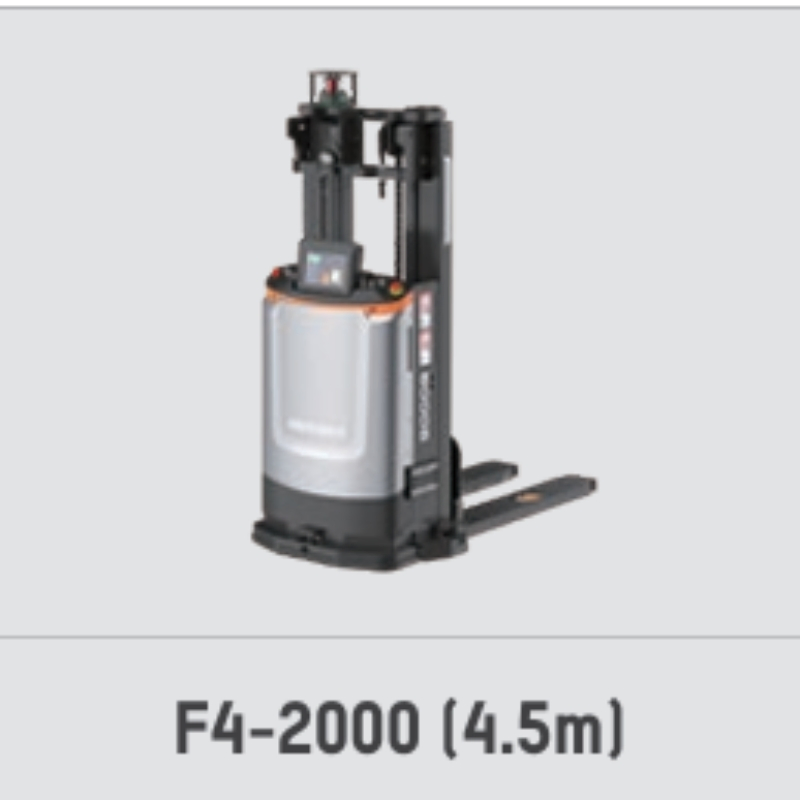

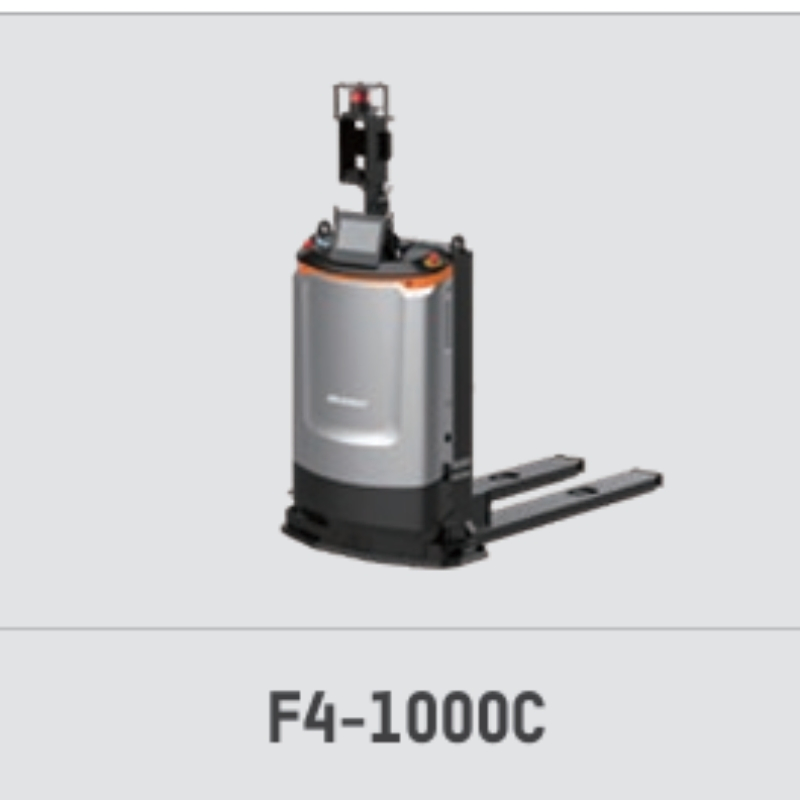

Model	F4-1000C	F4-1500	F4-2000 (3m)	F4-2000 (4.5m)	F4-3000
Rated Speed (m/s)	1.2	1.2	1.2	1.2	1.5
Accuracy (mm/°)	±10/±1	±10/±1	±10/±1	±10/±1	±10/±1
Min. Radius (mm)	1183	1316	1400	1400	1891
Min. Aisle Width (mm)	2062	2490	2065	2065	2864
Run Time (h)	6-8	6-8	6-8	6-8	6-8
Charging Time (h)	≤ 2	≤ 2	≤ 2	≤ 2	≤ 2
Navigation Mode	L-SLAM / 3D L-SLAM (Customizable)

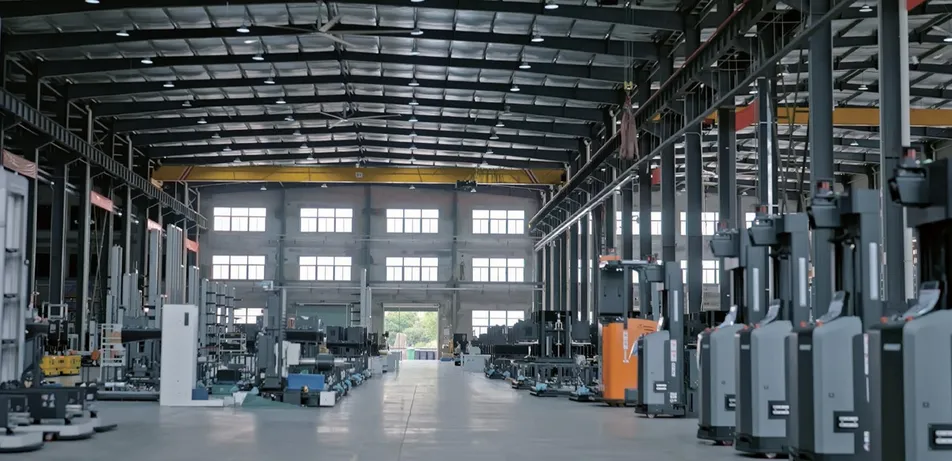

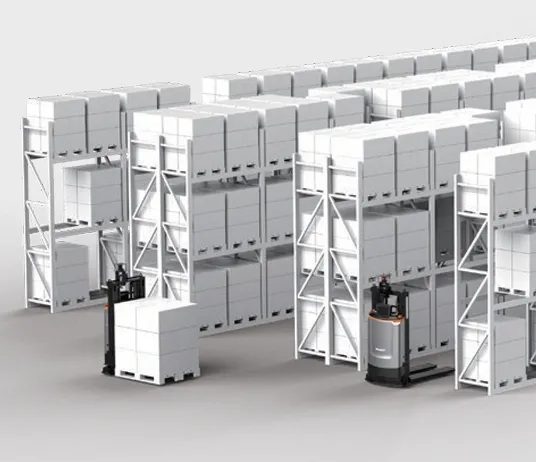

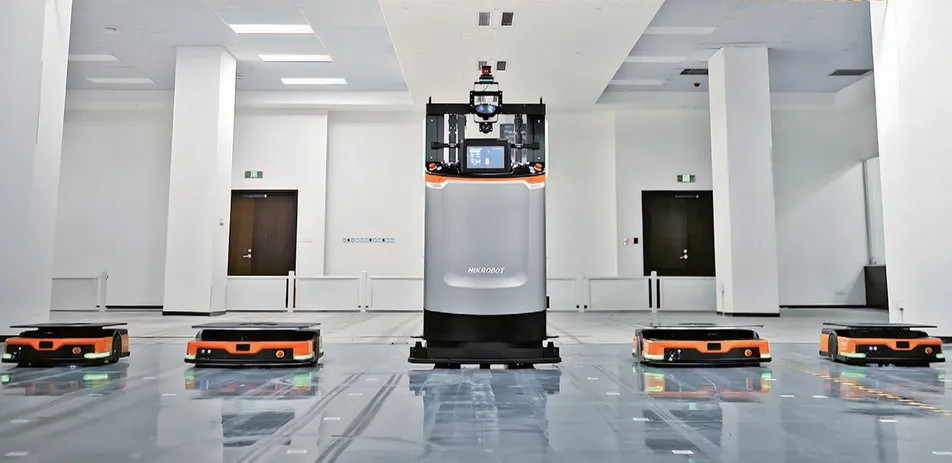

Applications

Project Highlights

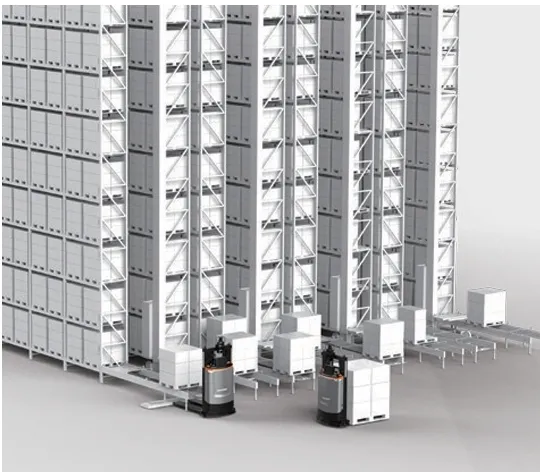

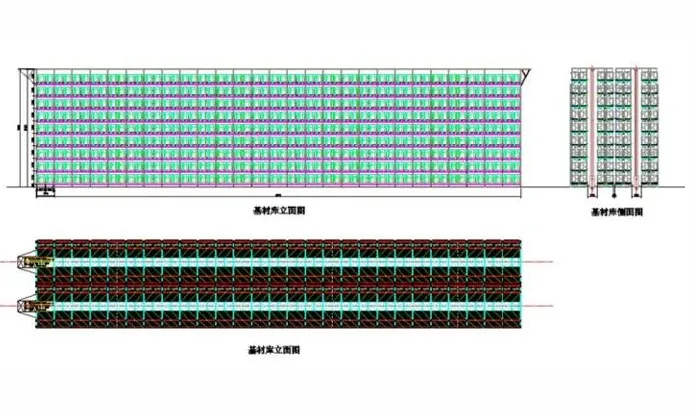

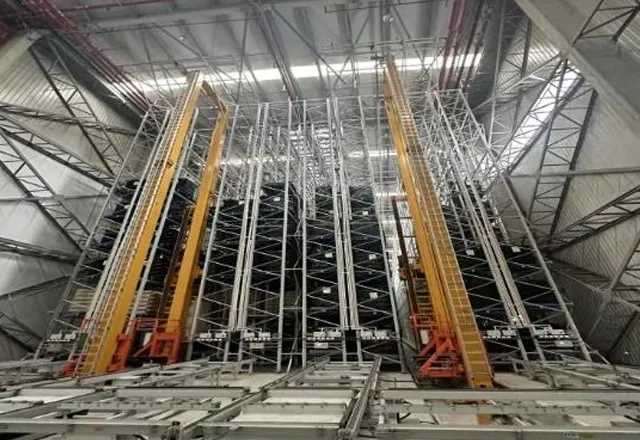

Automated Storage System Project - Shanghai

Design and implementation of an automated warehouse system including stacker cranes and rack systems.

Scope: 2 stacker cranes, 4 rack sets, 3,888 storage locations.
Performance: Inbound/Outbound flow of 92 pallets per hour.
Timeline: 79 days for engineering, 200 days for final delivery.

Frequently Asked Questions

How do I select the right AGV/AMR model?

We recommend selection based on actual operational requirements such as load capacity, lifting height, and aisle width. Our technical team provides tailored configuration proposals.

Is specific software required for AGV operation?

Yes. Dedicated robot dispatching and control software is essential to work in conjunction with the hardware for task management and navigation.

Can different types of AGVs operate at the same site?

Absolutely. Our systems support the simultaneous operation of multiple models and types of robots to meet diverse material handling needs.

What information is needed to begin implementation?

Initially, we require the factory layout, pallet dimensions, material details, and a description of the workflow requirements.

What is the typical timeline for AGV deployment?

The timeline varies by project complexity. Standard deployments can often be completed in as little as two weeks, while large-scale warehouse systems may take longer.

Who handles the commissioning and setup?

AGV commissioning requires professional expertise. Our specialized team handles all aspects of installation and testing to ensure optimal performance.
