Warehouse Picking up Machine Mobile Order Picker Truck

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.OP

Lift MechanismLift Chain

Carrying CapacityMiddle-Level

Driven TypeDC

Max Platform Height2.72m, 3.3m, 4.0m, 4.5m

Load Capacity200kg / 300kg

PowerDC (with Battery)

Battery12V/120ah / 24V/150ah

Warranty12 Months

CertificationGS, CE, RoHS, ISO 9001

FeatureExplosion-Proof, Insulating, Spillover Valve

Emergency ValveYes

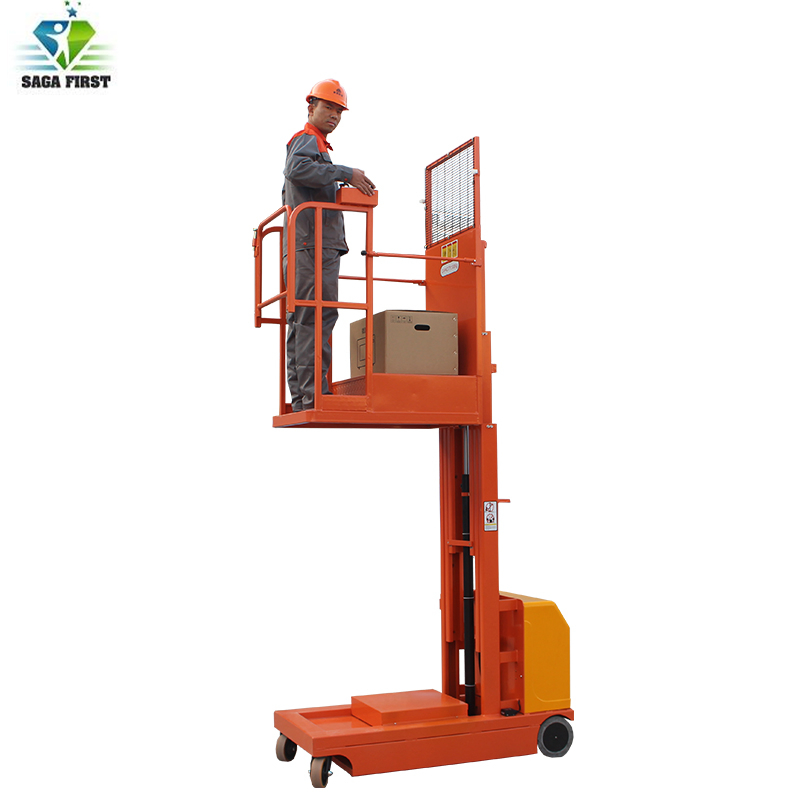

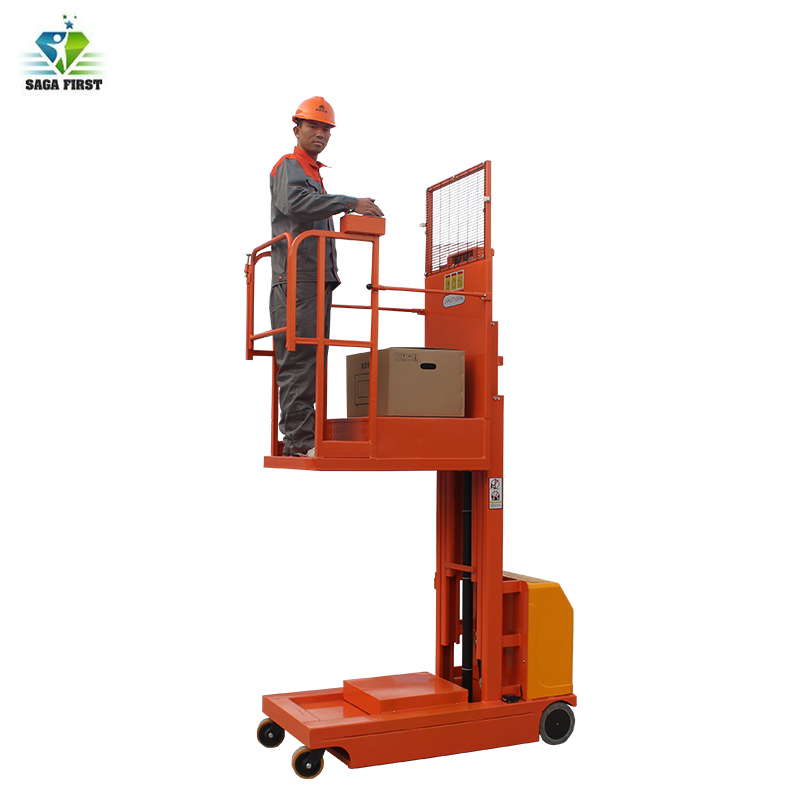

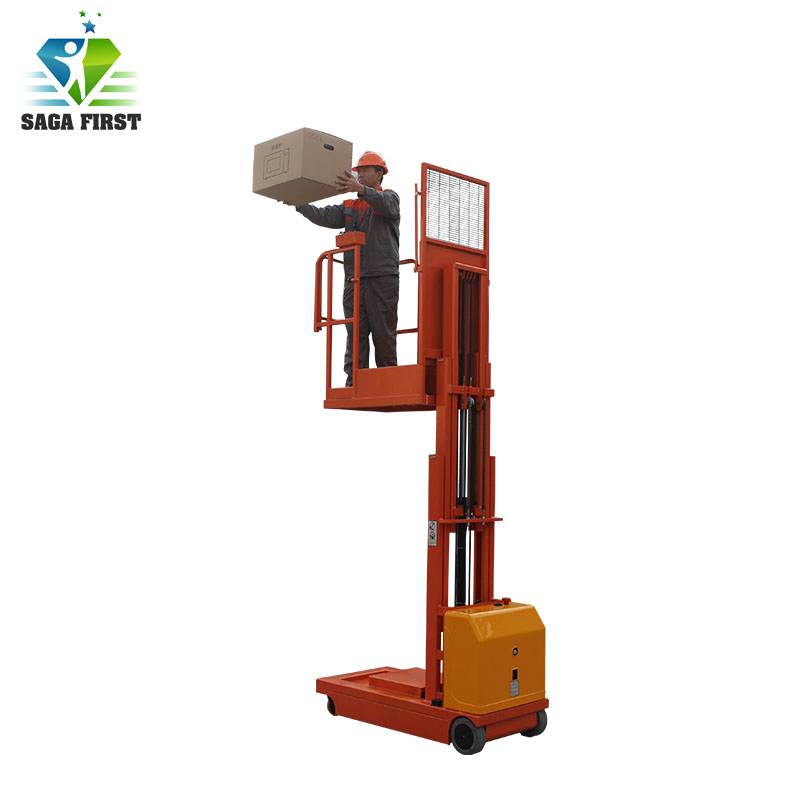

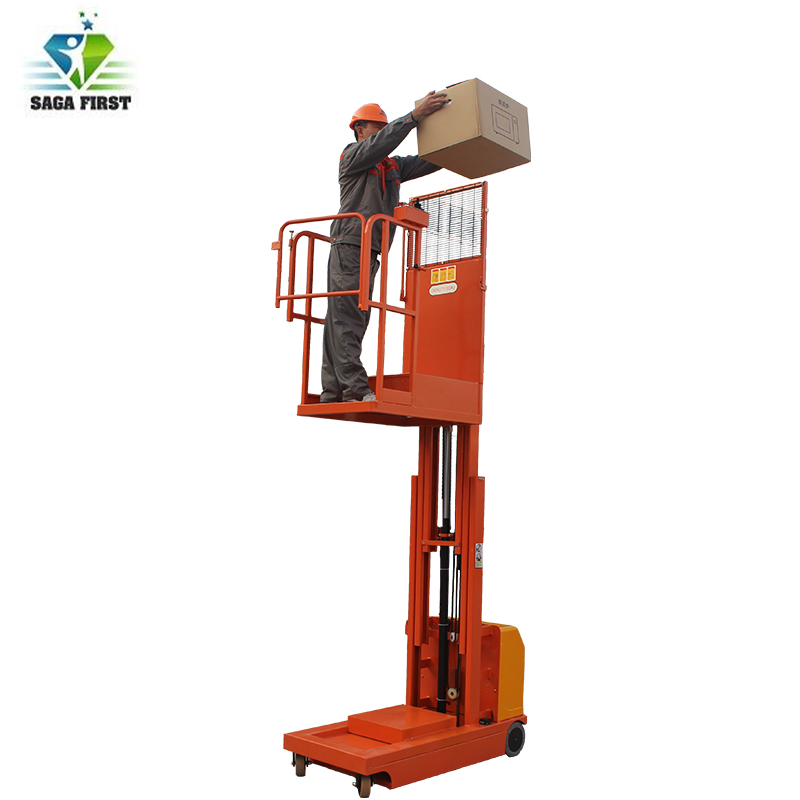

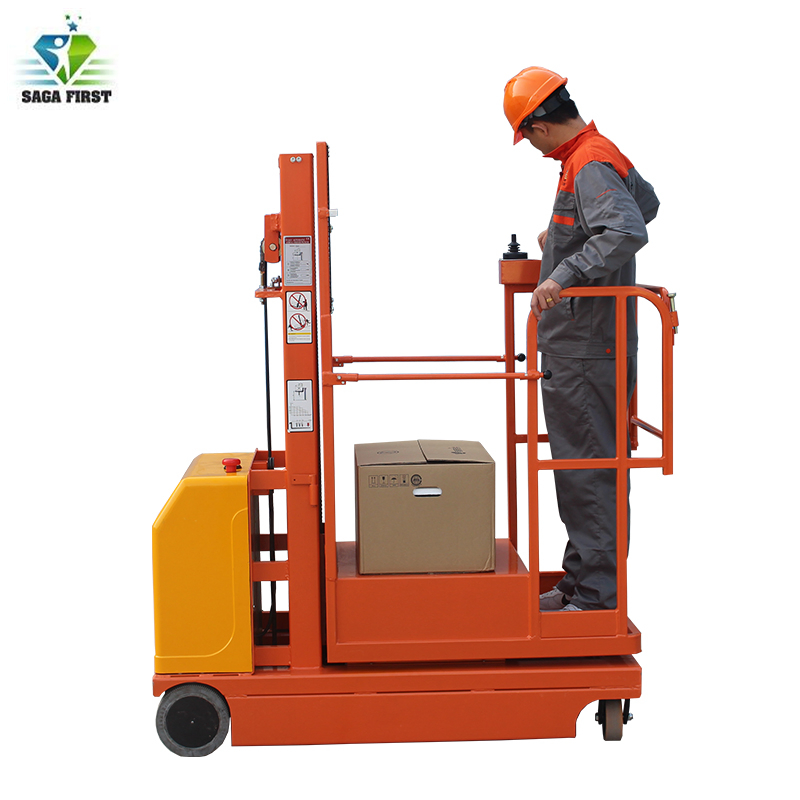

Mobile Hydraulic Self-Propelled Order Picker

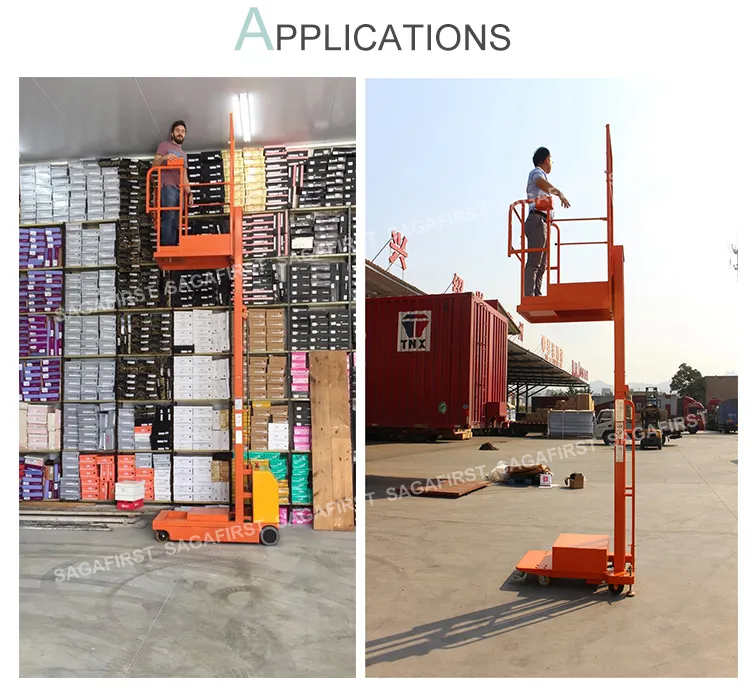

Self propelled order picker is one kind of material handling equipment which are widely used in warehouse and supermarket. Order picker is mainly used to pick up cargo from rack. Operator can control moving, lifting and turning when stand on the platform, which highly improved the working efficiency.

Key Configurations

✓ Proportional controls

✓ Self-closing gate

✓ Drivable at full height

✓ Non-marking tyres

✓ Automatic brake system

✓ Emergency lowering system

✓ Onboard diagnostic system

✓ Flashing beacon

Technical Parameters

Model Type	Unit	OP3-2.7	OP3-3.3	OP3-4.0	OP3-4.5
Max. Platform Height	mm	2700	3300	4000	4500
Max. Machine Height	mm	4120	5000	5400	6000
Rated Capacity	kg	300
Platform Size	mm	600*640
Max. Drive Speed (Stowed)	km/h	4
Min. Turning Radius	mm	1500
Lifting Motor	v/kw	24/1.6
Aneroid Battery	v/Ah	2*12/150
Overall Net Weight	kg	430	450	660	680

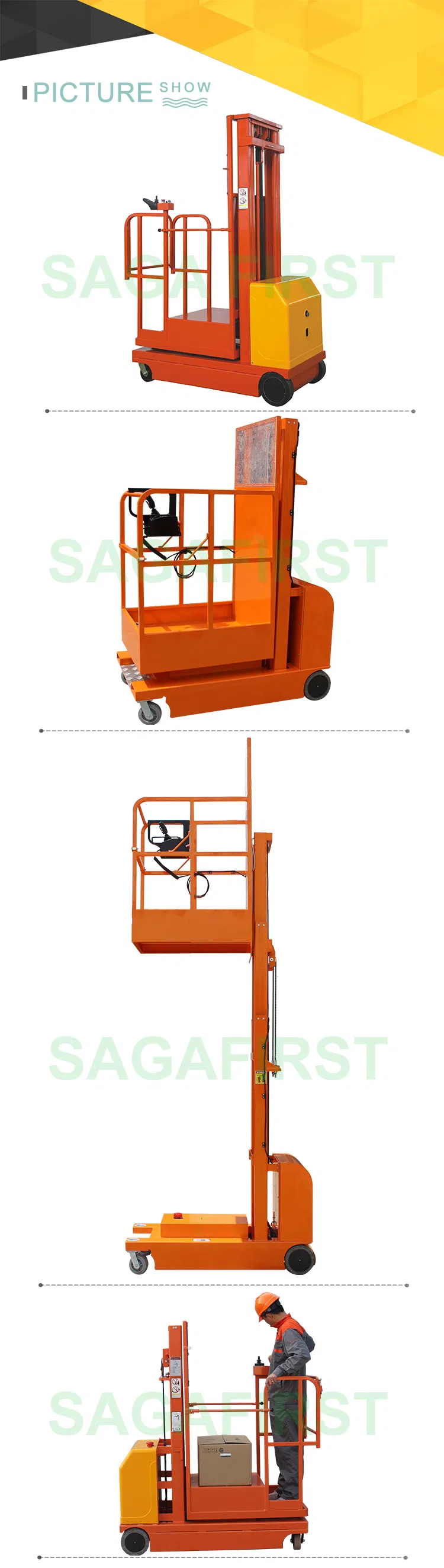

Product Showcase

Professional Service

● Specialized design for customized stock order pickers.
● Expert recommendations based on your specific requirements.
● Global shipment arrangements to your destination port.
● Detailed operation and maintenance videos provided.
● Rapid spare parts delivery via express within 7 days.

Manufacturing Excellence

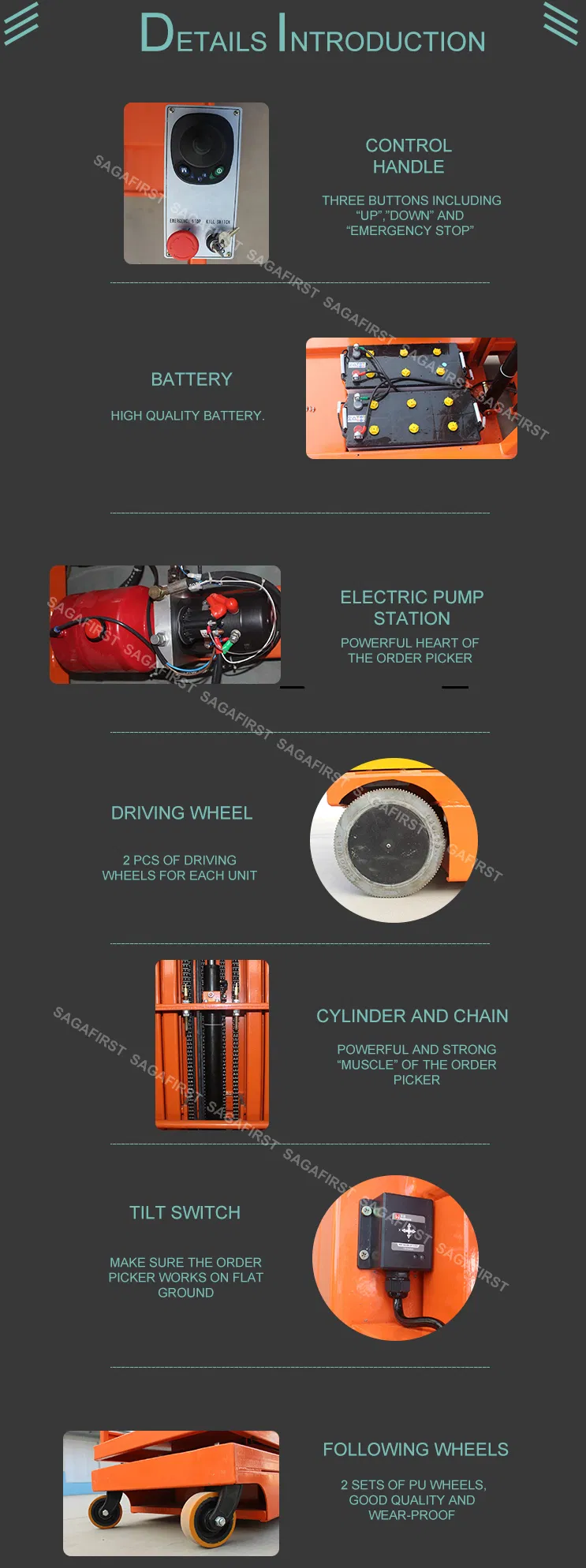

Order picker adopts hydraulic principle. Electric motor drives the hydraulic pump station and then hydraulic oil run out to the hydraulic cylinder which lead to the lifting of the cylinder. Equipped with dual driving motors, the operator controls a multifunction handle on the platform for seamless movement and turning.

Frequently Asked Questions

Q1: How can customers buy replacement parts? The stock order picker adopts common hardware parts. You can easily purchase these parts in your local hardware market.

Q2: How is the repair process handled for the order picker? The equipment features a very low failure rate. If needed, we provide comprehensive video guides and instruction manuals to assist with repairs.

Q3: What is the duration of the quality guarantee? We provide a one-year quality guarantee. Within this period, if any breakdown occurs, parts are sent free of charge.

Q4: What power source does the order picker use? It is fully battery-powered for both lifting and moving, making it ideal for indoor use without emissions.

Q5: Is the machine suitable for narrow warehouse aisles? Yes, the compact design and zero-turn radius allow the machine to access and maneuver within very confined work areas.

Q6: Can the operator drive the machine while the platform is raised? Yes, the machine is designed to be drivable even at its full platform height for maximum picking efficiency.
