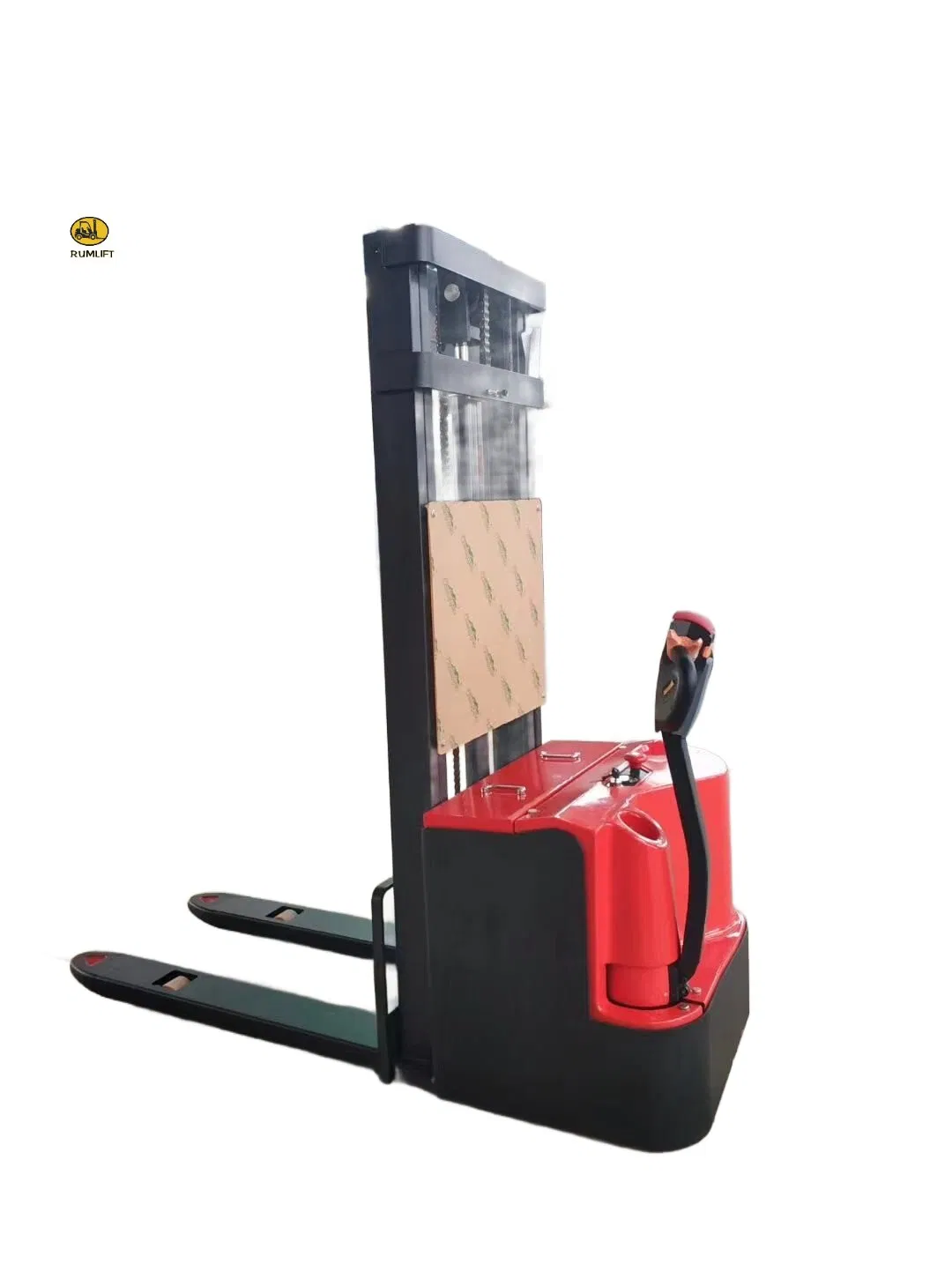

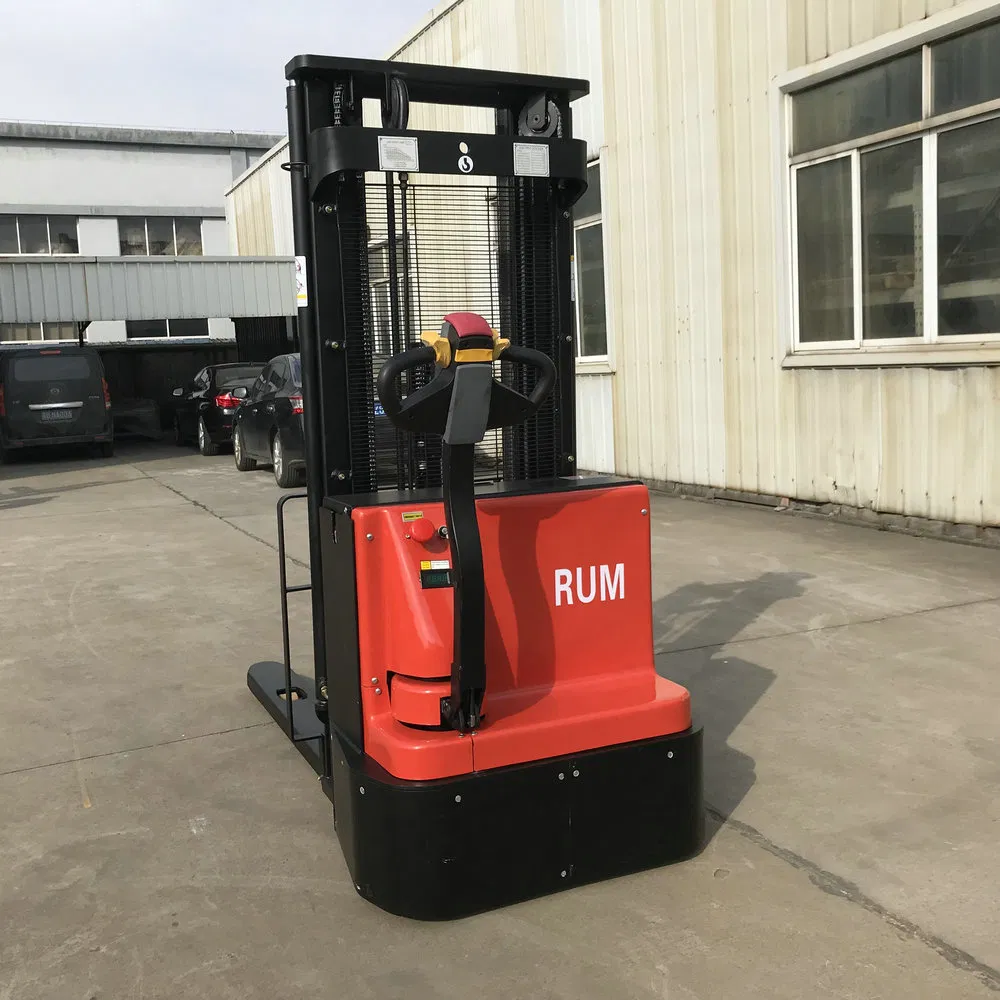

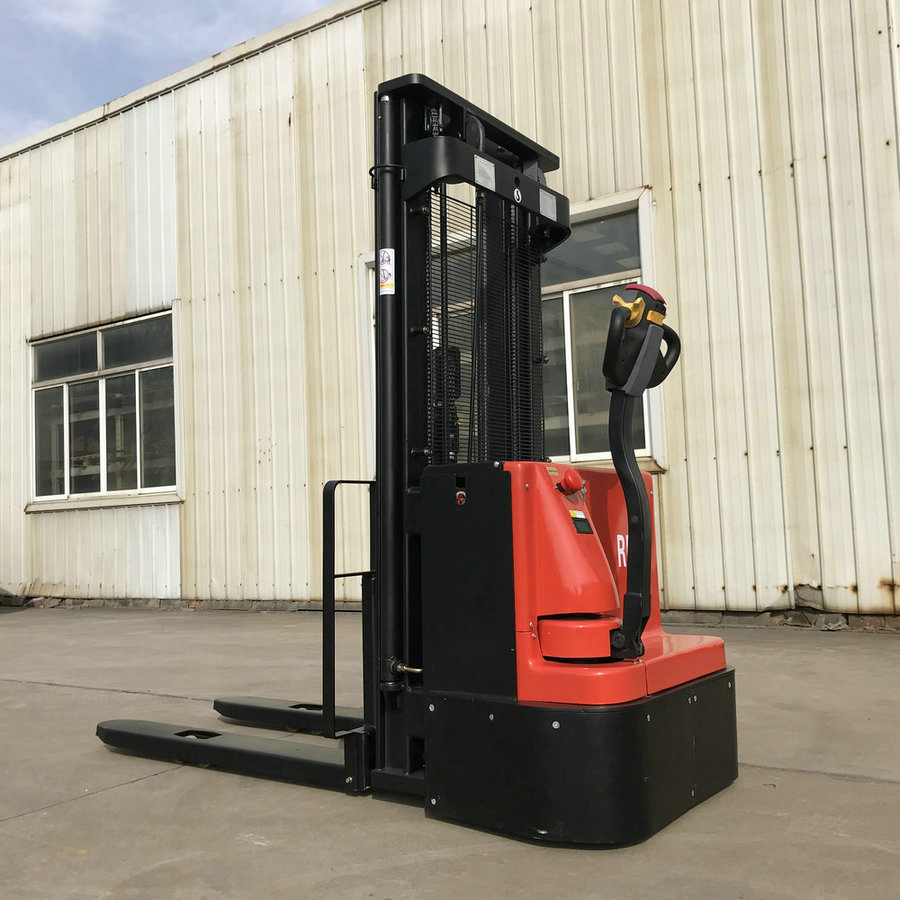

1000kg 1ton Electric Battery Walkie Stacker Lithium Power in Stock Fast Delivery

1 / 5

1000kg 1ton Electric Battery Walkie Stacker Lithium Power in Stock Fast Delivery

Customization:	Available
After-sales Service:	Mail Parts
Warranty:	1 Year

Send Inquiry

Product Description

Basic Info.

Model NO.TB110s-30

TypeStacker

PowerAC Motor

Load Capacity1T - 5T

FuelElectric

Load center500mm

Lift height3000~5000mm

ConditionNew

ColorCustomized

Overall Size1785*800*2075

TrademarkRUMLIFT

HS Code84271090

★

Safety and Productivity

✔AC motor with high transmission efficiency, without replacing the carbon brushes, it has a good ramp starting performance.

✔Low center of gravity, good stability and smooth running.

✔Small minimum turning radius and excellent steering operating performance.

✔Using the most advanced technology of AC variable speed, which makes the motor more reliable and maintenance-free.

✔Achieving the control of both the walking speed and the lifting speed.

✔With the shock device, it greatly reduce the noise.

✔Sideway moving battery easy for replacement and maintenance.

✔Using the built-in charger which makes it easy to disassemly according to different customers' requirement.

✔Adopting Integrated electrical system, the line is clean and beautiful, it is easy to assembly and maintain.

✔Using environmentally friendly maintenance-free lead-acid battery.

✔Adopting programmable control technology with fault diagnostic function.

✔With emergency brake function improve the safety operation.

✔With low-voltage protection, fault diagnosis and maintenance functions.

✔Configurable with a variety of hydraulic lifting attachments.

📋

Technical Specification

Model	Unit	TB110S-16/25/30	TB115S-16/25
Load capacity	kg	1000	1500
Lifting height	m	1.6 / 2 / 2.5	1.6 / 2.5
Max lifting height	mm	2075/3033/3533	2075/3033
Wheel base	mm	1146.5	1146.5
Overall length	mm	1785	1785
Overall width	mm	800	800
Turning radius	mm	1380	1380
Driving motor	kW	0.75	0.75
Lifting motor	kW	2.2	2.2
Battery capacity	V/Ah	24/80	24/80
Service brake	-	Electro magnetic

Frequently Asked Questions

Q1: How long is the warranty for the products?

Warranty provides 24 months or 2500 hours for the whole machine from on board time.

Q2: What is the typical delivery time?

Usually production time is 15-20 days after receiving the advanced payment. Standard products may be available in stock for immediate delivery.

Q3: How long is the continuous working time and charging time?

Continuous working time is around 4-6 hours. Charging takes about 5 hours. The charger is intelligent and stops automatically when the battery is full.

Q4: What is the expected battery working life?

The batteries are based on DIN standards and can work for approximately 6 years under normal conditions.

Q5: Are customized products like OEM or ODM available?

Yes, customized products per request are available, and both OEM and ODM are acceptable for non-standard equipment.

Q6: What are the charger specifications?

Charger voltage can be configured for 110V, 220V, 240V, 380V, or 415V (1 or 3 phases, 50/60HZ). Power plugs can meet USA/UK/AUSTRALIA/EUROPEAN standards.
