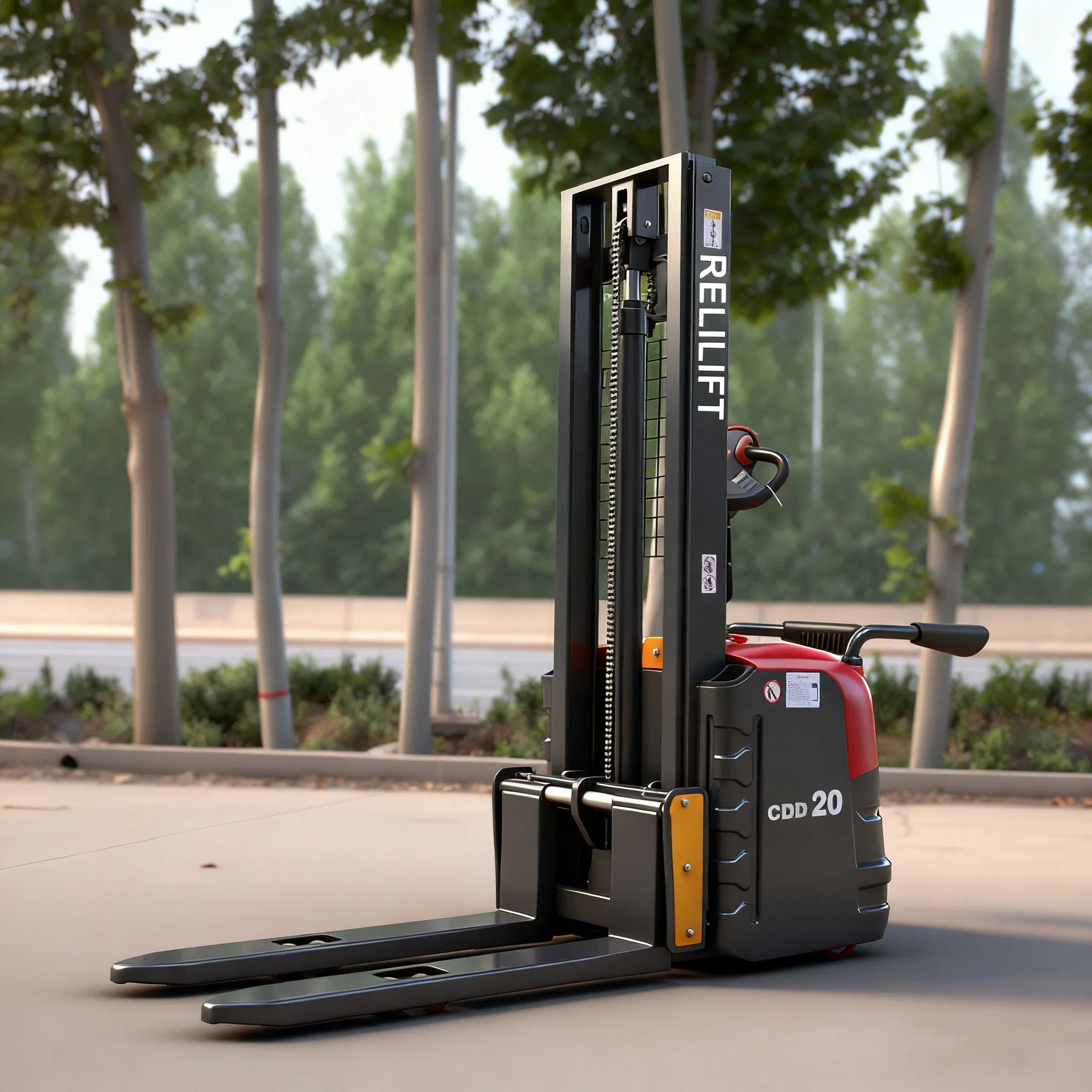

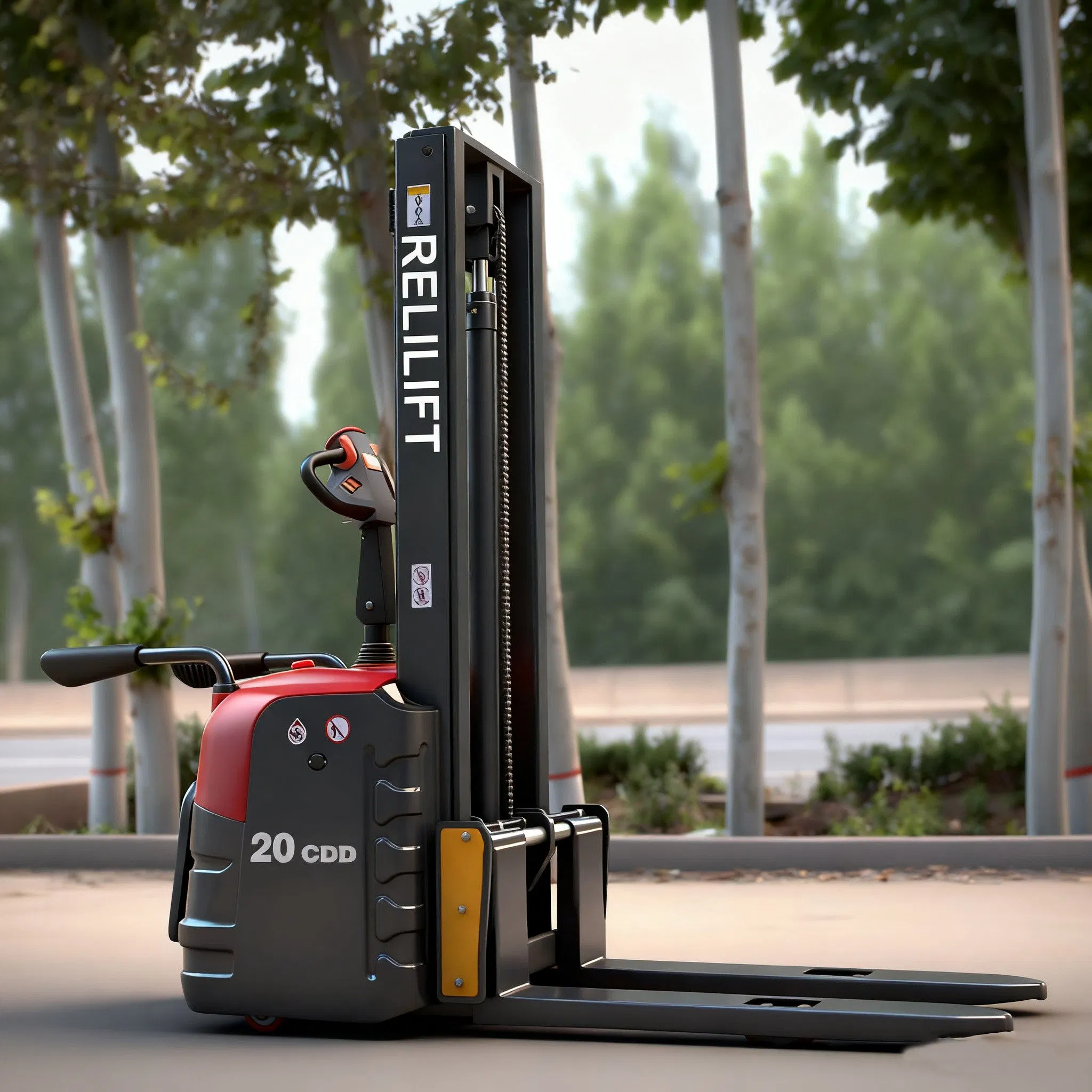

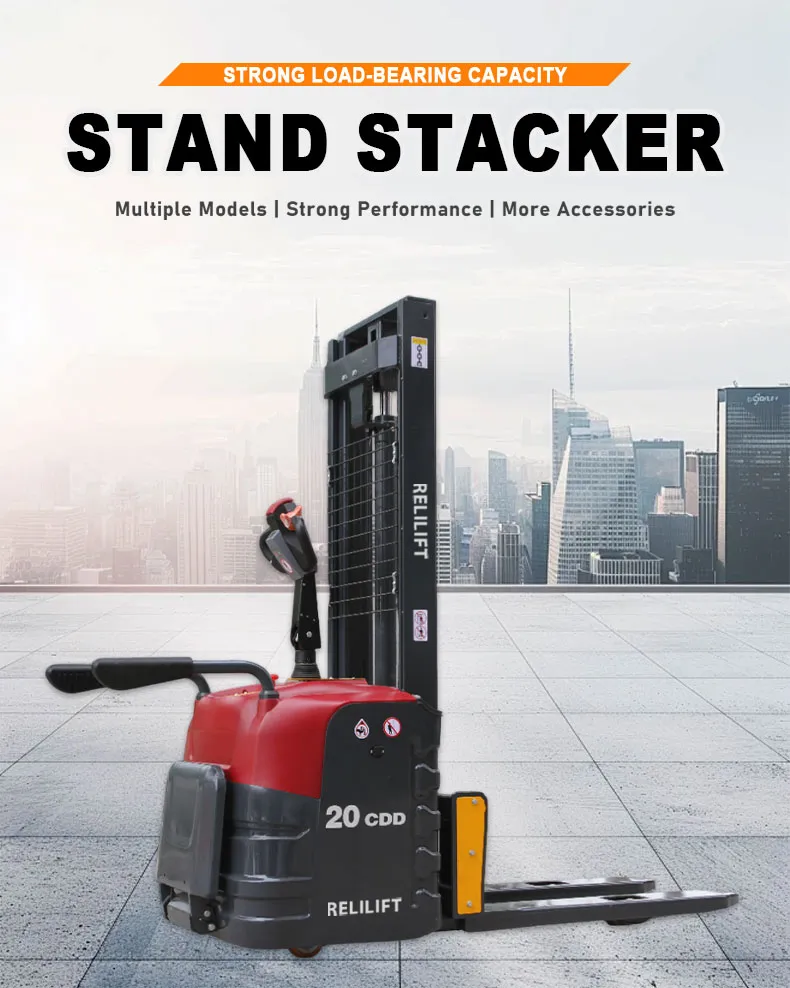

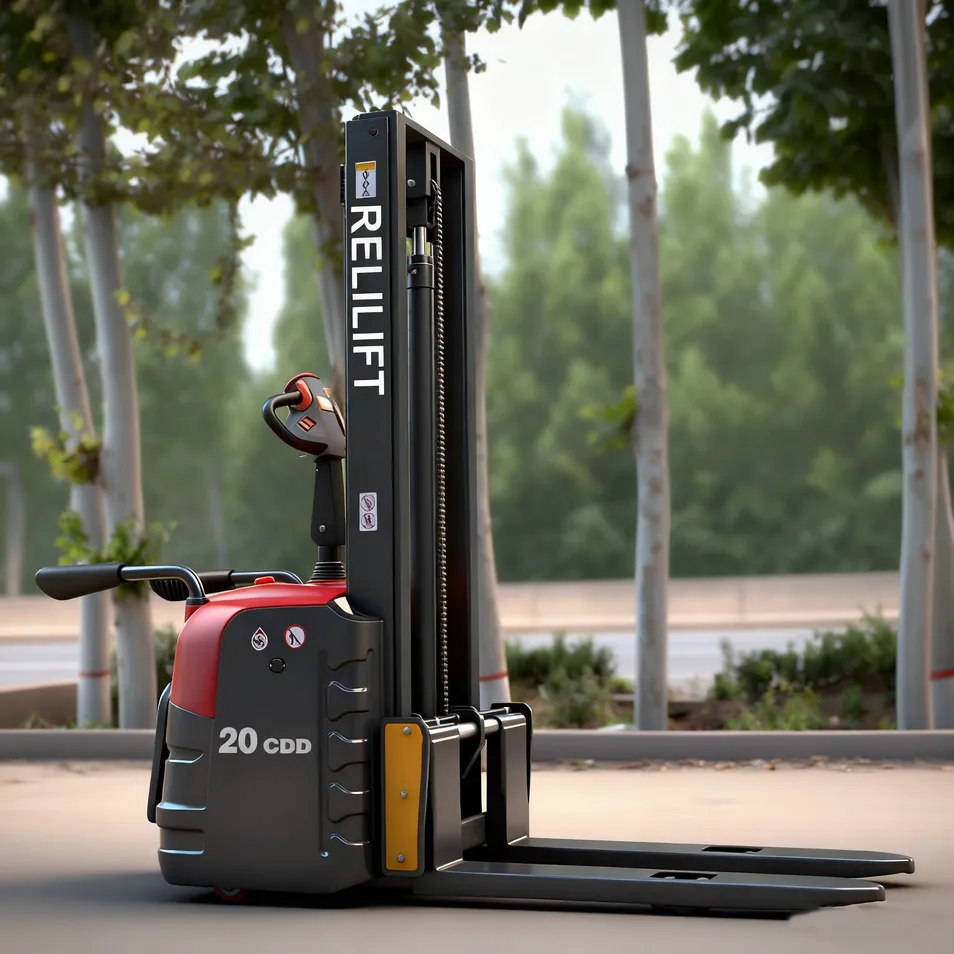

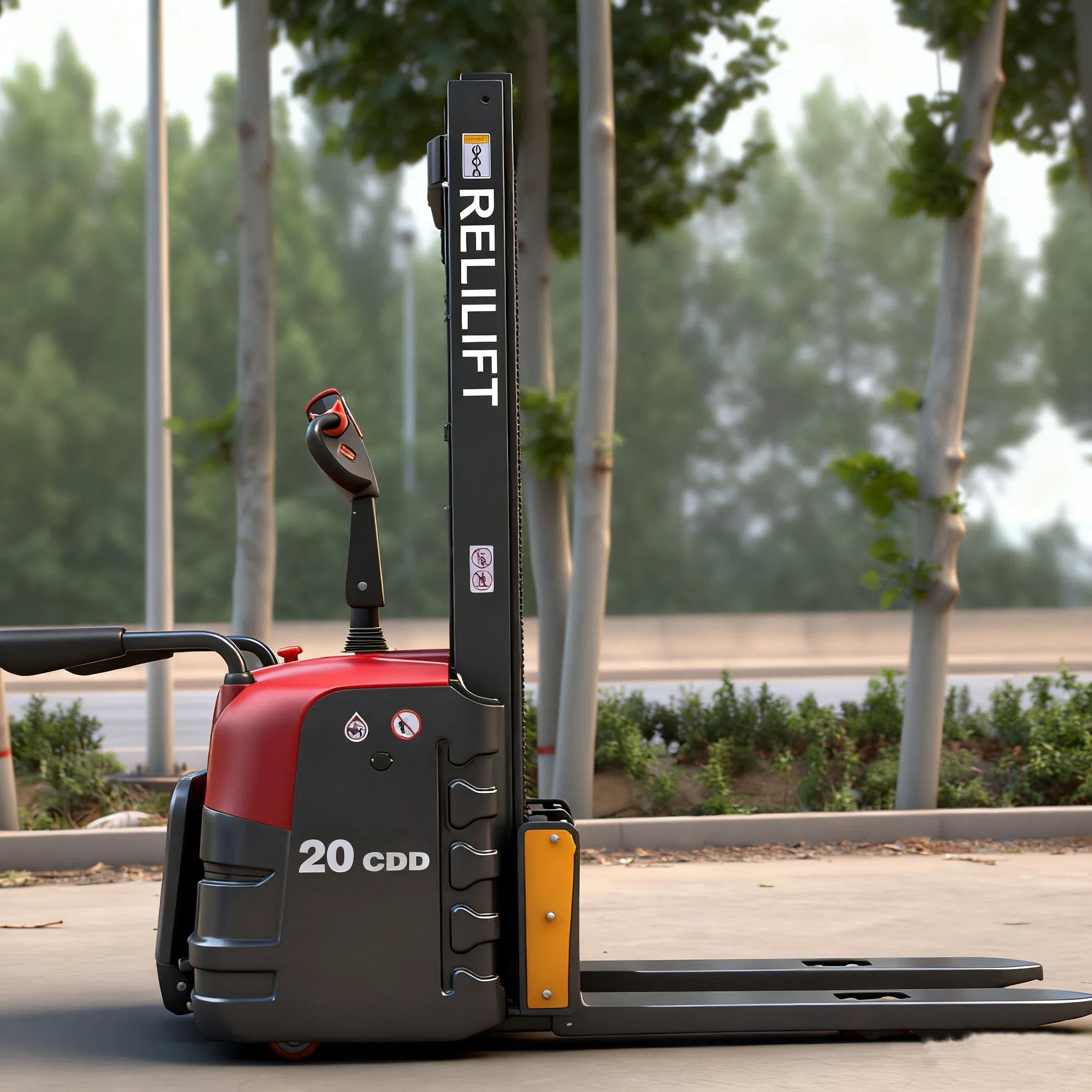

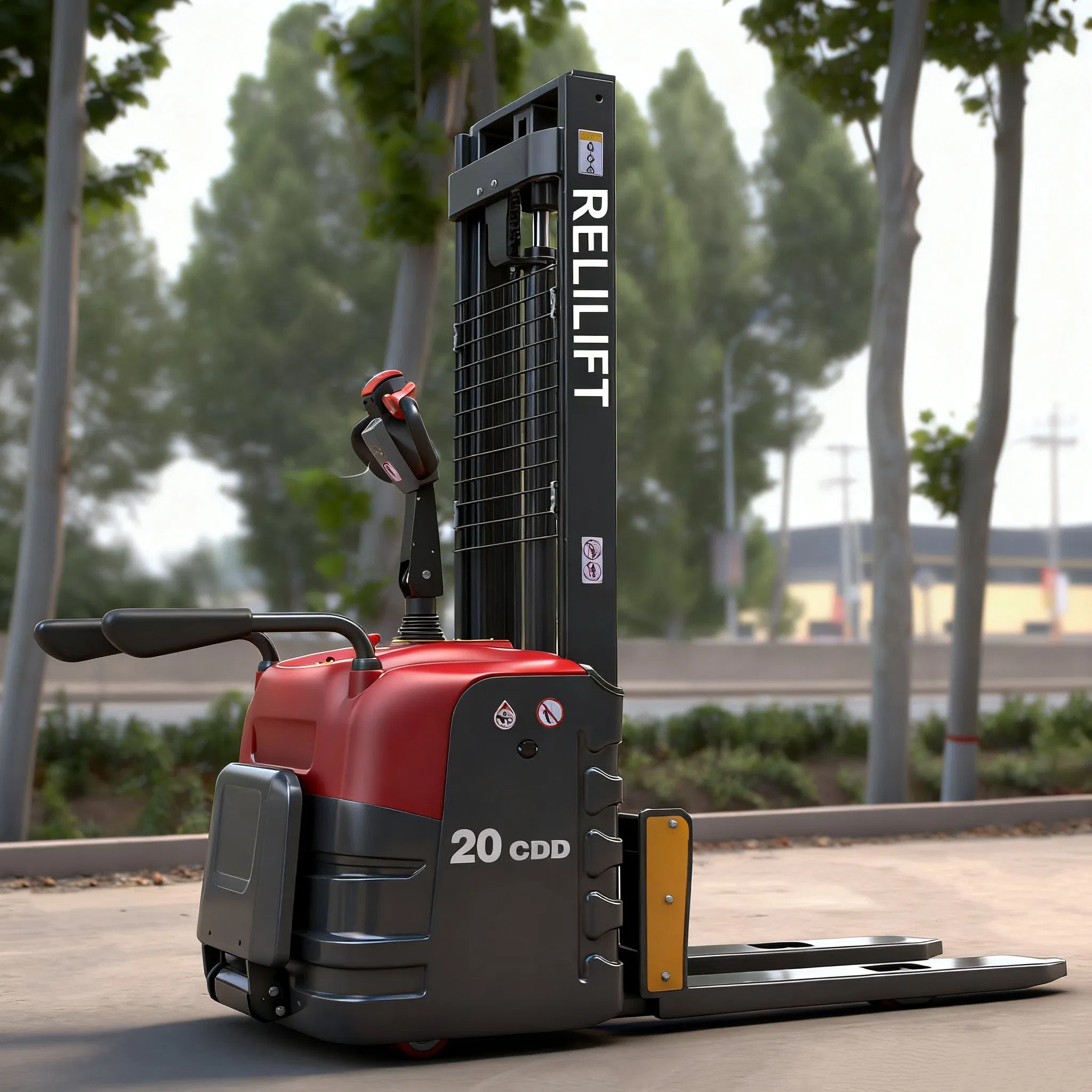

Our 2T Electric Stacker Truck is a heavy-duty material handling solution engineered for safe, efficient, and reliable handling of bulky, high-weight cargo—including heavy pallets, industrial components, and large cartons. Equipped with a reinforced frame and high-power electric drive system, it balances strong lifting performance with stable operation.
| No. | Feature | Unit | CDD2020 | CDD2025 | CDD2030 | CDD2035 |
|---|---|---|---|---|---|---|
| General Performance | ||||||
| 1.3 | Power Type | - | Battery | |||
| 1.4 | Operation Type | - | Stand-on | |||
| 1.5 | Load Capacity | kg | 2000 | |||
| 1.6 | Load Center | mm | 500 | |||

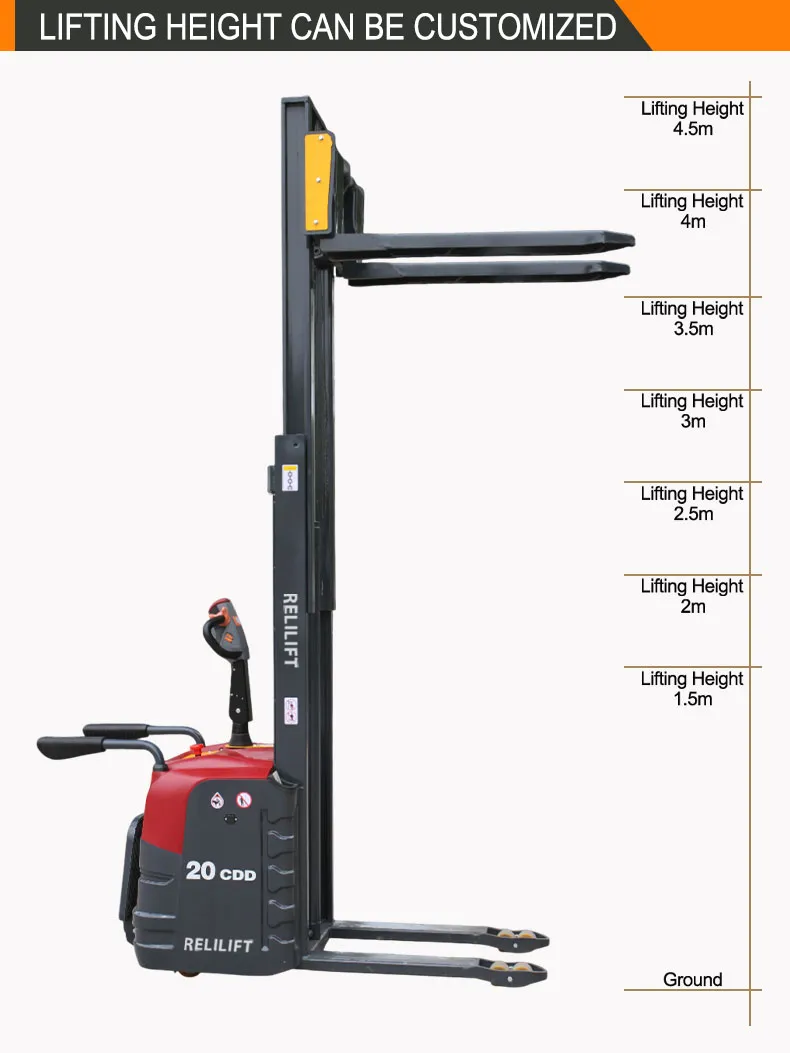

| 1.9 | Lifting Height | cm | 200 | 250 | 300 | 350 |
| Dimensions & Weight | ||||||
| 2.1 | Self Weight (inc. battery) | kg | 580 | 610 | 640 | 670 |
| 4.1 | Mast Extended Height | mm | 2400 | 2900 | 3400 | 3900 |
| 4.2 | Mast Lowered Height | mm | 1600 | 1850 | 2100 | 2350 |
| 4.9 | Overall Width | mm | 820 | |||
| 4.16 | Min. Turning Radius | mm | 1450 | |||
| Power & Speed | ||||||
| 5.1 | Travel Speed (Loaded/Unloaded) | km/h | 4.0 / 5.0 | |||
| 6.1 | Drive Motor Power | kw | 0.8 | |||
| 6.2 | Lifting Motor Power | kw | 2.2 | |||
