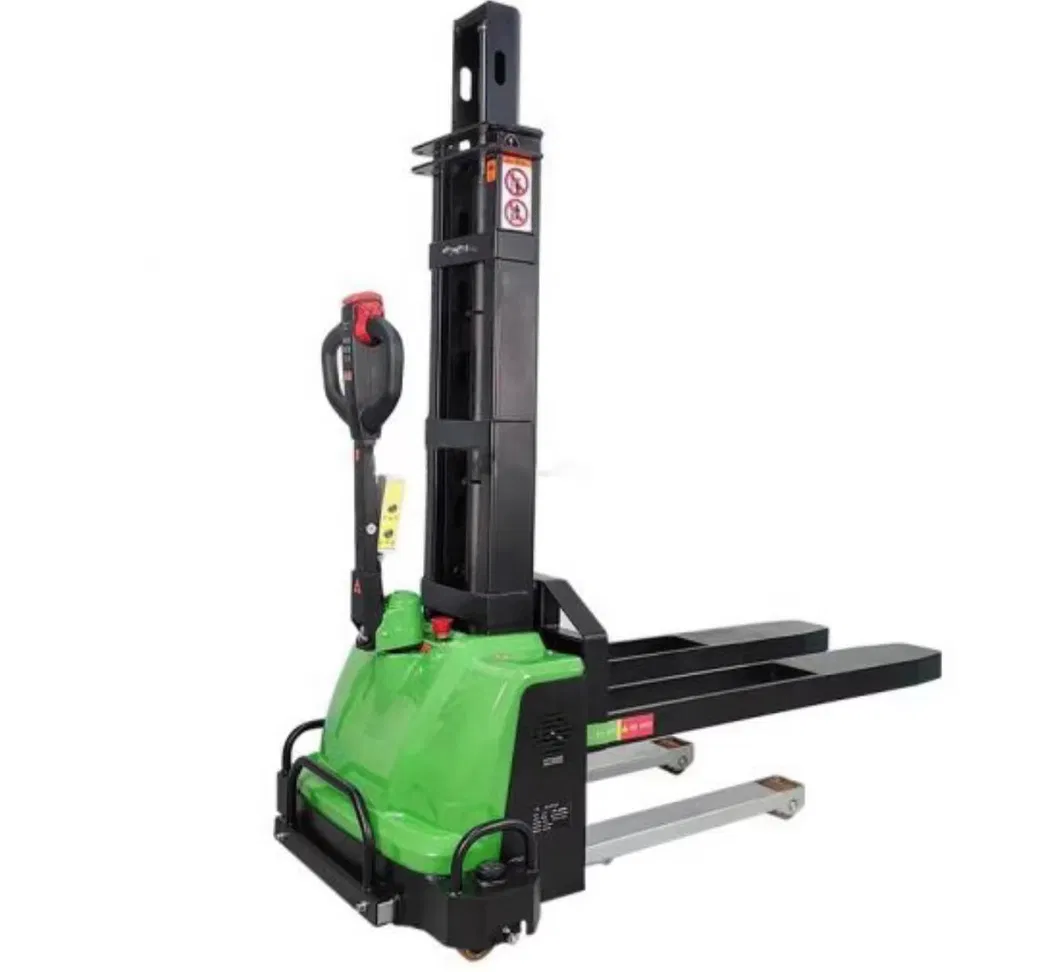

Self loading stacker: Recently hot-selling electric stackers, available in all-electric and semi-electric options. It is widely used in factories, warehouses, stations, and ports. It is more convenient and faster than ordinary stackers as it can be accompanied by empty trucks.

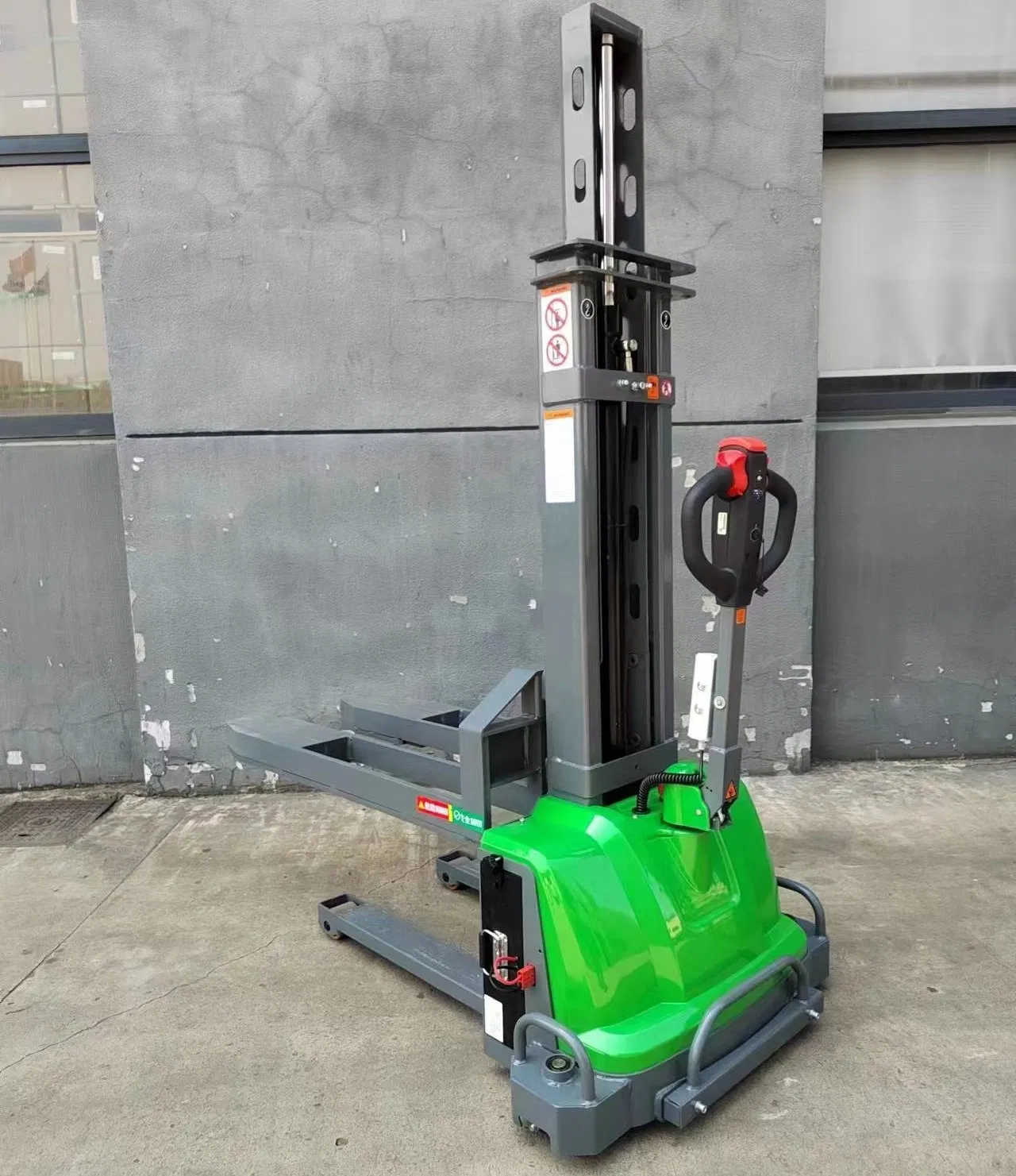

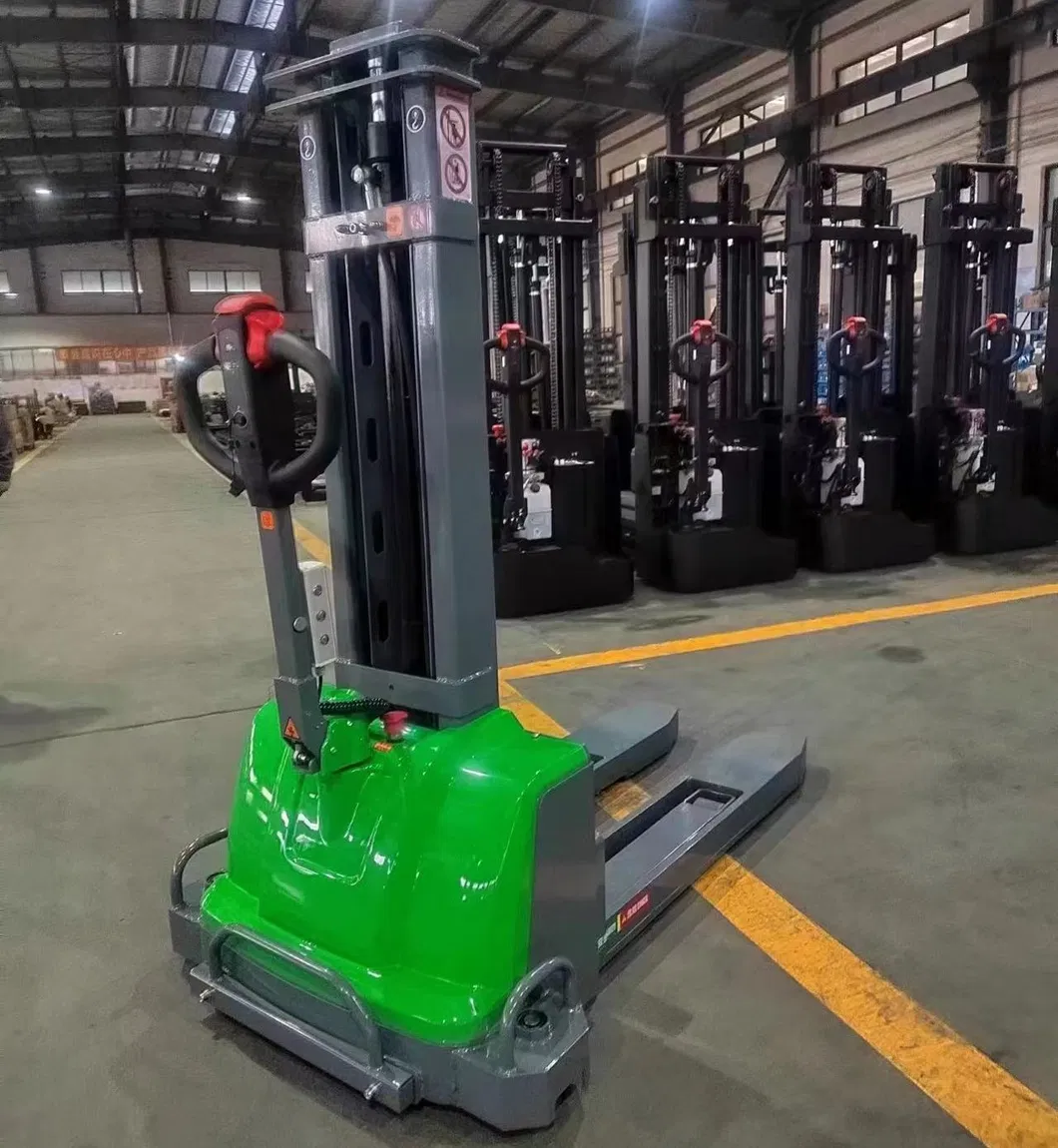

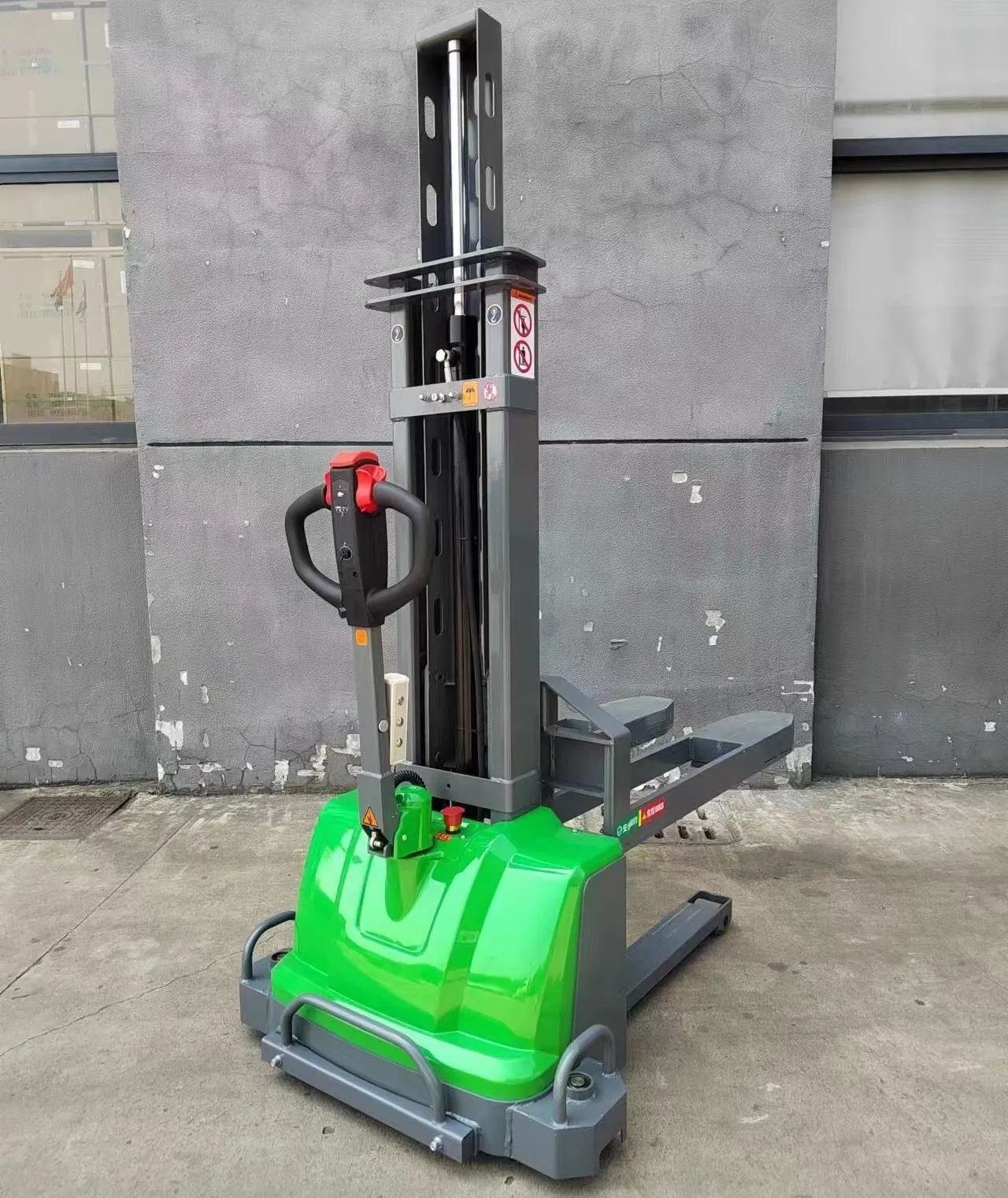

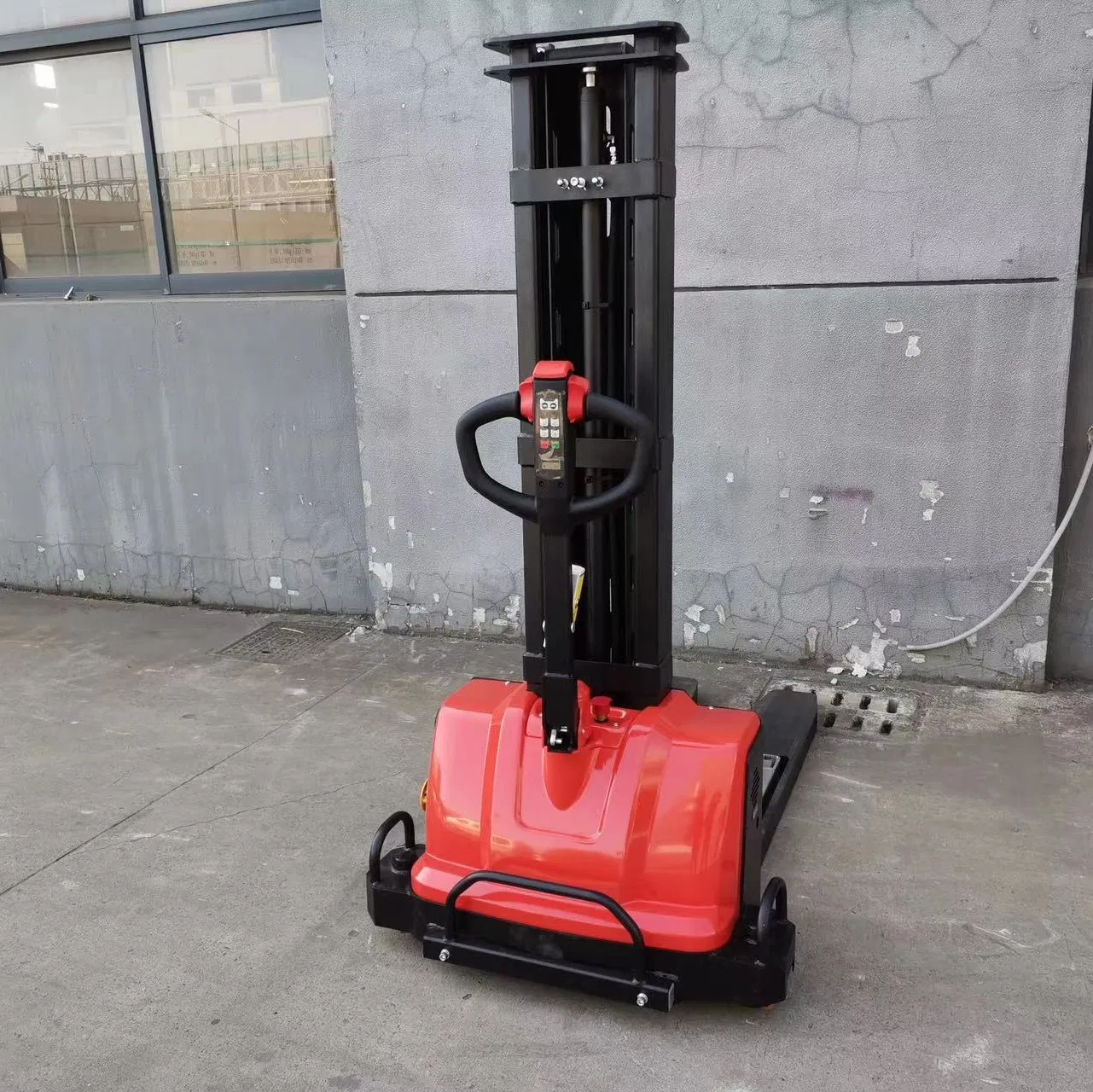

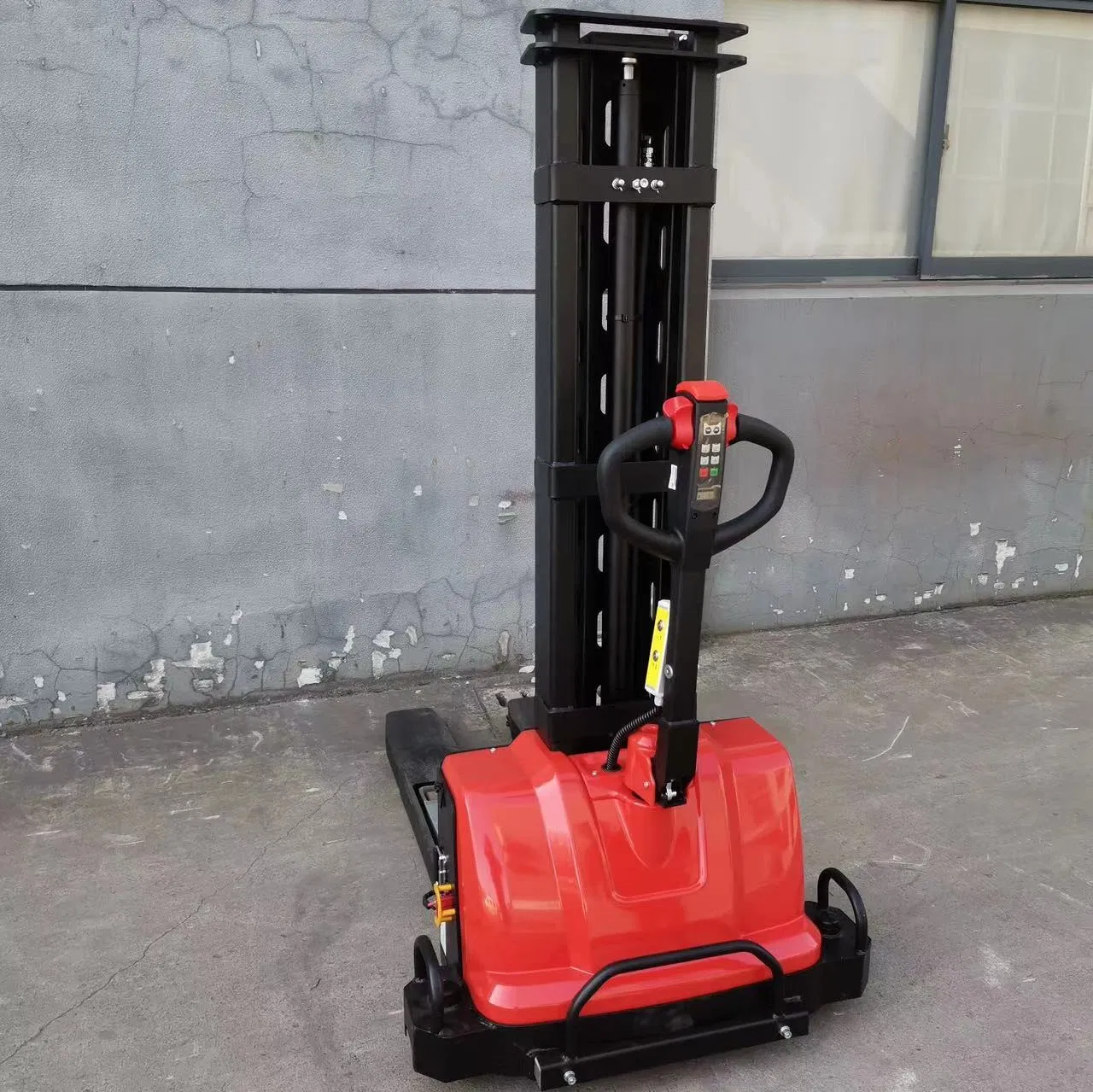

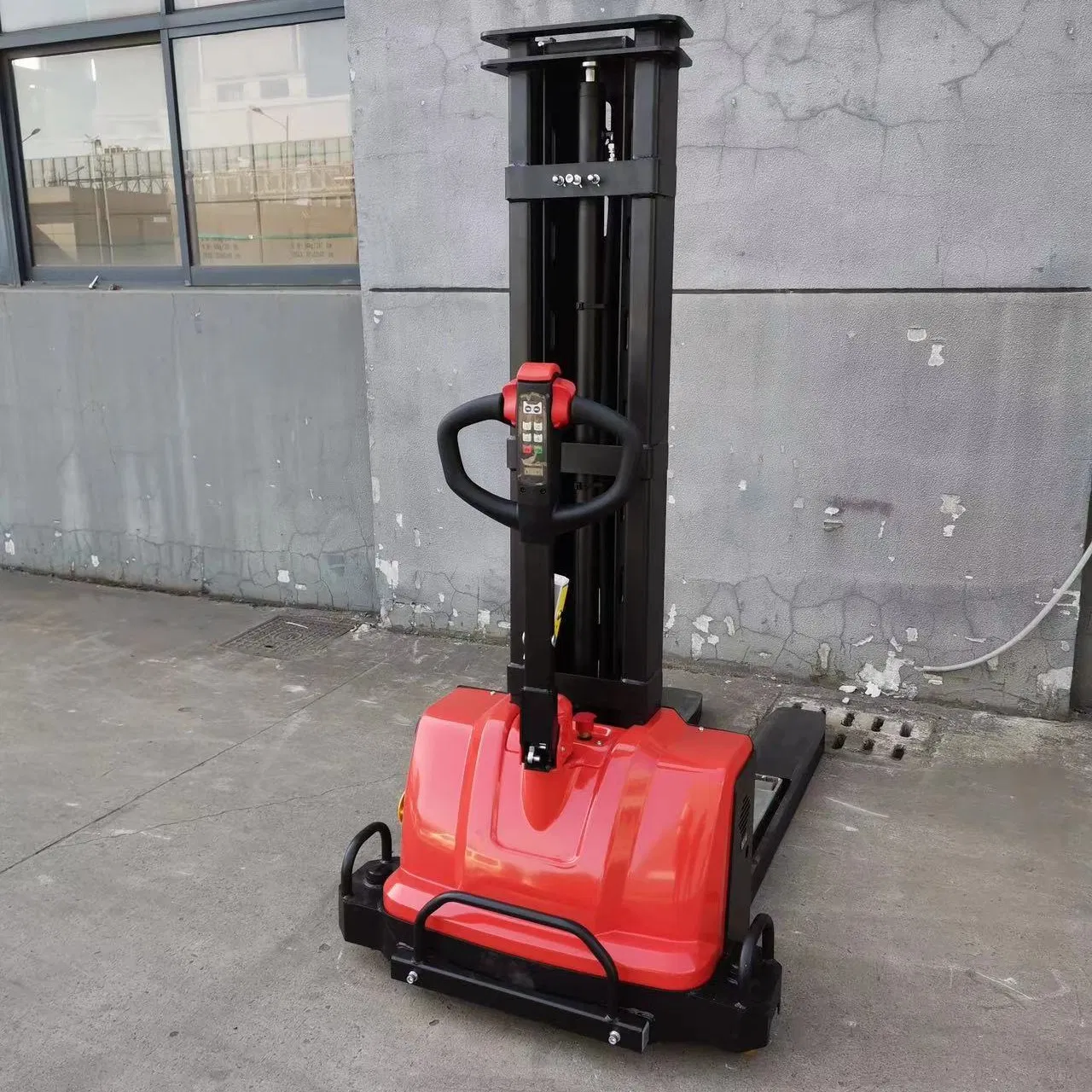

Full-electric self loading forklift, load capacity: 700kg and 1000kg optional; lift height: 800mm to 1600mm optional.

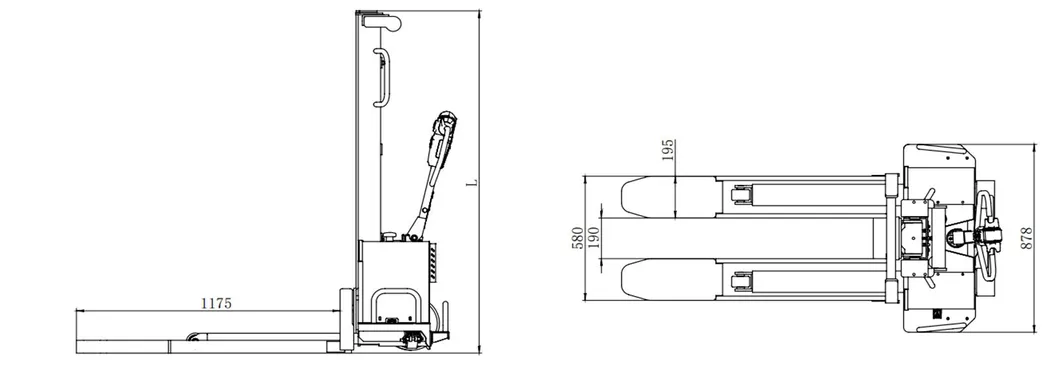

| Performance Items | Unit | ZTS-07F | ZTS-10F |
|---|---|---|---|
| Maximum load capacity | kg | 700 | 1000 |
| Load center | mm | 400 | 400 |
| Maximum lifting height | mm | 800-1600 | 800-1600 |
| Lifting speed (with load) | mm/s | 135 | 35 |
| Overall length | mm | 1660 | 1660 |
| Overall width | mm | 878 | 885 |
| Fork length | mm | 1180 | 1200 |
| Lifting motor power | kw | 0.8 | 1.2 |
| Battery capacity | v/ah | 48v/25ah | 48v/25ah |
With powerful R&D ability and advanced production technology, we ensure product quality and stable performance for electric stackers and forklifts. Our professional team provides comprehensive technical and parts support.
