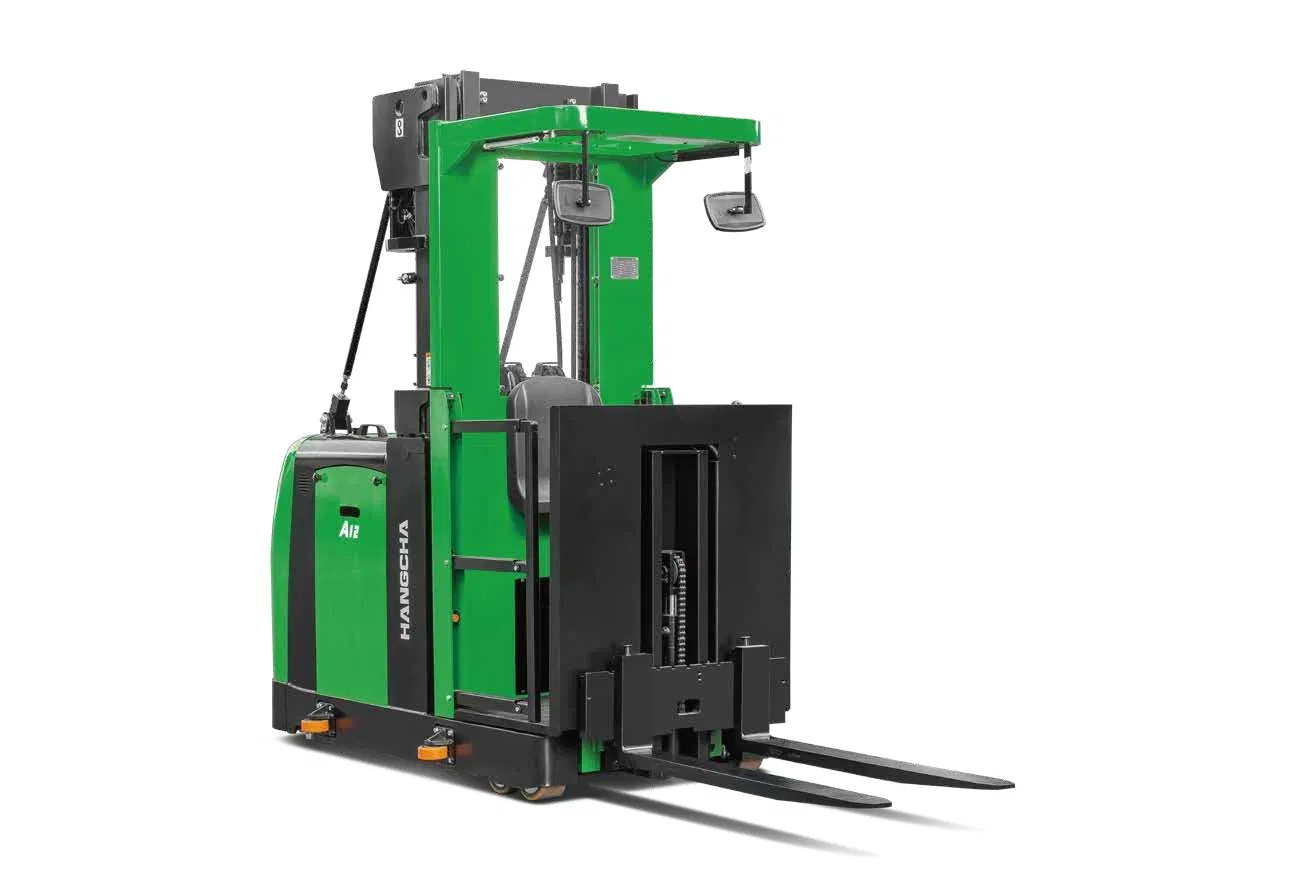

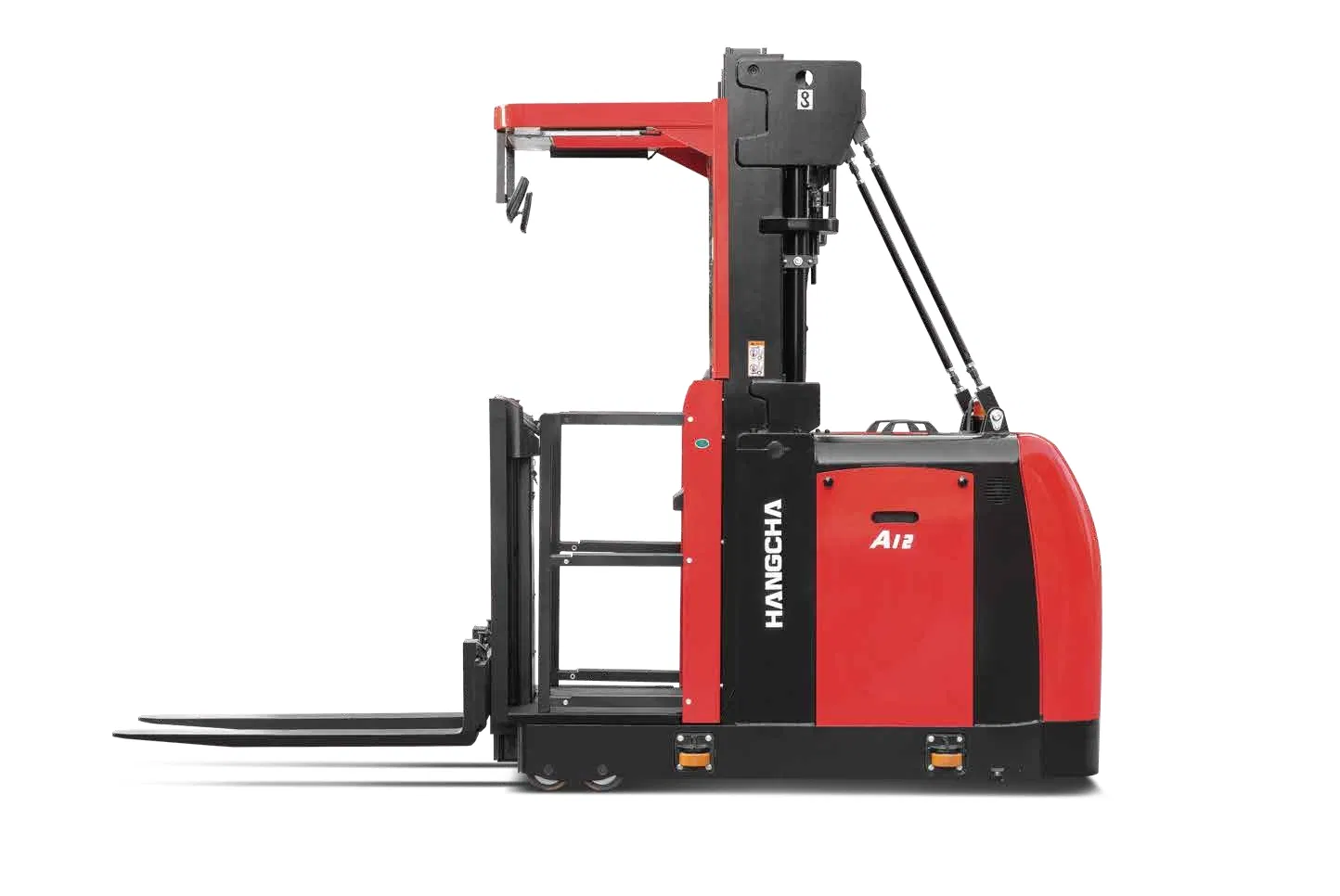

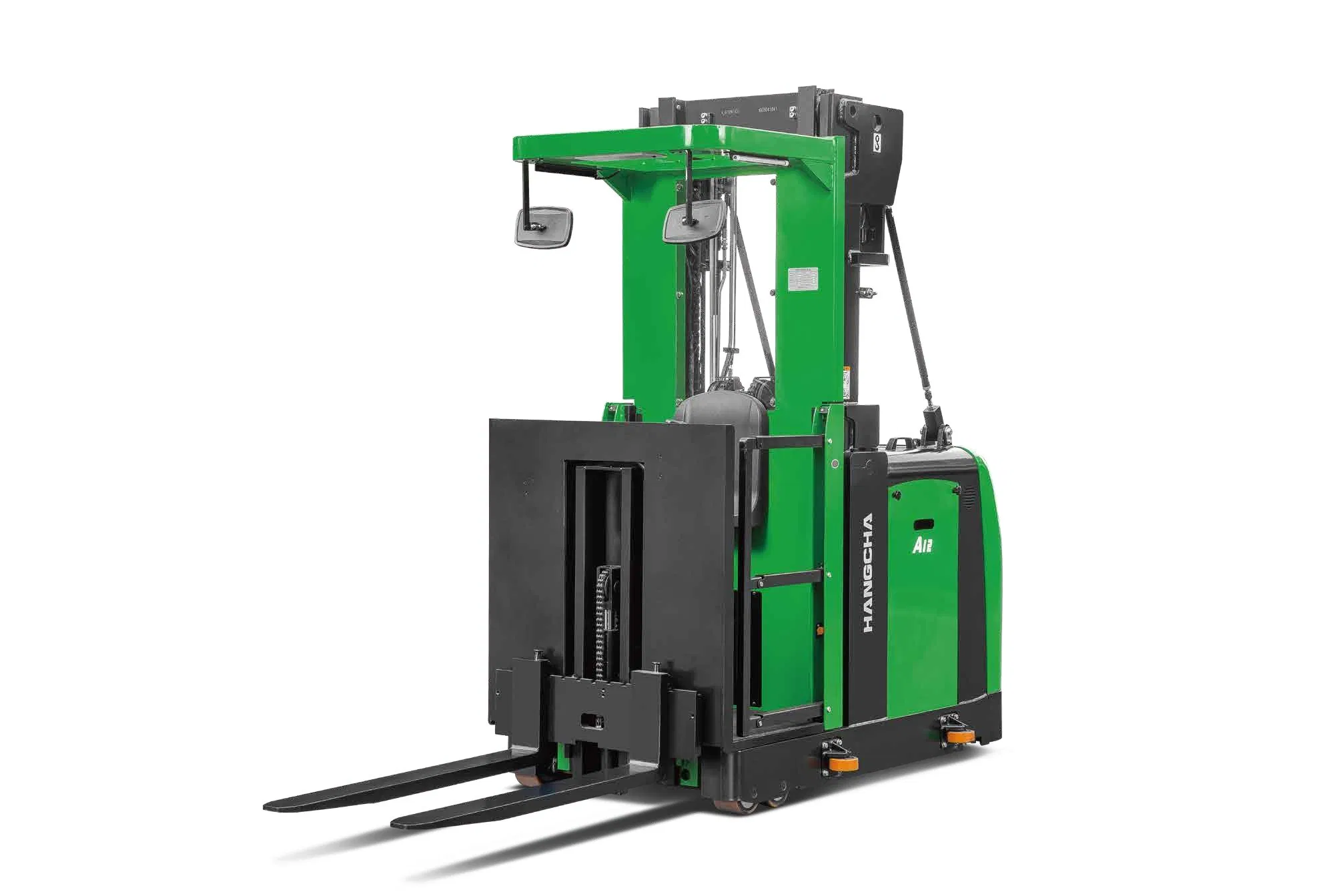

The A Series high-lift order picker is a high-end warehouse equipment providing a comprehensive safety protection system, excellent ergonomics design, and an advanced control system. Being reliable, stable, comfortable, and safe, it offers excellent performance—making it a perfect option for cargo picking in stereoscopic warehouses ranging from 5m to 10m high.
| Feature | Unit | CJD12-AC4-H | CJD12-AC4-HK | CJD12-AC4-HI | CJD12-AC4-HKI |
|---|---|---|---|---|---|
| Drive Unit | - | Electric | Electric | Electric | Electric |
| Operator Type | - | Order picker | Order picker | Order picker | Order picker |
| Rated Capacity | kg | 1200 | 1200 | 1200 | 1200 |
| Load Centre Distance | mm | 400 | 400 | 400 | 400 |
| Wheelbase | mm | 1566 | 1566 | 1566 | 1566 |
| Service Weight (incl. battery) | kg | 3960 | 3810 | 3960 | 3810 |
| Tyre Material | - | PU | PU | PU | PU |
| Lift Height (h3) | mm | 5000 | 5000 | 5000 | 5000 |
| Overall Length | mm | 3400 | 3400 | 3400 | 3400 |
| Travel Speed (laden/unladen) | km/h | 10/10 | 10/10 | 10/10 | 10/10 |
| Lift Speed (laden/unladen) | mm/s | 371/411 | 371/411 | 371/411 | 371/411 |
| Battery Voltage | V/Ah | 48/620 | 48/620 | 48/500 | 48/500 |
