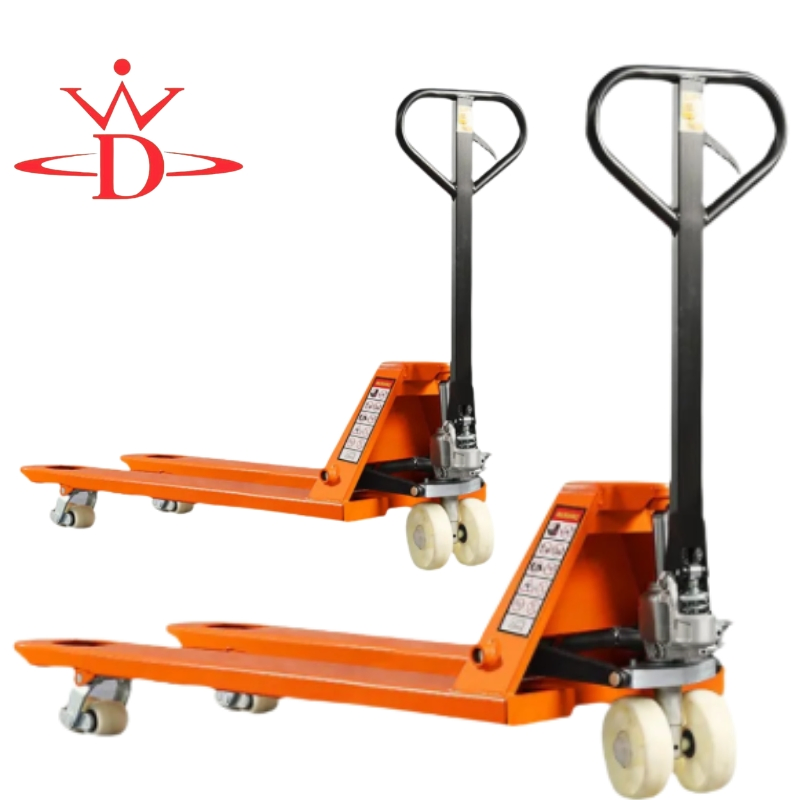

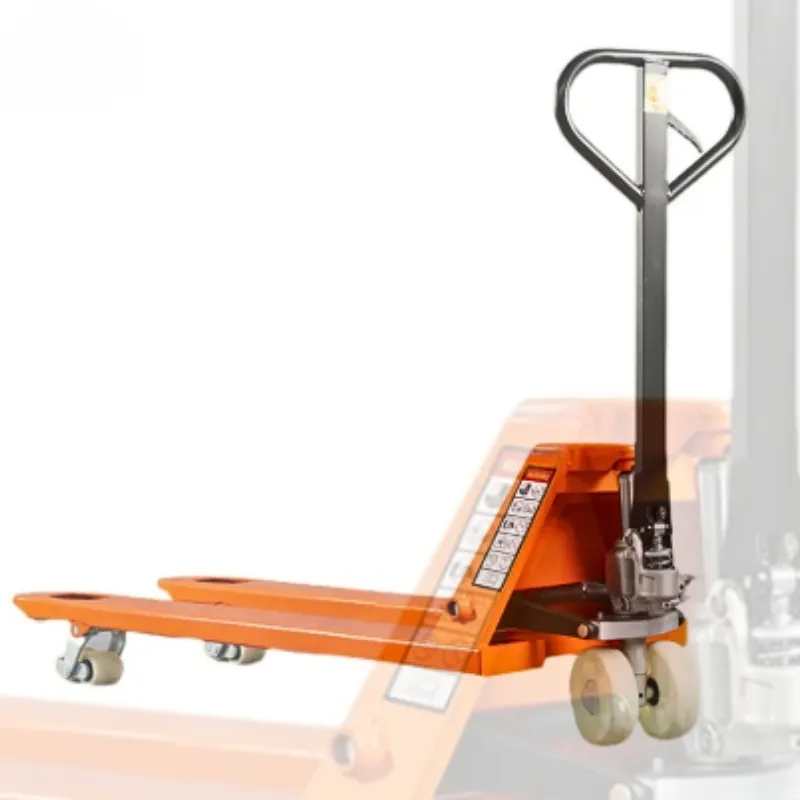

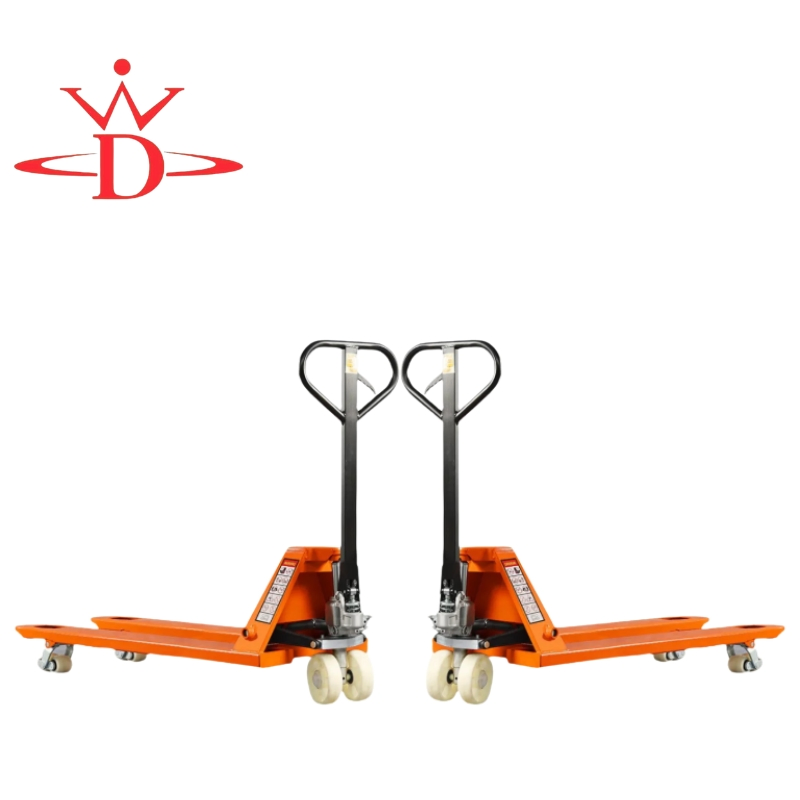

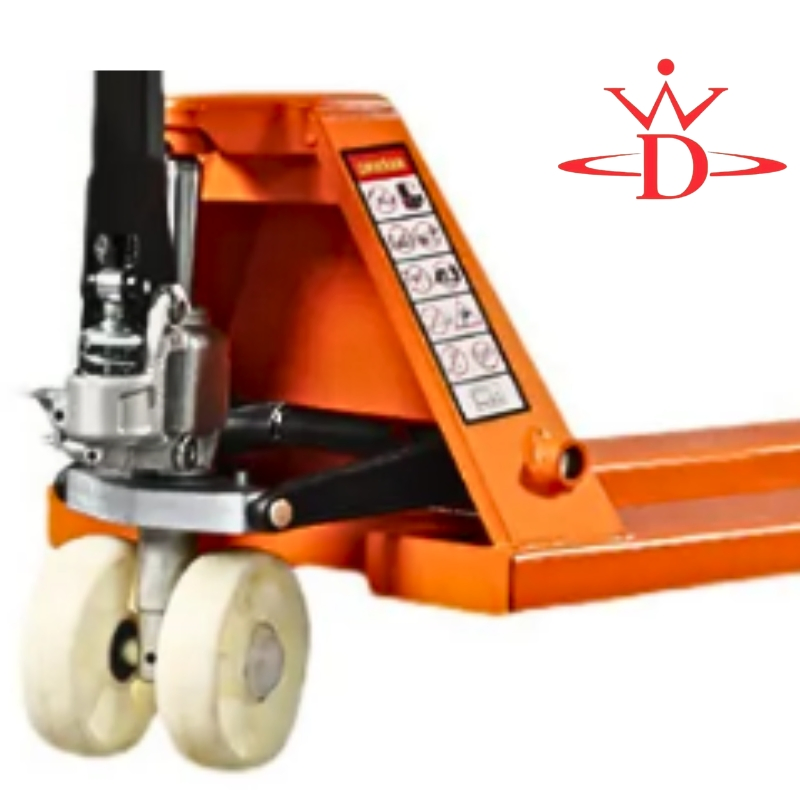

The Hand Pallet Truck, or "pallet jack," is a fundamental tool in modern logistics. It is designed to be safe, reliable, and exceptionally user-friendly. Perfectly versatile for warehouses and industrial environments, it enables the efficient lifting and moving of various pallet loads.
Rated Load Capacity: 2000kg, 3000kg, 5000kg
| ITEM No. | DW-F20 | DW-F30 | DW-F50 |
| Rated load capacity Q/kg | 2000 | 3000 | 5000 |
| Standard load center distance D/mm | 575/610 | 575/610 | 575/610 |
| Minimum fork height h13/mm | 80 | 80 | 85 |
| Maximum fork lifting height h3/mm | 195 | 195 | 200 |
| Maximum fork outer distance b5/mm | 550/685 | 550/685 | 550/685 |
| Fork length l/mm | 1150/1220 | 1150/1220 | 1150/1220 |
| Weight G0/kg | 63-69 | 65-71 | 110-115 |
| Steering wheel mm | Φ180*50 | Φ180*50 | Φ175*52 |

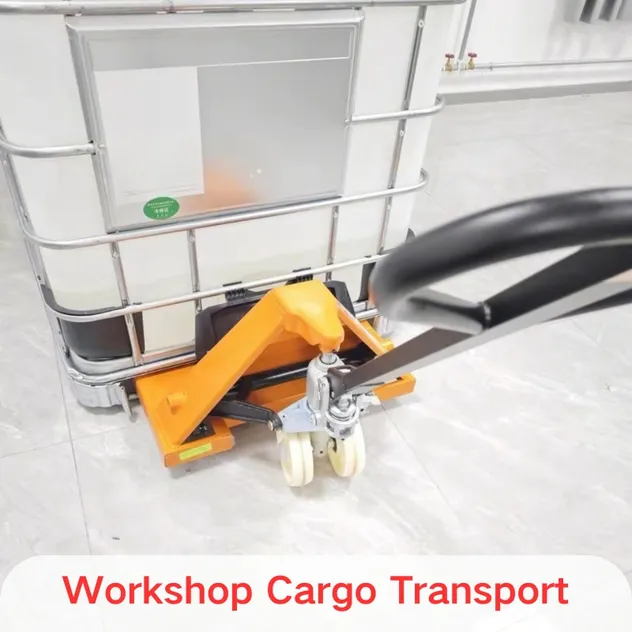

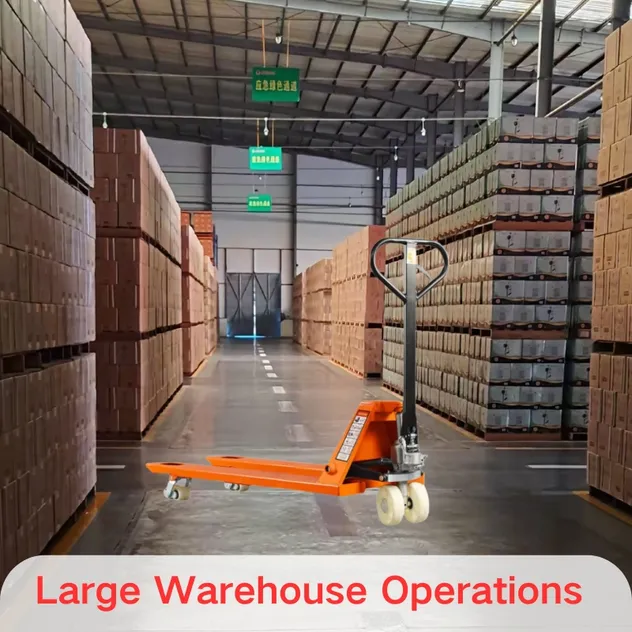

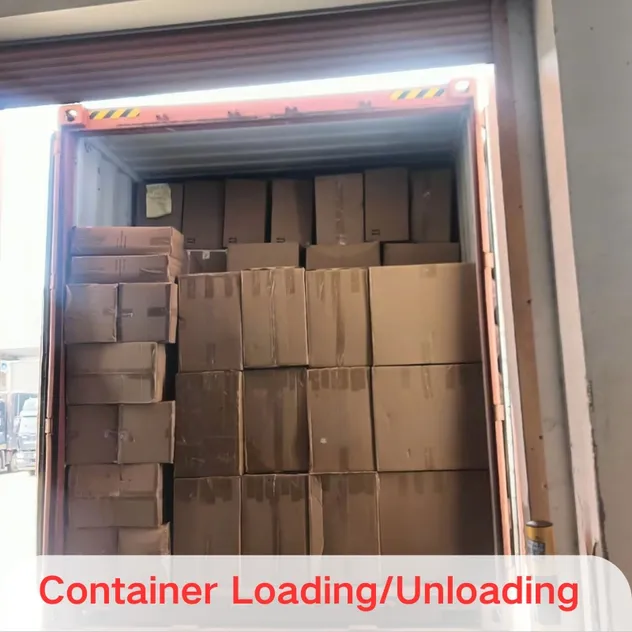

Industries utilize hand pallet trucks for various critical tasks:

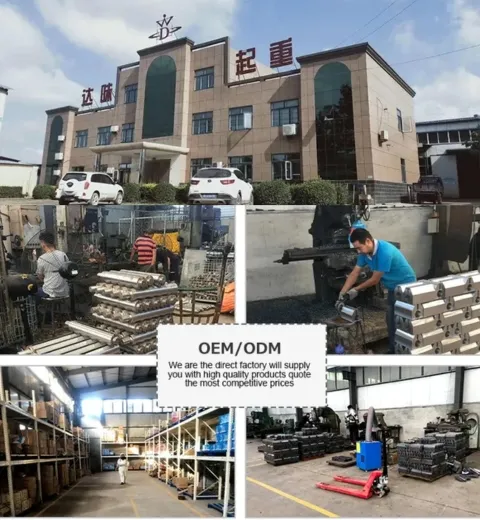

Since 1985, our team has excelled in R&D and high-tech hoisting machinery. We craft professional-grade lifters, trolley movers, balancers, cranes, and tools, offering cost-effective solutions to global markets.
Our products serve construction, logistics, and ports worldwide, with significant exports to the USA, Russia, Australia, and South Korea. We are proud to be ISO9001 & CE certified, ensuring our gear meets the highest international safety and efficiency standards.
