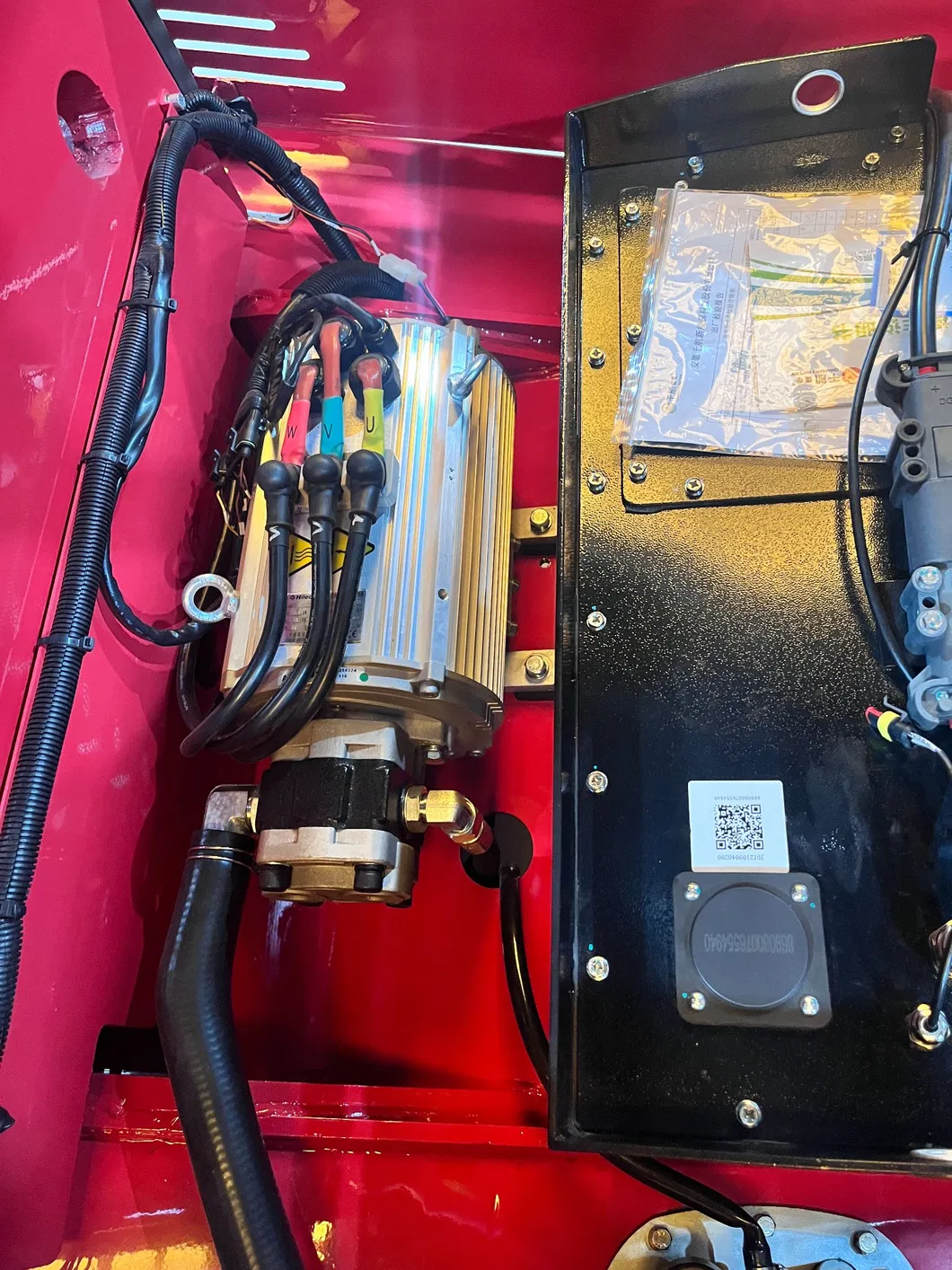

1. The working principle of the electric/battery forklift truck is to drive the motor to drive the wheel movement through the battery power supply, so as to achieve the handling and stacking of goods.
2. Electric/battery forklift trucks have many advantages. First, they use electricity instead of fuel, so they are more environmentally friendly, reducing tailpipe emissions and noise pollution. Secondly, the maintenance cost of electric forklifts is low.
3. Because electric/battery forklift trucks do not have fuel systems and engines, they reduce the frequency and cost of repairs and maintenance. In addition, electric forklifts also have higher energy efficiency and better handling, improving work efficiency and operational safety.

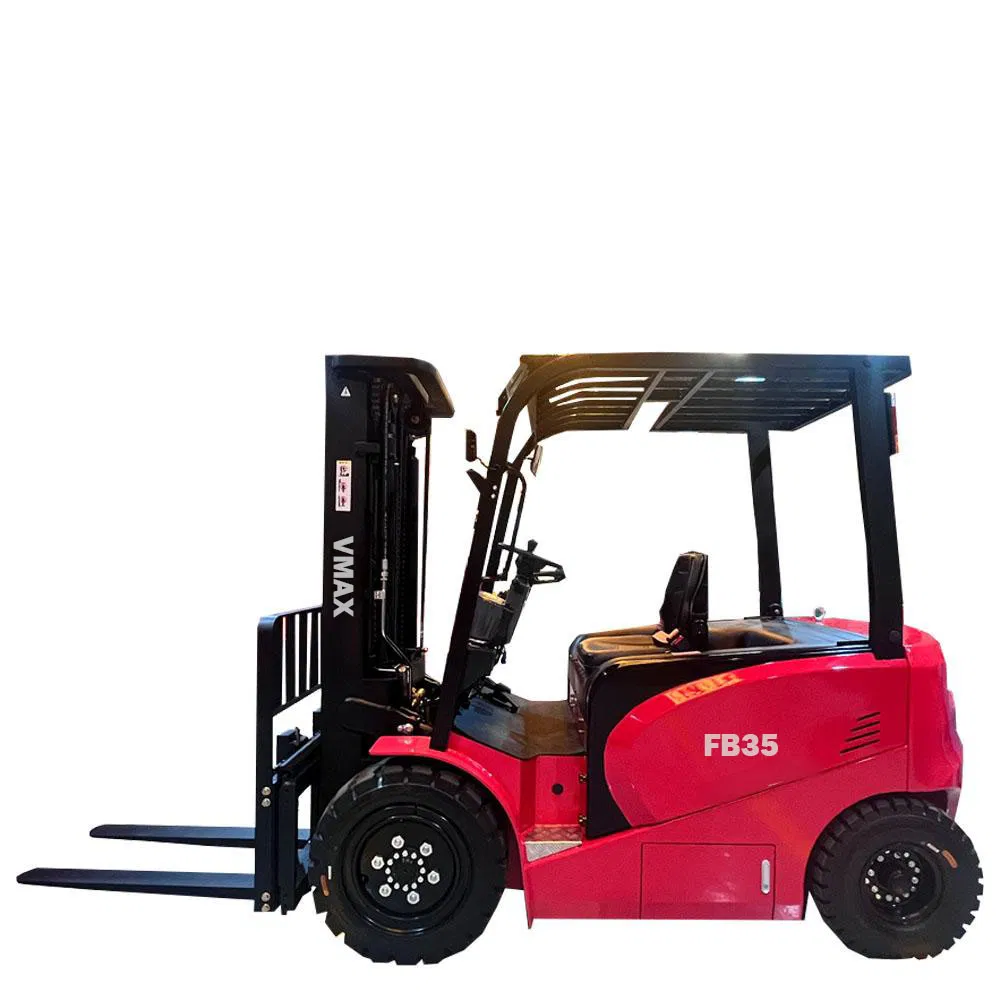

| Item | Specification | Unit | FB20 | FB25 | FB30 | FB35 |
|---|---|---|---|---|---|---|
| 1 | Controller Type | - | ZAPI AC / CURTIS AC+ DC | |||
| 2 | Rated capacity | kg | 2000 | 2500 | 3000 | 3500 |
| 3 | Load centre | mm | 500 | 500 | 500 | 500 |
| 4 | Lift height | mm | 3000 | 3000 | 3000 | 3000 |
| 5 | Length (to forkface) | mm | 2375 | 2400 | 2615 | 2670 |
| 6 | Turning radius (Min.) | mm | 2080 | 2100 | 2280 | 2335 |
| 7 | Travel Speed (Laden) | km/h | 12 | 12 | 11 | 12 |
| 8 | Lifting Speed (Laden) | mm/s | 290 | 250 | 220 | 220 |
| 9 | Self weight | kg | 4130 | 4300 | 5060 | 5380 |
