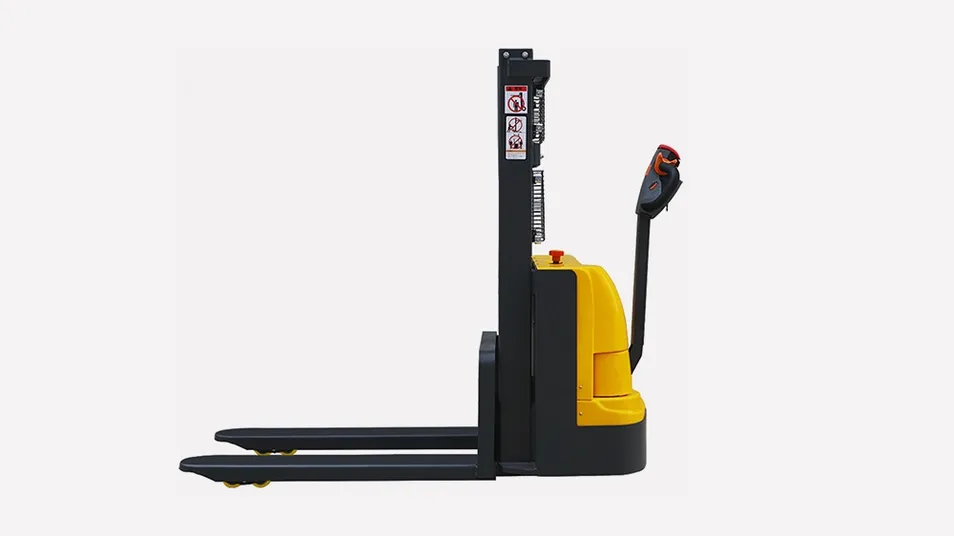

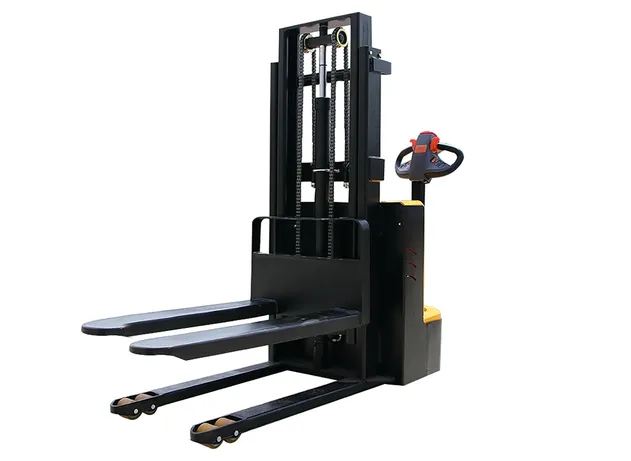

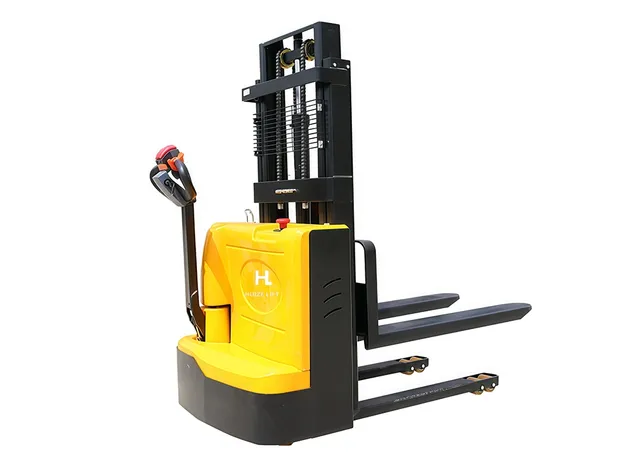

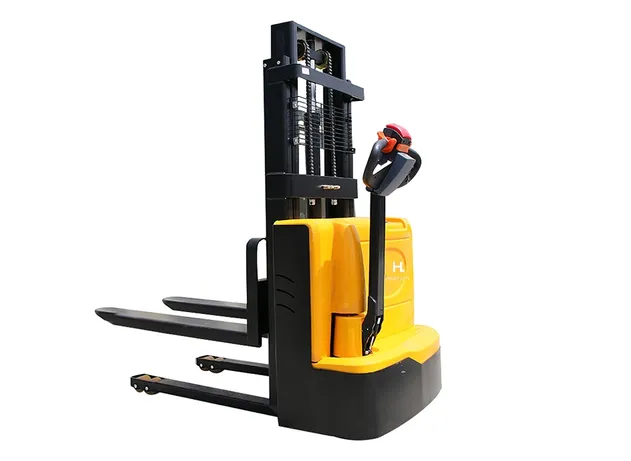

High Quality Walkie Type Battery Pallet Stacker / Mini Full Electric Forklift
This fully mini electric pallet stacker features an ultra-small turning radius, allowing it to navigate easily through narrow passageways where large forklifts are restricted. It effectively solves the high-cost problem of accessing narrow lanes. Ideal for factories, warehouses, and logistics storage for efficient loading, unloading, and short-distance stacking.
Applications
Key Configurations
| Model | Unit | CDD-A10 | CDD-A15 |
|---|---|---|---|
| Drive mode | / | Electric (Battery) | Electric (Battery) |
| Driving style | / | Walk | Walk |
| Rated load | Q(kg) | 1000 | 1500 |
| Self weight | kg | 418-526 | 418-526 |
| Wheel material | / | PU wheel | PU wheel |
| Driving speed (Full/No load) | Km/h | 4 / 5.6 | 4 / 5.6 |
| Lift speed (Full/No load) | m/s | 0.08 / 0.1 | 0.08 / 0.1 |
| Service brake | / | Electromagnetic | Electromagnetic |
| Drive motor power | kw | 0.75 | 0.75 |
| Battery 24V | AH | 80 | 80 |

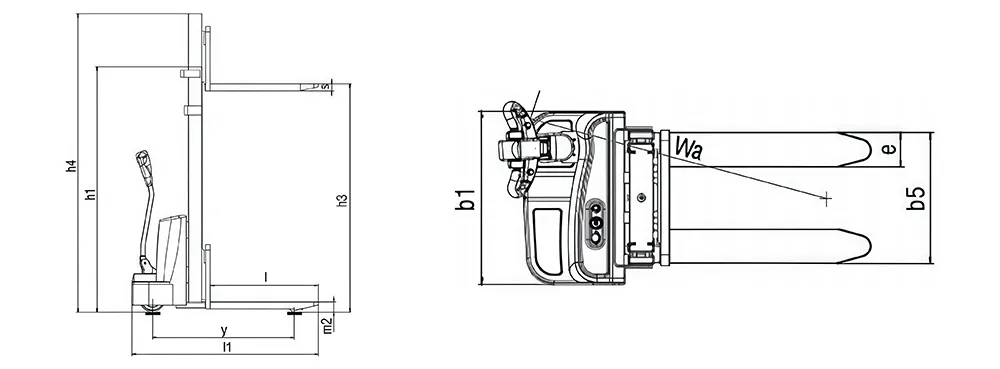

| Parameter | Unit | Value |
|---|---|---|
| Load center distance | mm | 500 |

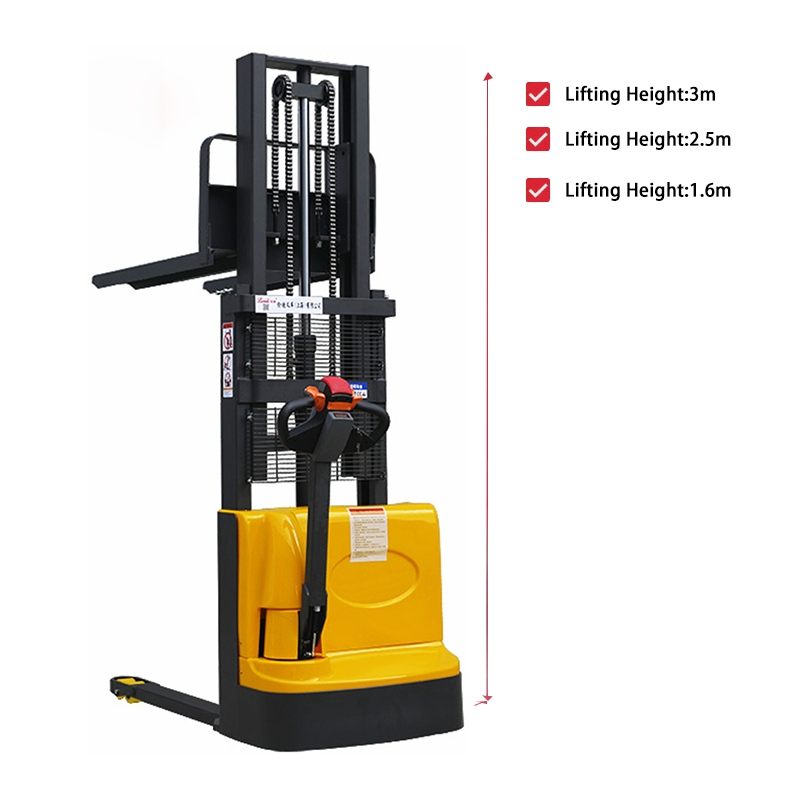

| Lifting height | mm | 1600/2000/2500/3000/3500 |
| Overall length | mm | 1760 |
| Body width | mm | 800 |
| Turning radius | mm | 1370 |
| Fork size | mm | 60/170/1100 |
